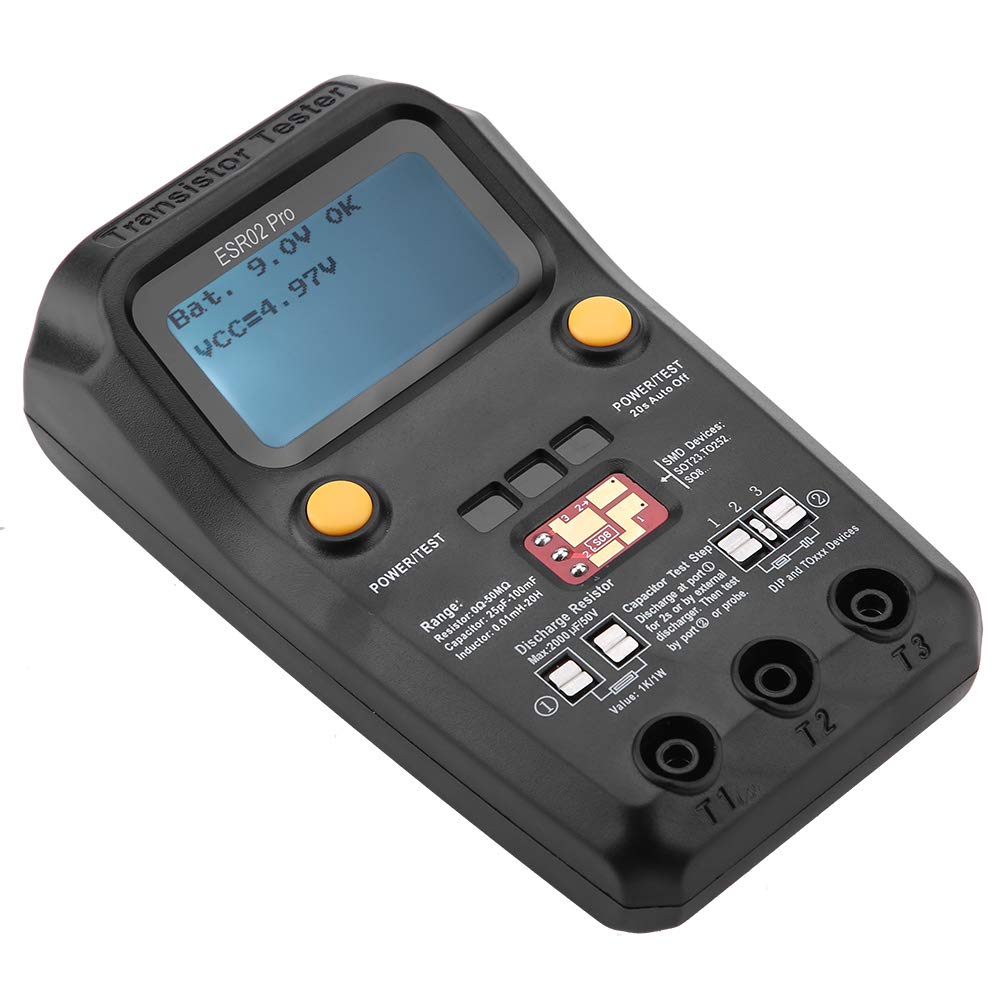

BSIDE ESR02 Pro Digital Transistor Tester, Transistor Meter SMD Chip Component Inductance Meter

• A key operation, boot test, a key to get.
• Automatic detection of components such as NPN, PNP bipolar transistors, N-channel and P-channel MOSFET, diodes (Including double diodes), thyristors, transistors, resistors and capacitors, etc.
• Large LCD display with backlight function for easy reading.

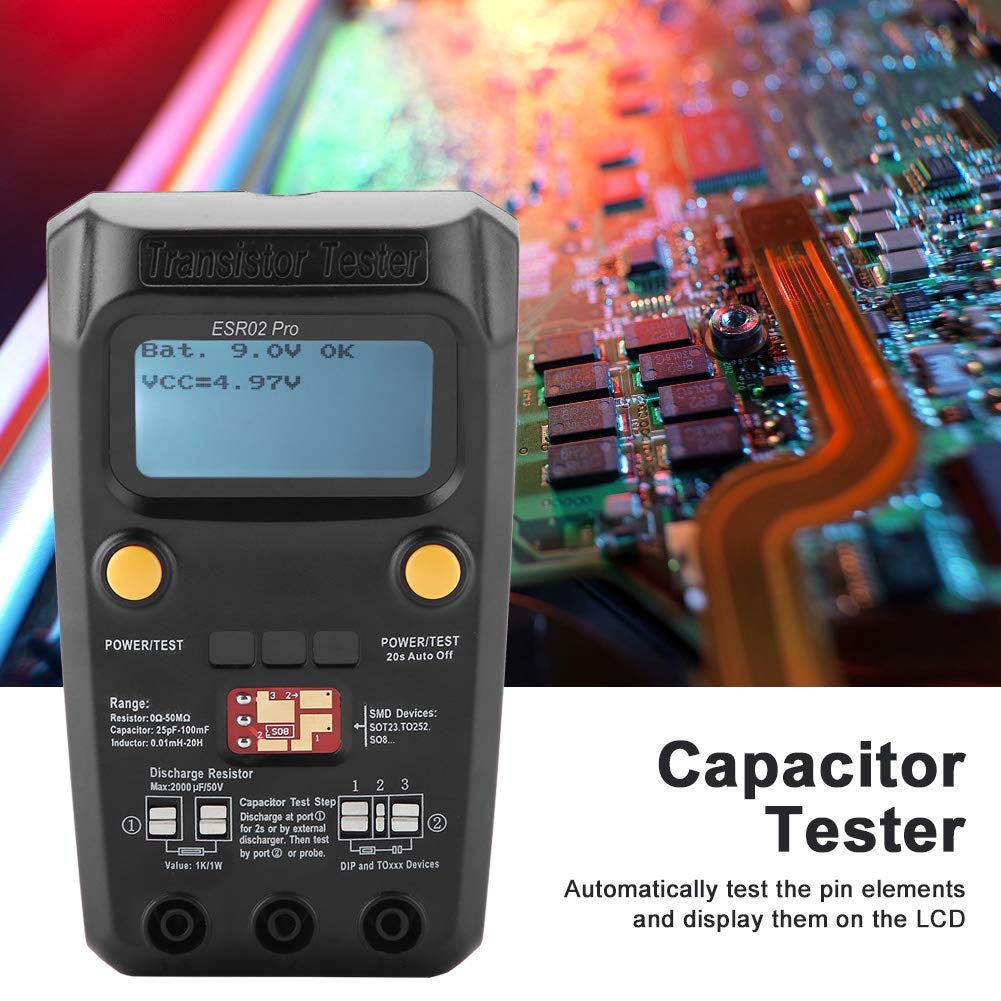

• Automatically test the pin elements and display them on the LCD.
• Can detect transistor emitter forward bias voltage, MOSFET protection diode and amplification factor reference.

Specification: Brand: BSIDE Model: ESR02 Pro Resistor: 0Ω~50Ω, Resolution: 0.01 ohm Capacity: 25pF~100mF, Resolution: 1pF Inductance: 0.01mH~20H, Resolution: 0.01mH Capacitor ESR Resolution: 0.01Ω Battery: 1pcs x 9V 6LR61 Battery (NOT included) Color: black Size: Approx. 14*8*4.5cm/5.5*3.1*1.8inch Weight: Approx.214g/7.5oz Using Instruction: Push POWER / TEST to power on and start a test, multiple measurements can be repeated by this key, auto power off 20 seconds after measurement. Provide three kinds of socket, each socket pin 1, pin 2 and pin 3 are connected. The placement of the device does not require the order of instruction, and the screen displays the component function of each pin after measuring. There is a table typical ESR value of electrolytic capacitor at the back, it is for guiding only, these are typical value for standard grade electrolytic capacitor at room temperature. Calibration: Short the test pin 1, 2, 3 together and push POWER / TEST button, then the screen prompts to enter calibration, push the button again within 2 seconds to confirm. Few seconds latter the screen prompts to release pin 1, 2, 3, release them and wait for calibration finish. Package List: 1 x Transistor Tester 1 x User Manual Note: Before testing the capacitor, be sure to discharge it, otherwise it may damage the internal circuit. If using DC supply, please choose DC 9V~12V adapter. (including 9V and 12V) Can be powered by a 9V 6LR61 battery (NOT included), when the battery power is under 6V, please replace a new one.
