Broco Controller and Lcd, 24V-48V Waterproof LCD Display Panel Electric Bicycle Scooter Brushless Controller Kit Motor Brushless Controller (24V/36V 350W)

• High Quality Materials: This display adopts good quality materials, due to good heat dissipation feature to avoid thermal overloading

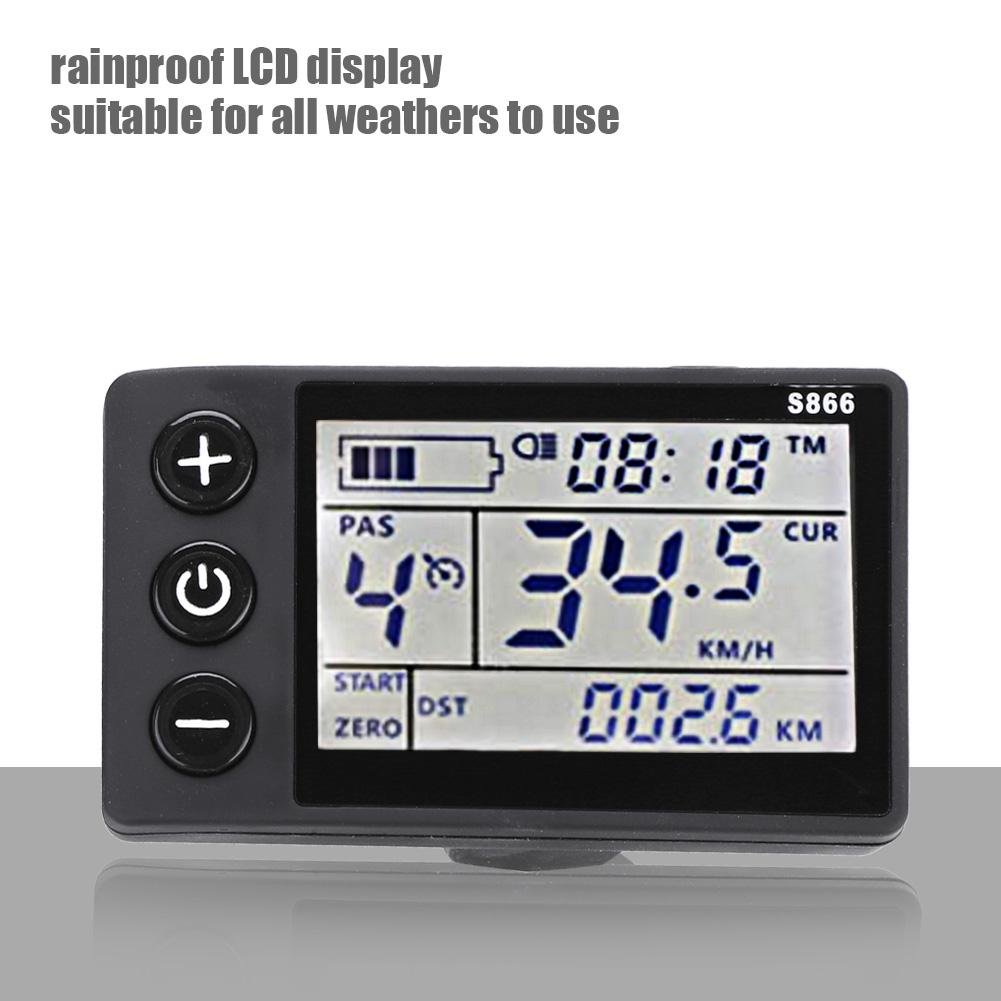

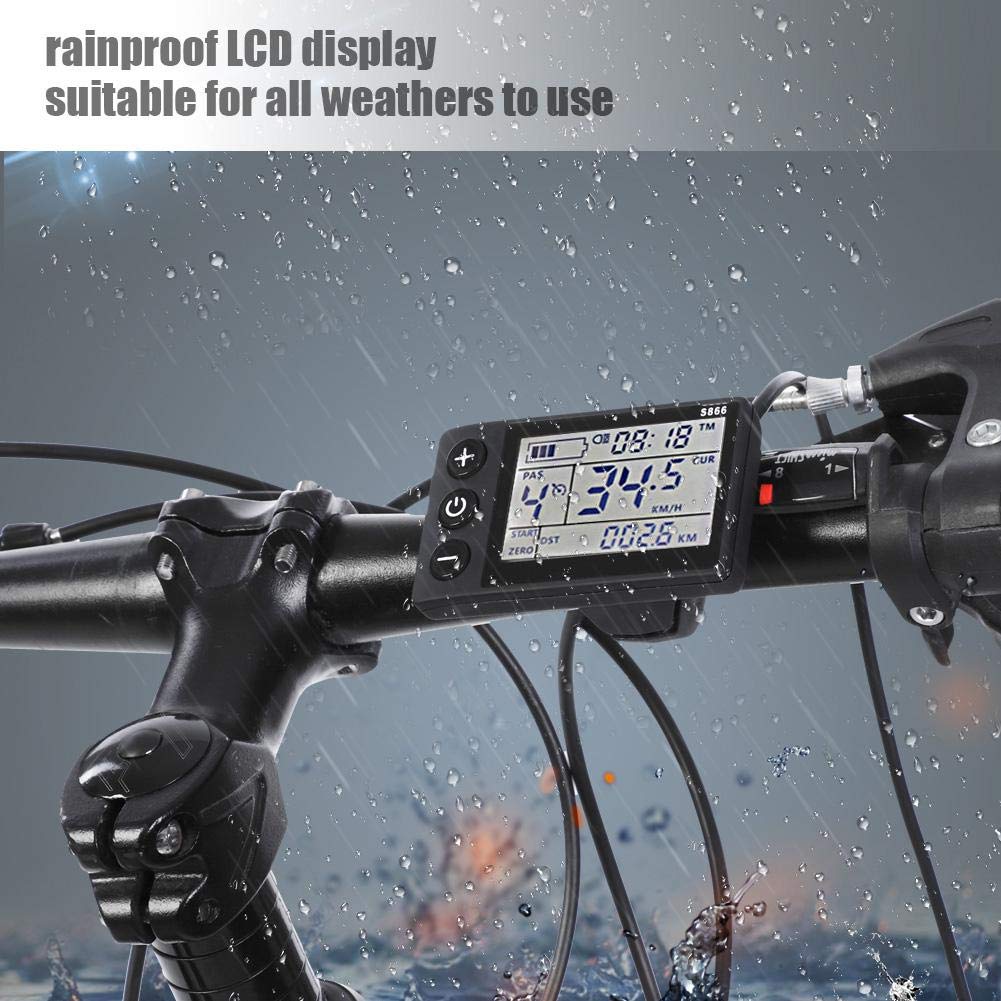

• LCD Display: LCD display can clearly show the state and data, backlight enables you to see scree clearly in dim environment, buttons for quick operation, easy to use

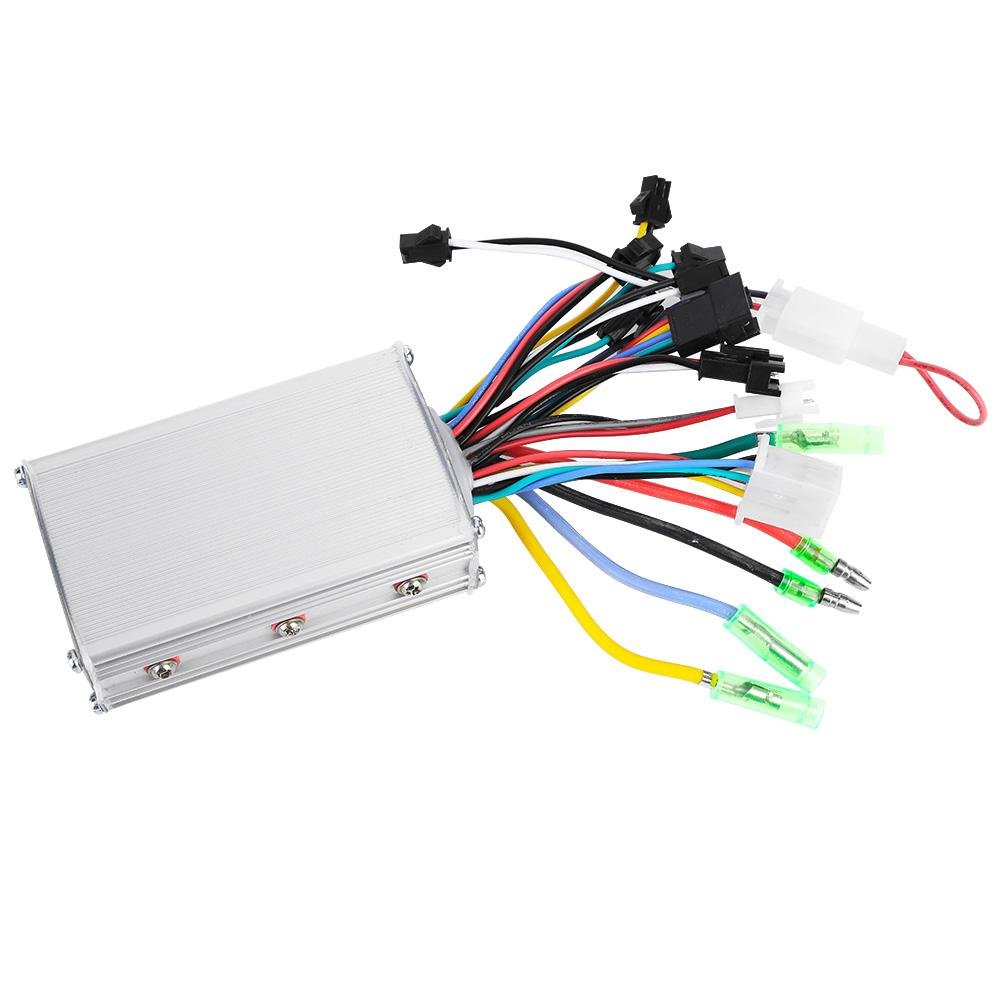

• Featur: The motor speed controller is brushless type, working silently and sensitive to the state of electric bike, it can provide steady speed and sensitive control of braking and direction changes
• Easy Installation: This motor controller is easy to install and use, comes with mount for LCD display and suitable for 22.5mm handlebar
• Widely Used: This display adopts is suitable for electric bicycles, cars, scooters, motorcycles, mini bikes etc,Which is a wonderful accessories

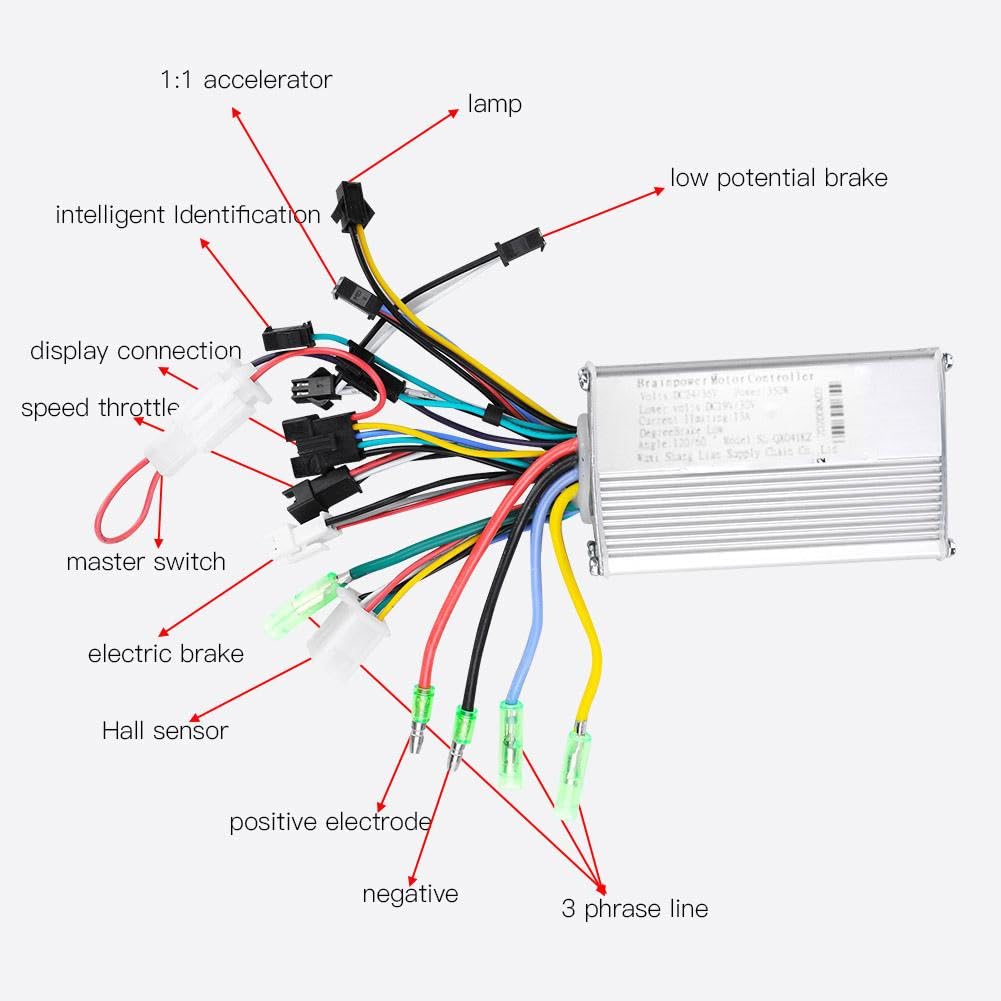

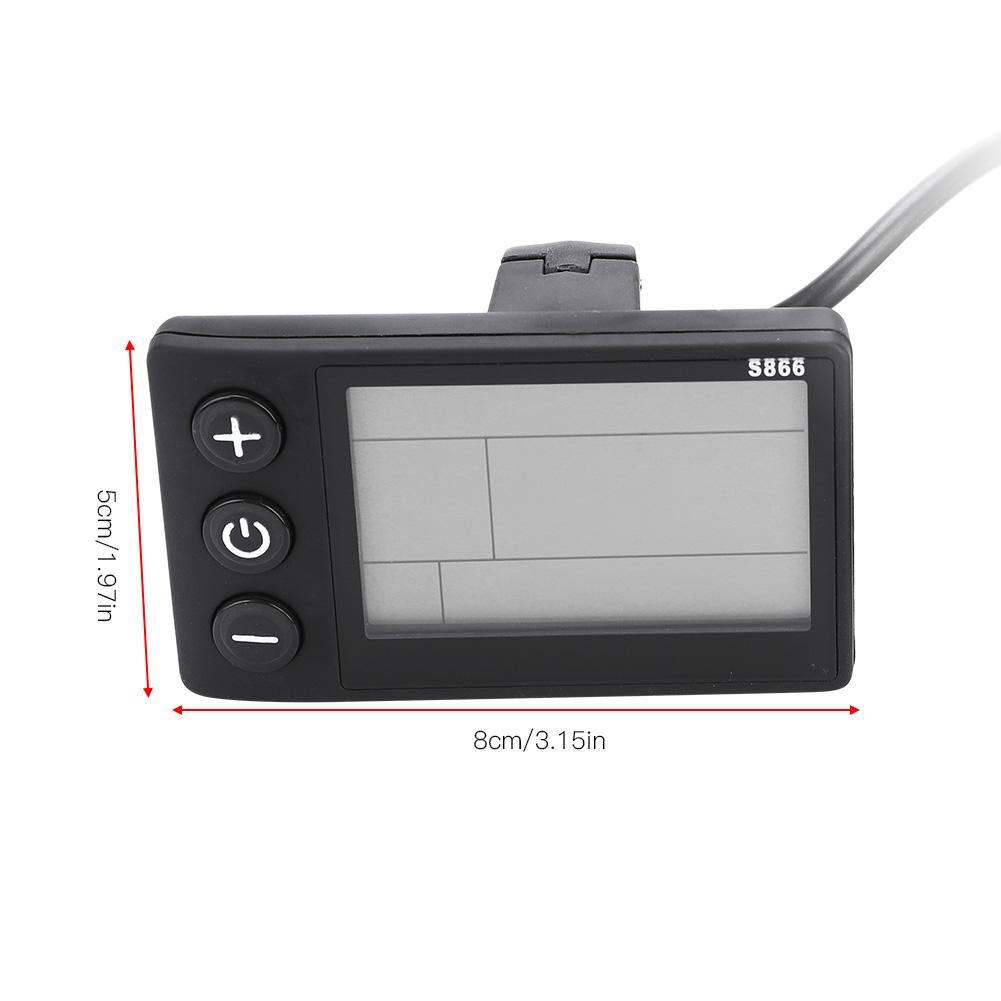

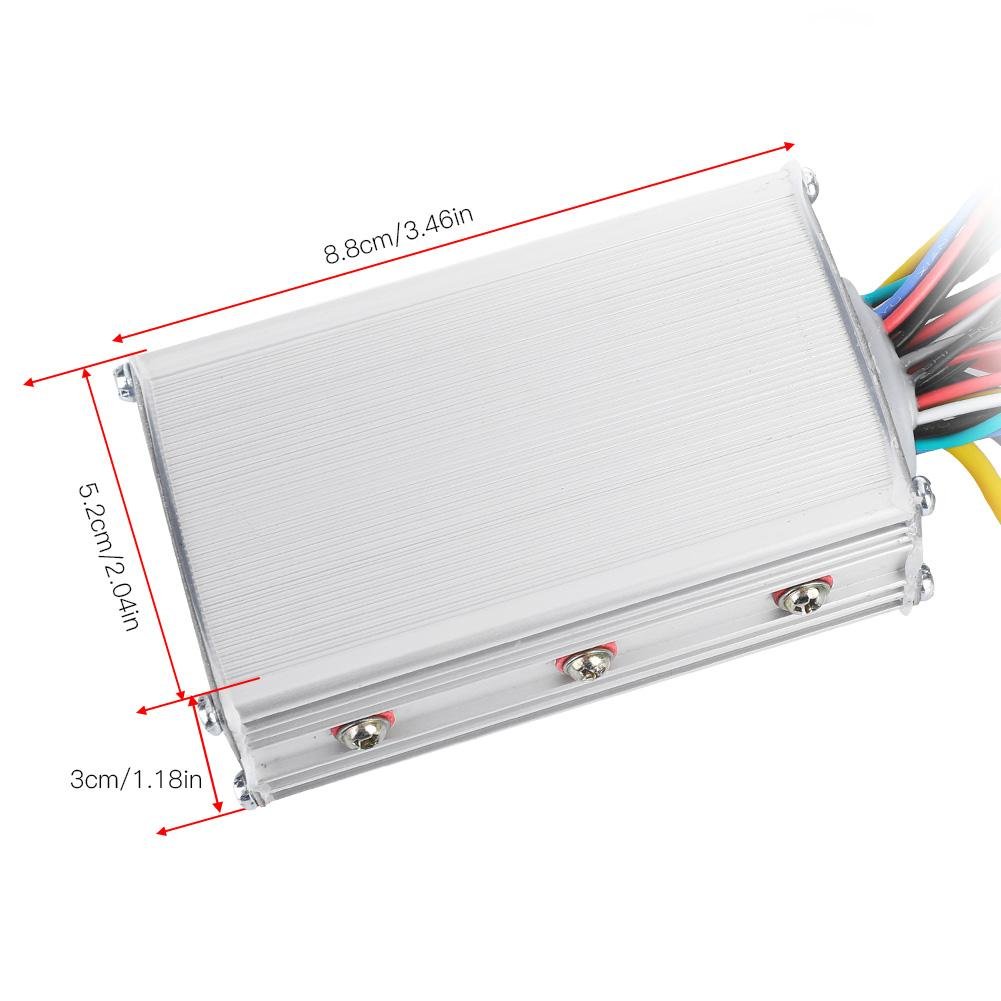

Features: This display adopts good quality plastic, LCD and metal materials, lightweight, rainproof, sturdy and durable. LCD display can clearly show the state and data; backlight design enables you to see screen clearly in dim environment; the buttons for quick operation, easy to use. The controller is brushless type, working silently and sensitive to the state of electric bicycle. Easy to install and use, come with mounting for LCD display and suitable for 22.5mm handlebar. Suitable for electric bicycles, cars, scooters. Specifications: Material: Plastic + LCD + Metal Color: Shown as picture Options: 1#24V-36V Power: 250W/350W Low-voltage Protection: 19V/30V, 30V/41V Waterproof: Rainproof Controller Size: Approx. 8.8 x 5.2 x 3cm / 3.46 x 2.05 x 1.18inch Display Screen Size: Approx. 8 x 5cm / 3.15 x 1.97inch Installation Handle Diameter: 22.5mm / 0.89in Weight: Approx. 332g Tips: Each cable is labeled with color for different uses. Red: power positive electrode Black: power negative electrode Yellow: power output Brown: lamp positive electrode White: lamp negative electrode Blue: indicator signal Green: signal reception Precautions for use: The product lines are more complicated to use. Before use, please operate according to the instructions and refer to the wiring diagram for wiring. Packing List: 1 x LCD Display 1 x Controller Notes: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-3cm measuring deviation due to manual measurement.
