BRIEFCEC DB25 Adapter D-USB RS-232 Serial to 25-Pin Solderless Terminal Board Signal Module with Insulation Pad (1 Male + 1 Female)
Options
1 availableAbout this item

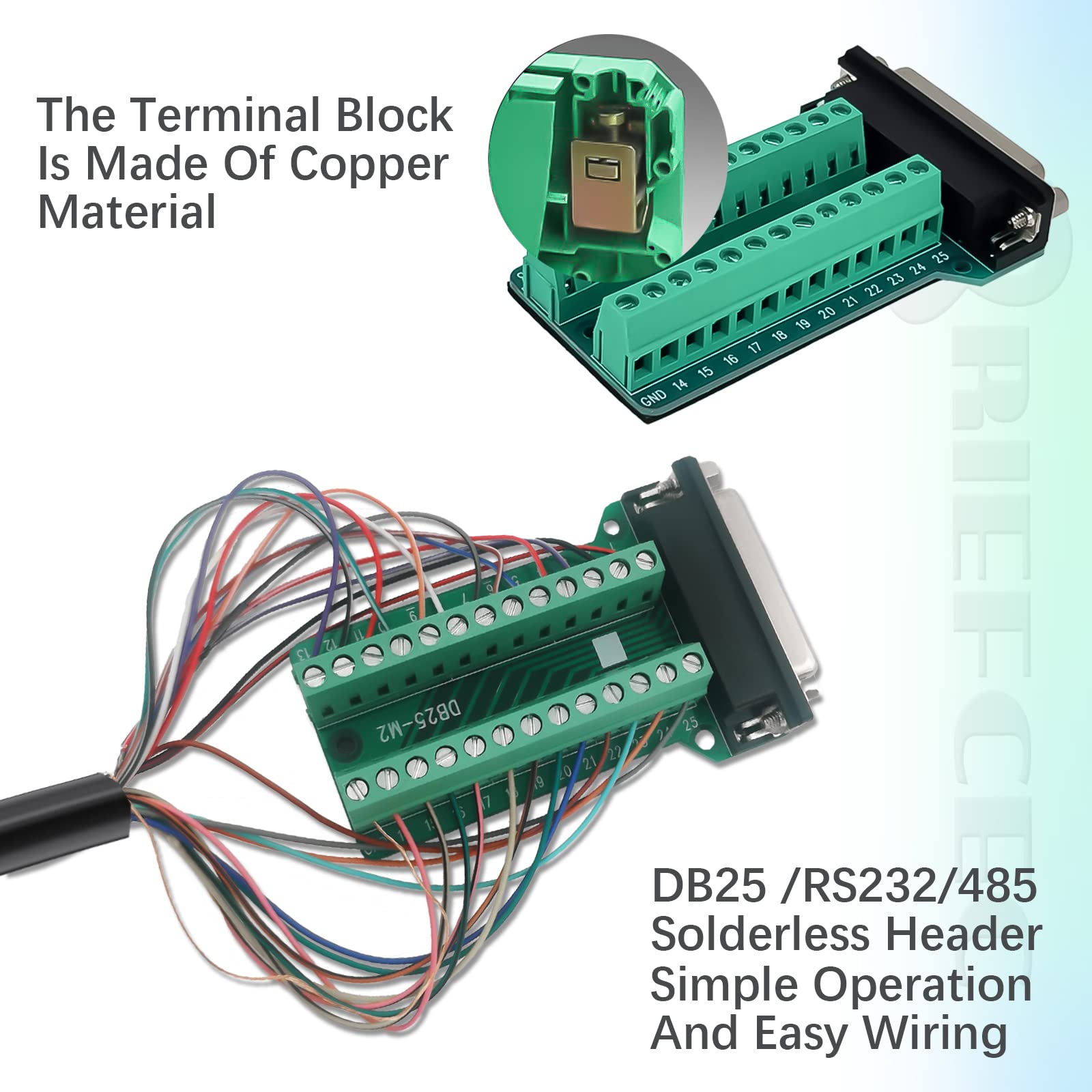

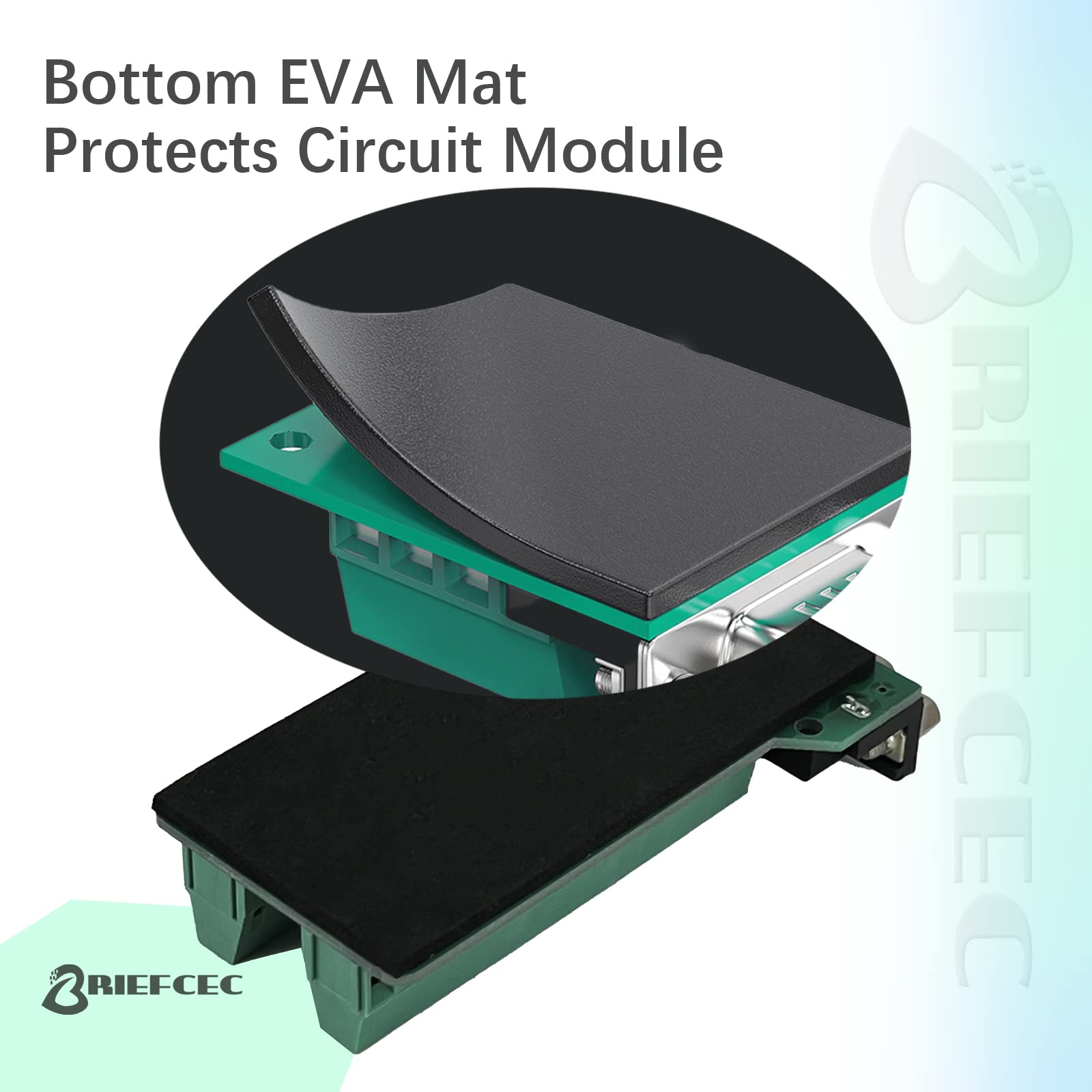

- High Quality: The use of full copper DB25 seat, anti-oxidation, better contact, fine solder joint, plug resistance connection and good contact ensure high quality, durability and long service life. DB25 connectors with insulation pads protect against short circuits.
Product description

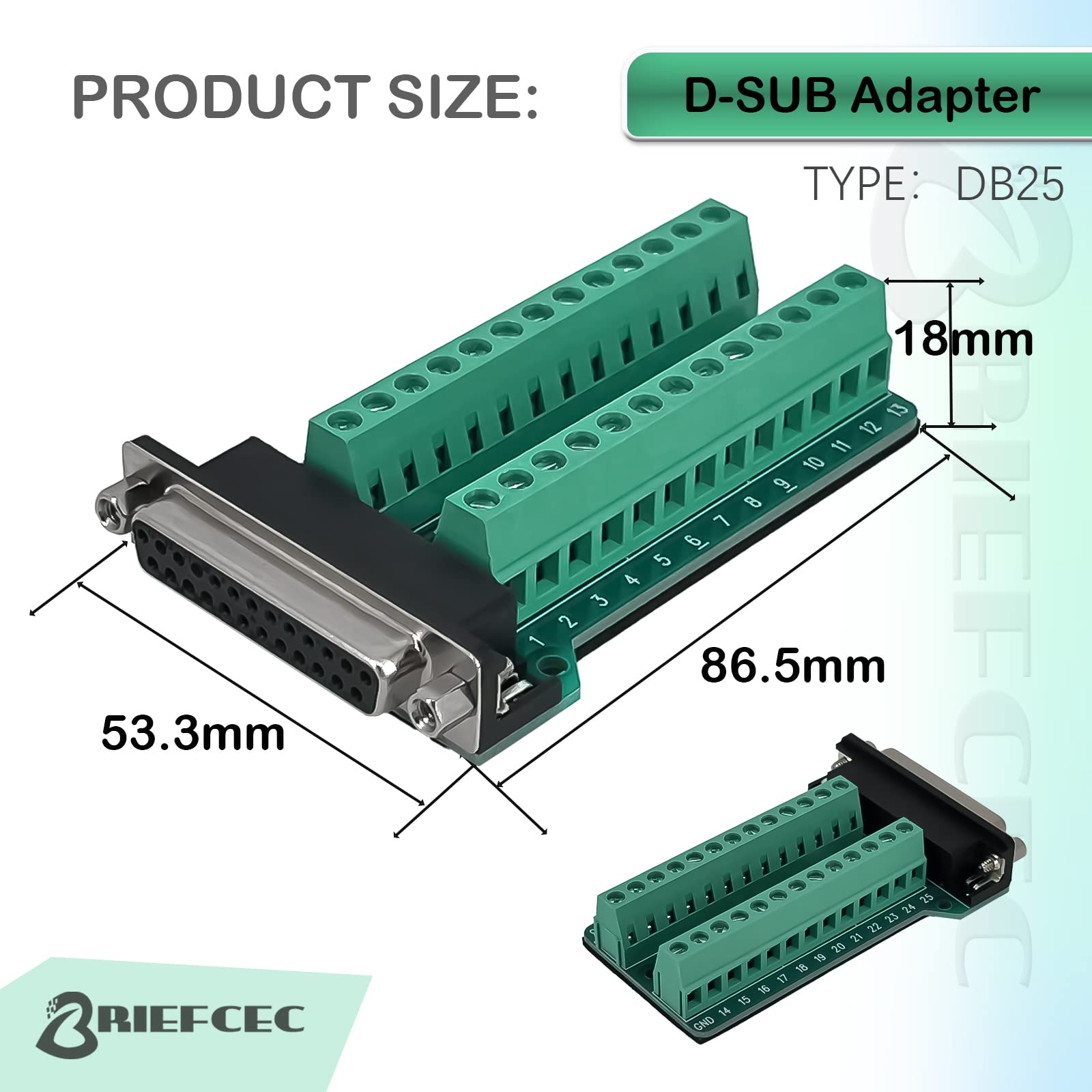

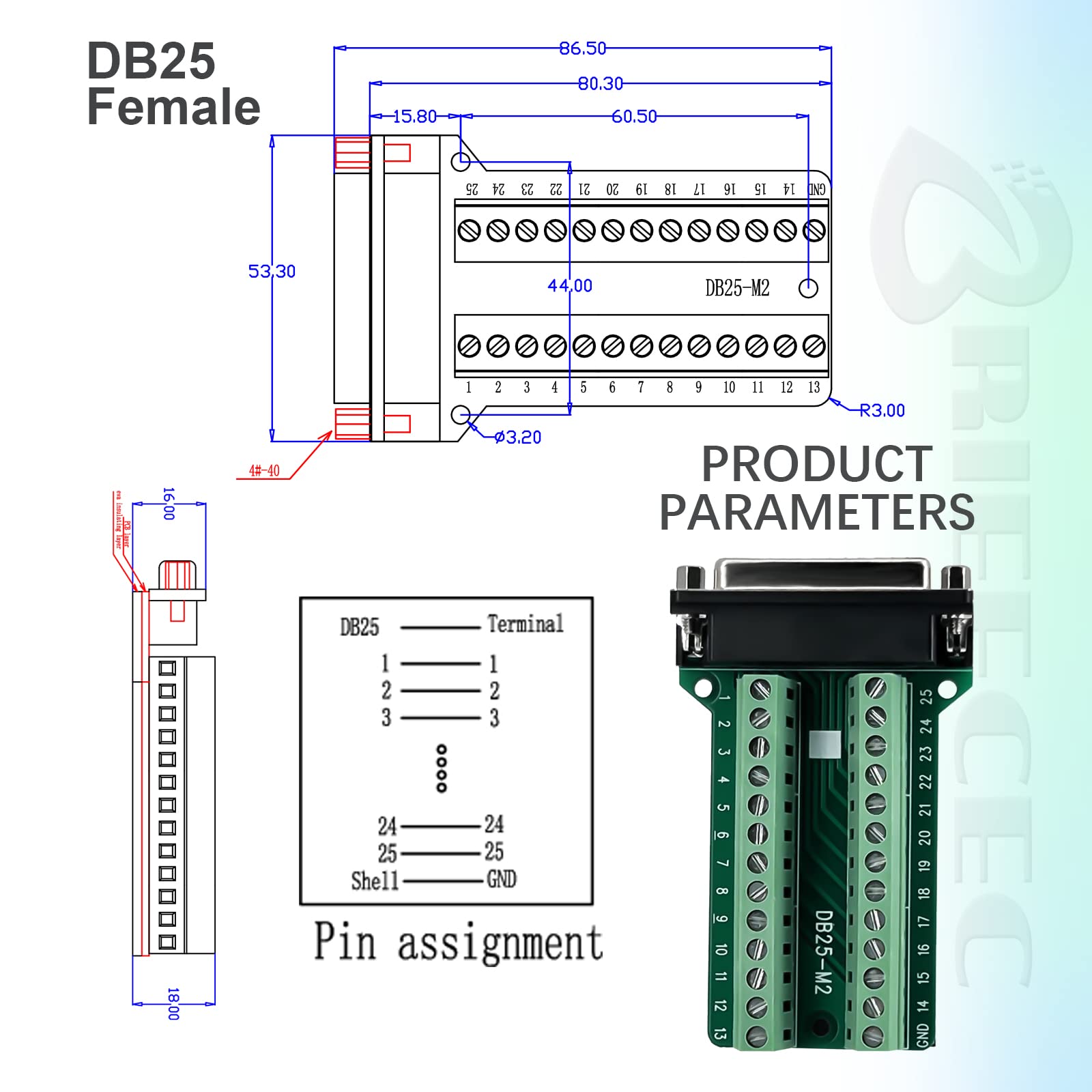

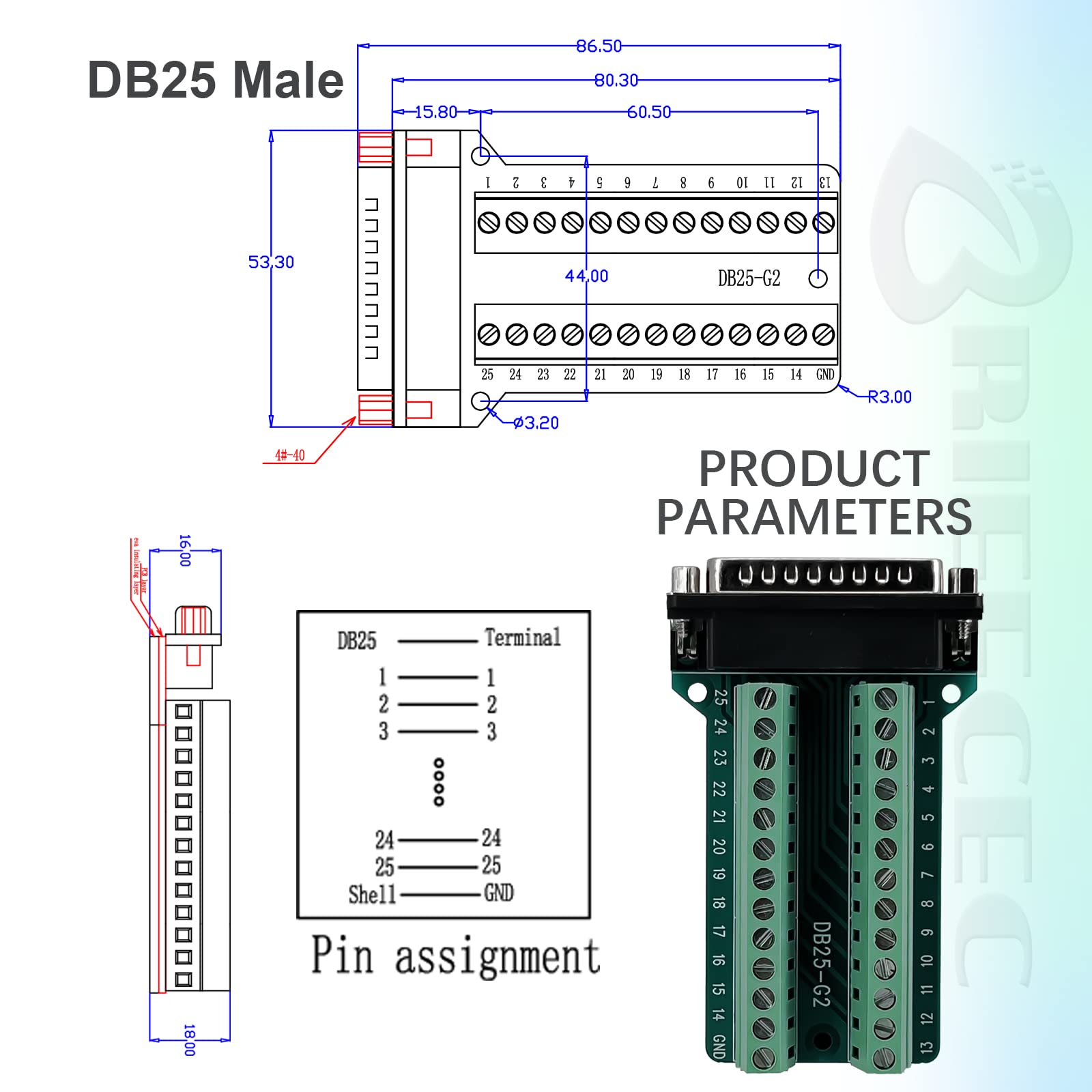

Overview: This item DB25 Adapter Plate Signal Module RS232 Serial DB25 25 Pin to 12+13 Position Screw Terminal This DB25 connector adapter terminals makes it easier to project and commissioning equipment. Detailed parameters Type: DB25 to terminal plug max. Current: 0.75 A Cable cross section (AWG): 18-26 AWG Connection distance: 5.0 mm. PCB Material: FR4 D_SUB Dielectric Strength: 300 V AC/MINUTE D_SUB Operating temperature: -20ยฐC to 75ยฐC. D_SUB Material: Insulator: PBT 30% GF; CONTACT: COPPER ALLOY Ambient Humidity: 10% Up to 90% RH, Non-condensing Mounting Hole Diameter: 3mm Axle distance of the mounting hole: 6 mm / 0.24 inches. Interface: DB25 male/female. 12 + 13 positions. Screw clamp size: 86.5 x 53.3 x 18 mm (L x W x H). Package includes: 1 x DB25 Male to Terminal Male 1 x DB25 Female to Terminal Male 1 x screwdriver.
