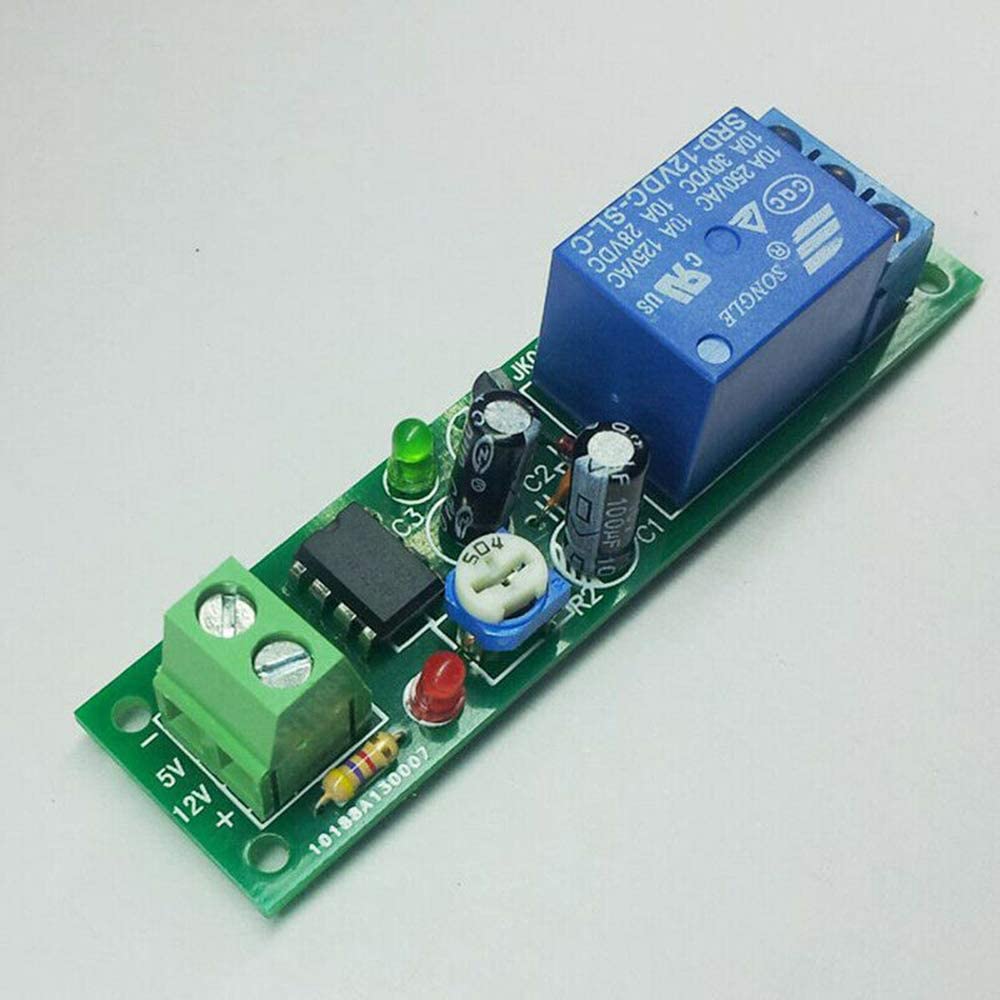

Boxonly DC 24V JK02 Delay Automatic Disconnection Relay Module Delay Relay Timer Switch Module 0 to 60 Second Adjustable

• Function: connect power supply to module, the relay switch connected immediately, and then after a estimated time, the relay switch disconnected.
• The relay terminal have NO(Normally Open) and NC(Normally Closed), When use the NO and COlM terminal, it is delay turn off.
• JK02 Delay Automatic Disconnection Relay Module DC 24V Delay Relay Timer Switch Module 0 to 60 Second Adjustable
• When use the NC and COlM terminal, it is delay turn on.

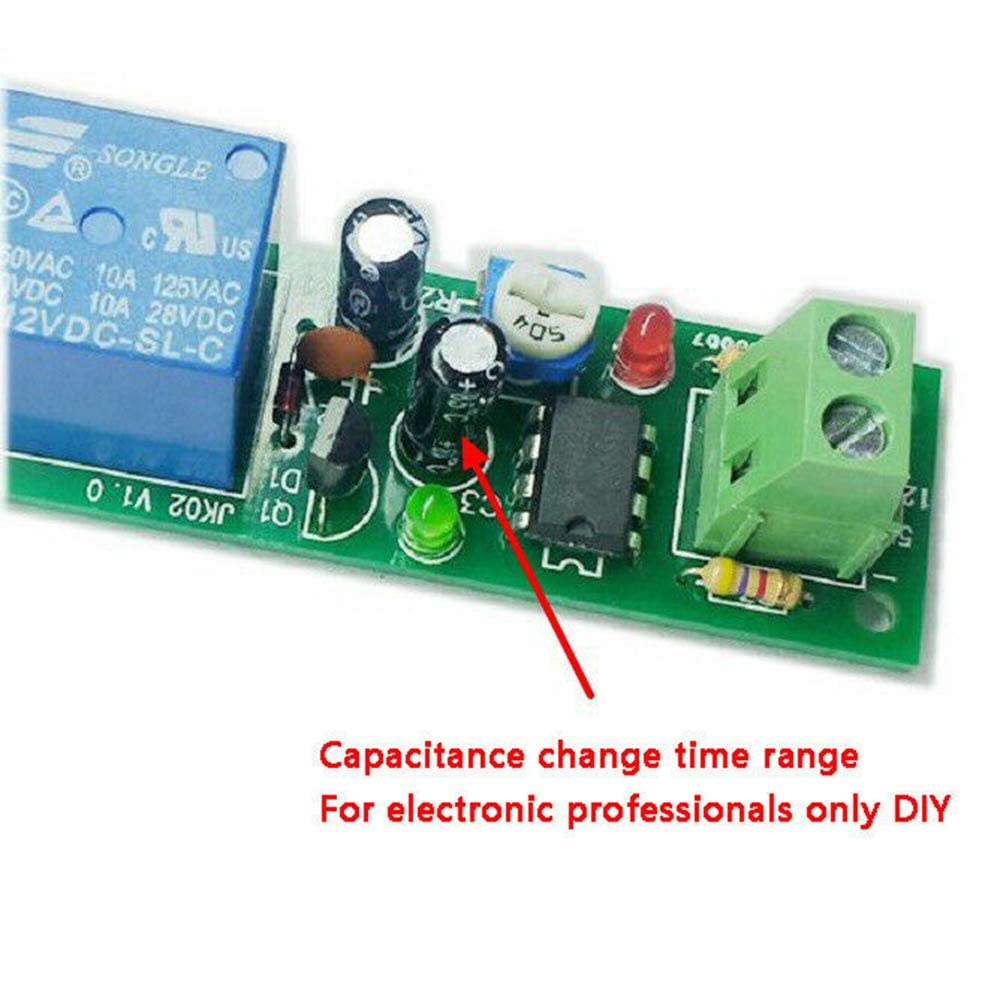

• The time delay relay module adopts NE555 as the time base.

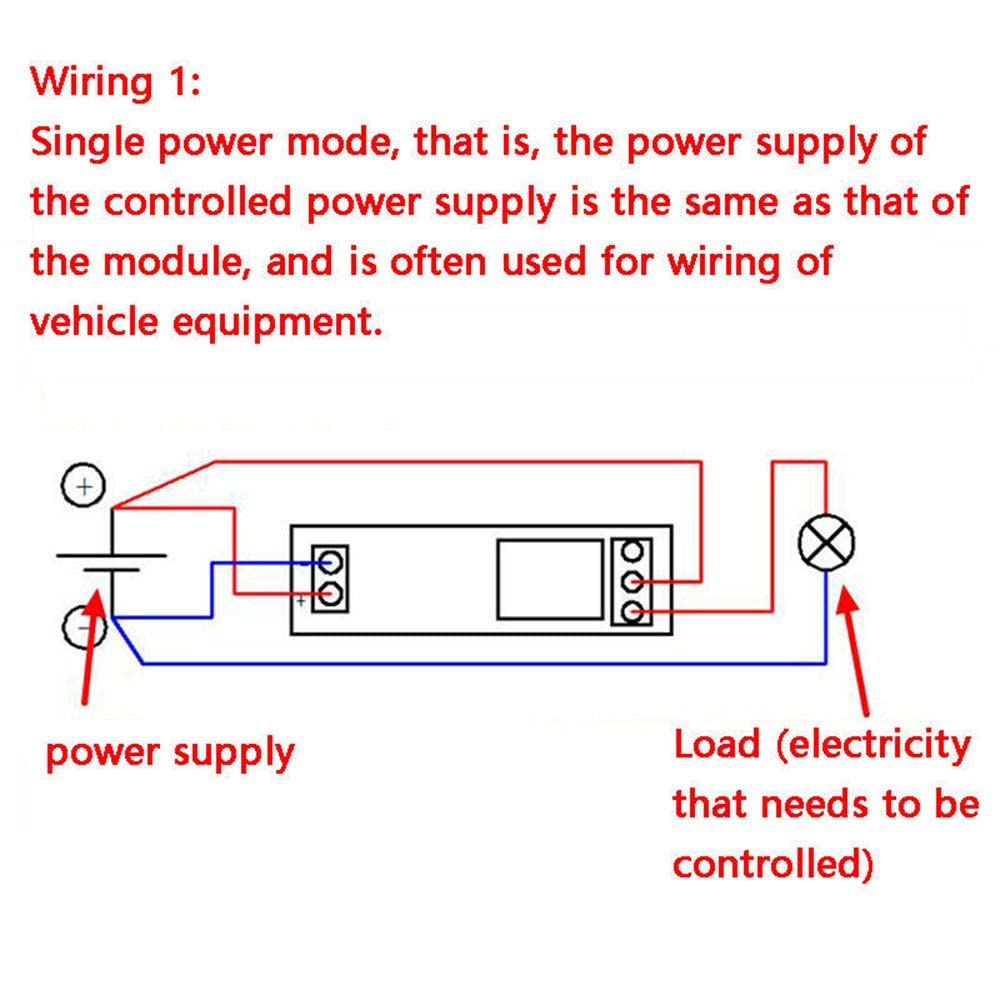

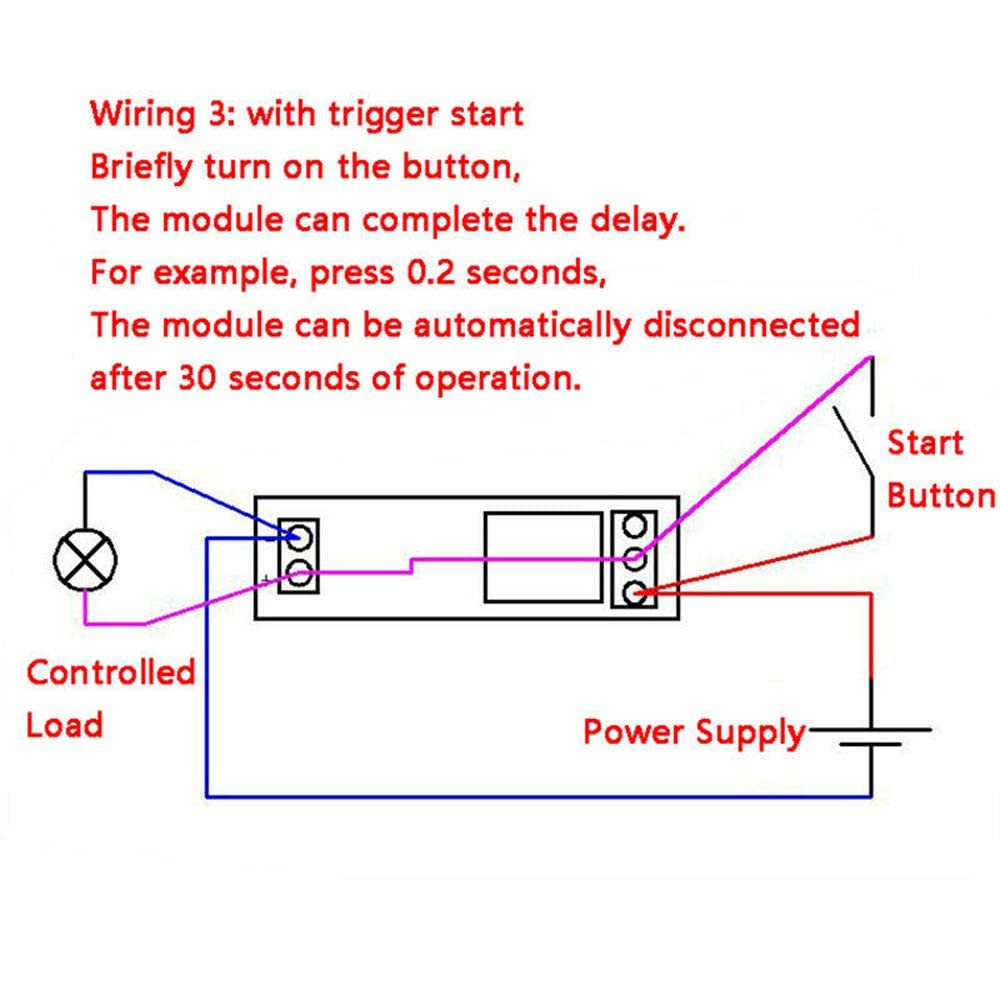

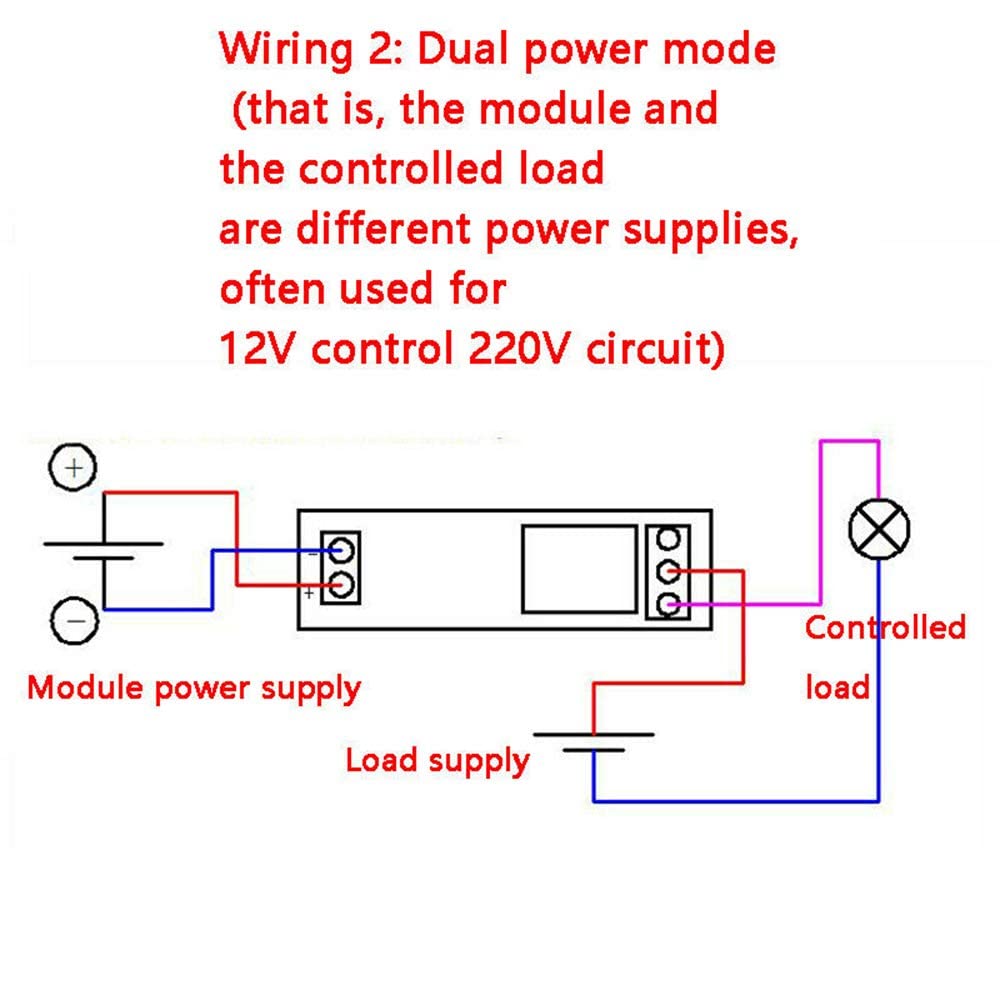

Boxonly DC 24V JK02 Delay Automatic Disconnection Relay Module Delay Relay Timer Switch Module 0 to 60 Second Adjustable Specification: Static current:5mA Working voltage: DC 5V/12V/24V Working current:40mA(12V)80mA(24V) Load Power: DC 0~30V 10A/AC 0~220V 10A. With LED power indicator and relay switch state indicator. PCB size:75mm * 20f, with mounting holes Wiring Reference:(the polarity of power supply, please see the PCB) Package included: 1 xTimer Relay Module
