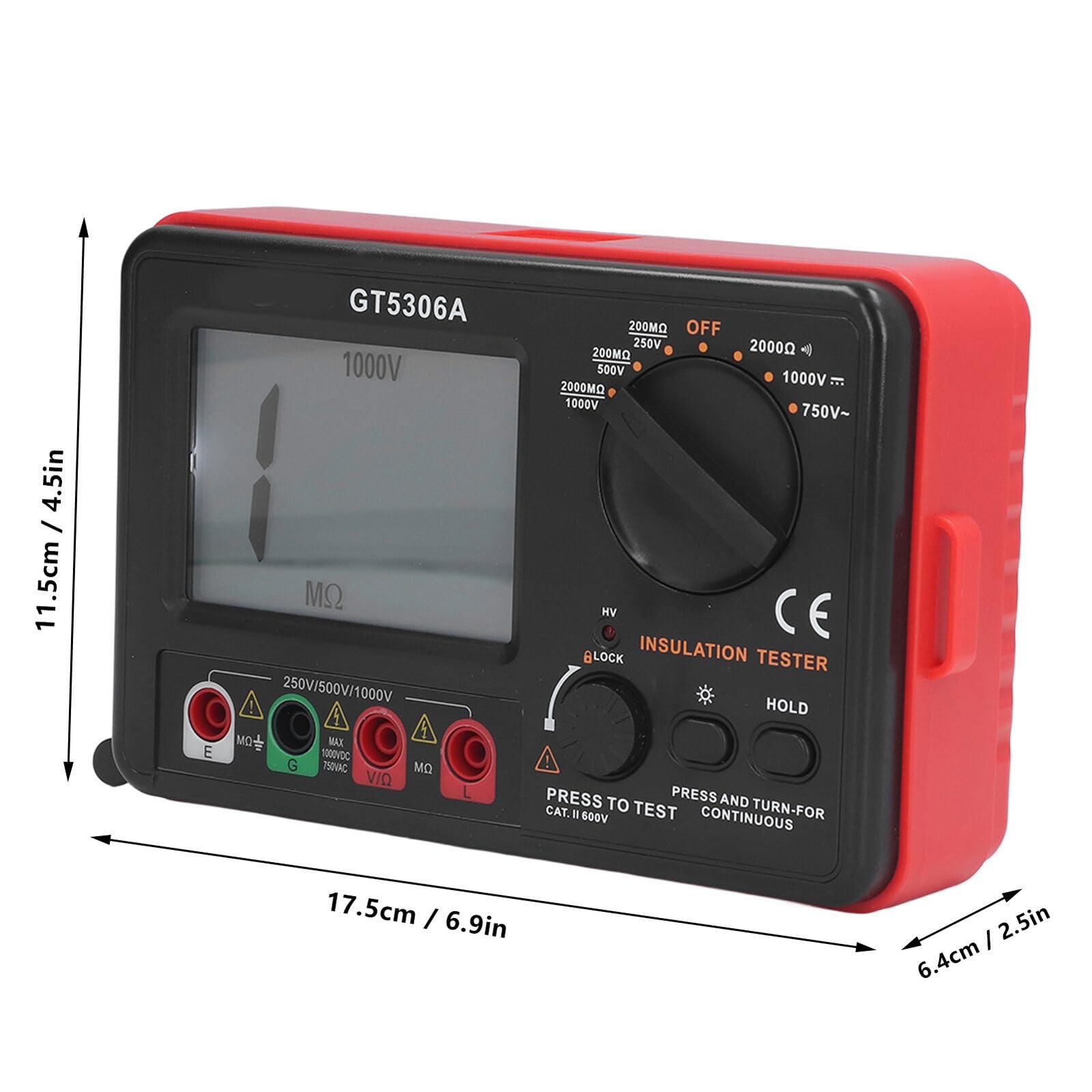

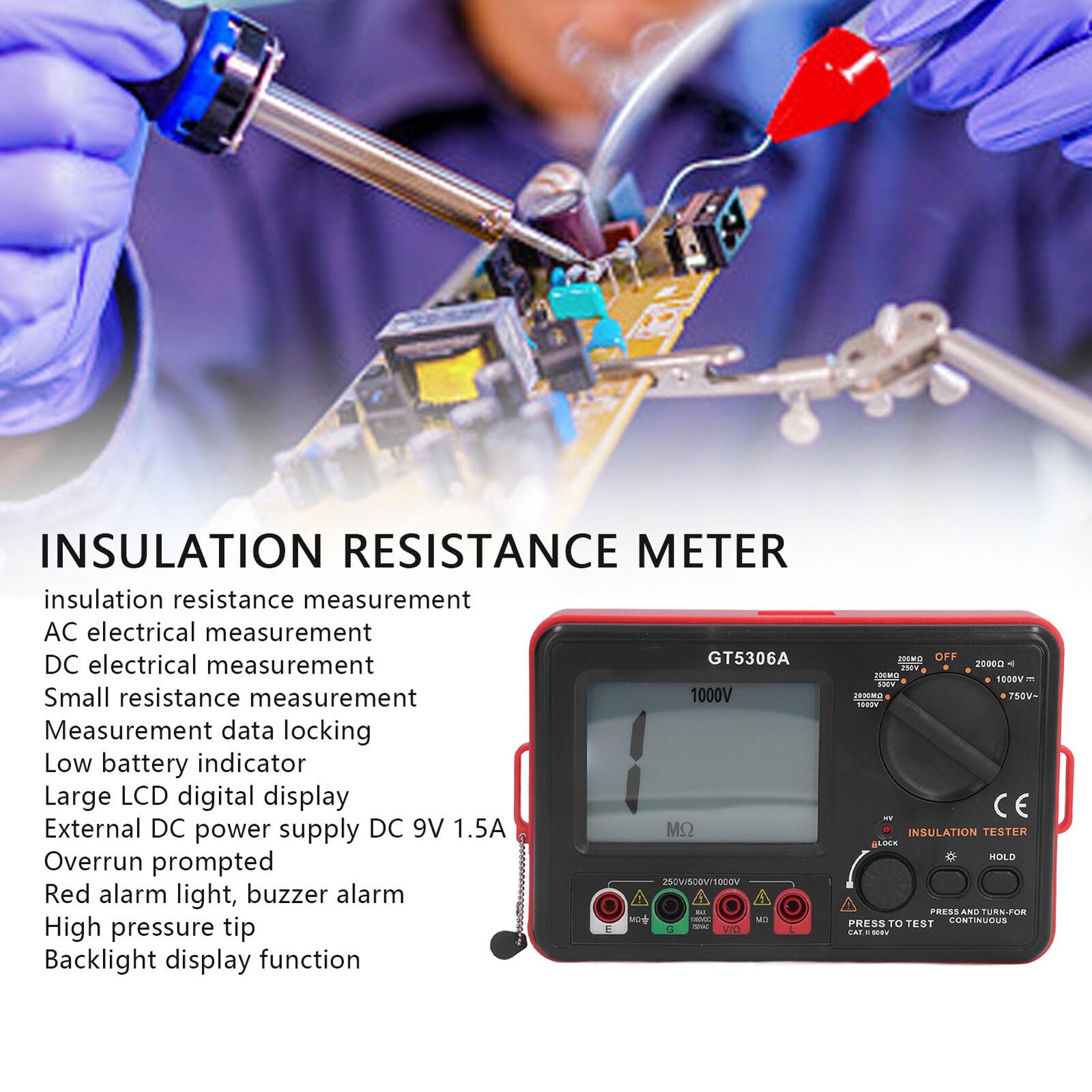

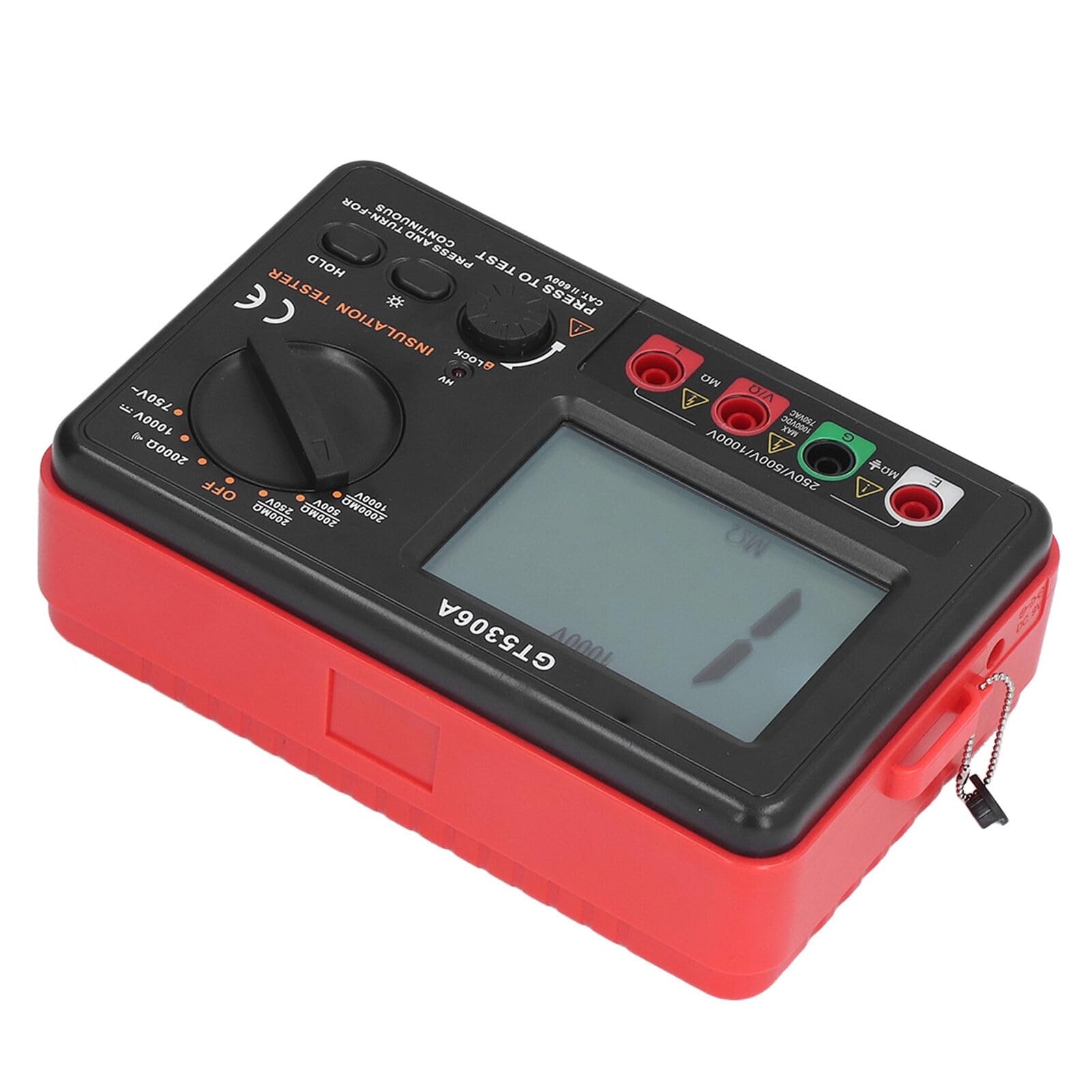

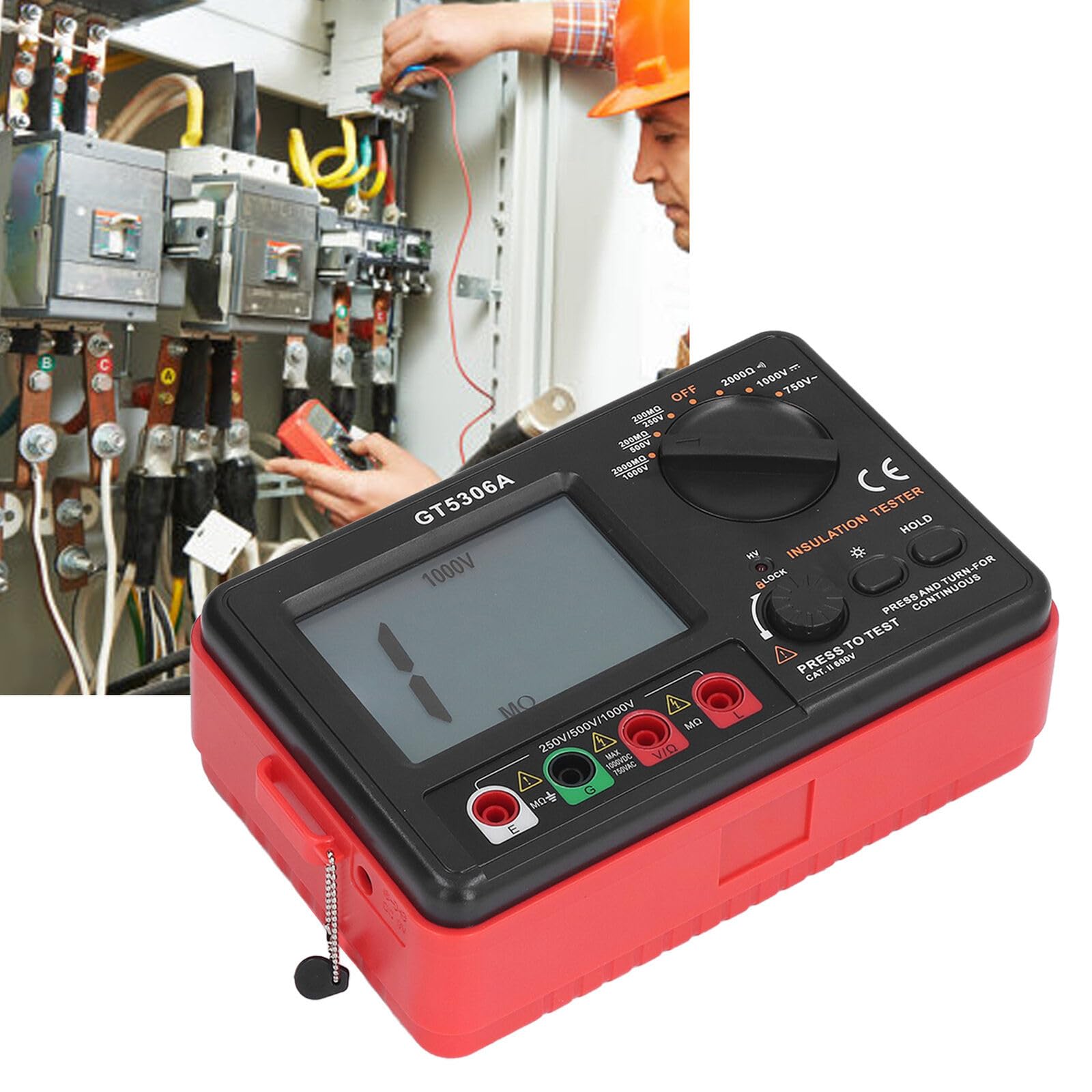

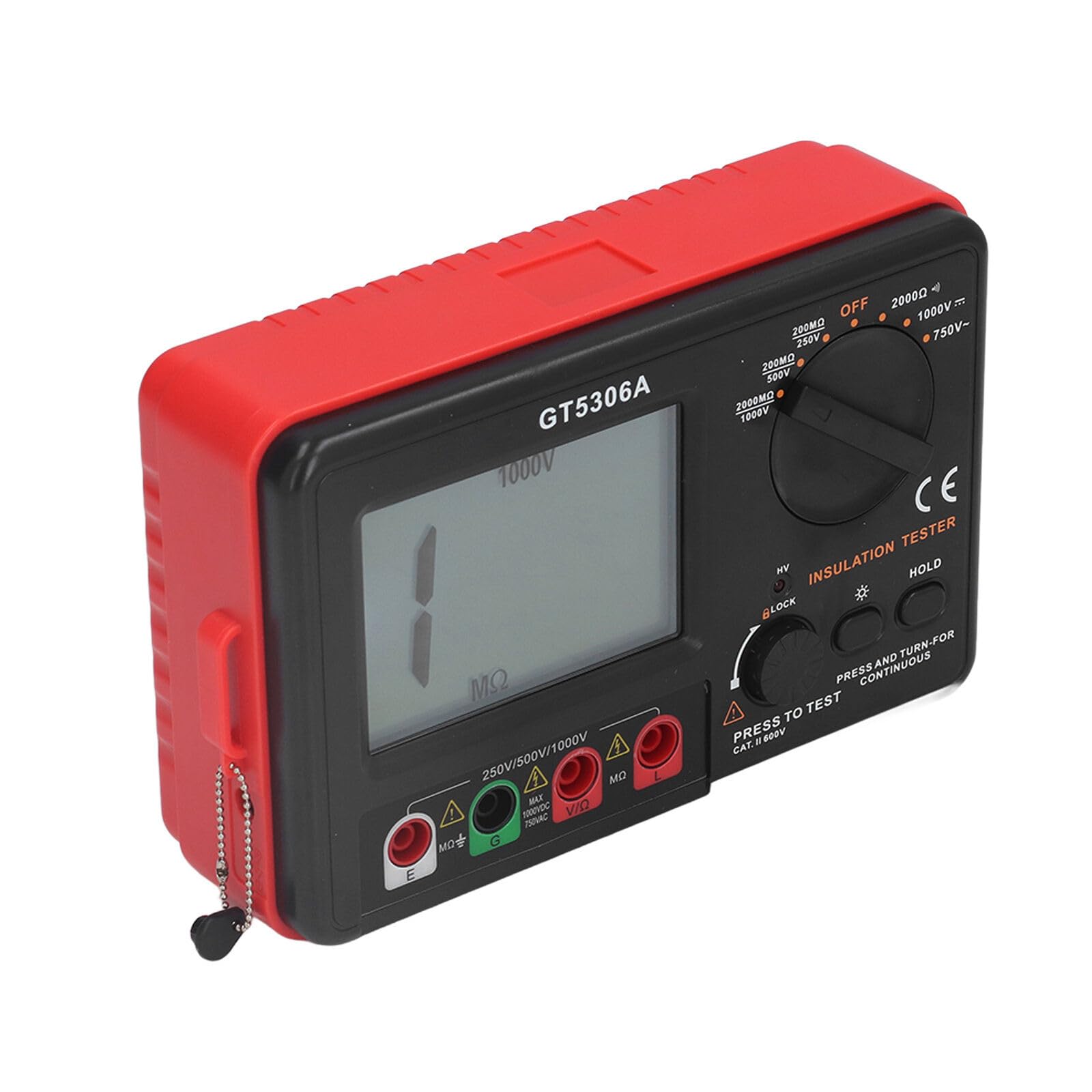

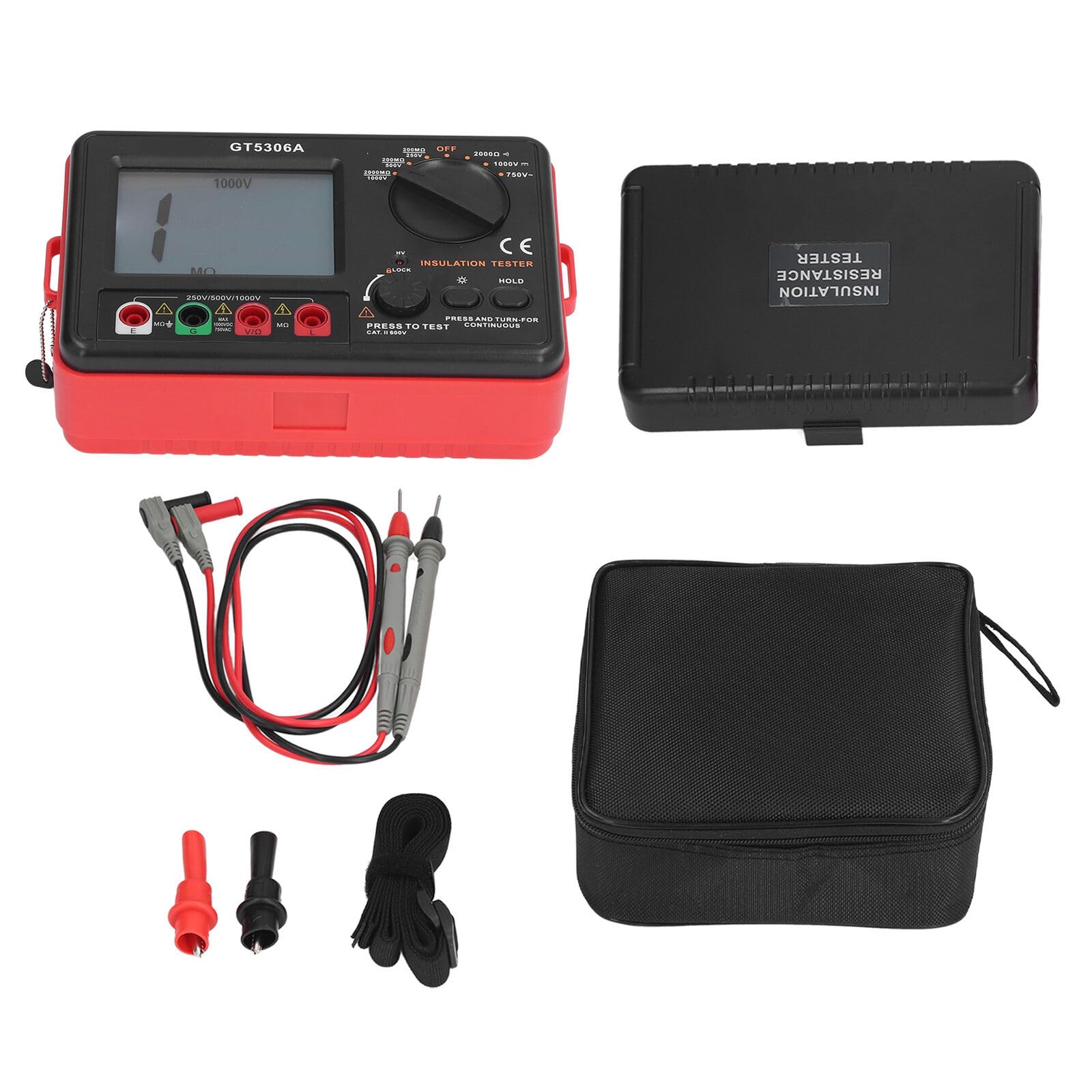

BOWONG Insulation Resistance Tester Digital Megohm Meter 250V 500V 1000V Earth Resistance Meter Electric Leakage Detection2 Digital Megohm Meter Earth Resistance Meter Insulation Resist

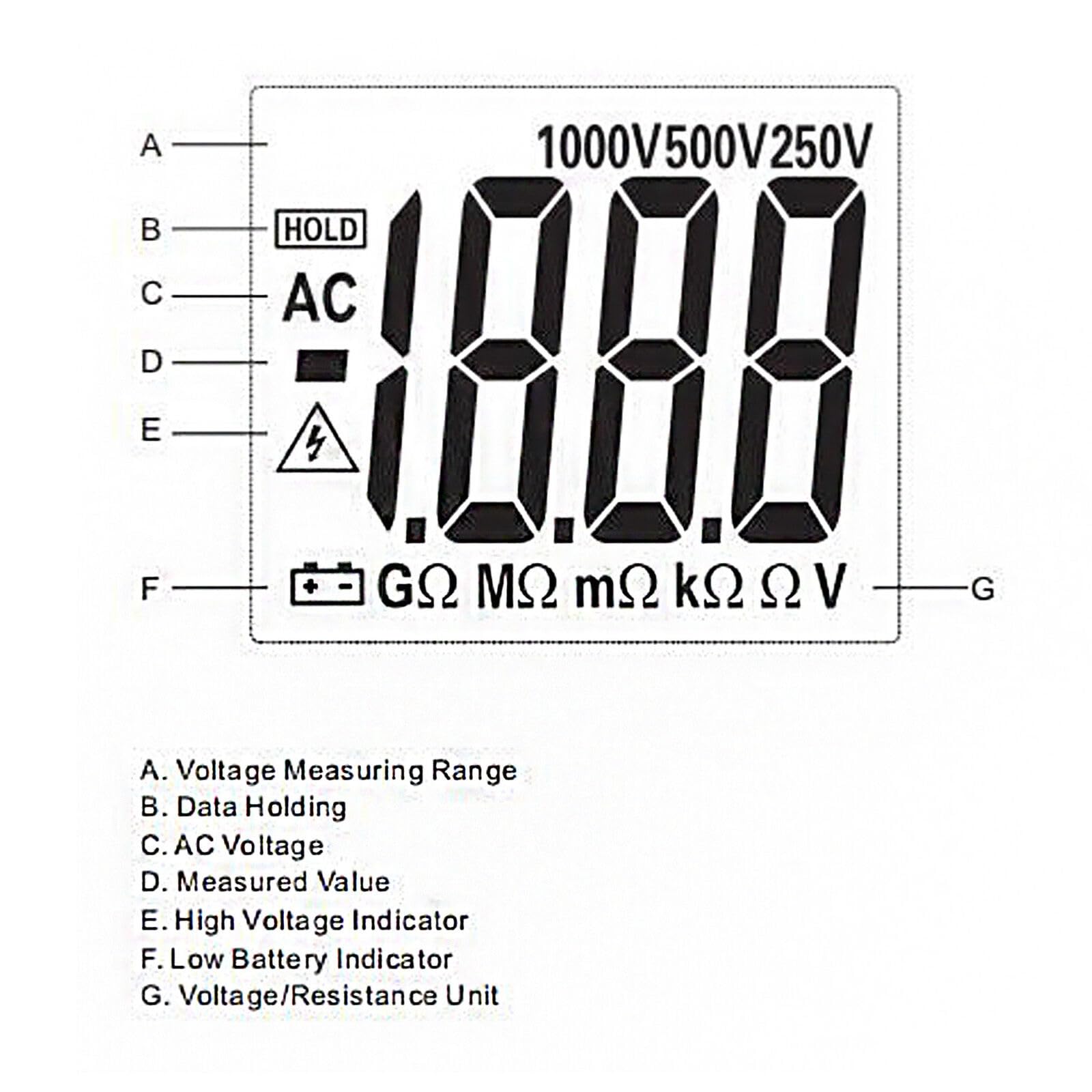

• 1. Digital Display: This insulation resistance tester has a large LCD digital display with backlight display function, real time data display, intuitive and clear.
• 2. Data Lock: This shaker will lock the measurement data after measurement to prevent other interference factors from affecting data changes.
• 3. Alarm Prompt: When some emergencies occur, the meter will light up the red alarm light, give a buzzer alarm, and also have a low battery indicator, an over limit prompt, a high voltage prompt, etc.
• 4. Voltage and Current: This digital ground resistance tester supports external direct current (DC) power supply DC 9V 1.5A.
• 5. Widely Applicable: This digital meter is suitable for insulation resistance measurement, AC measurement, DC measurement, small resistance measurement, etc.

Insulation Resistance Tester This digital meter is suitable for insulation resistance measurement, AC measurement, DC measurement, small resistance measurement, etc. Specification: Material: ABS Applicable: Suitable for insulation resistance testing of motors, cables, electromechanical equipment, telecommunication equipment, power facilities, etc. (1) Accuracy: ± (a% reading and least significant digit) (2) Ensure Accuracy Ambient Temperature: 23±5℃ (3) Relative Humidity: <75% (4) AC Voltage Frequency Response: 50 ~ 200Hz (5) Voltage Input Impedance: 1MΩ Display: 3 1/2 LCD display, maximum reading is 1999 Over Limit Indication: only the highest digit will display 1 when the upper limit is exceeded Sampling Rate: about 3 times per second Overload Protection: 100mA 60V self recovery fuse Power Supply: 6 *1.5V AA batteries Current Consumption: power consumption <300mW when testing no load Output Voltage: 250V, 500V, 1000V, basic accuracy: ±10% Test Current: 250V(R=250KΩ)1mA, 500V(R=500KΩ)1mA, 1000V(R=1MΩ)1mA, basic accuracy: ±10% Insulation Resistance: 250V:1MΩ ~200MΩ, 500V:1MΩ ~200MΩ, 1000V:10MΩ ~2000MΩ, basic accuracy: ±(4% reading ±2 words) Short Circuit Current: <1.8mA Median Resistance: 250V, 500V:100MΩ, 1000V:1000MΩ Resistance, on off test: 0ω ~2KΩ, <50Ω buzzer sound, test current: 1mA, basic accuracy: ±(0.8% reading +6 words) DC Voltage Measurement: 0V~1000V, basic accuracy: ±(0.5% reading +6 words) AC Voltage Measurement: 0V~750V, basic accuracy: ±(1% reading +6 words) Socket Position: insulation resistance: E and L, voltage, resistance: V, Ω and G Package List: 1 x Insulation Resistance Tester 2 x 10A Test Pen 2 X Crocodile Clip 1 x Strap 1 x Cloth Bag 1 x English Manual 6 x 1.5V AA Batteries
