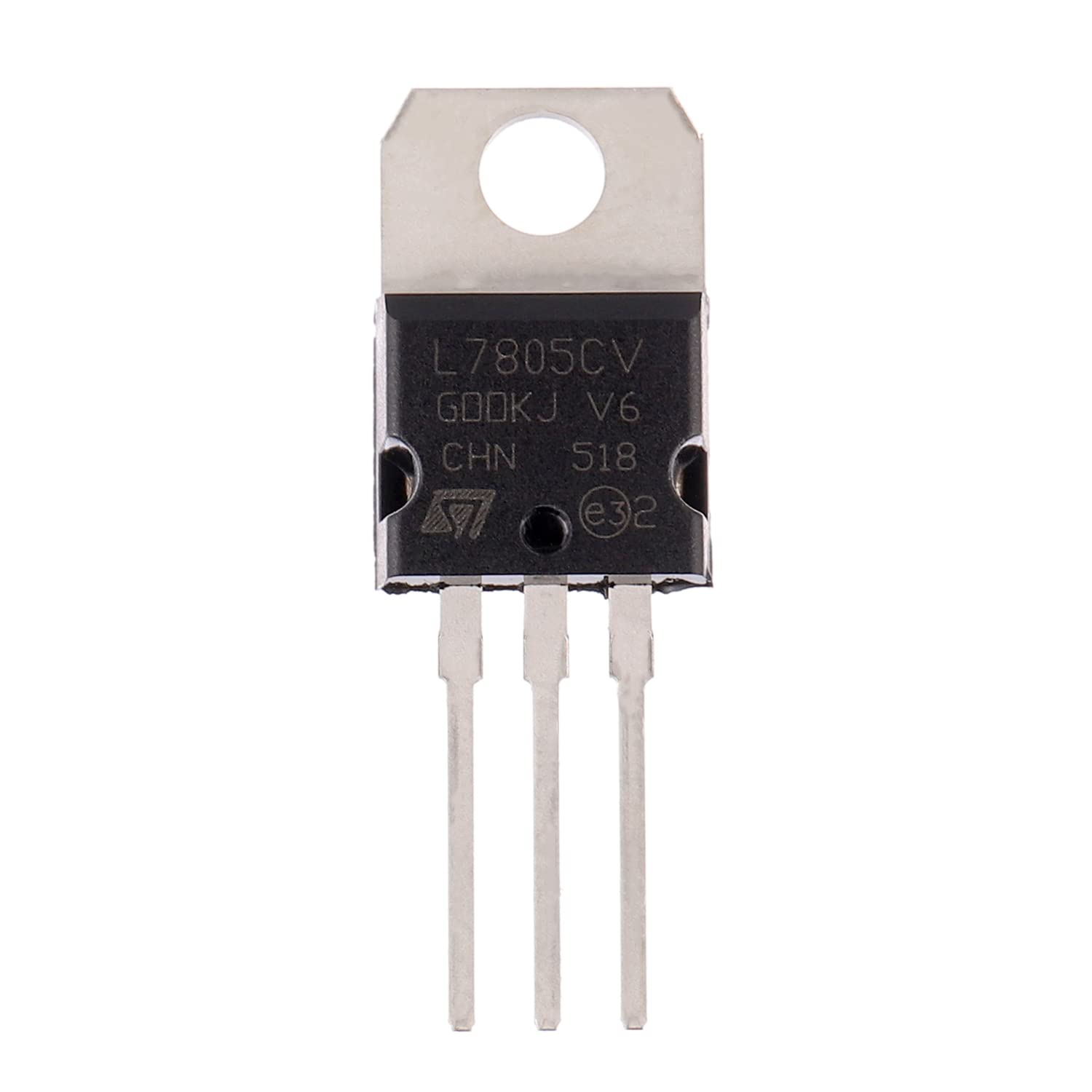

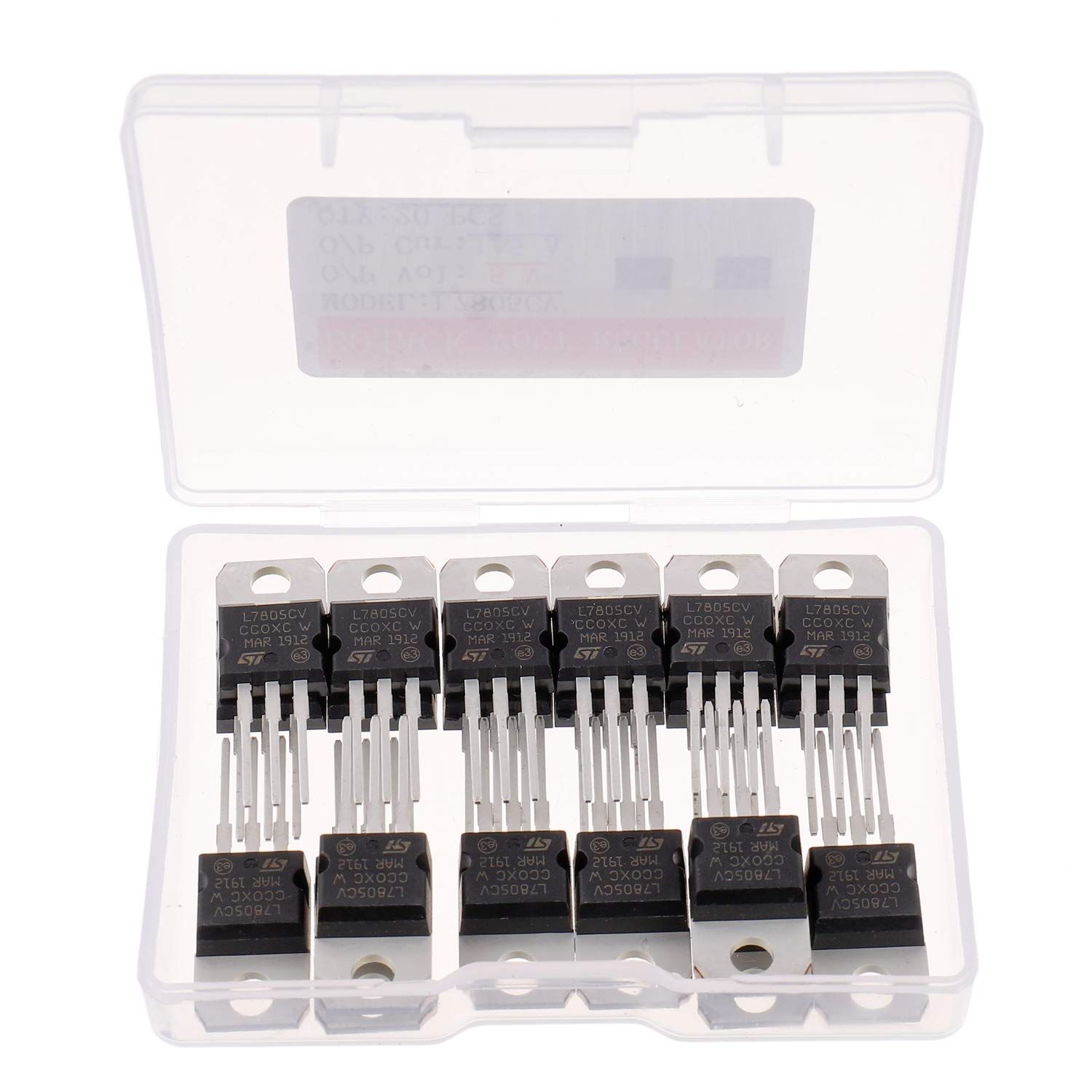

BOJACK IC L7805CV Voltage Regulator Output 5 V 1.5 A Integrated Circuits L7805 Linear Positive Voltage Regulators TO-220(Pack of 20 pcs)
About this item
- BOJACK IC L7805CV Positive Voltage Regulators
- Output Voltage : 4.75-5.25V
- Quiescent current : 4.2-8mA
- Maximum Input Voltage : 35V
- Maximum Output Current : 1.5A
Product description
BOJACK IC L7805CV 5V 1.5A Positive Voltage Regulators Specification: Output Configuration:Positive Voltage Regulators Output Voltage(Min/Fixed):4.75-5.25V Input Voltage(Max):35V Voltage Dropout (Max):2V @1A (Typ) Output Current(Max) :1.5A Quiescent current : 4.2-8mA Ripple rejection ratio: 78dB/120Hz Output resistance: 17mΩ Output voltage temperature coefficient -1.1mV / °C (Note: L7805CV and 7805 communication) Operating Temperature:0°C ~ 125°C Mounting Type:Through Hole Package / Case:TO-220 Protection Features:No external compensation component is required, and current limiting current is included to prevent the load from short-circuiting and burning components.
