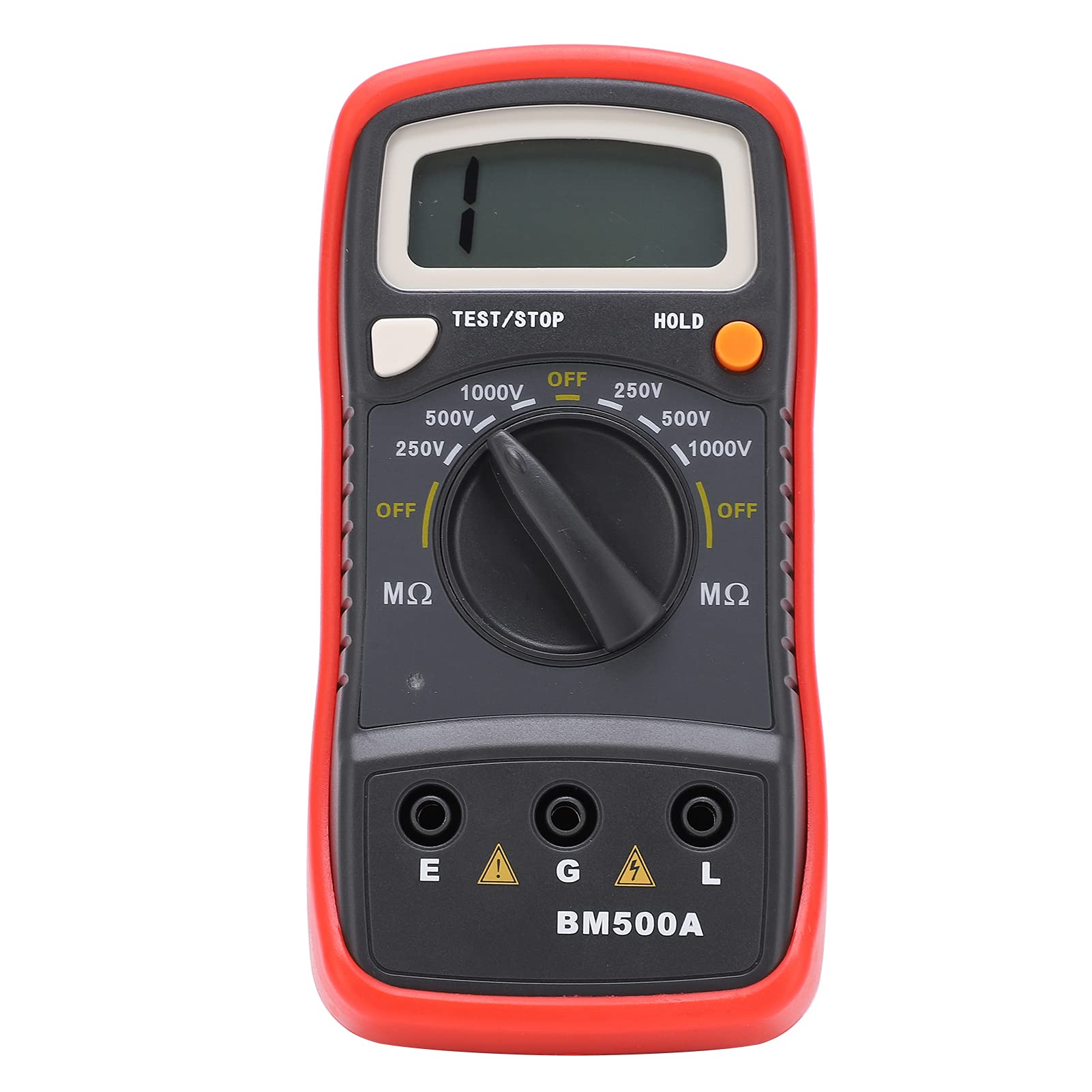

Hilitand BM500A 1000V LCD Resistance Tester Megohmmeter Digital Insulation Resistance Test Instrument Ohmmeters 0.001-1999 Ohm

• High Insulation Resistance Tester: Digital variable amplitude Megohm meter for measuring high insulation resistance 0.001 ~ 1999 ohms, minimum resolution 0.001 ohms.
• Ideal Resistance Tester: This resistance meter is suitable for maintenance, testing and inspection of various electrical equipment. Is your ideal electrical and electronic tester.
• How to Use: according to the measurement needs, turn the knob to the corresponding function, connect the electrode of the measured object to the corresponding socket of the instrument, and connect the jack G to the protection ring when testing the cable.
• HD digital display: measuring range up to 1999MΩ, sampling rate up to 2.3 times/second.
• Digital insulation resistance tester made of high quality ABS material, durable, accurate measurement results.

Specification: Item Type: Resistance Tester Model: BM500A Material: ABS Power Supply: 1 x 6F22 9V (Battery Not Included) Application: Electricity numerical test Automatic Range: Overload display 1 Display Mode: LCD display Maximum Display: 1999 Sampling Rate: 2.5 times/sec Working Environment: 0°C-40°C, less than 75%RH Storage Environment: -10°C-60°C, less than 80%RH Rated Voltage 250V/500V/1000V Open Circuit Voltage 90%~110% of rated voltage Measuring Range 0.001~1999MΩ Minimum Resolution 0.001MΩ Accuracy 250V: About 500kΩ 500V: About 1.5MΩ 1000V: About 5MΩ Measure the achievable resistance value to maintain the lower limit of the rated voltage Not less than 1.5mA How to Use: 1.Turntheknobtothecorrespondingfunctionaccordingtothemeasurementneeds 2.Connecttheelectrodeofthemeasuredobjecttothecorrespondingsocketofthisinstrument 3.Whentestingthecable,connectthejackGtotheprotectivering Package List: 1 x Tester (Battery Not Included) 2 x Clip 1 x Test Lead 1 x Manual Note: If the back cover of the meter is not in place, it is strictly forbidden to use it. Otherwise, it may cause electric shock.
