Bluetooth MP3 Decoding Board, MP3 WMA Decoder Board Audio Wireless Bluetooth Module with LED, Color Screen Display Decoding Module

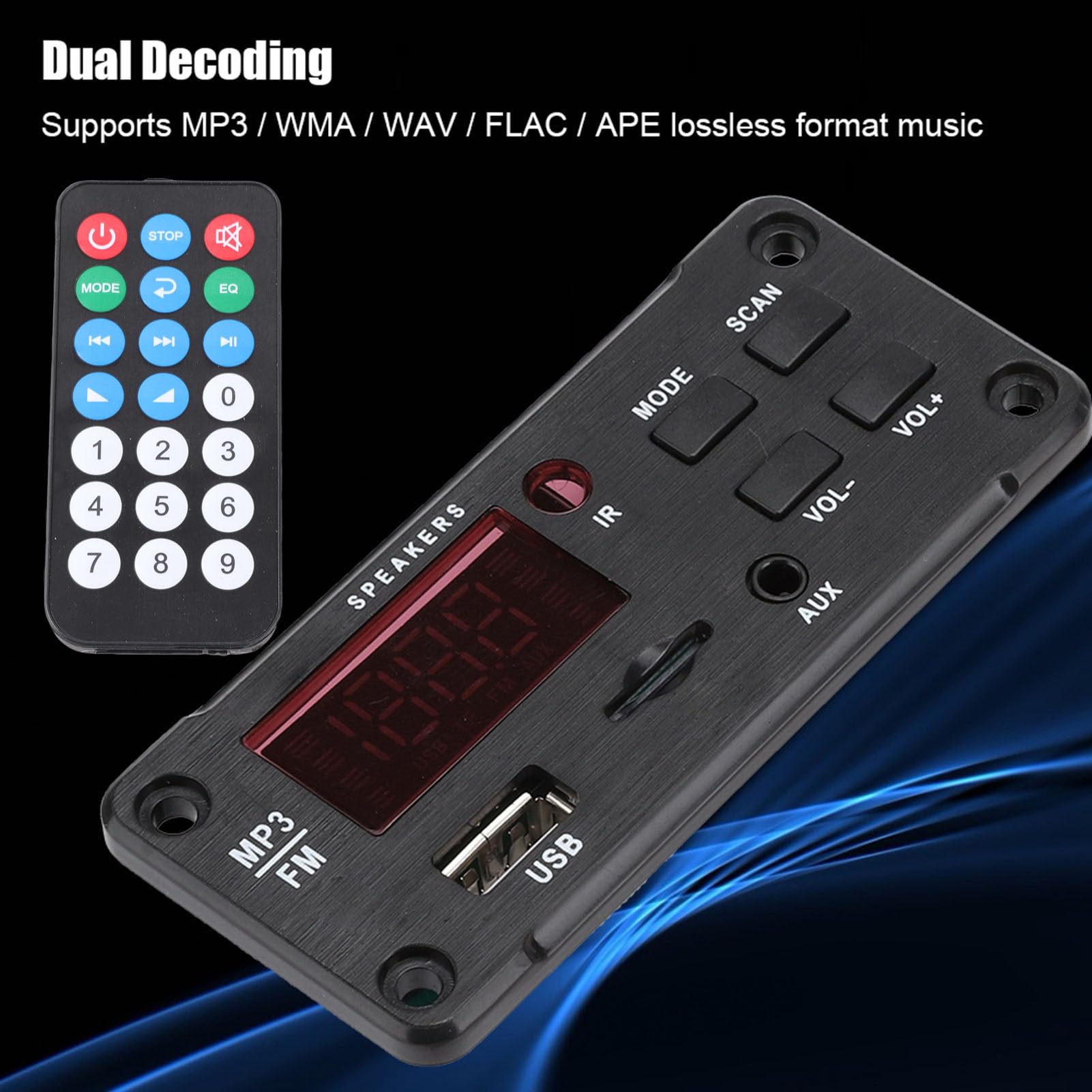

• DUAL DECODING --- Support MP3 / WMA / WAV / FLAC / APE lossless format music.

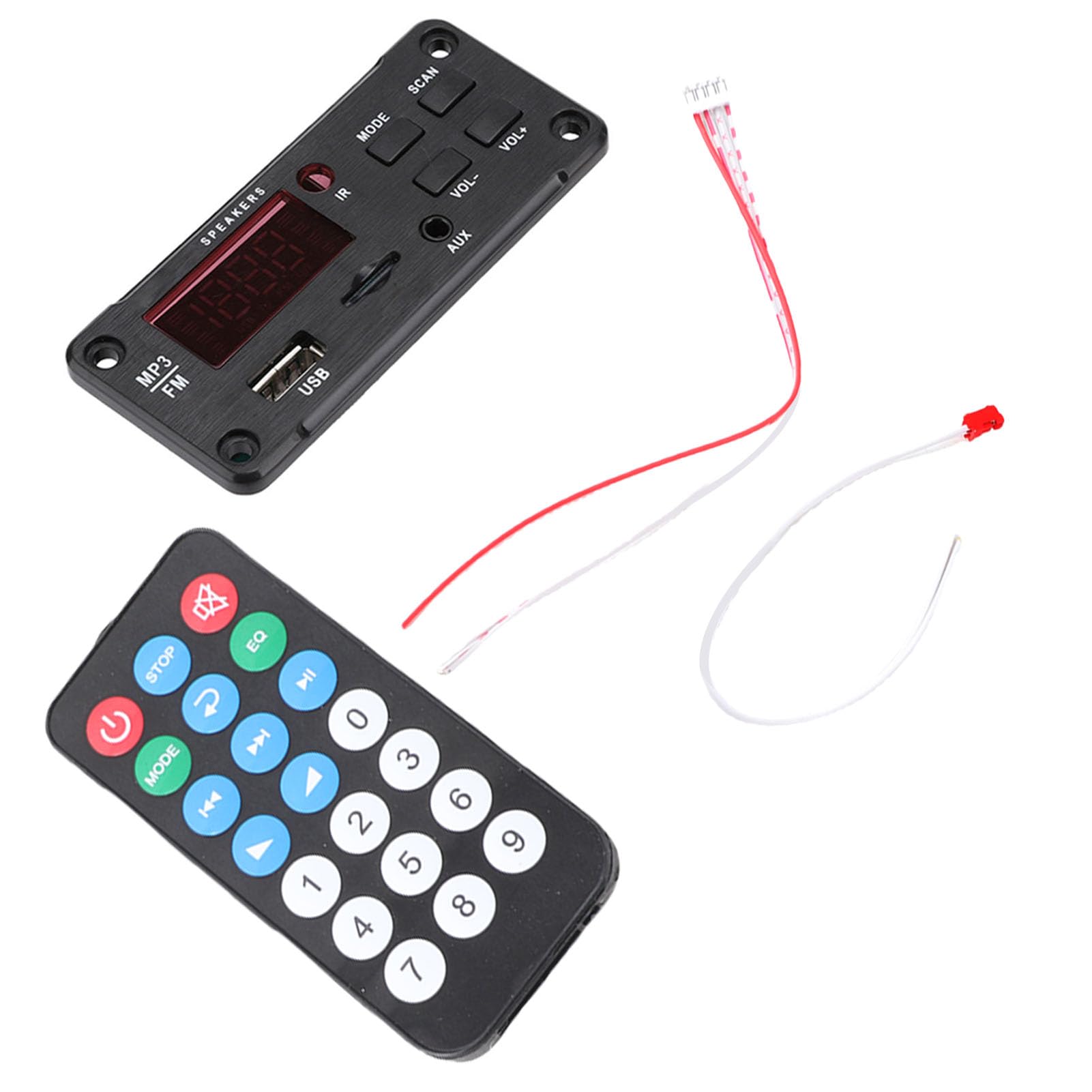

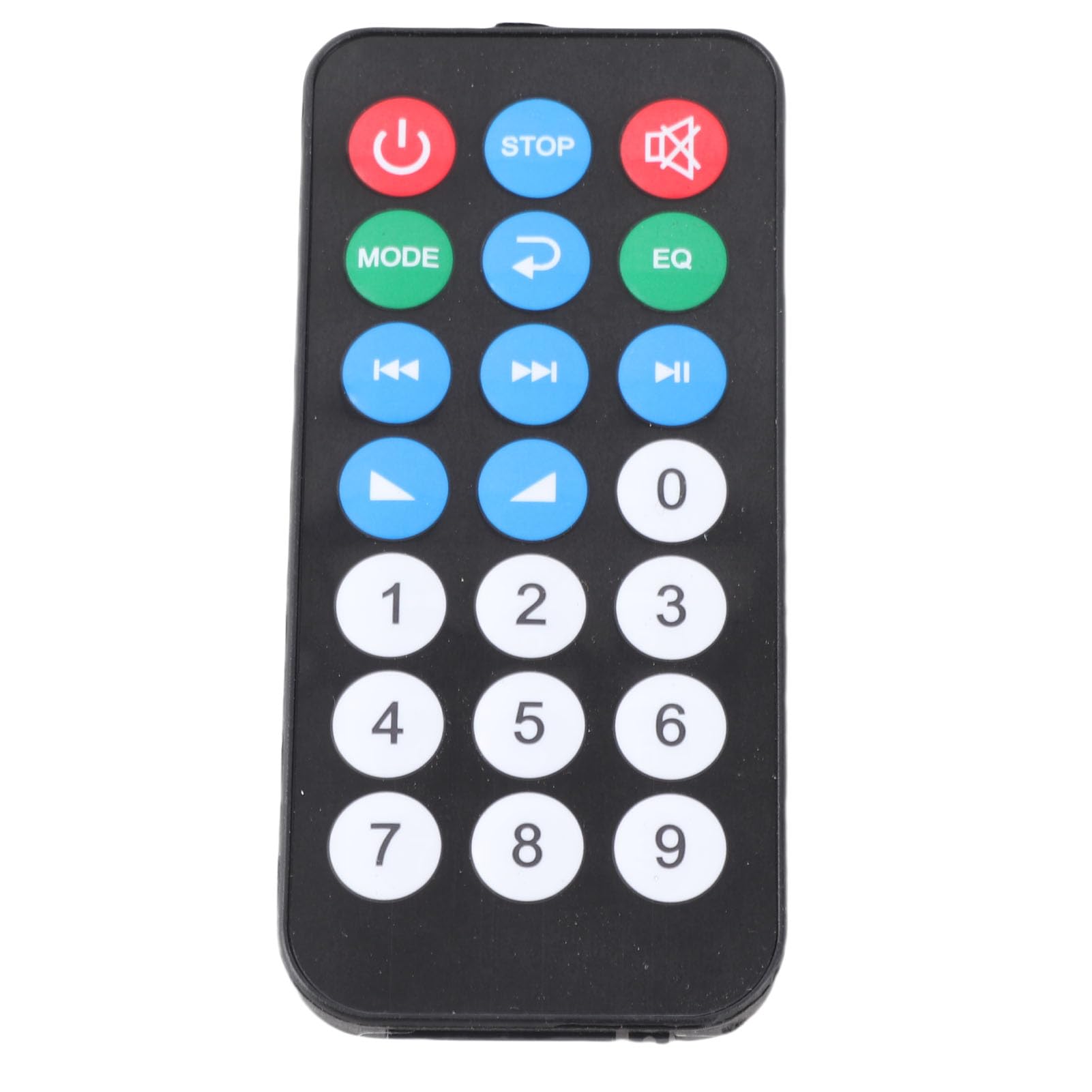

• BLUETOOTH SUPPORT --- Bluetooth 5.0 version, support 10 meters distance infrared remote control operation.
• MEMORY STOP FUNCTION --- The set-top box supports memory stop function, memory plays songs and volume before power off.

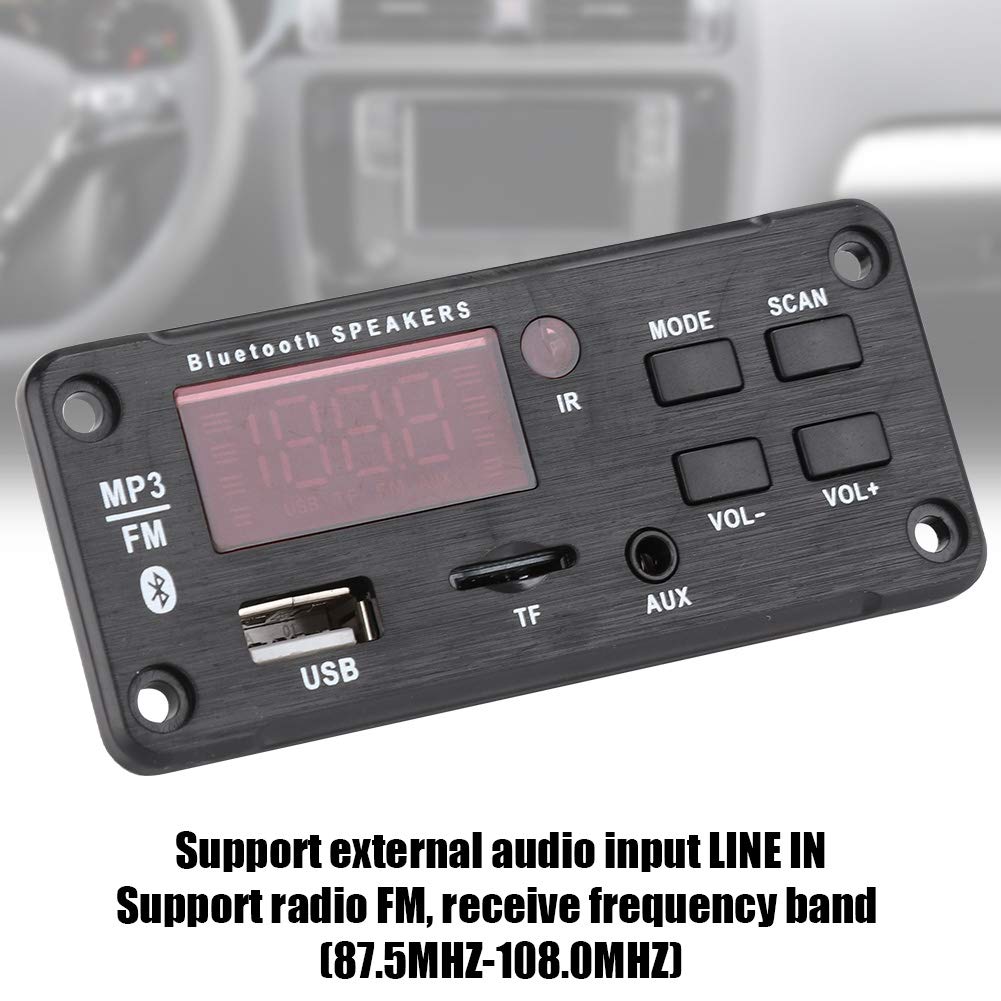

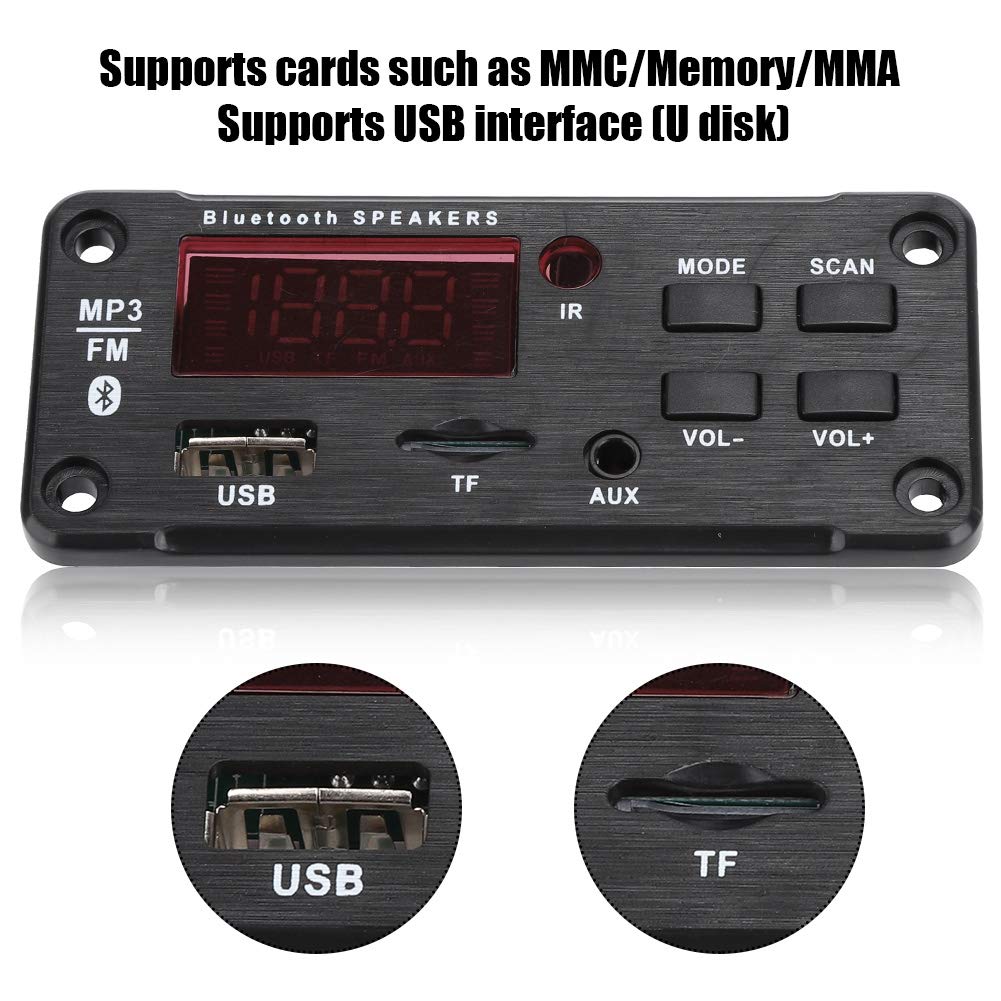

• WIDE COMPATIBILITY --- Support cards such as MMC / Memory / MMA and support USB interface (U disk). Support LINE IN external audio input; Support FM radio, receive frequency band (87.5MHZ-108.0MHZ).

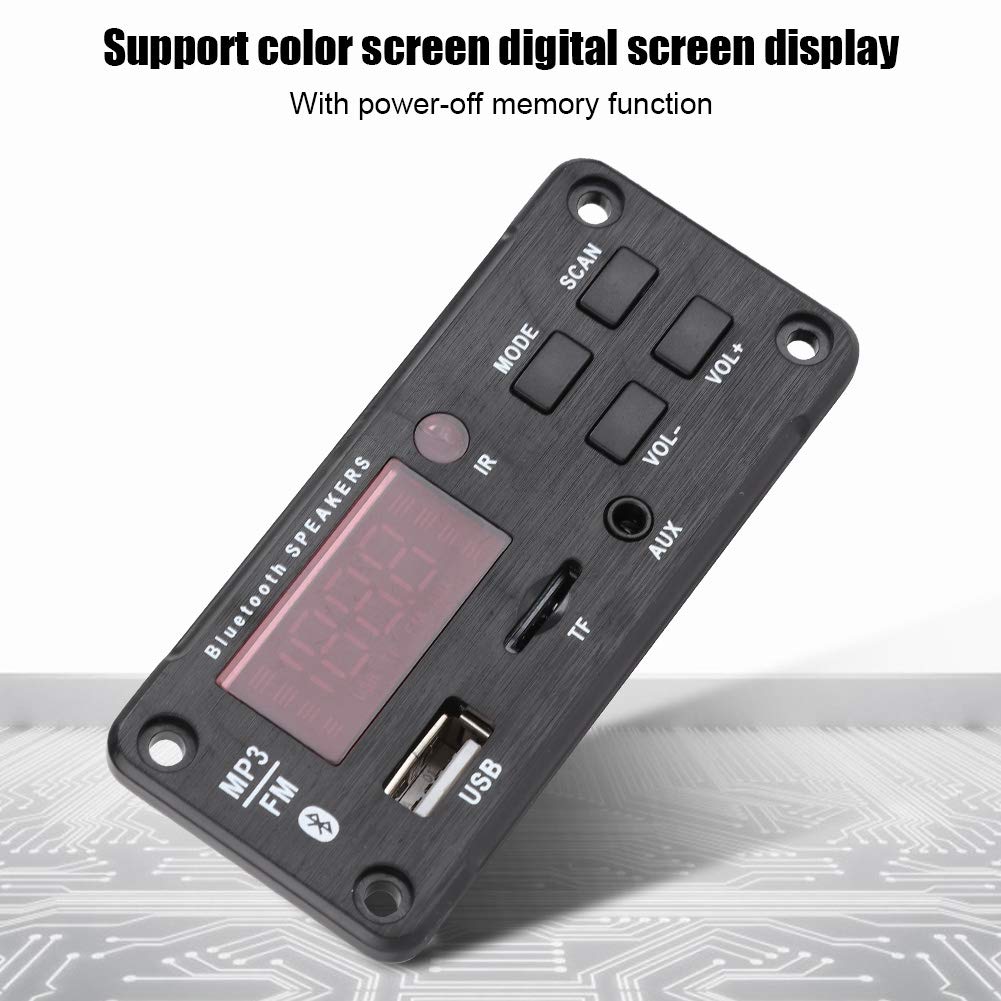

• BUTTON --- Four-button multi-directional control, VOL- / SCAN / VOL + / MODE. Support color screen digital screen display.

Product description Specification: Item Type: Module Button: Four-button multi-directional control, VOL-/ SCAN / VOL+ / MODE Model: HLX-D022BT (with Bluetooth) Function Introduction: For Jerry Program / Support Bluetooth function (Bluetooth version 5.0) / double decoding MP3, WMA, WAV, FLAC, APE lossless format music / read USB disk / read TF card / radio FM / external audio input LINE IN / infrared remote control / power off memory / power supply Key Operation Details: 1. VOL-button (previous song/volume reduction): In MP3 state, VOL-short press is the previous song, long press is for volume reduction; in FM state, short press to adjust one station number; in Bluetooth function, short press under the function is the last song of Bluetooth, long press to decrease the volume. 2. SCAN button (play/pause): SCAN short press for play/pause in MP3 state; short press for play/pause in FM state, short press for automatic receiver and save station; short press for play under Bluetooth function /time out. 3. VOL + button (the next song / volume increase): In the MP3 state, VOL + short press for the next song, long press for the volume to increase; short press in the FM state to adjust a station number; under the Bluetooth function Short press for the next song of Bluetooth, long press for the volume to decrease. 4. MODE button: Switch between USB / TF / FM / audio input / Bluetooth function. .w-e-text table td,.w-e-text table th,;.w-e-text table, Package List: 1 x Decoding Module 3 x Pin Line Safety Warning Please note: This product contains one battery. Keep the battery out of the reach of children. Do not expose the product to extreme temperature or humidity. This product may interfere with other wireless devices. Please follow the safety instructions provided in the package.
