BGTXINGI Multifunctional Relay Module DC 12V Trigger Cycle Delay Turn Off and Turn On LED Display Relay Expansion Plate Load Controlled Relay Timer Switch Module for Industrial Automation Process

• SUPER MATERIAL: Made of high quality use electrical element and semiconductor components. High structural strength, impact resistance, strong shock resistance, small driving current at the input end can easily interface with computer terminals and various digital programmed circuits. Beautiful and generous, excellent electrical conductivity, safe and reliable, long mechanical life.
• PACKAGE INCUDIGN: Include 1pcs relay module, can set low level trigger with jumper, to meet the demand of more trigger applications.
• CONVENIENT TOOL: The shell of relays is made of flame retardant plastic material, wear resistant, high temperature resistant, dustproof and oil resistant. The internal structure adopts a high-efficiency spring structure and has a high life. High mechanical strength, reliable and stable.
• Main Parameter: The module Operating voltage: 12V. Output capability: can control devices within 30V10A DC or within 220V10A AC. Quiescent current: 15mA. Working current: 30mA. Working temperature: -40 ~ 85'C.
• A WIDE RANGE OF APPLICATION: Widely used in industrial automation, electric furnace heating, stage lighting control, photocopiers, medical equipment, petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastic machinery, fitness equipment, entertainment facilities and other automation control areas.and so on. etc.

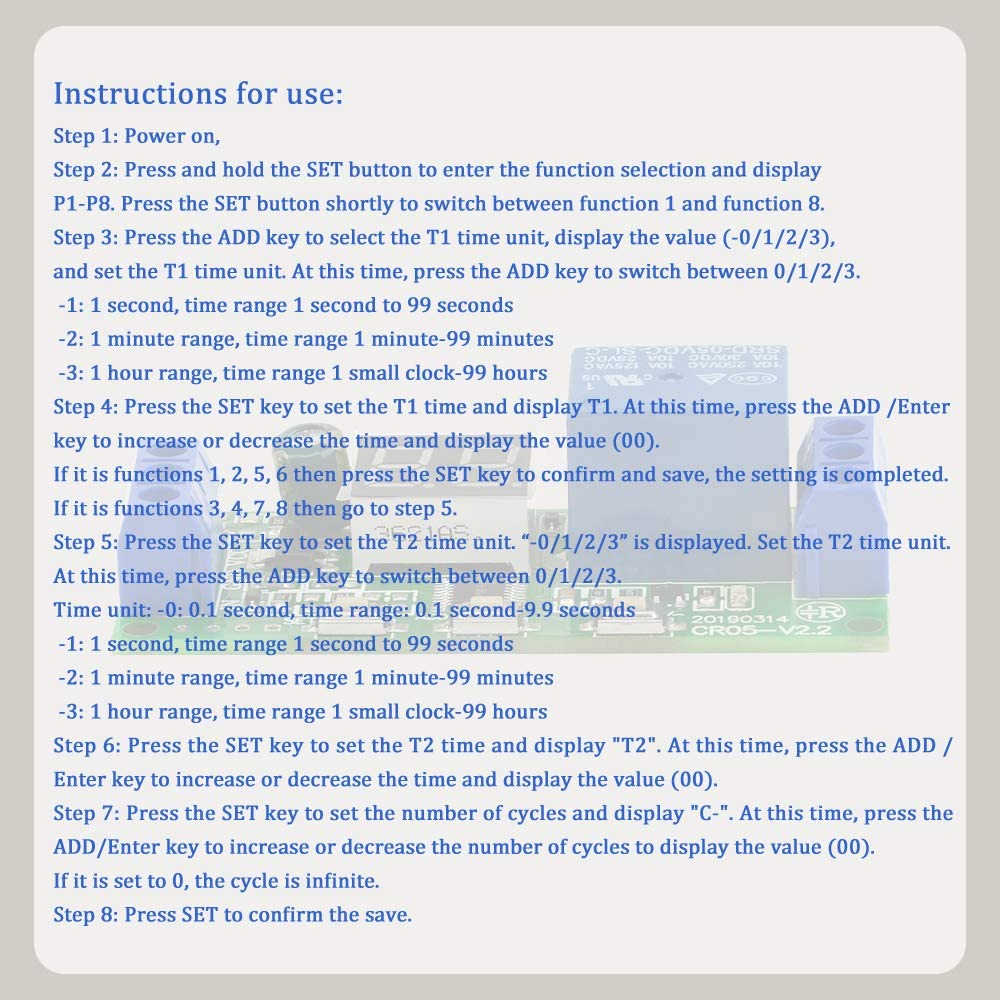

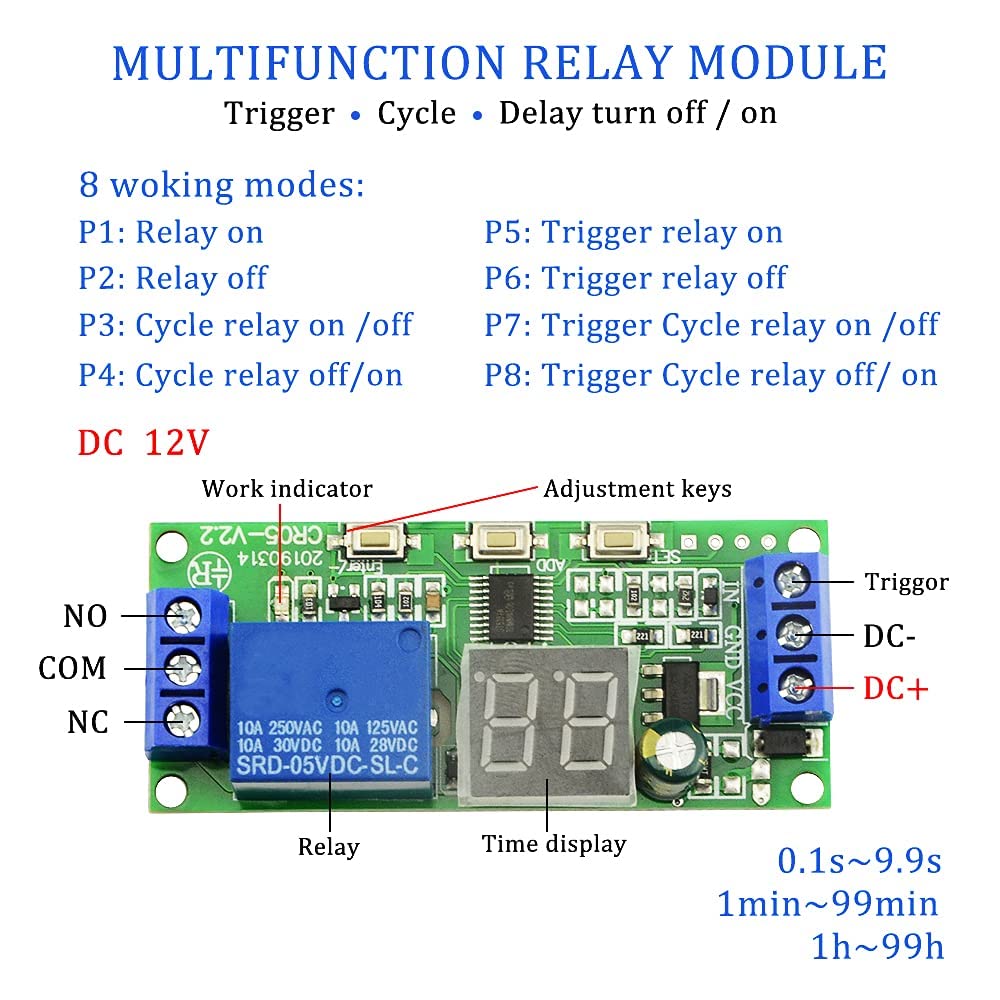

Features and benefits: Function introduction: Time delay range: T1 and T2 between 0.1 second ~99 hours adjustable. P1(relay on):when power on, the relay on, delay T1, and the relay off. Give IN a low level, repeat the above function. P2(relay off):when power on, the relay disconnected, delay T1, and the relay on. Give IN a low level, repeat the above function. P3(Timing cycle on-off): when power on, the relay on, delay T1, and the relay off, delay T2, the relay on, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. P4(Timing cycle off-on): when power on, the relay disconnected, delay T1, and the relay on, delay T2, the relay off, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. P5(trigger relay on): when power on, the relay disconnected, triggered the relay on, delay T1, and the relay off. Give IN a low level, repeat the above function. P6(trigger relay off):when power on, the relay disconnected, triggered the relay disconnected, delay T1, and the relay on. Give IN a low level, repeat the above function. P7(trigger cycle on-off): when power on, the relay disconnected, triggered the relay on, delay T1, and the relay off, delay T2, and the relay on, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. P8(trigger circle off-on): when power on, the relay disconnected, triggered the relay disconnected, delay T1, and the relay on, delay T2, and the relay off, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. Delay time range: adjustable from 0.1 second to 99 hours Product parameters: 1. Working voltage: DC 12V 2. Output capability: can control devices within 30V10A DC or within 220V10A AC 3. Quiescent current: 15mA 4. Working current: 30mA 5. Working temperature: -40 ~ 85'C; 6. Size: 65mm * 28mm * 18mm
