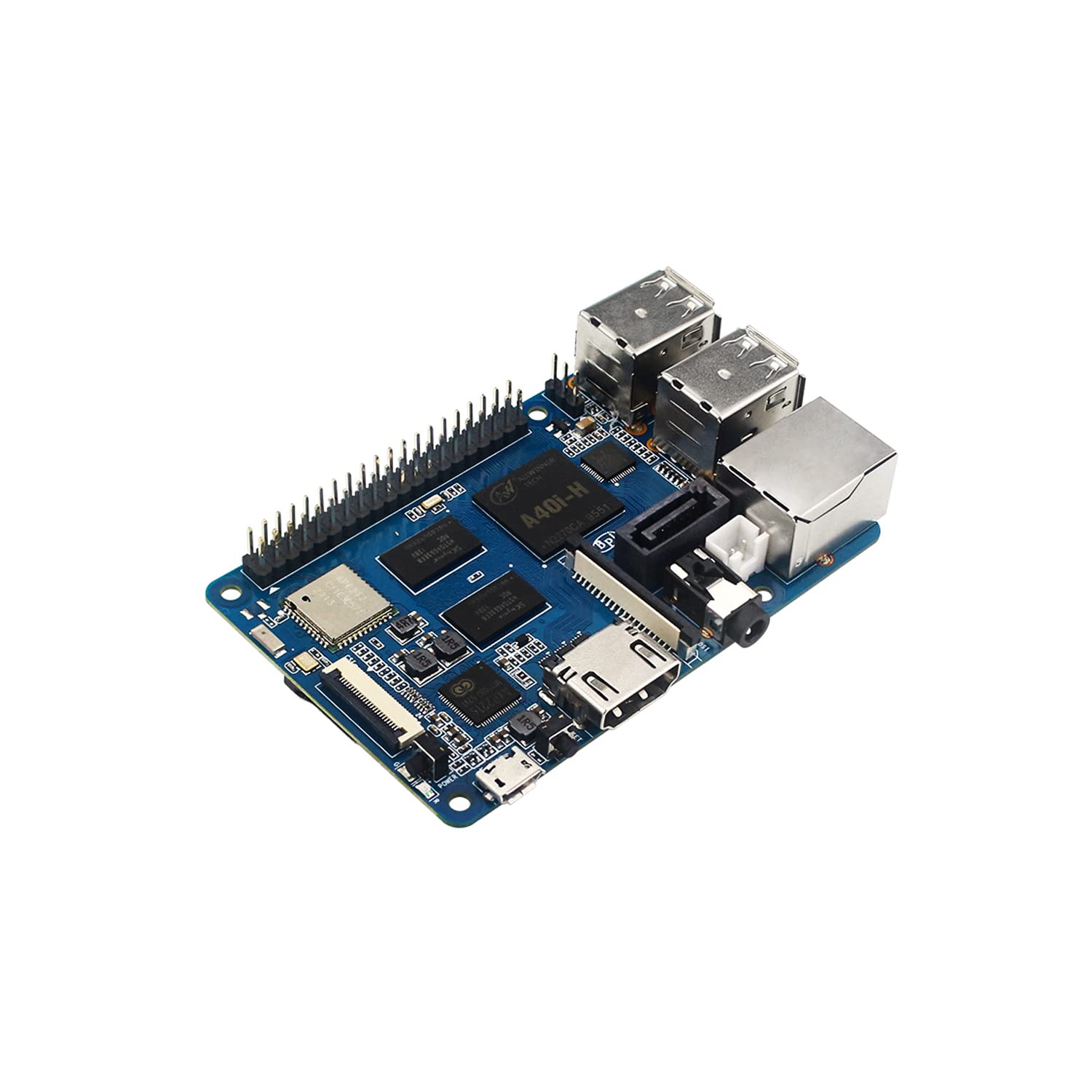

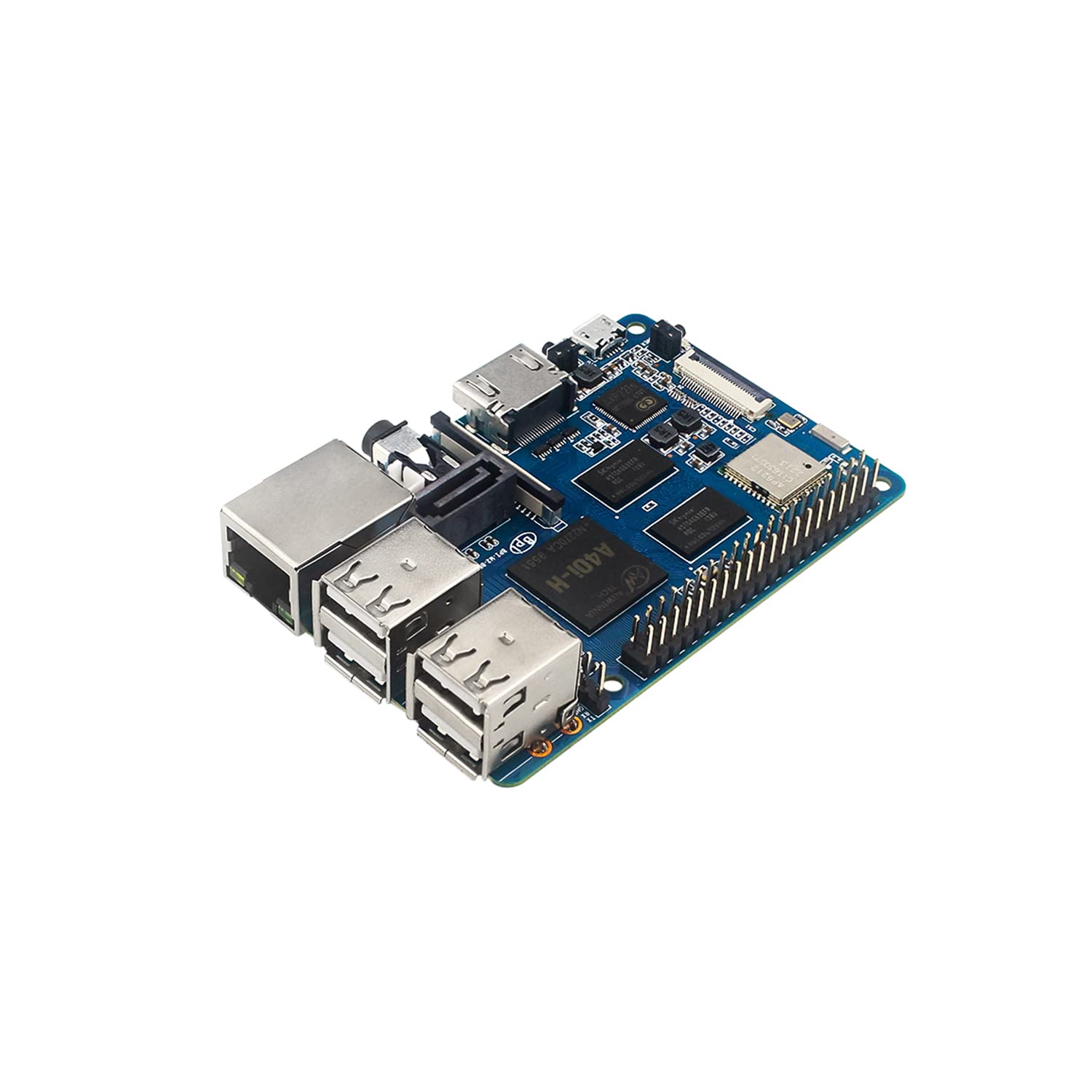

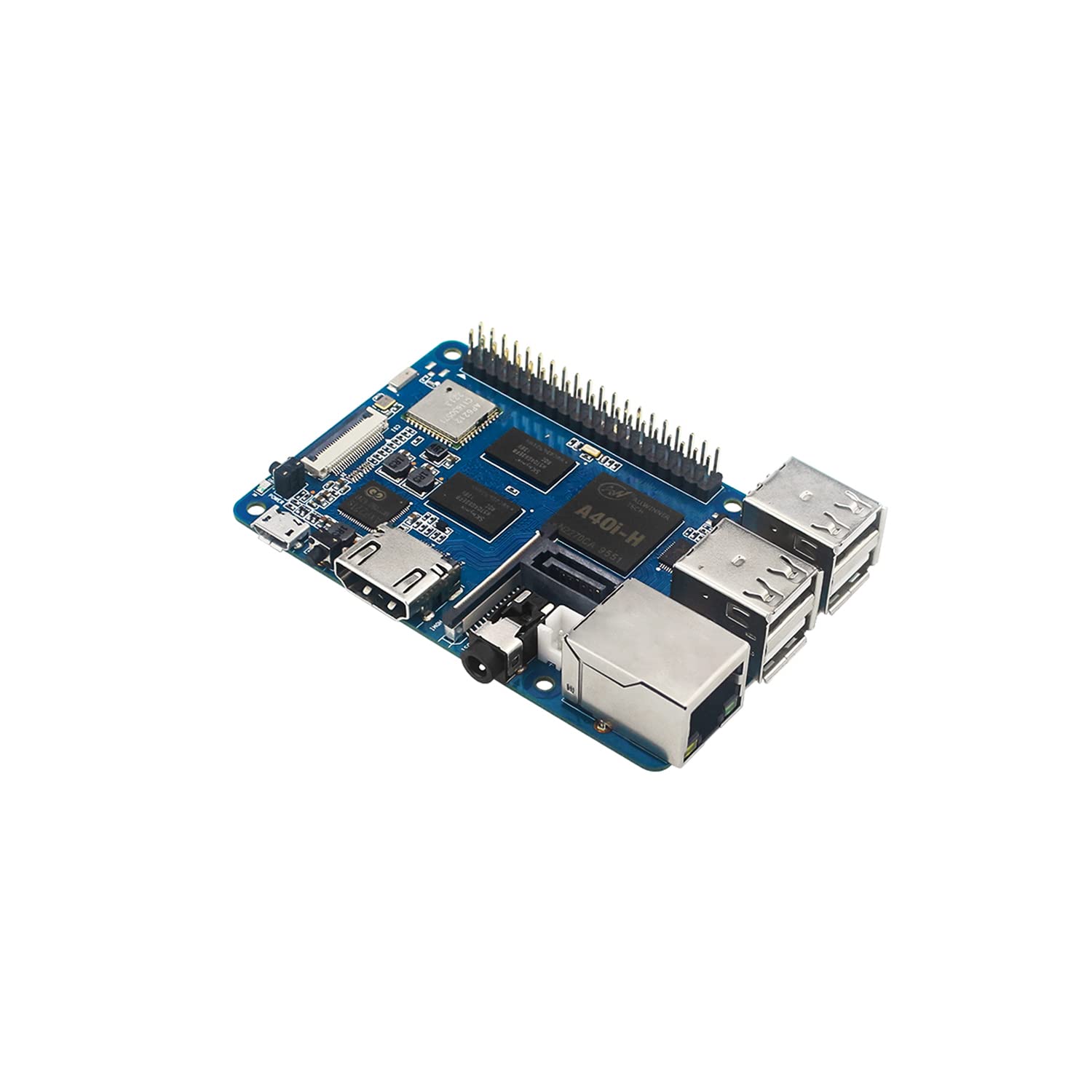

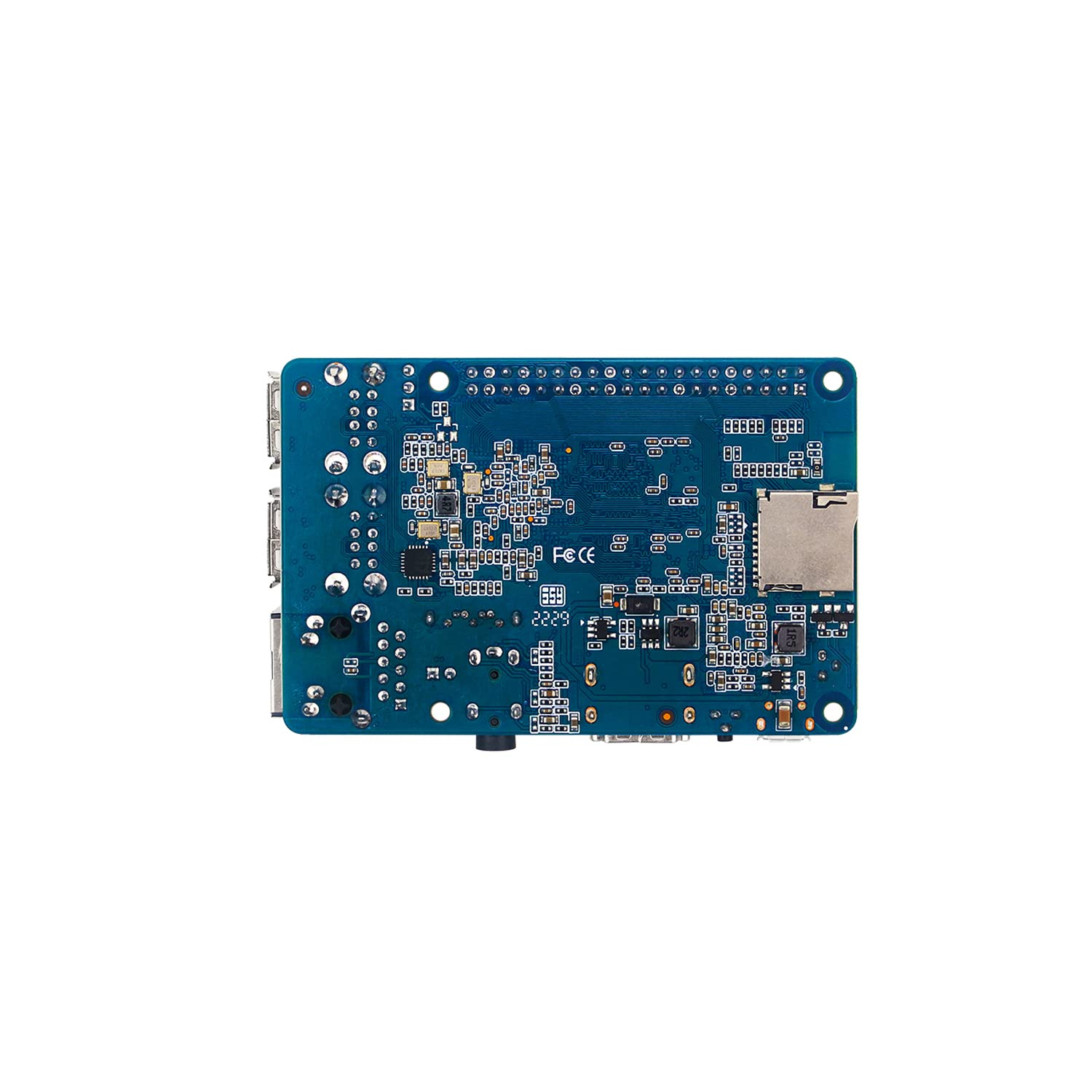

Banana Pi M2 Berry Open Source Single Board Computer Allwinner A40i Soc Onboard WiFi Module Bluetooth 4.0 with 1G LPDDR3 RAM Support Android Linux GPIO Compatible with Raspberry Pi 3 Run Raspbian

• [Allwinner A40i Chip] The Banana Pi BPI-M2 Berry quad-core single-board computer is designed with the Allwinner A40i chip. Featuring 1GB LPDDR3 memory, quad-core Cortex-A7 CPU, the most energy efficient CPU core ARM has ever developed. GPU: Dual Core MALI-400 MP2 and runs at 500MHz

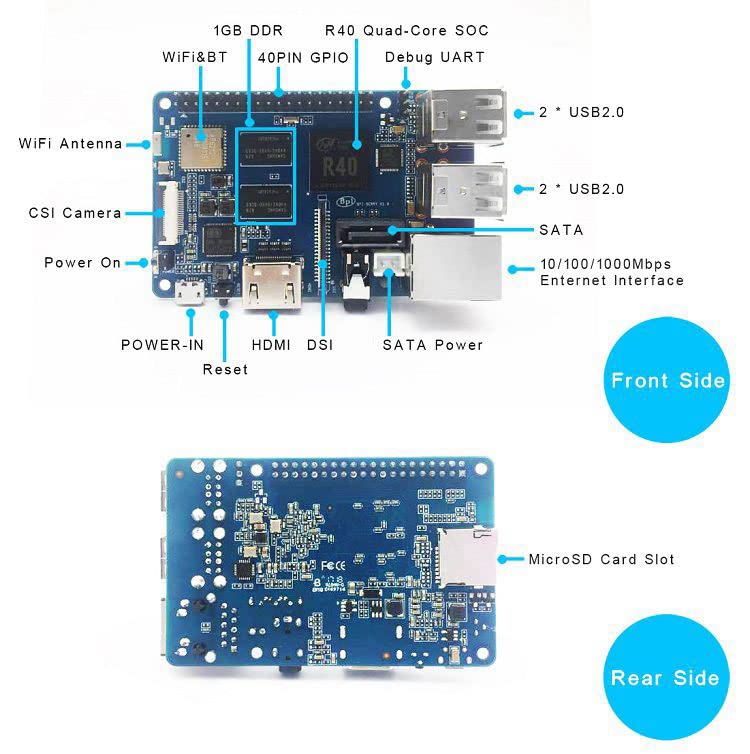

• [Powerful Function] Banana PI BPI-M2 Berry single board computer has Gigabit Ethernet port (Realtek RTL8211E/D), 4x USB ports, 4x USB 2.0 ports, MIPI DSI display port, CSI camera port; Supports built-in Wi-Fi and Bluetooth; Supports SATA interface, can be connected directly to the hard drive. There is an SD card slot on the board, and the system image can be booted from the SD card.
• [Operating System Support] The open source single board computer Banana PI BPI-M2 Berry has strong compatibility and can run Android systems, Debian-Linux, Ubuntu-Linux, Raspberry Pi systems and Allwinner TinaLinux systems.

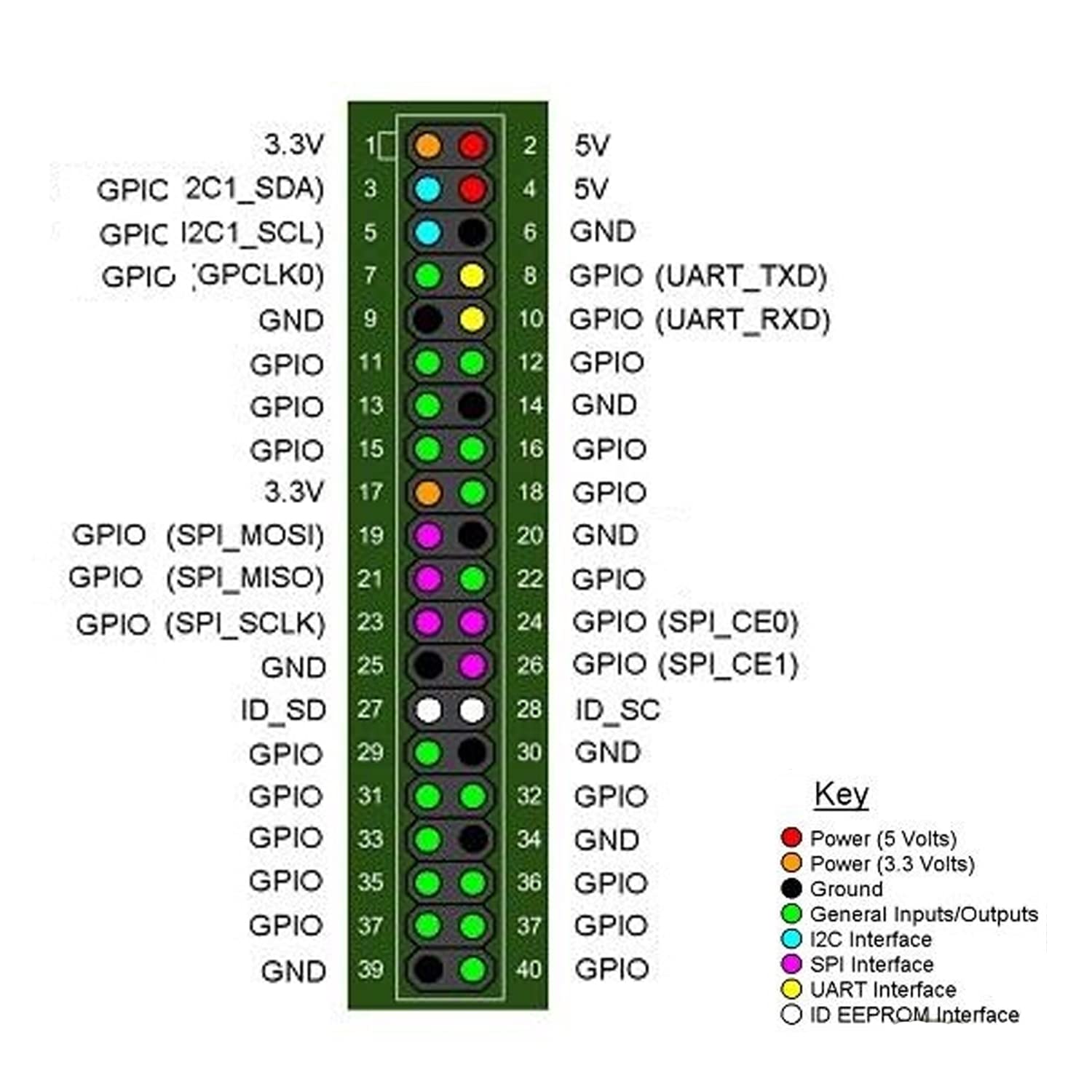

• [GPIO Compatible with Rasbian] Banana PI BPI-M2 Berry is exactly the same size as Raspberry Pi 3 and can directly use the case of Raspberry Pi 3. GPIO is compatible with Raspberry Pi 3 and can run Rasbian system.
• [Wiki] "https://wiki.banana-pi.org/Banana_Pi_BPI-M2_Berry". Startup instructional video: "https://www.youtube.com/watch?v=HQgVKmdbCFk". Pls feel free to contact us to get the Datasheet or any questions of this module after you purchased it. How to contact us? Click "WayPonDEV " and ask a question.

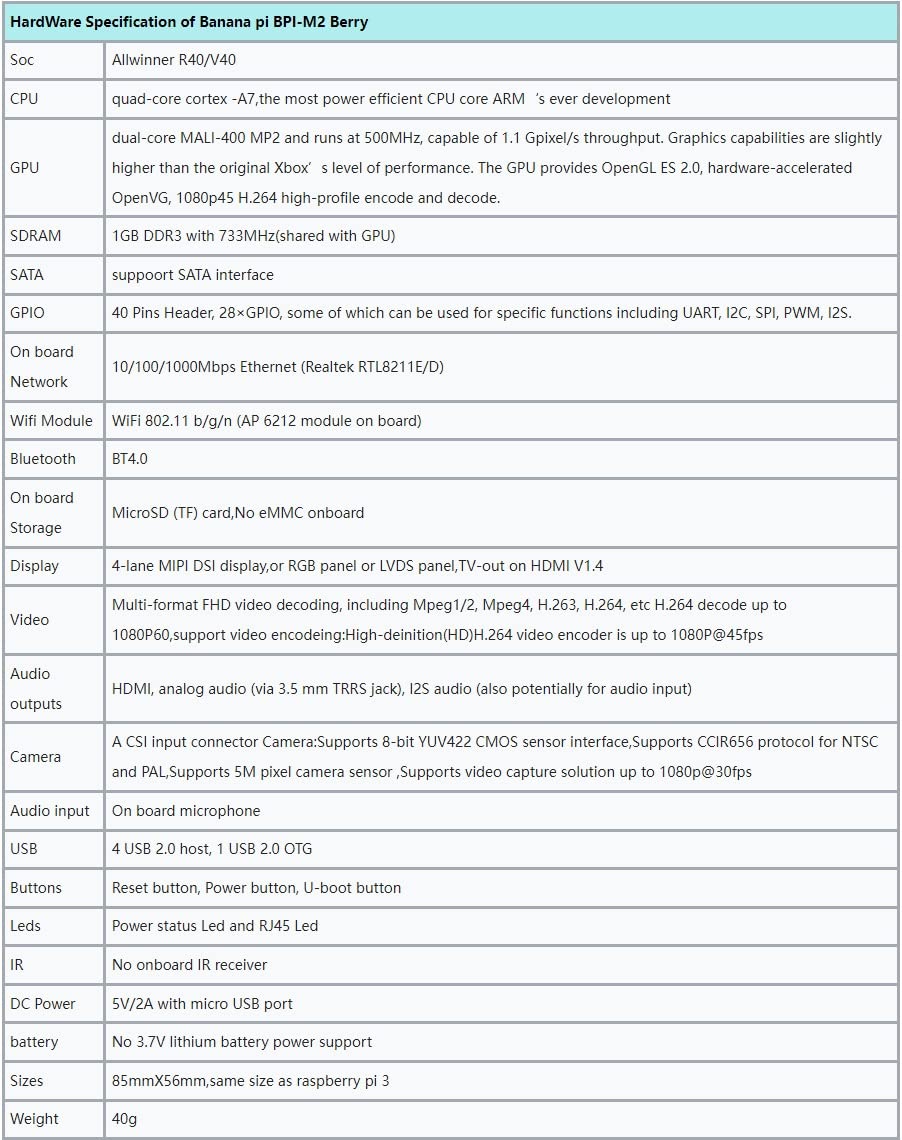

-Specification- Soc:Allwinner A40i CPU:quad-core cortex -A7,the most power efficient CPU core ARM's ever development. GPU: dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox's level of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode. SDRAM:1GB DDR3 with 733MHz (shared with GPU). SATA:suppoort SATA interface GPIO:40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. On board network: 10/100/1000Mbps Ethernet (Realtek RTL8211E/D) WiFi module: WiFi 802.11 b/g/n (AP 6212 module on board). Bluetooth:BT4.0. On board storage: MicroSD (TF) card, no eMMC onboard. Display: 4-lane MIPI DSI display, or RGB panel or LVDS panel, TV-out on HDMI V1.4. Video: multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc. H.264 decode up to 1080P60, support video encodeing: High-deinition (HD)H.264 video encoder is up to 1080P@45fps. Audio outputs: HDMI, analogue audio (via 3.5 mm TRRS jack), I2S audio (also potentially for audio input). Camera: A CSI input connector camera: supports 8-bit YUV422 CMOS sensor interface, supports CCIR656 protocol for NTSC and PAL, supports 5M pixel camera sensor, supports video capture solution up to 1080p@30fps USB: 4 USB 2.0 host, 1 USB 2.0 OTG. Buttons: reset button, power button, U-boot button. LEDs: power status LED and RJ45 LED. DC power: 5 V/2 A with micro USB port. Battery: No 3.7V lithium battery power support. Sizes:85mmX56mm,same size as raspberry pi 3 Weight: 40 g. -Package content. 1 x Banana Pi BPI-M2 Berry 1GB single board computer. - Technical support. Wiki:"wiki.banana-pi.org/Banana_Pi_BPI-M2_Berry" Please click "WayPonDEV" and ask a questi
