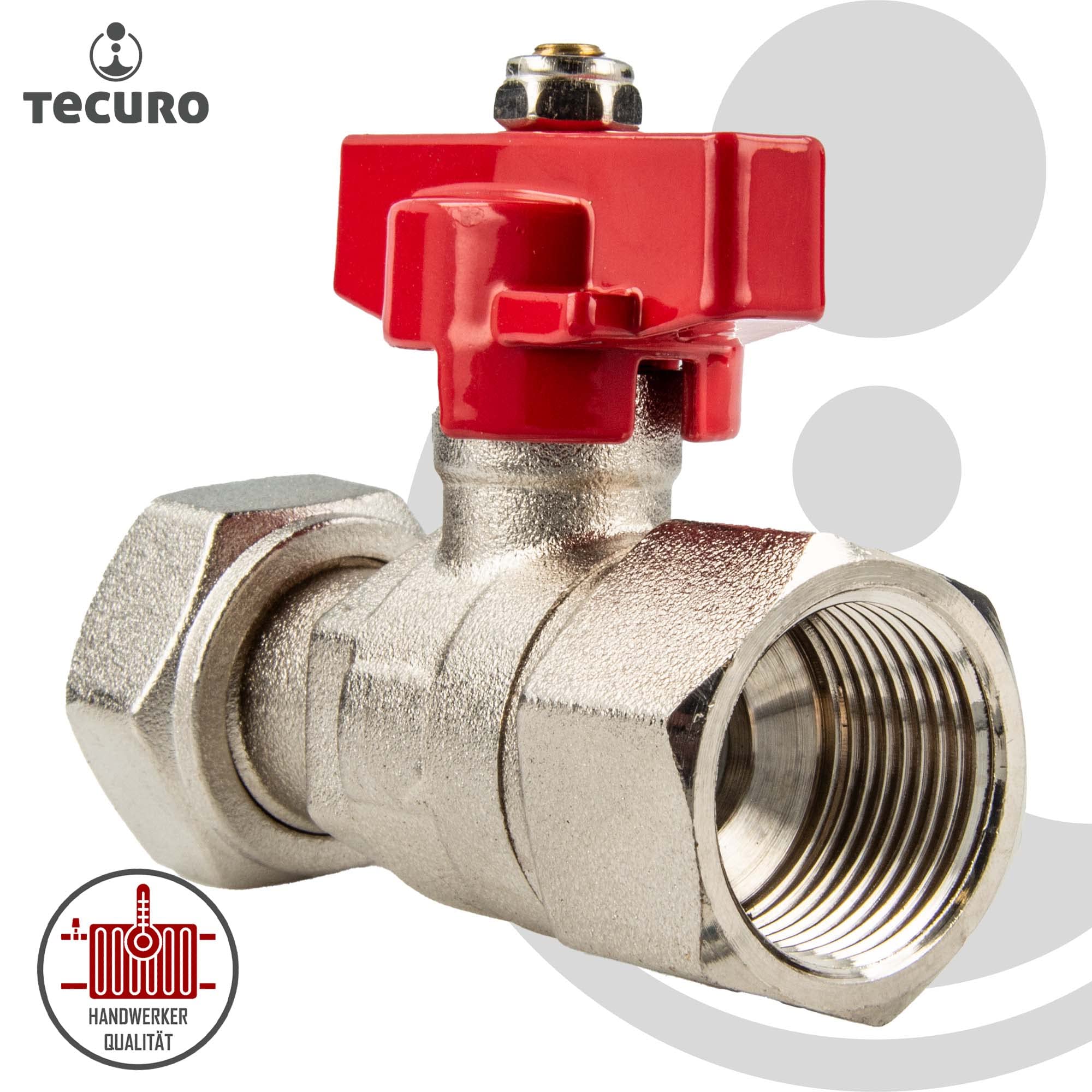

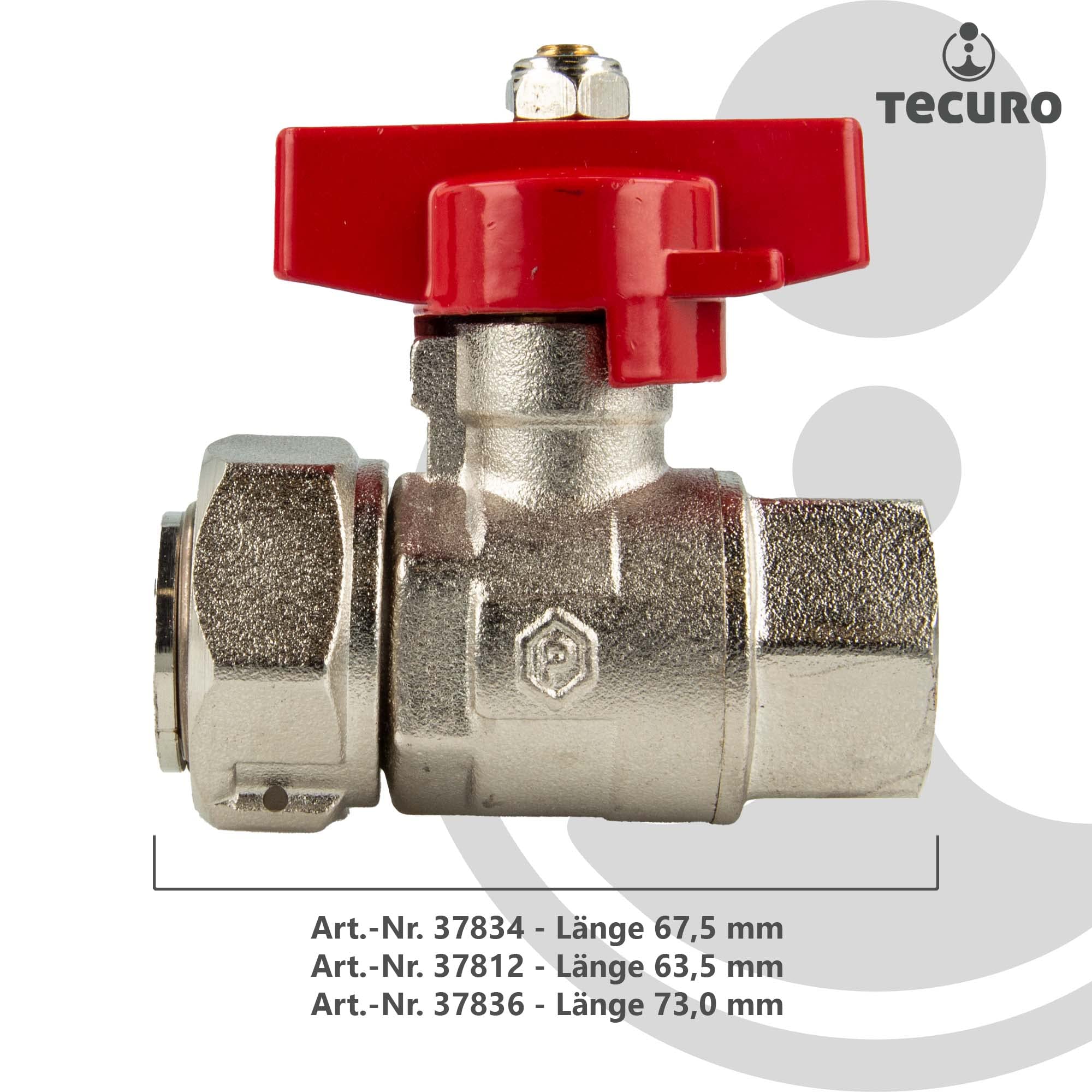

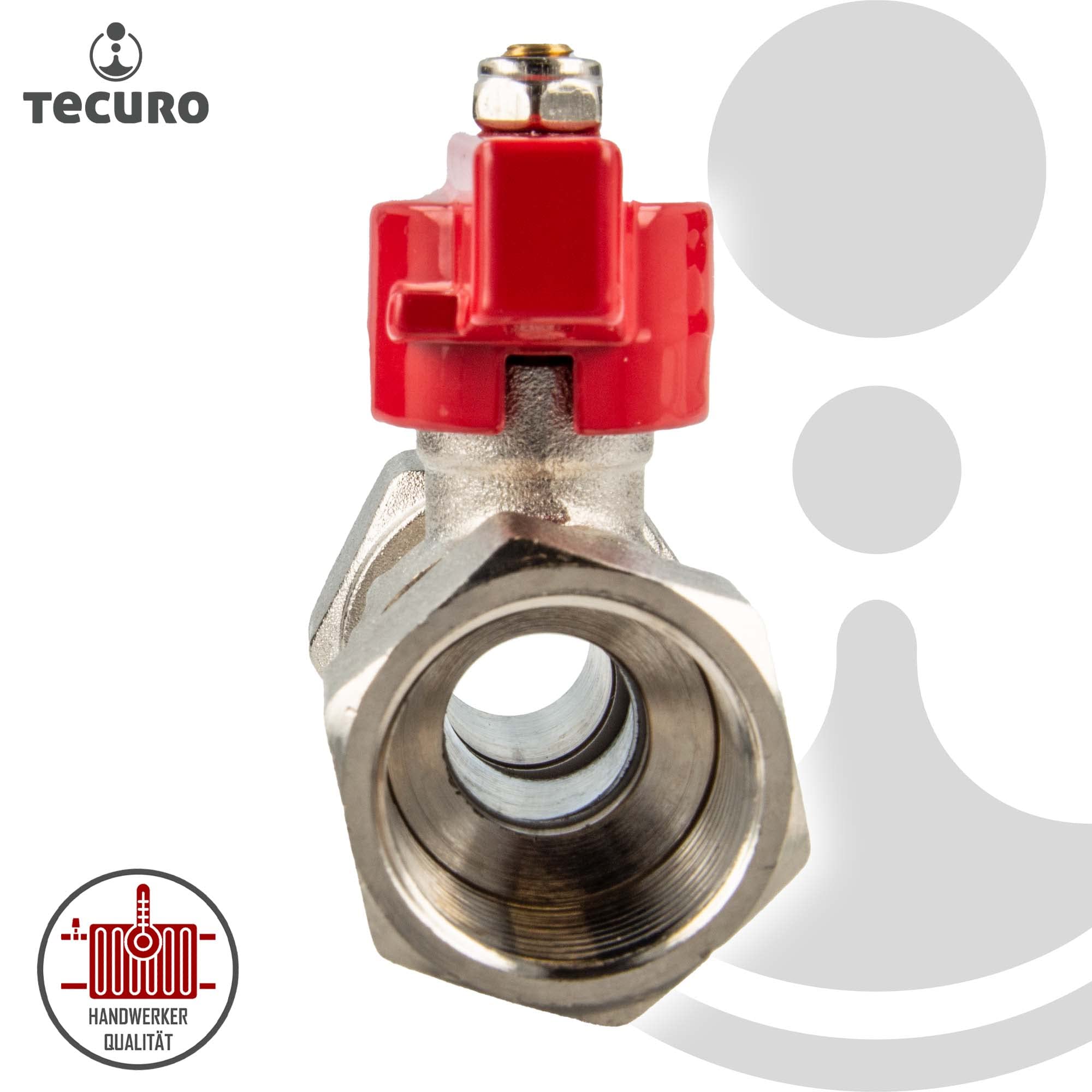

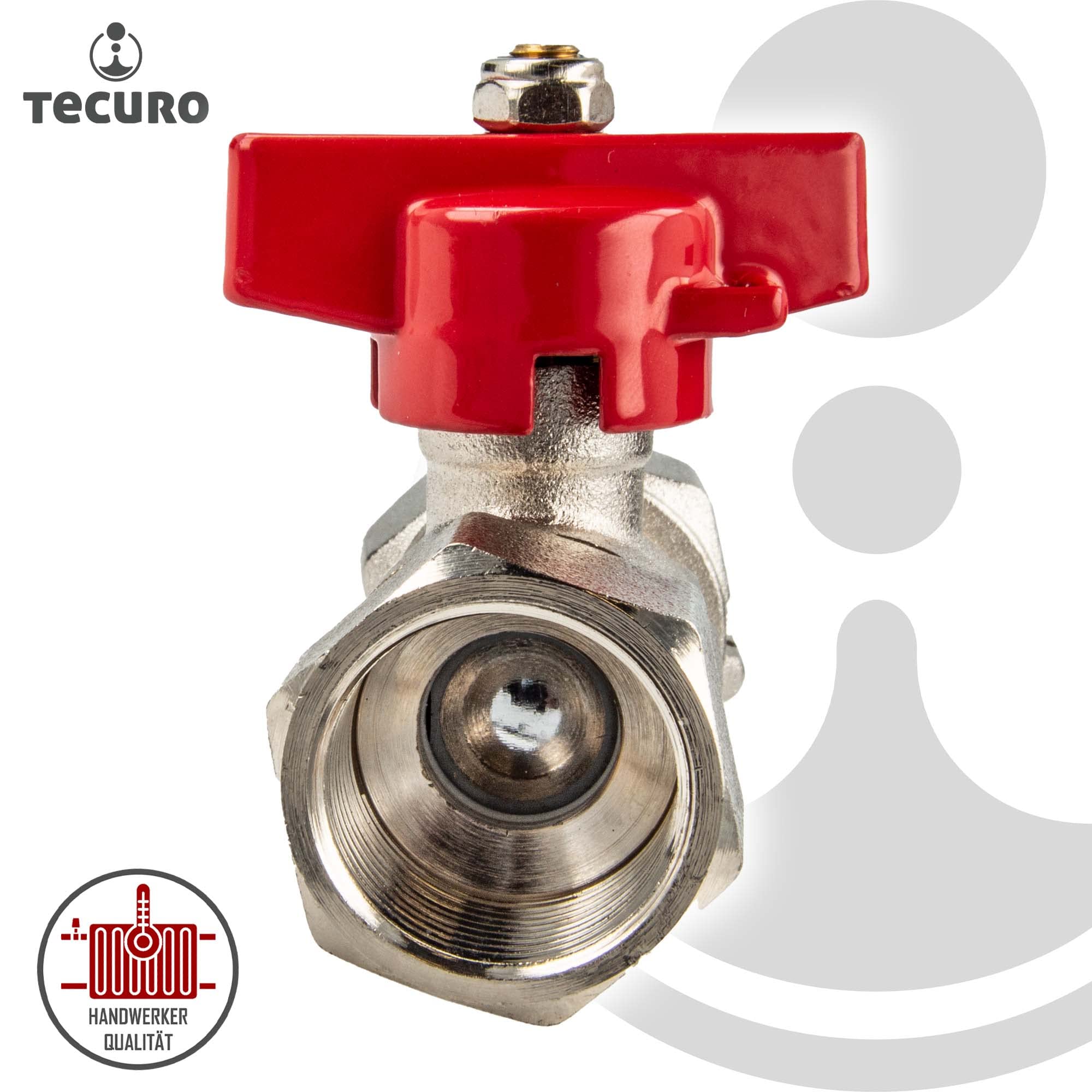

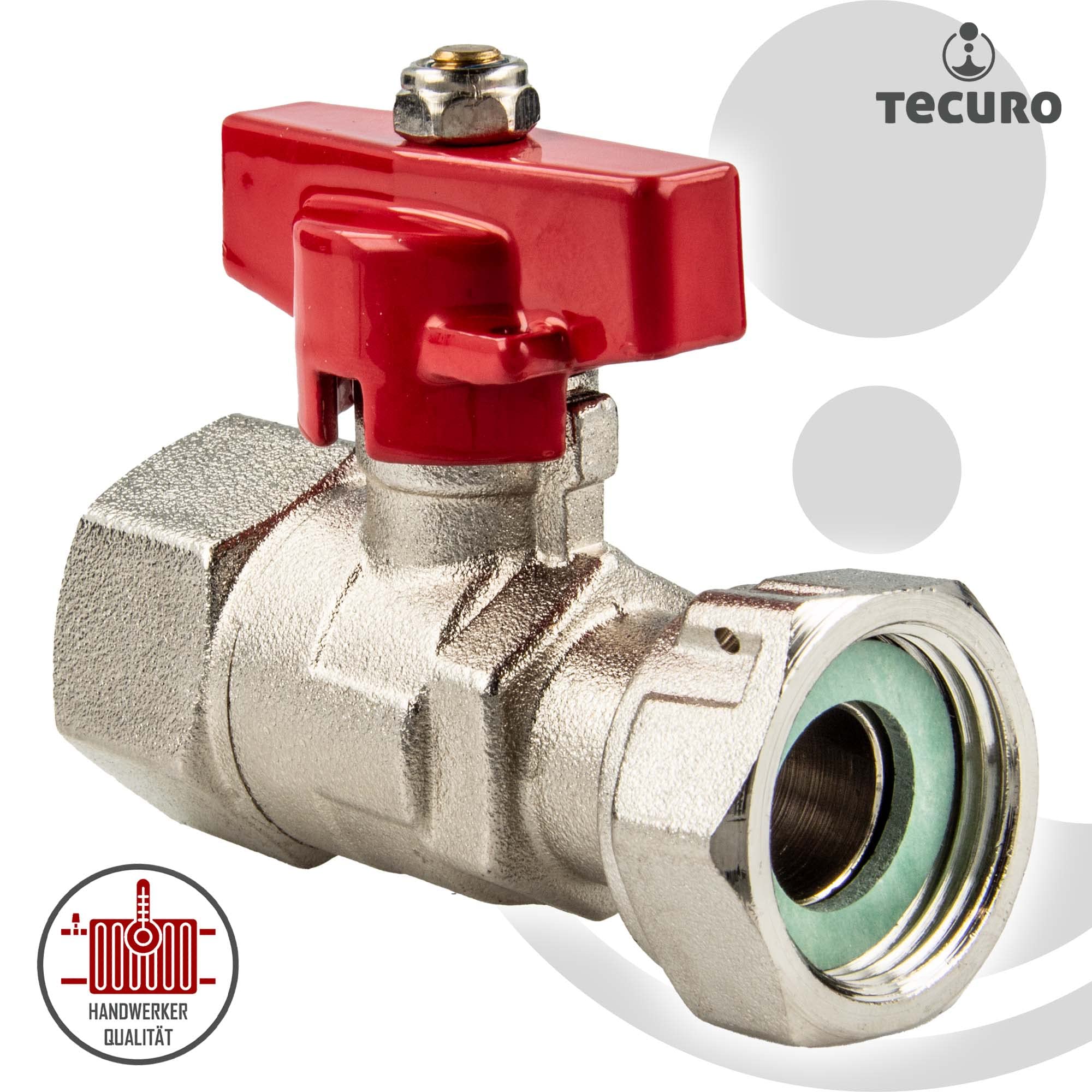

tecuro Ball Valve with Connection nut Rp 3/4" x 3/4" Internal Thread Rp (DN15), red Butterfly Handle

• tecuro Brass Ball Valve with Threaded Fitting
• Model (handle size and colour): ÜWM Rp 3/4" x IG Rp 3/4" (DN15), red butterfly handle
• Connection on both sides of the internal thread, cylindrical (Rp) according to ISO 7/1 DIN EN 10226-1 or DIN ISO 228-1 // With sealing holes on the connection nut and handle for mounting plumbing wire, etc.
• Temperature range: -5°C to +100°C depending on operating pressure. Operating pressure at 80°C = 20 bar

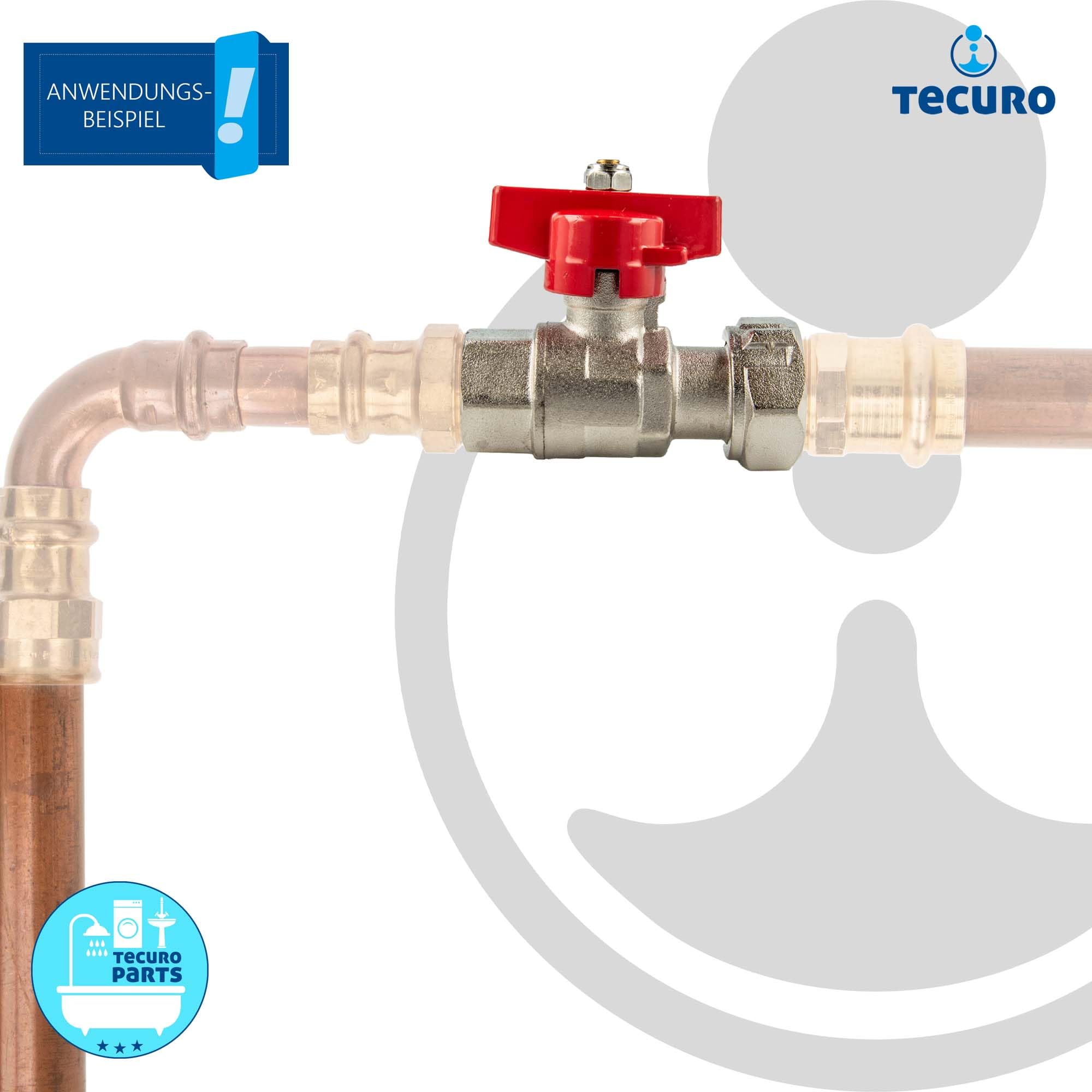

• Mounting: horizontal or vertical possible // Material: nickel-plated pressed brass with reduced passage

tecuro Brass ball valve with screw connection Version (size & colour of handle): ÜWM Rp 3/4" x IG Rp 3/4" (DN15), red butterfly handle Connection on both sides, cylindrical internal thread (Rp) according to ISO 7/1 DIN EN 10226-1 or DIN ISO 228-1 Red butterfly handle with lead holes bage on the nut connector and handle for mounting lead wires, etc. Temperature range: -5 °C to + 100 °C depending on max. operating pressure. Operating pressure at 80 °C = 20 bar. Installation: horizontally or vertically possible. Material: nickel-plated pressed brass, with reduced passage. The number and model you have selected are always provided, even if several other items are shown for illustration purposes in the photos
