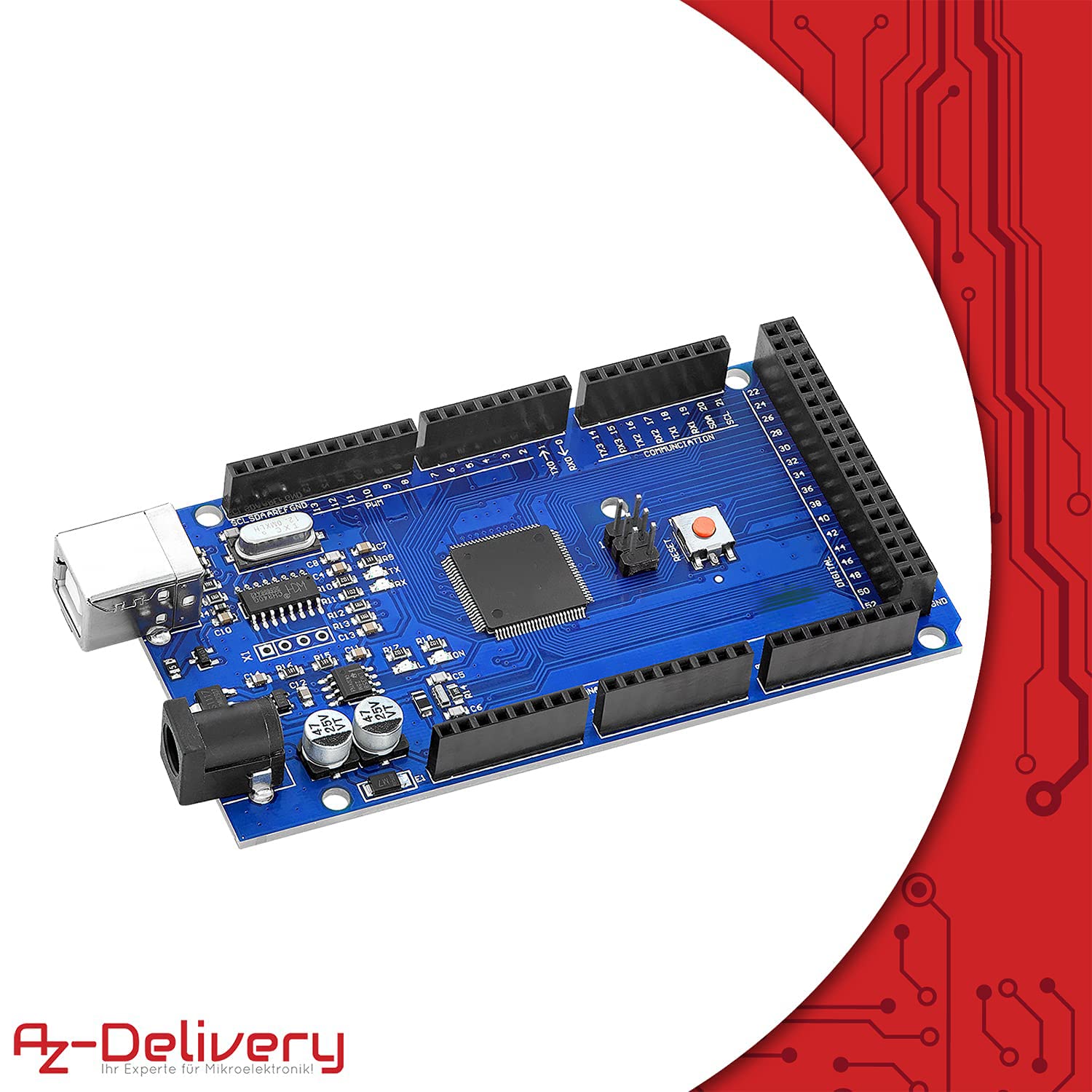

AZDelivery 3 x Compatible with AZ-MEGA2560-Board Compatible with AZ-MEGA2560-Board Controller Board including eBook

• ✅ AZ-Delivery AZ-MEGA2560-Board controller board is 100% pin and code compatible with the original AZ-MEGA2560-Board, and is well suited with most shields designed for the Diecimila or Duemilanove.
• ✅ AZ-MEGA2560-Board has a chipset with 16 MHz clock frequency, 256 KB flash memory (incl. 8 KB for bootloader), 8 KB SRAM and 4 KB EEPROM memory. Allows effortless PC connection via CH340G USB converter and supplied USB cable. These AZ-MEGA2560-Board features allow more complex programs and projects to be done.

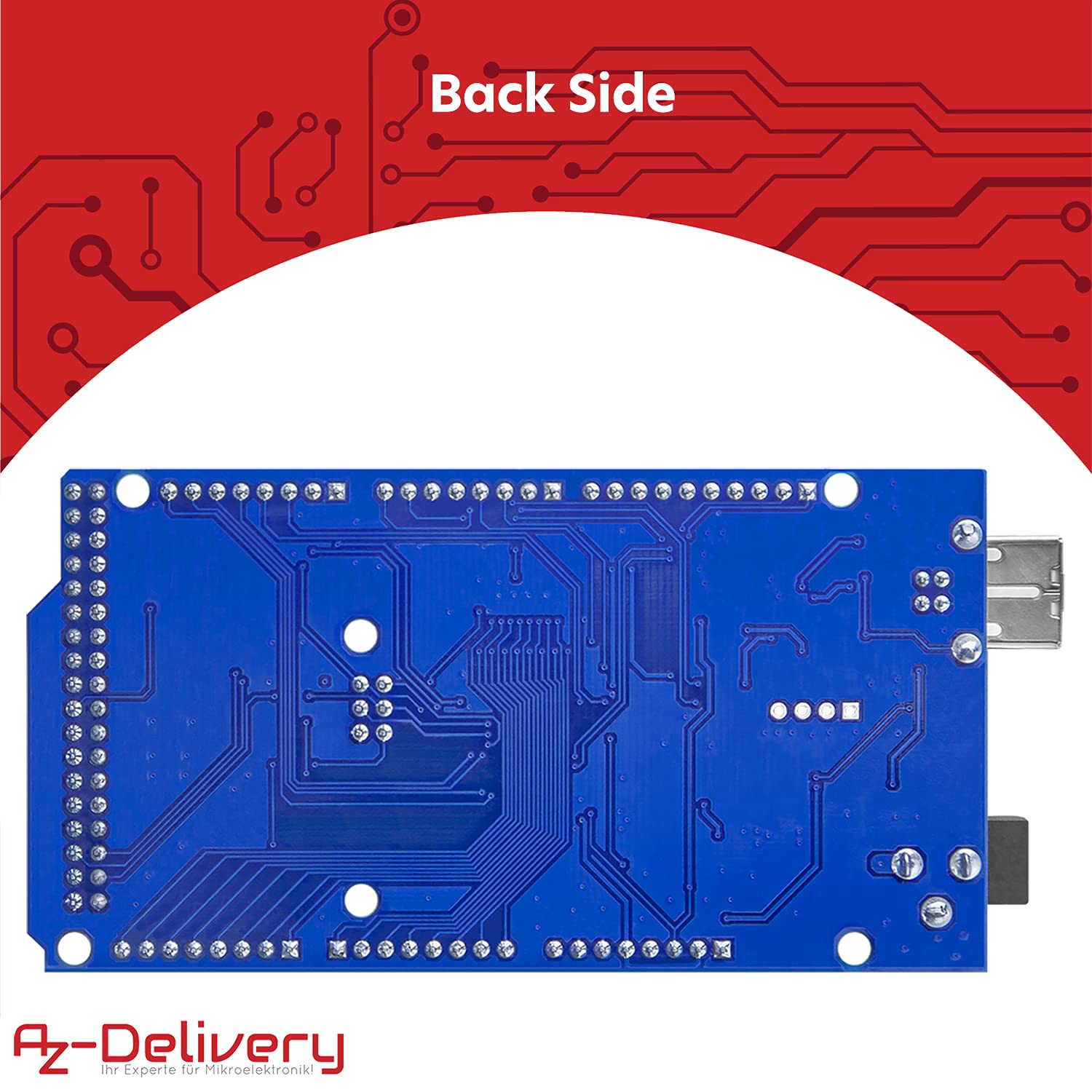

• ✅ With its dimensions (L 102mm x W 53mm x H 15mm), and three screw holes that allow simple installation, AZ-MEGA2560-Board makes compact designed controller board and it is a perfect choice for your projects.

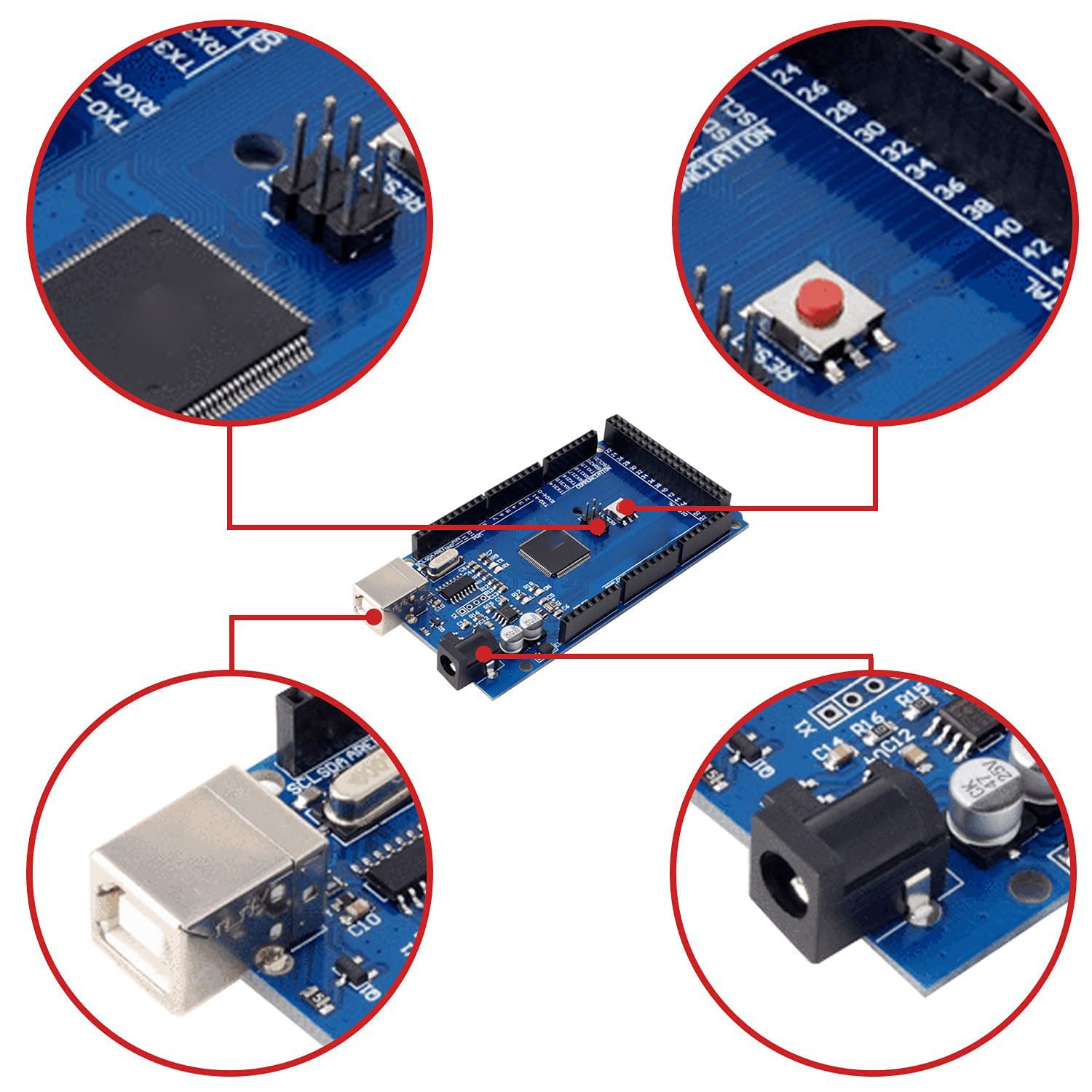

• ✅ Simply connect AZ-MEGA2560-Board to computer via USB cable or power it with an AC-to-DC adapter or battery to get started. This handy AZ-Delivery AZ-MEGA2560-Board has a resettable polyfuse that protects your computer's USB ports from shorts and overcurrent.
• ✅ This product includes an E-Book that provides useful information on how to begin your project, it helps with a quick setup and saves time on the configuration process. We provide an array of application examples, full installation guides and libraries.

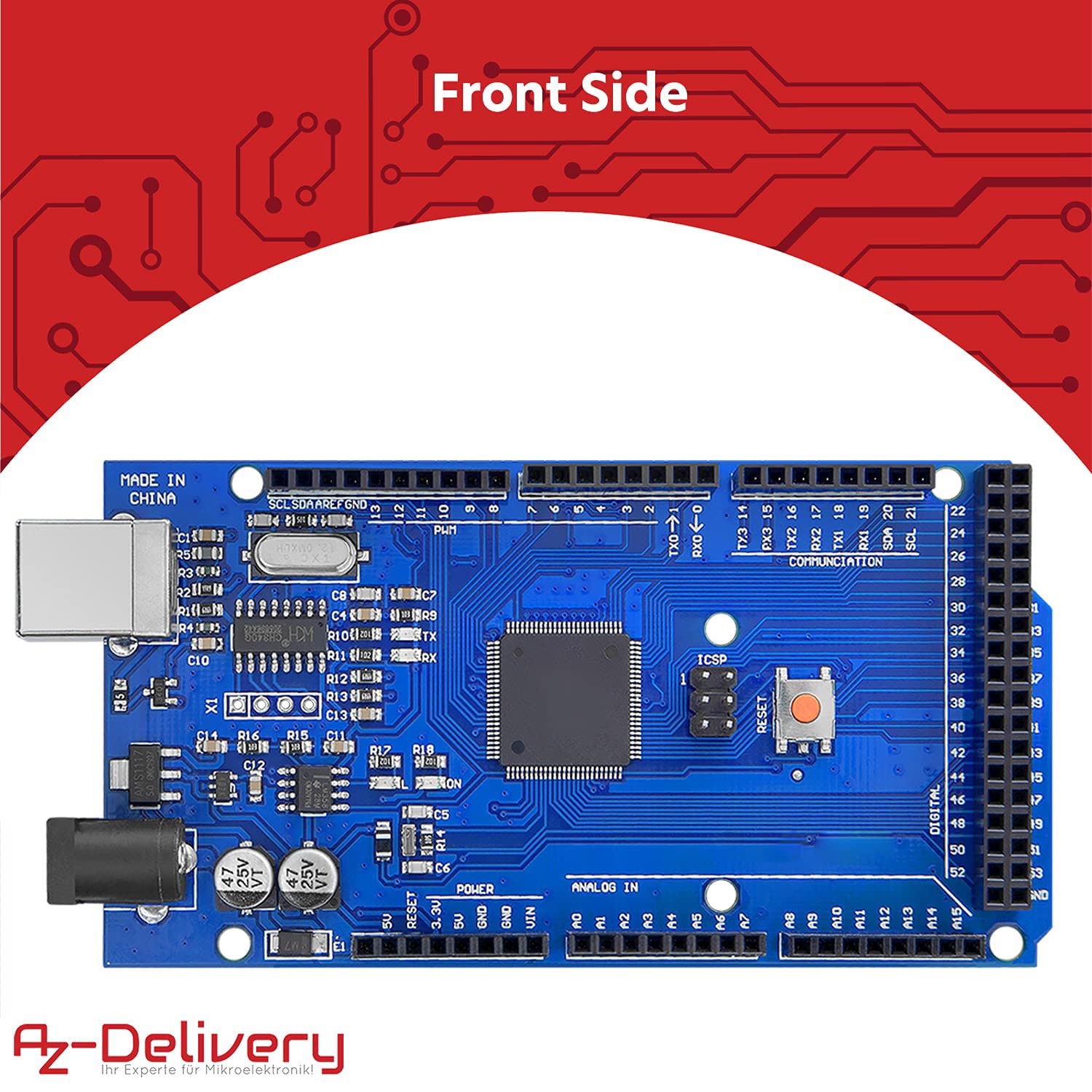

AZ-Delivery AZ-MEGA2560-Board power pins are as follows: VIN (you can supply voltage through this pin, or, if supplying voltage is via power jack, access it through this pin), 5V (this can come either from VIN via on-board regulator, or can be supplied by USB or another regulated 5V supply), 3V3 (maximum current draw is 50 mA), and GND. AZ-MEGA2560-Board has 16 analog inputs, each of which provide 10 bits of resolution. AZ-MEGA2560-Board has a number of facilities for communicating with a computer, another or other microcontrollers and provides four hardware UARTs for TTL (5V) serial communication. AZ-MEGA2560-Board has digital pins 0 to 13 (and the adjacent AREF and GND pins), analog inputs 0 to 5, the power header, and ICSP header that are in equivalent locations. Further, the main UART (serial port) is located on the same pins (0 and 1), as are external interrupts 0 and 1 (pins 2 and 3 respectively). Please note that I2C is not located on the same pins on the Mega (20 and 21) as the Duemilanove or Diecimila (analog inputs 4 and 5). If you are looking for the high quality products for Raspberry Pi, AZ-Delivery Vertriebs GmbH is the right company to get it from. You will be provided with numerous application examples, full installation guides, eBooks, libraries and assistance from our technical experts.
