Axing SPU 54-09 SAT Multiswitch 4 Participants Premium-Line Active Quad Compatible Energy Saving (5 x 4)

• 5/4 satellite multi-switch for connection to a Quattro or quad LNB, powers 4 satellite receivers or TVs
• Additional input of antenna signals (DVB-T, radio) or cable TV possible, suitable for return channel (e.g. for Internet cable modem from Unitymedia, Kabel Deutschland, Vodafone)
• Built-in amplifier for satellite, antenna input passive, with energy-saving circuit and LED function display (standby)
• With earth terminal and switchable switching power supply (power consumption typ. 1.5 W / incl. LNB type. 9 W)
• Box contents: multi-switch; removable switching power supply; assembly instructions (English language not guaranteed)

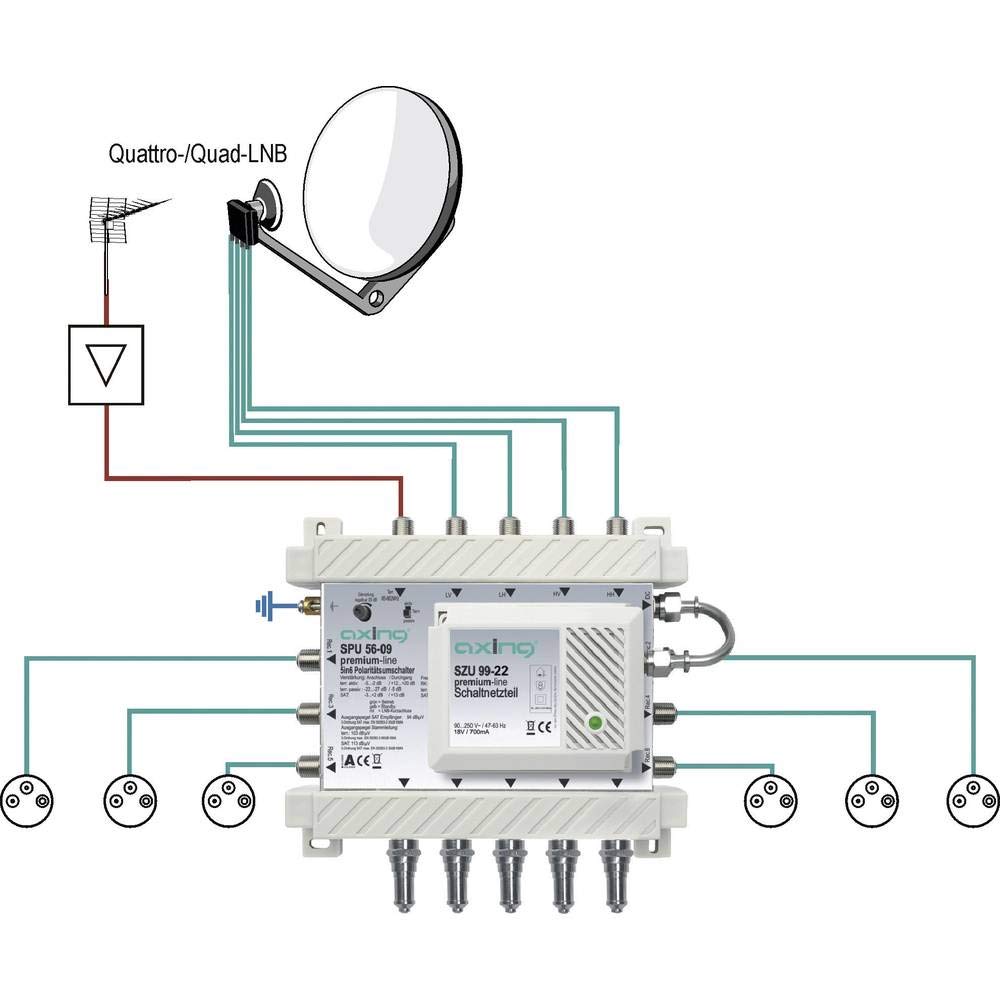

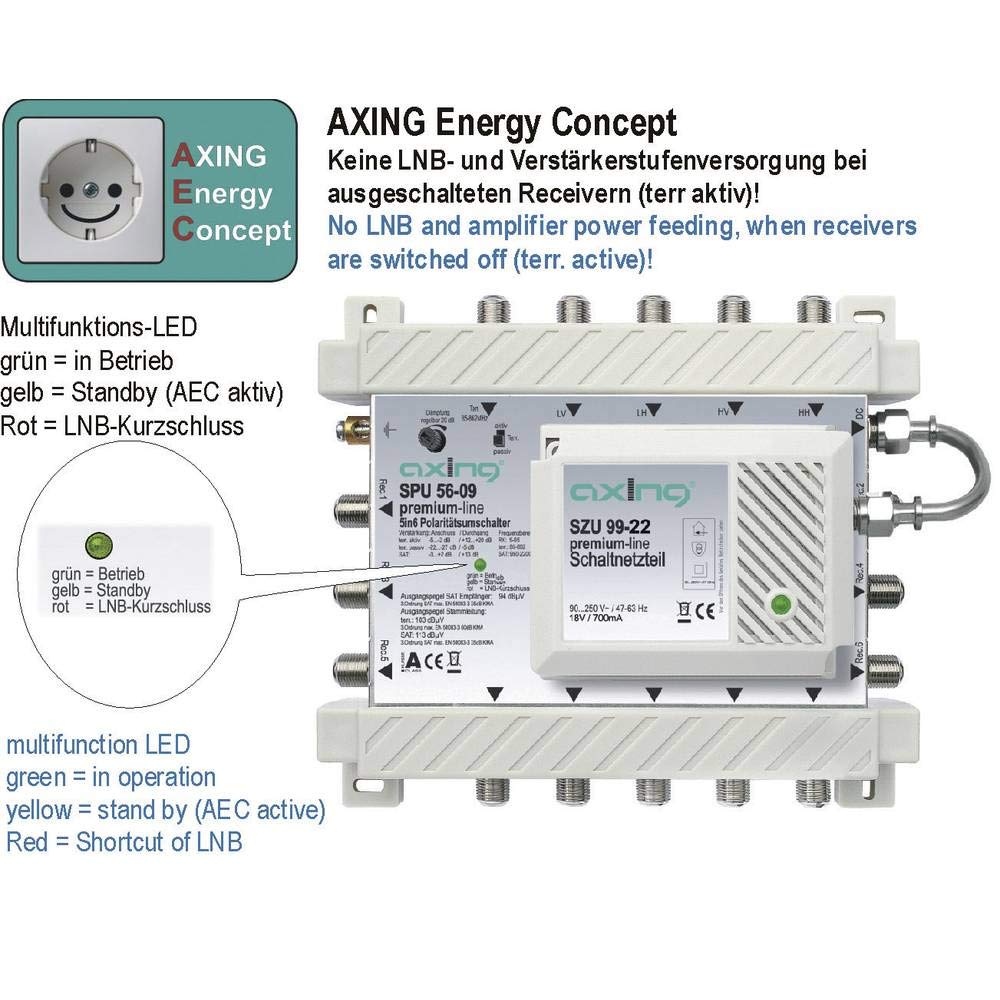

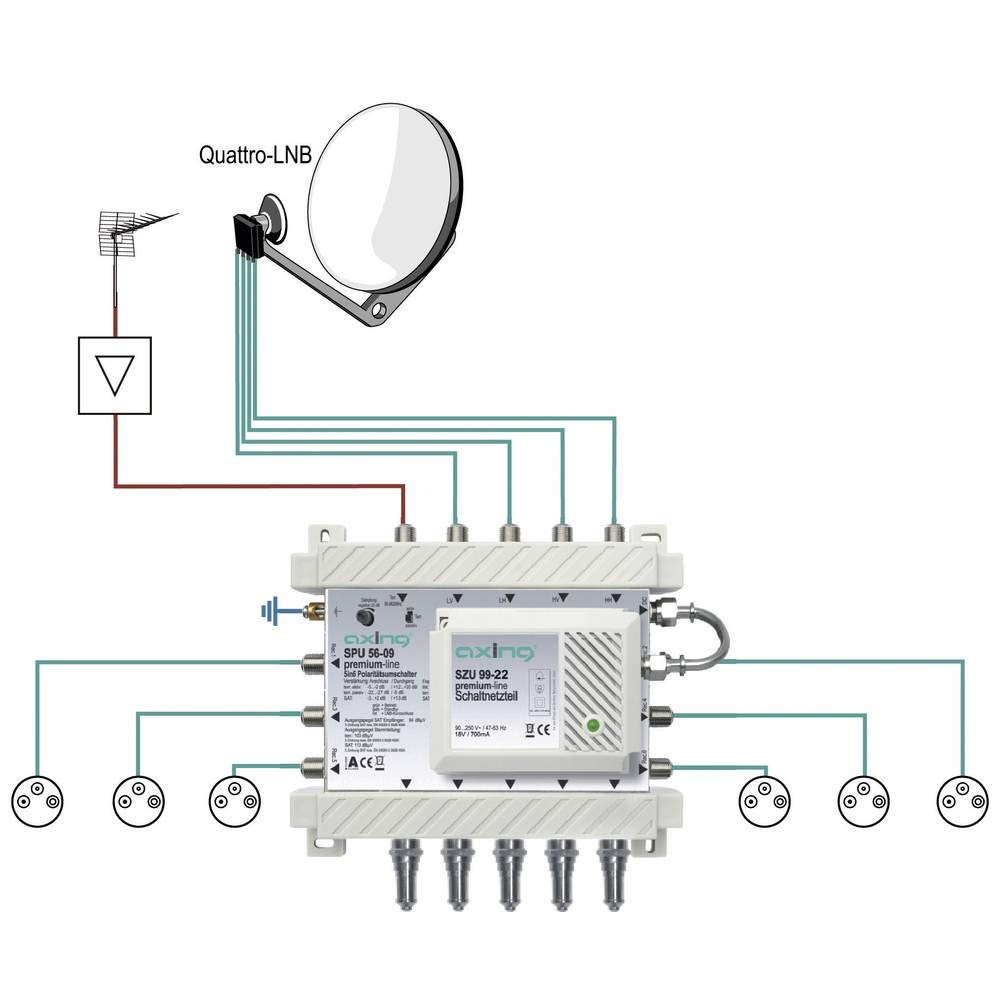

This professional 5/4 multiswitch is used to distribute one LNB (Quattro or Quad LNB) to 4 users. The switch generates a 22 kHz signal and is quad-compatible. In addition, separate amplifier levels for the satellite area are installed, which compensate for the distribution attenuation. Terrestrial, the switch is passive. In addition to the satellite signal, terrestrial TV signals (DVB-T, DVB-T2 HD) and radio (FM, DAB+) can be fed and distributed. It is also possible to feed cable TV (DVB-C) even with Internet (Tripleplay, 2play). This means that this multi-switch is completely future-oriented, all current standards such as HDTV, UltraHD (UHD, 4K), 3DTV etc. are supported. An energy-saving switching power supply is used to supply the LNB and the multiswitch. This can be removed, so can be removed if necessary (lack of space or remote power outlet) and installed up to 10 m away. The connection is also made here via coaxial cable with F-connector. The AEC (Axing Energy Concept) reduces electricity costs, because when receivers are switched off, the LNB and amplifier stage supply is switched off. The multi-function LED indicates the status: green = in operation, yellow = standby (AEC active), red = LNB short circuit. Dimensions: 195 x 145 x 85 mm. Power consumption 3.4 W, in standby 0.9 W.
