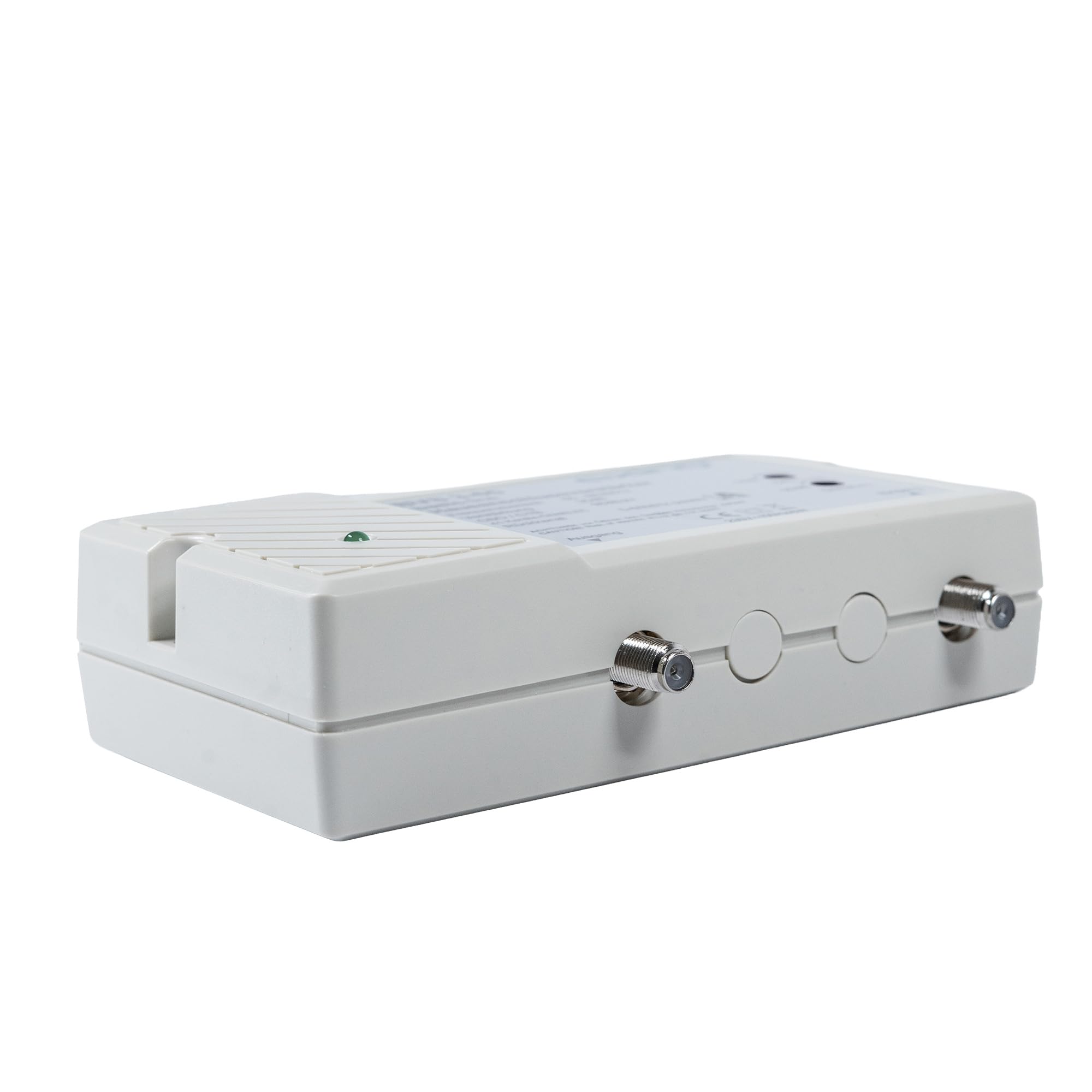

Axing BVS 3-65 Cable TV Amplifier 30 dB

• Amplification 30 dB, class A
• Easily adjustable cushioning and equalization
• With return channel 5 - 65 MHz for modern cable networks
• Triple Play
• The necessary decoupling between the cans is ensured by the branch damping of the branch

This home connection amplifier is used in cable networks and effectively amplifies the signal in the frequency range from 85 to 862 MHz, so that losses due to distributions and long cable paths are compensated. In the range 5 to 65 MHz, the amplifier is passive, so without amplification. This enables a return channel, e.g. for Internet services from the cable network operator. The maximum gain performance can be reduced by damping adjusters and thus optimally adapted to the requirements. In order to achieve the most linear frequency profile, the equalization can be adjusted. The equalization causes the sensitive higher frequencies to receive greater gain. The result is a consistently good signal quality, whether you are receiving with a TV or cable receiver. Suitable for cable TV (BK broadband cable network DVB-C, also for HDTV and UltraHD) and terrestrial antennas with FM, DAB+, DVB-T and DVB-T2 HD reception. The power supply is provided by the built-in power supply.
