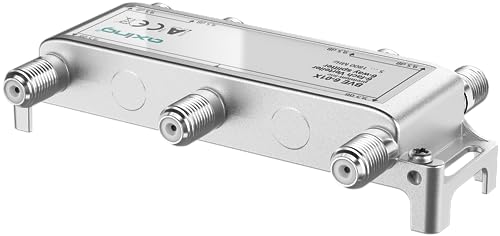

Axing BVE 6-01X 6-Way Splitter 9.5 dB 5-1800 MHz TV Data Internet Cable TV

• Splitter for signal distribution of cable connection with Internet, also suitable for antenna systems with terrestrial reception (FM, DAB+, DVB-T2 HD)
• Suitable for cable TV, TV, radio and internet / multimedia from the cable network operator, approved by Vodafone
• Extended frequency range 5... 1800 MHz, especially suitable for Gigabit Internet DOCSIS 3.1 and 4.0
• 1 signal input, 6 outputs, distribution loss 9.0 - 11.0 dB, high return loss and decoupling for trouble-free operation
• Cast metal housing with F connections and high shielding according to class A +10 dB, 2 connections for potential equalization

This latest generation distributor is characterised by high shielding and an extended frequency range from 5 to 1800 MHz. The Vetreiler is therefore completely future-proof and the right choice for cable TV connections. The distributor is suitable for multimedia and return channel compatible, so it can be optimally used for Internet supply by a cable network operator (currently DOCSIS 3.0 and DOCSIS 3.1). Also suitable for later expansion of cable networks for even faster Internet according to DOCSIS 4.0. The inputs and outputs are hum-decoupled. Thanks to high return loss and high intermodulation strength, trouble-free use is ensured even in complex distributions. The shielding ratio exceeds class A by +10 (according to EN 50083-2). All ports are designed for F-connectors. There are 2 connections for integration into the potential equalization. A surge protector consists of 1 kV @ 1.2/50 μs surge according to IEC 61000-4-5.
