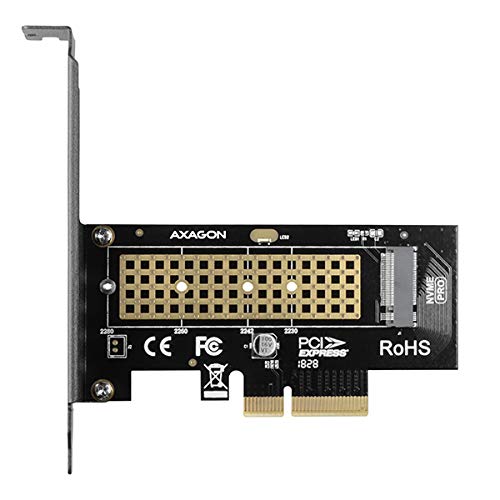

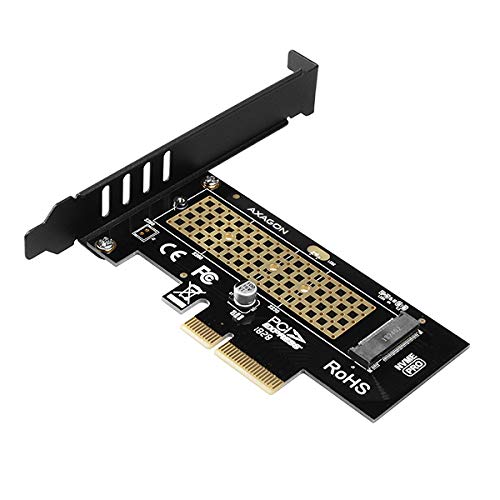

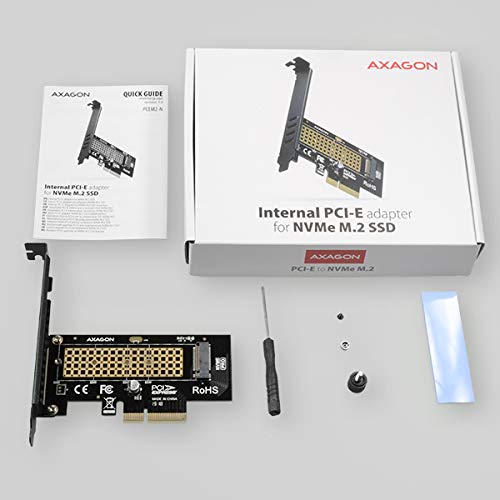

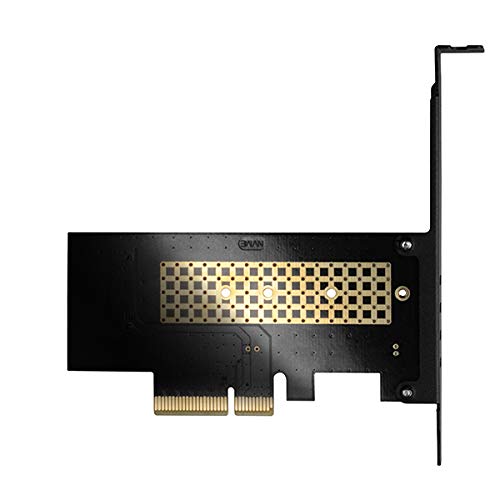

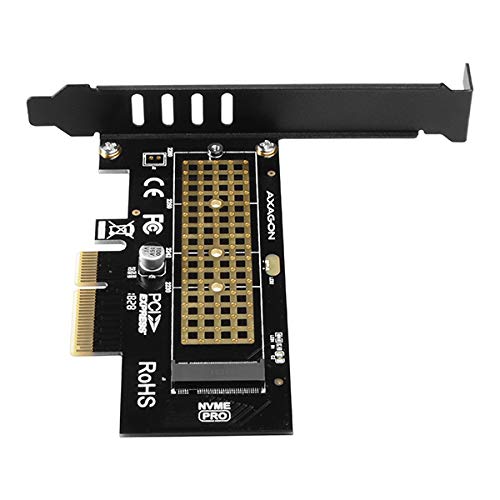

AXAGON ECO PCEM2-N PCIE NVME M.2 ADAPTER. Internal adapter PCI-Express x4 for connecting NVMe M.2 SSD hard drive to your computer

• Standard profile design
• PC connection x4 slot, x8 slot, x16 slot
• Device support M.2 2230, M.2 2242, M.2 2260, M.2 2280
• Output M.2 NVMe

The internal adapter AXAGON PCEM2-N allows the connection of M.2 SSD hard drives to the computer via PCI Express. High-quality workmanship, compact dimensions and clever design make the adapter an ideal choice for upgrading a computer that is not equipped with M.2 slot. The adapter supports the application of NVMe (PCI-Express) M.2 SSD hard disks, both single and double sided. The adapter does not limit the SSD hard drive capacity and it can be used M.2 cards in size up to 22 x 80 mm. Thanks to the PCI-Express 3.0 4-lane interface, speeds up to 8GBps can be achieved. Heat-conducting pads and copper-plated ventilation openings help to dissipate the heat generated when operating M.2 SSD hard drive. The LED indicator shows the connection and data transfer. Input: PCI Express 3.0 interface, compatible with PCI Express 1.0a / 1.1 / 2.0 / 2.1. • Number of cables 4 lane, compatible with x4 / x8 / x16 PCIe slots. • Transmission 4-lane PCI-Express 3.0 to 8GB/s (both sides) Output: NGFF 75-Pin M-Key Slot for mounting NVMe (PCI-Express) M.2 SSD HDDs. Other Features: • Full Plug and Play Support • Support M.2 hard drives of all dimensions - 2230, 2242, 2260, 2280mm • Support M Key or B+M Key NVMe (PCI-Express) M.2 SSD hard drives without limiting the maximum capacity. • Supports single and double sided M.2 hard drives. • Better heat dissipation thanks to ventilated copper holes and heat-conducting pads • Support of boats from SSD card • Dimensions: 102 x 49 x 8 mm, Weight: 35 g • No need to install drivers. Power supply: • The adapter is powered directly from the PCI Express bus, no external power source is needed. Supported OS: • MS Windows 7 / 8 / 8.1 / 10, Windows Server 2008 R2 / 2012 / 2016 (support of all 32 and 64 bit versions of OS Windows), Linux with the core 2.6.31 and above. • Anm. : For Windows 7, the support of this operating system is to be considered with the manufacturer of the M.2 SSD hard drive. The packaging contains: • PCI Express adapter with standard blanking disc, • 2 pieces. Heat-conducting plates, mounting material and screwdriver, printed installation instructions EN/CZ/DE/ESP/FR/HU/IT/PL/RO/RU/SK/BG, packed in a cardboard box.
