Automatic Antenna Tuner ATU-100 1.8-50 MHz 100 W Shortwave with Metal Housing Assembled

• [ATU-100 Version] Latest Program: 3.2 version has been burned. Compared to version 3.1, some errors have been fixed.
• Product features: automatic antenna tuner machine with shell (no battery), no assembly required, can be used directly, automatically tuned, developed by N7DDC.

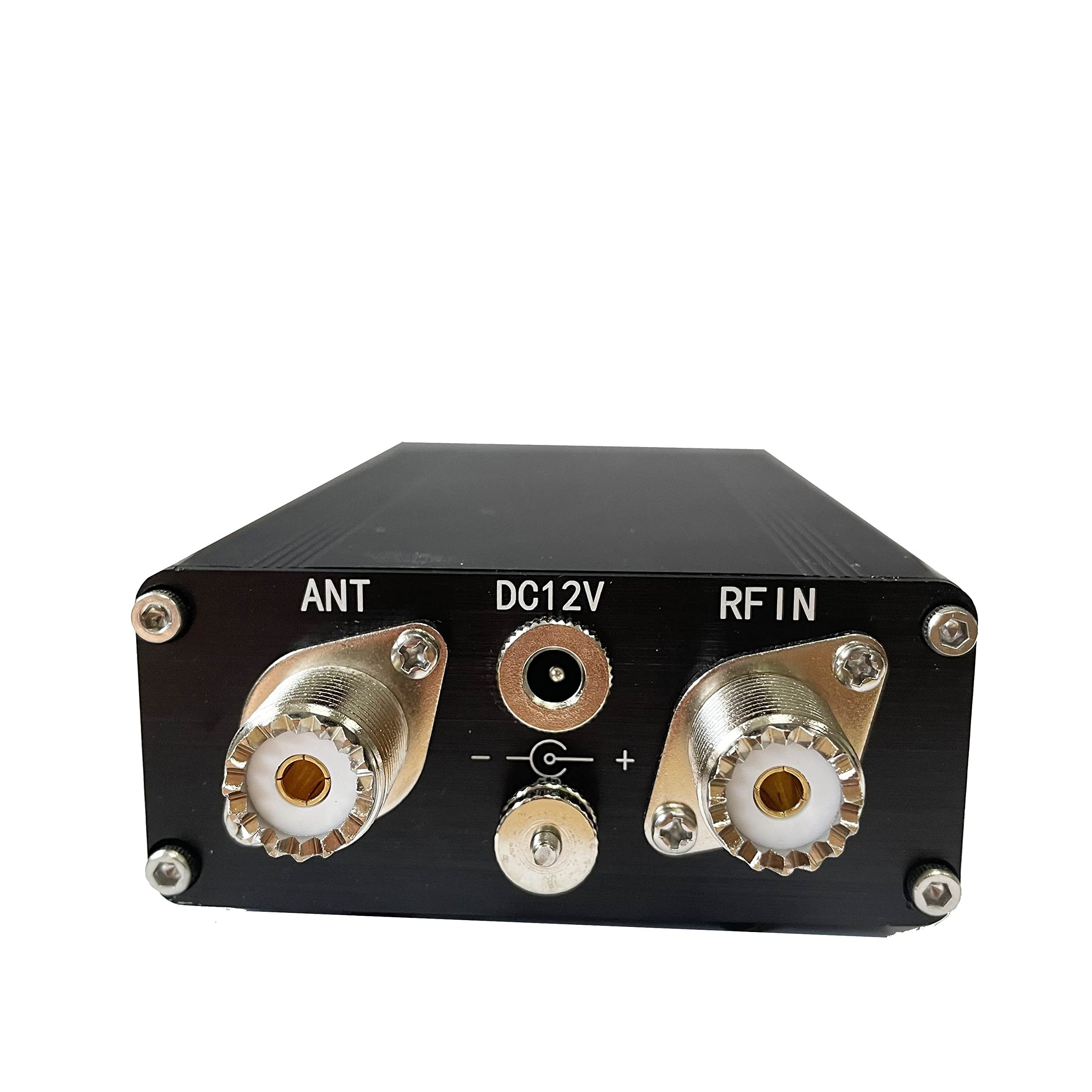

• [High Quality Accessories] High quality SMD capacitors, C-channel capacitors, high quality 1000V high voltage SMD capacitors and the imported PIC chip. UHF connector.

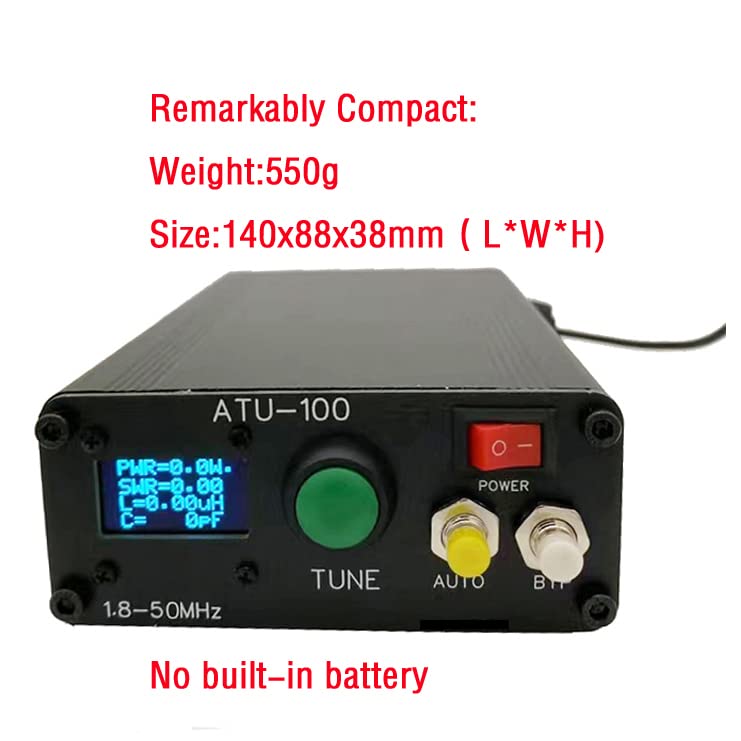

• Remarkably compact: The housing of the machine has been designed by an excellent designer, compact and exquisite.

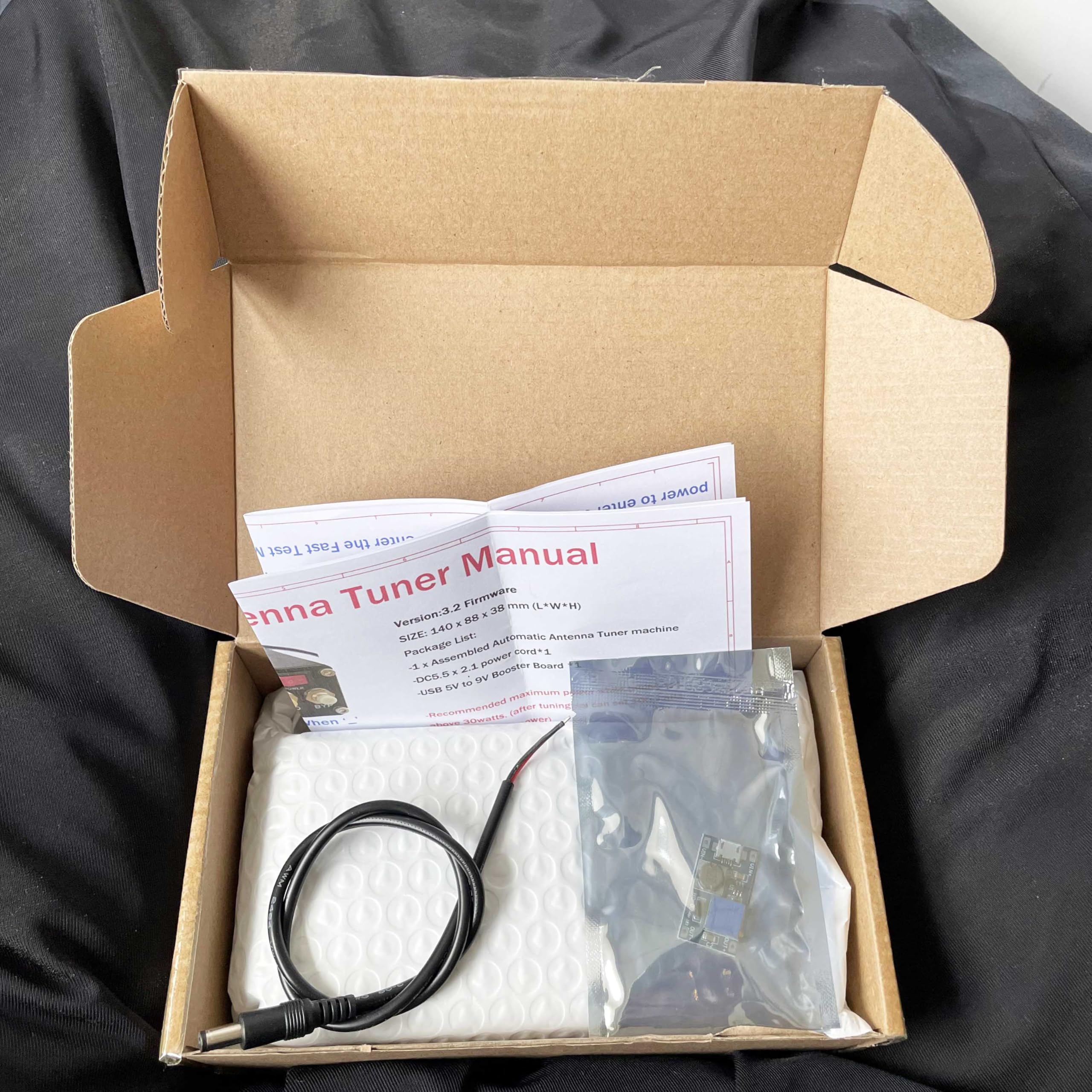

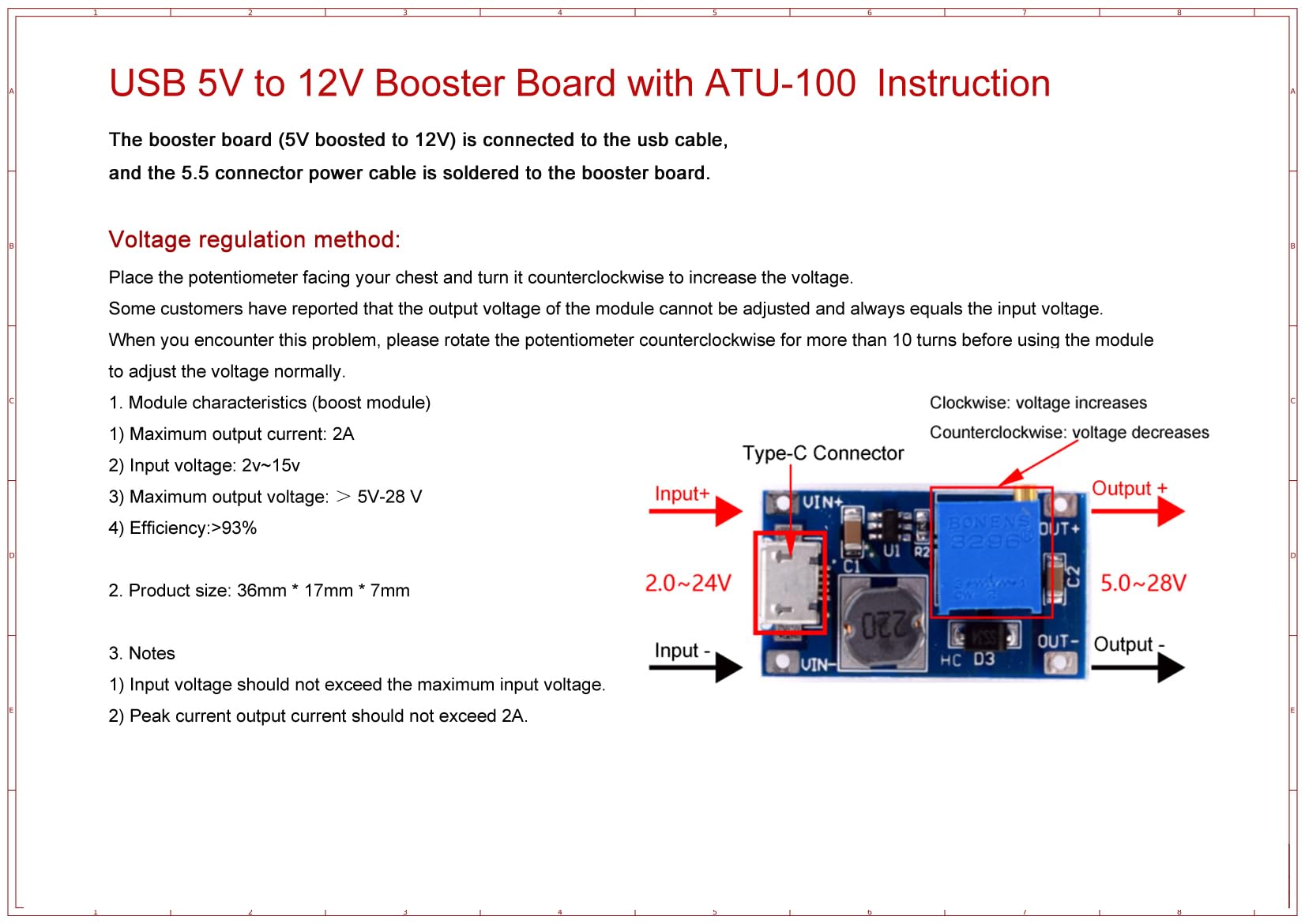

• What you get: ATU-100 automatic antenna tuner with metal housing (no battery), 1 x DC5.5 x 2.1 power cable (0.75 square pure copper wire 50 cm), 1 x USB 5V to 9V booster board.

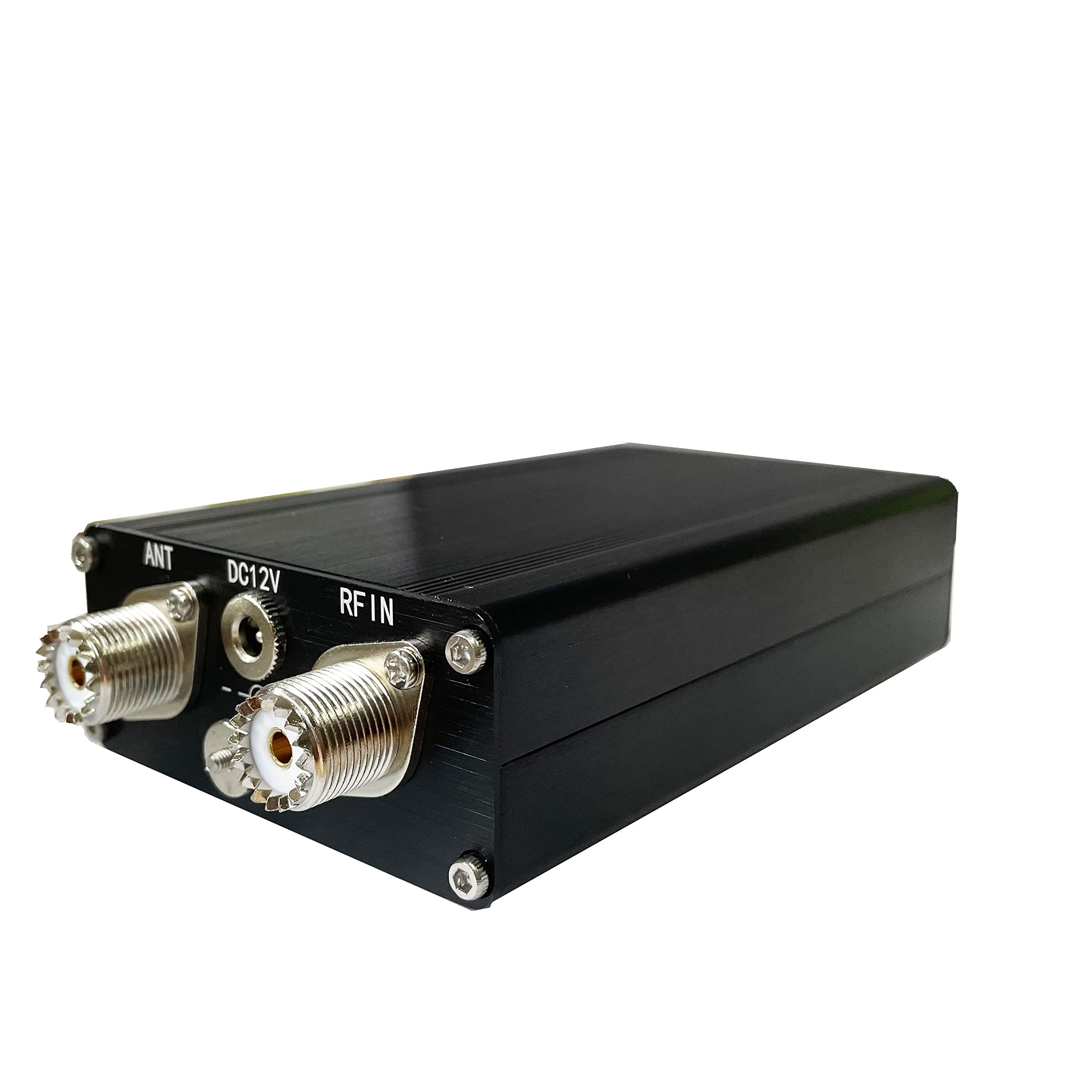

• Visible quality: CNC perforated aluminium alloy, the entire shell is made of aluminium alloy.

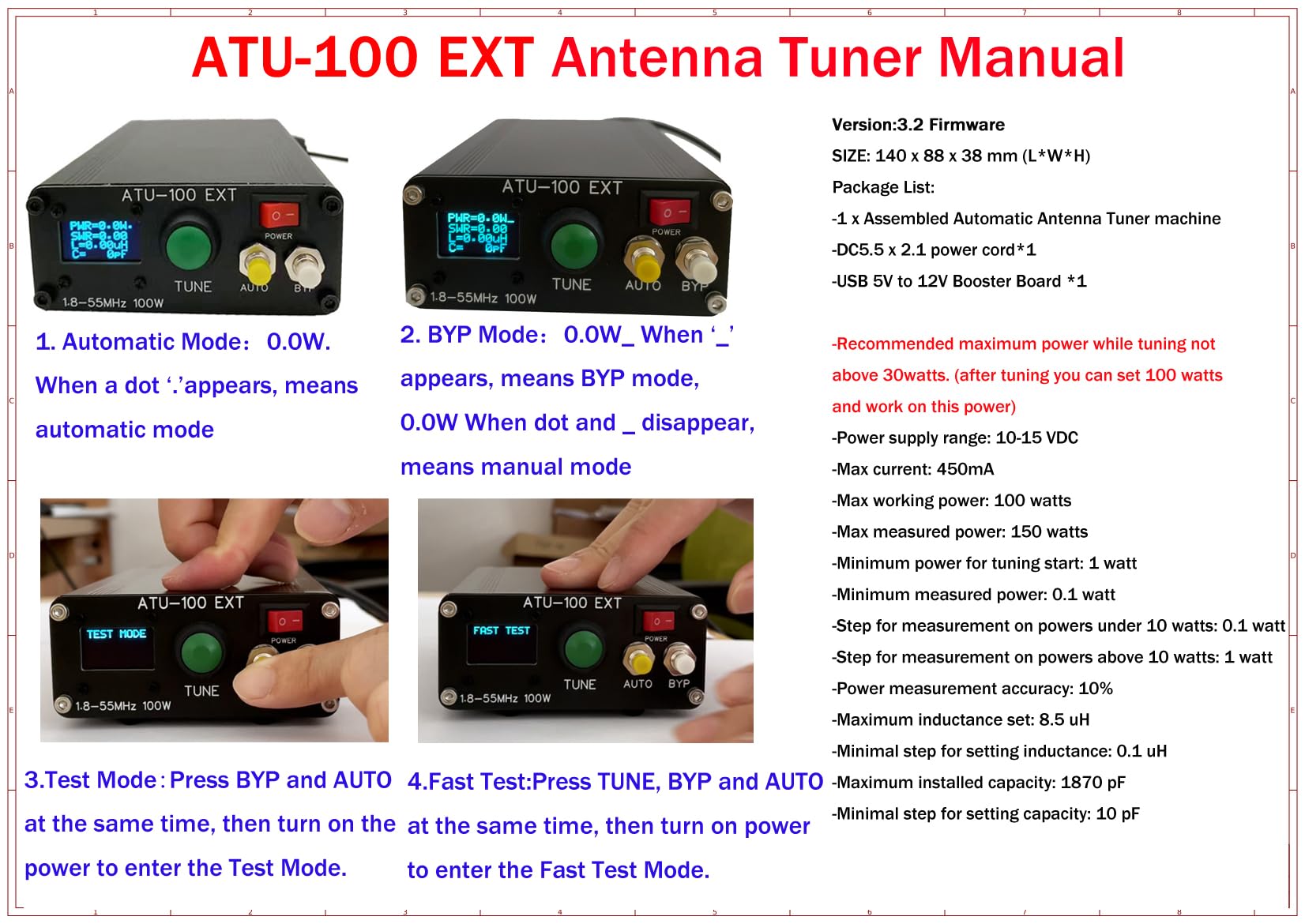

The latest firmware version is 3.2: -SWR greater than 1.1 automatically activates tuning. 3.2 The program can be tuned under 5W. However, too low a value may result in insufficient fine-tuning. Parameter description: - Power supply range: 10-15 VDC. -Max current: 450 mA. - Maximum working power: 100 watts. - Maximum measured power: 150 watts. - Minimum power for tuning start: 1 watt. -Recommended maximum power when tuning does not exceed 30 watts. (After tuning, you can set 100 watts and work with this power) - Minimum measured power: 0.1 watts. - Step for measuring power below 10 watts: 0.1 watts. - Step for measuring power over 10 watts: 1 watt. - Accuracy of power measurement: 10%. - Maximum inductance set: 8.5 uH -Minimum step to adjust the inductance: 0.1uH - Maximum installed capacity: 1870 pF -Minimum step to adjust the capacity: 10 pF Box contents: weight: 550 g. - 1 x automatic antenna tuner mounted machine with metal housing (no battery). - DC5.5 x 2.1 power cable x 1. - 1 x USB 5 V to 9 V booster board. Note: 1. Insufficient tuning may occur within 5W. So don't try to be lower than 5W. 2. Recommended maximum power when tuning not over 30 watts. (After tuning, you can set larger watts, otherwise it will burn easily) 3. You need to use 9-12V for the ATU-100 to start. If you use a mobile power supply or computer USB port for power output, you cannot start the ATU-100 because its voltage is too low.
