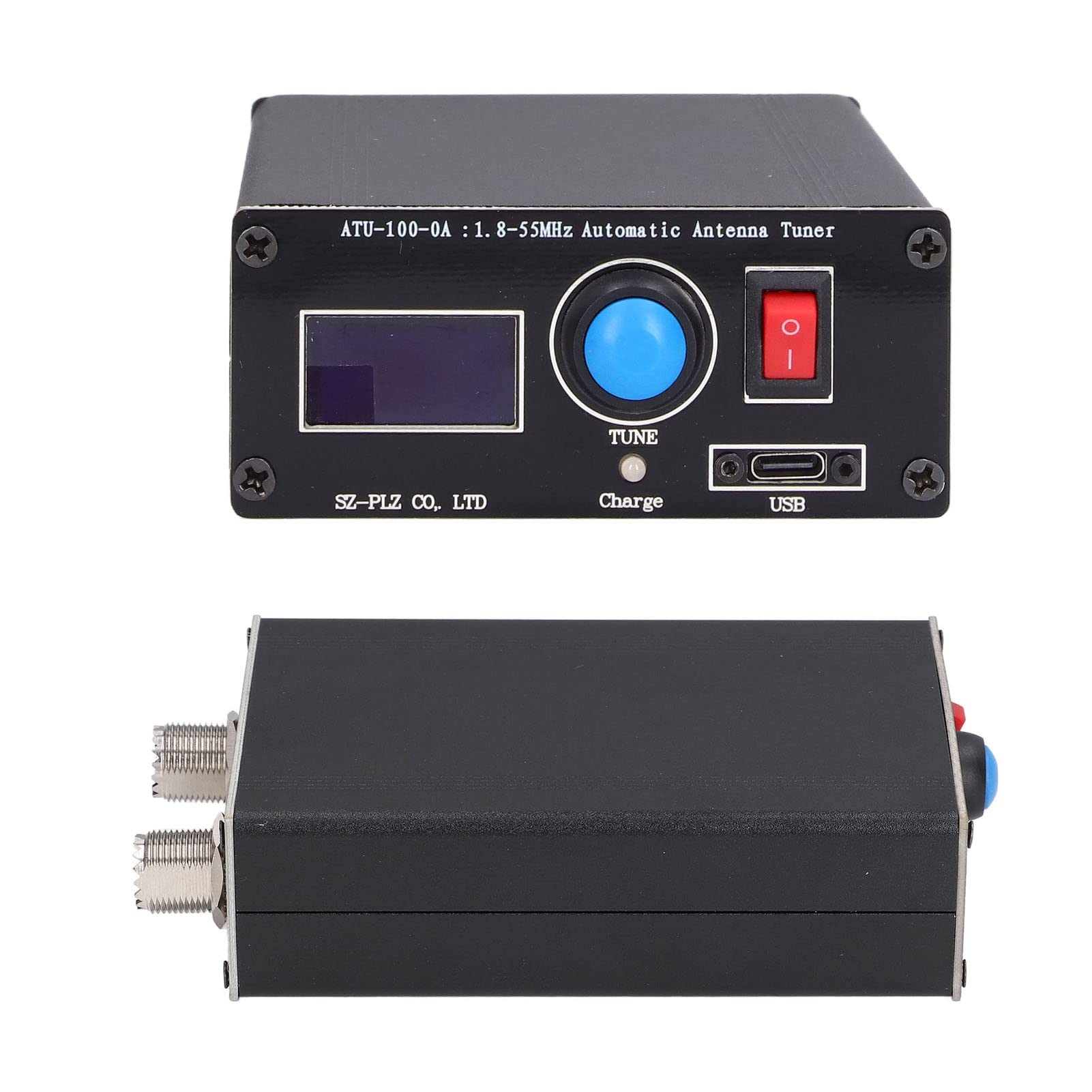

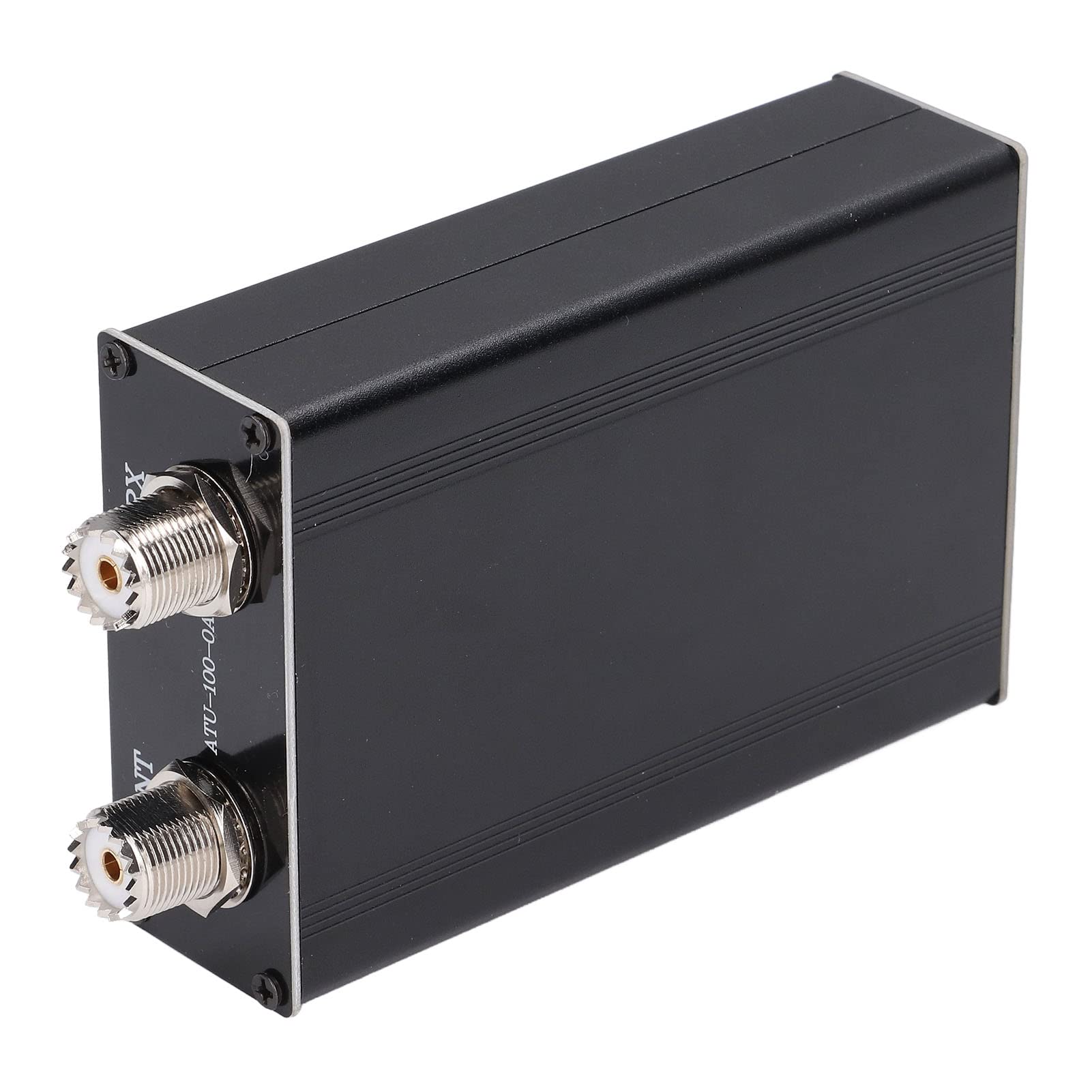

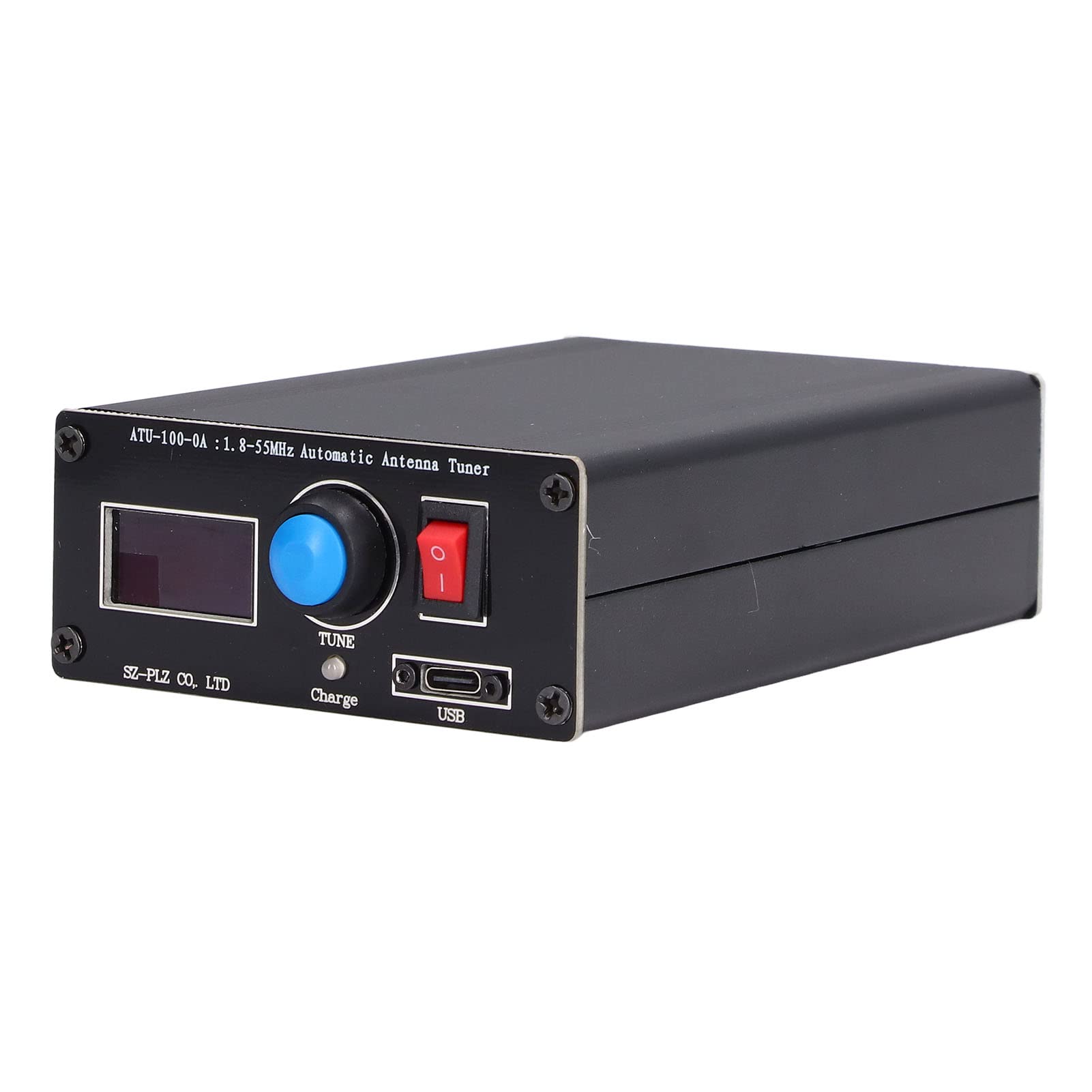

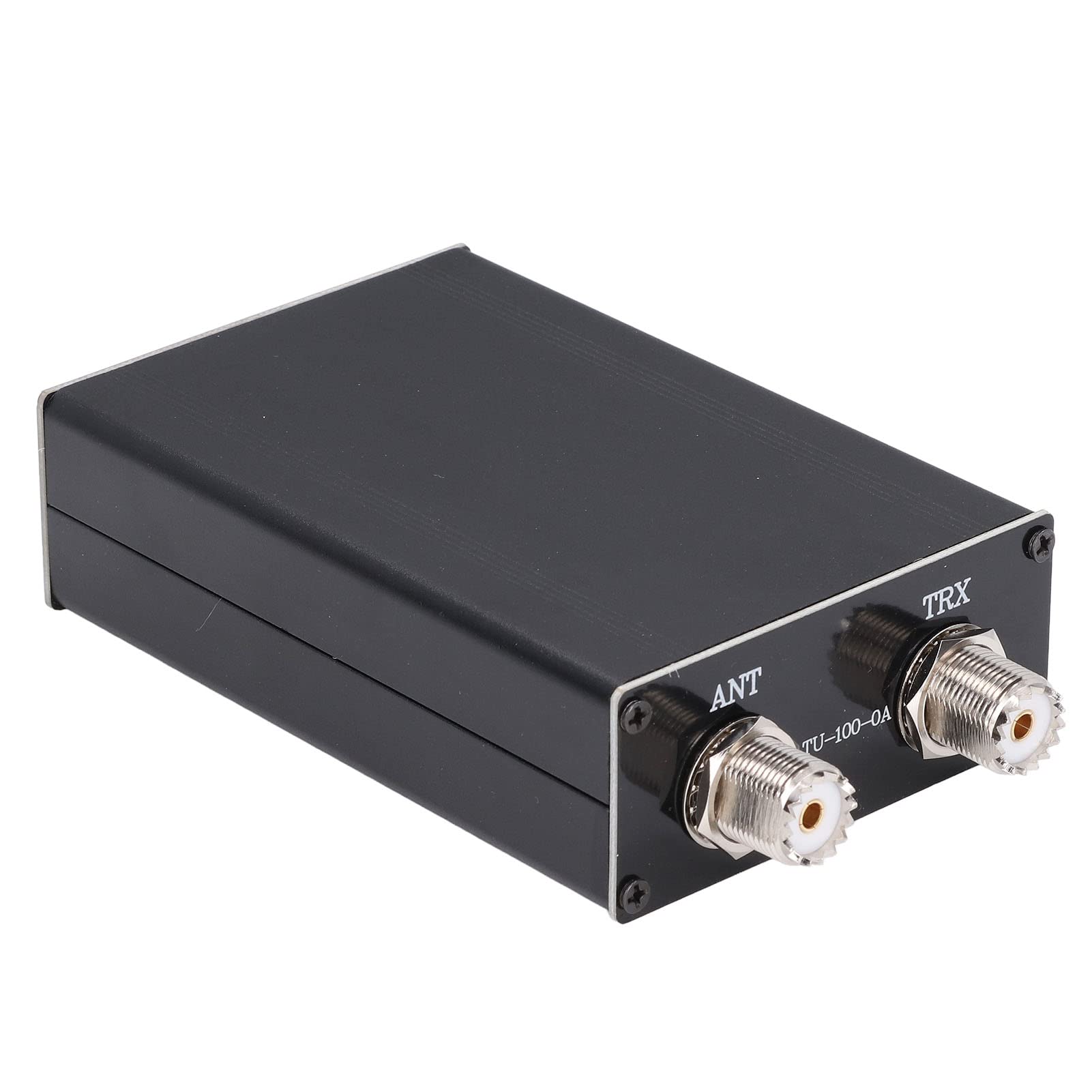

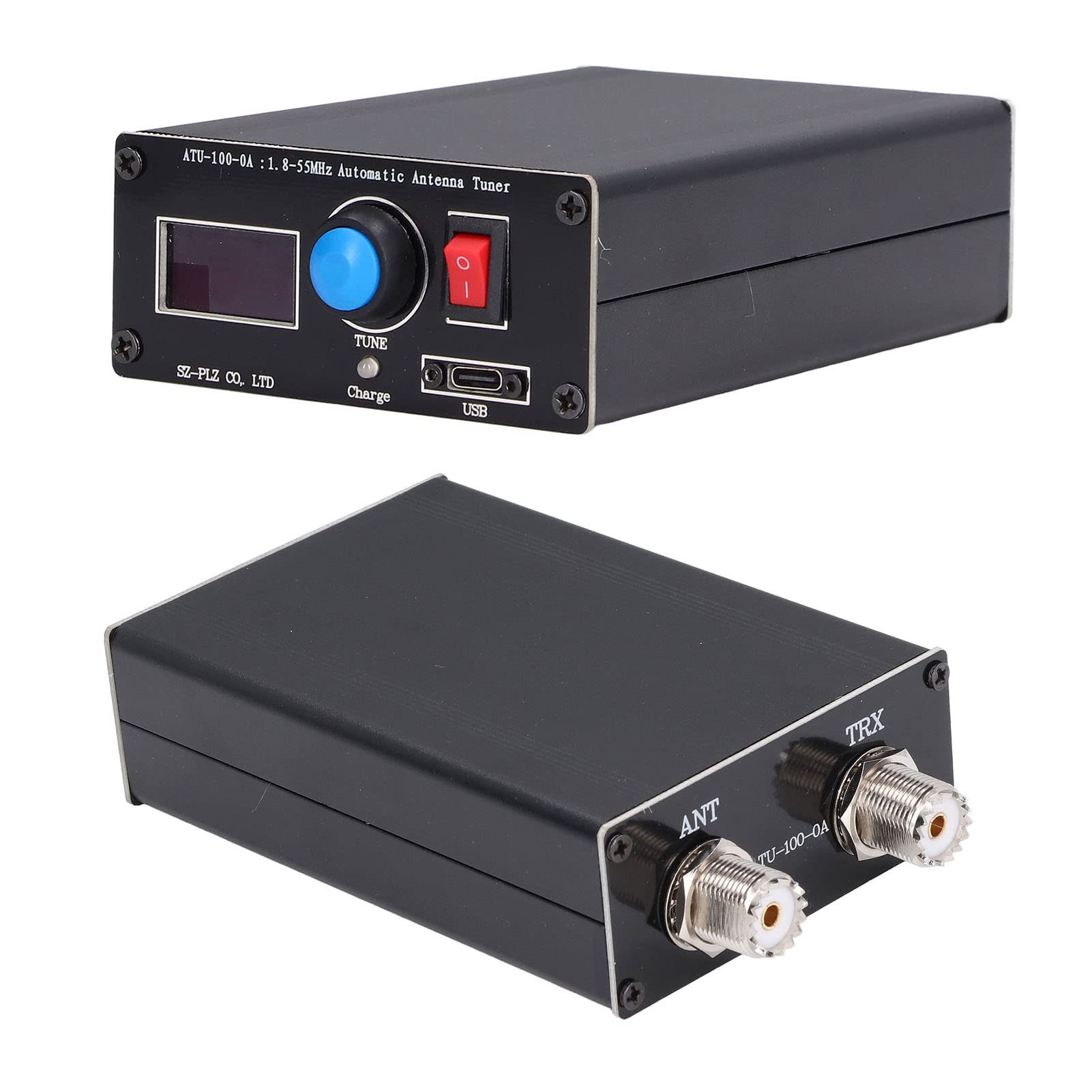

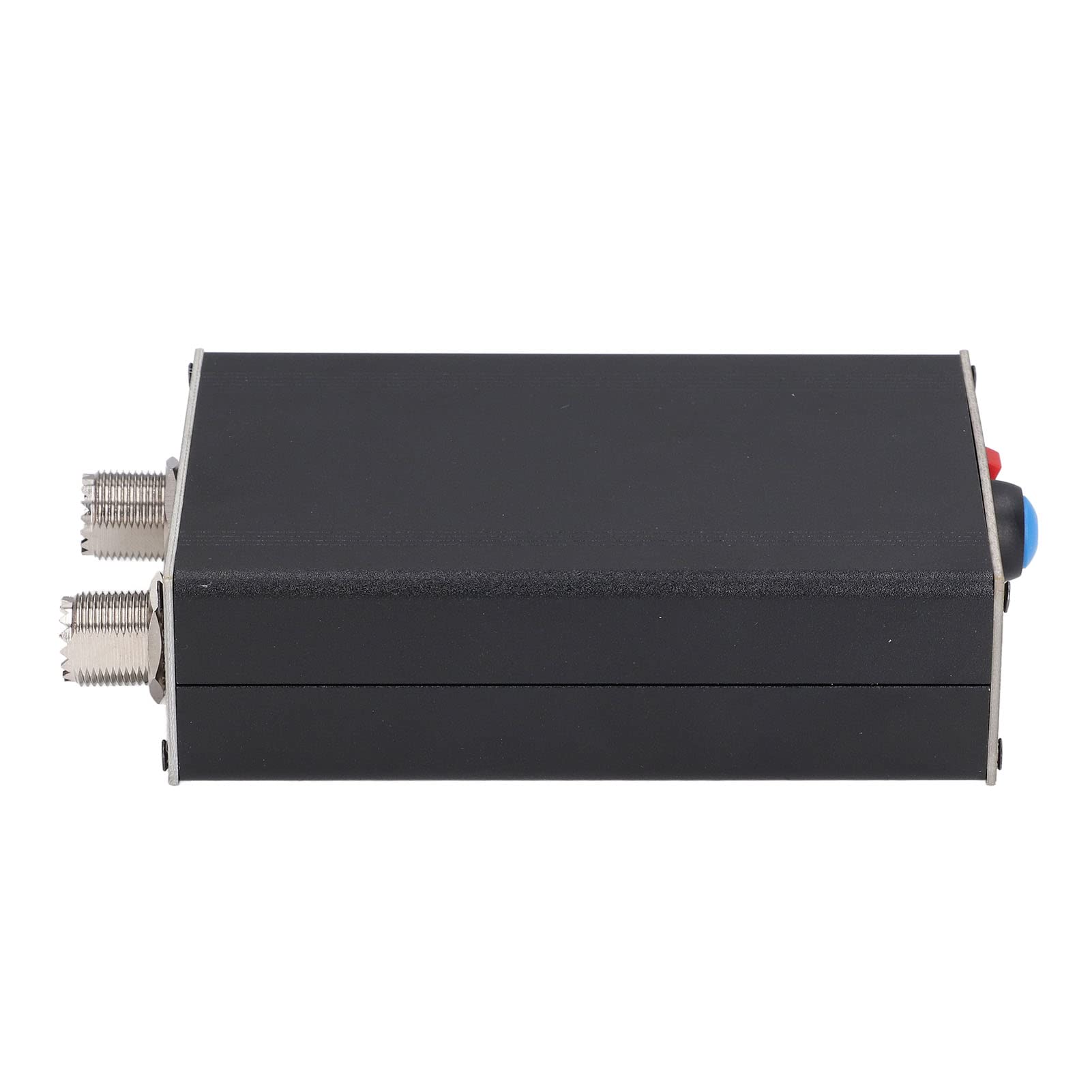

ATU-100 1.8-55MHz Antenna Tuner, 100W Mini Automatic Antenna Tunner with 0.96in OLED Display, USB Rechargeable, By N7DDC

• EXCELLENT COMPONENTS: Mini antenna tunenr, using excellent 1000V high voltage SMD capacitor, C channel capacitor, and advanced PIC chips.
• 0.96IN DISPLAY SCREEN: Mini automatic antenna tuner, with 0.96in organic light emitting diode display, support USB charging.
• ALUMINUM ALLOY: Made of aluminum alloy material, light weight and corrosion resistance, has good heat dissipation effect.
• EASY OPERATION: This automatic antenna tuner case requires no assembly and is developed by N7DDC for automatic tuning.
• VOLTAGE AND FREQUENCY: The working voltage is 10‑15VDC, the working frequency range is 1.8‑55 MHz, and the application range is wide.

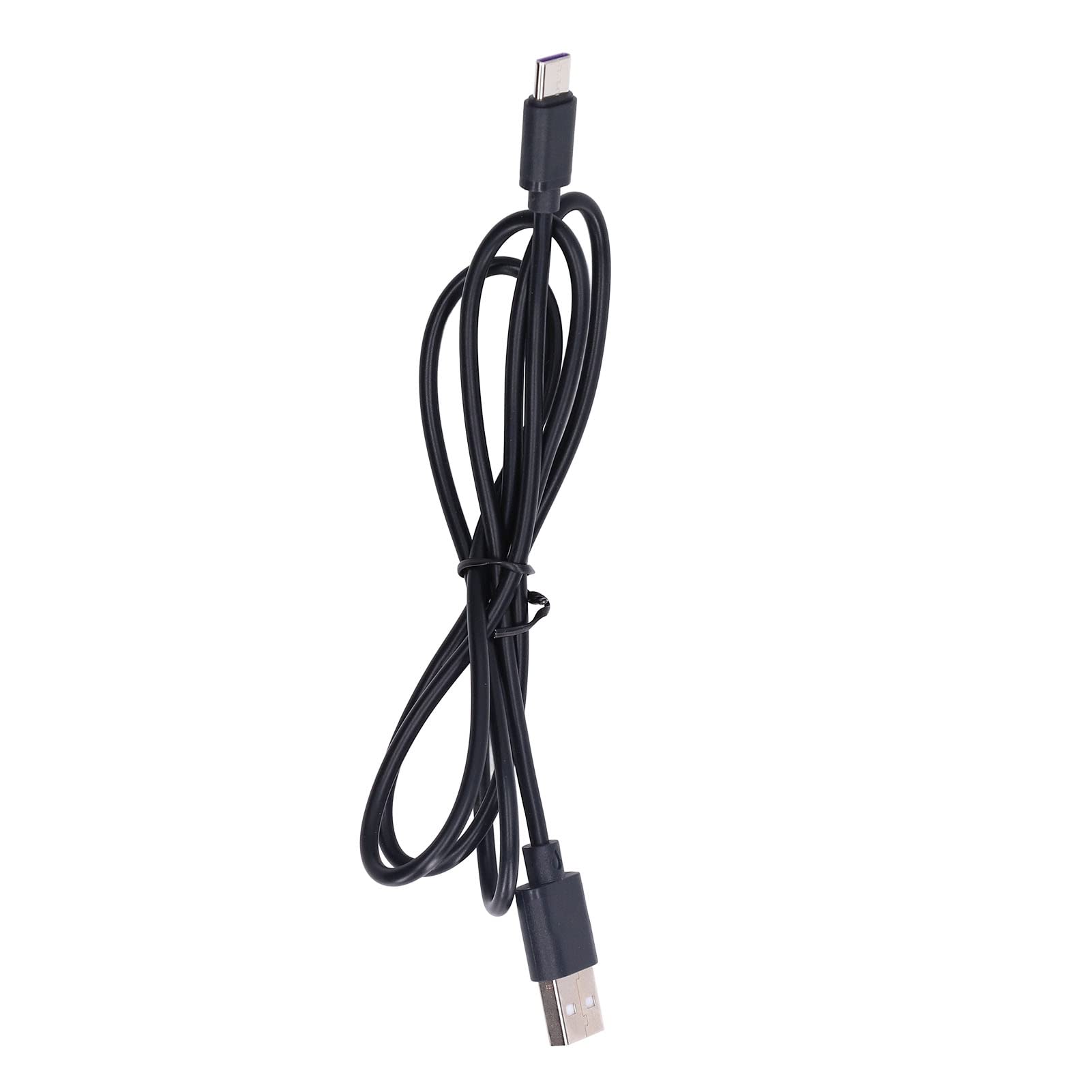

Specification: Item Type: Mini Antenna Tuner Material: Aluminum Alloy Model: ATU-100 Working Voltage: 10-15VDC Display: 0.96in Organic Light Emitting Diode Operating Frequency: 1.8-55 MHz Battery Model: 1350mAh 3.6V lithium battery (built in battery) USB Charging Current: 1A Maximum Working Power: 100W Maximum Measurement Power: 150W Tuning Start Minimum Power: 1W Minimum Measurement Power: 0.1W Step for Measuring Power Below 10W: 0.1W Step for Measuring Power Above 10W: 1W Power Measurement Accuracy: 10% Maximum Setting Inductance: 8.4uH Inductance Minimum Setting Step: 0.05μH Maximum Setting Capacity: 1870pF capacitor Minimum Setting Step: 10pF How to Use: 1.Connecttheradio,ATUantennatuner,antenna 2.Whenusingforthefirsttime,pleasesettheoutputpoweroftheradioorpoweramplifierbetween20‑30W,warningthathighpowertuningmayeasilydamagetheantennatuner. 3.Setradiomode,useFMmode 4.Selecttheantennafrequencybandtouse,use20‑30WpowerinFMmode,pressradioPPT,observetheATUantennatunerPWRandSWR 5.UseofATUButtonTUNE:shortpress(lessthan1second)ATUbutton,itisinresetstate,longpress(morethan1second)ATUbuttonisinadjustmentstate Package List: 1 x Antenna Tuner 1 x USB Cable
