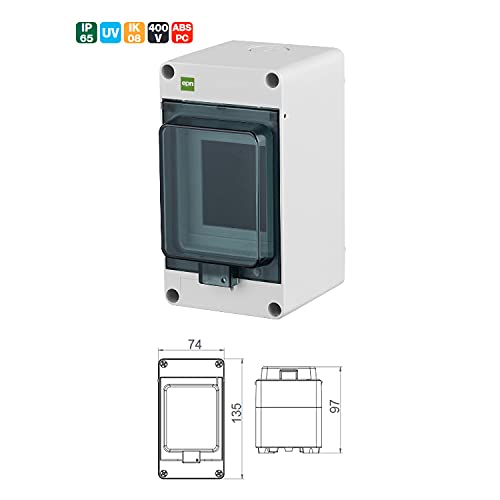

asvendo Electric surface-mounted, fuse box, distribution box, small distributor, IP 65 waterproof, suitable for wet rooms and outdoor use (1 row for 3 modules)

• This high-quality fuse box in the colour light grey / light grey (RAL 7035) and slightly tinted door is characterised by a 2-year manufacturer's warranty.
• The distribution box is rated with the protection class IP 65 (water-protected) and can therefore be used both indoors and outdoors (wet room).

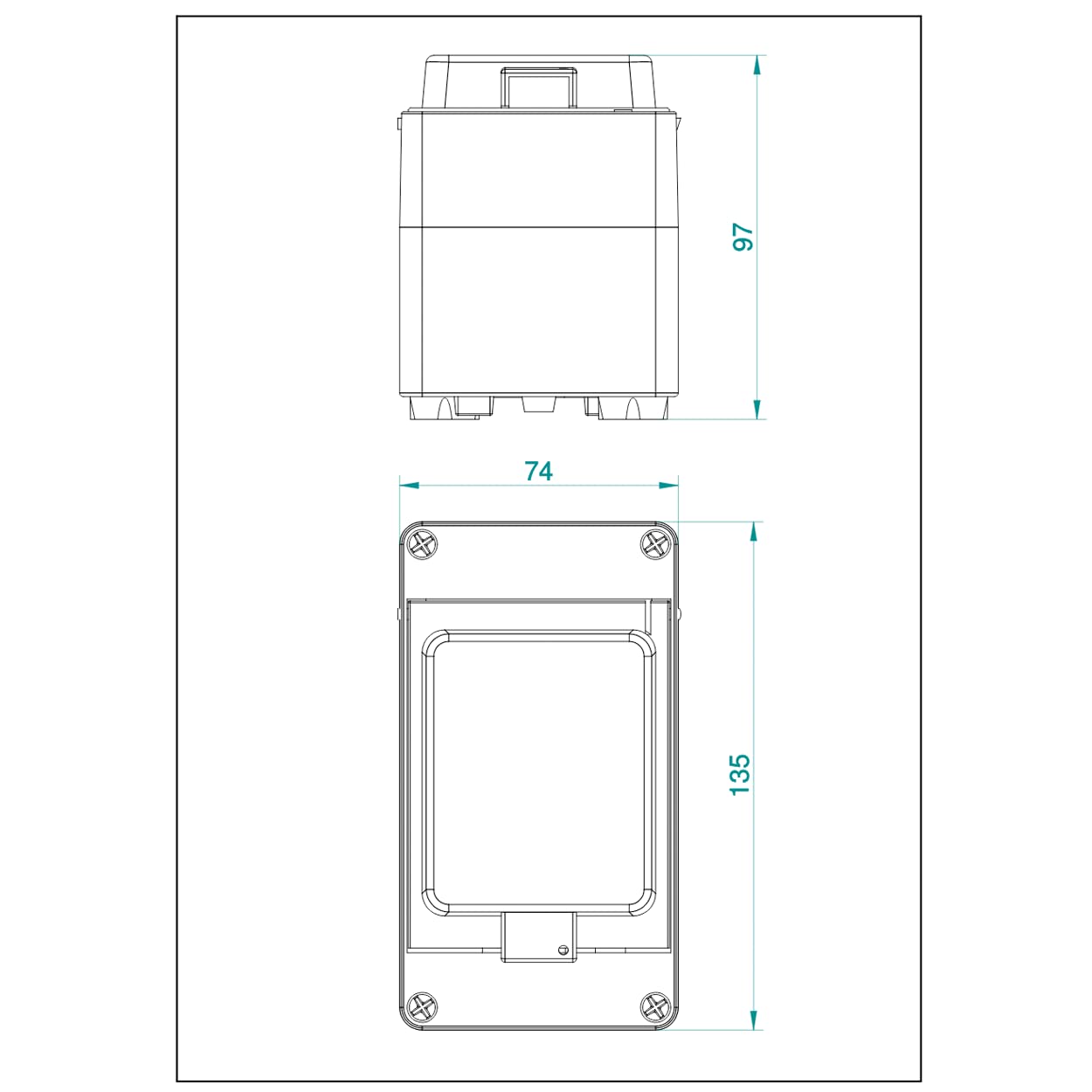

• This distribution box is 1 row and offers space for 3 modules. It comes with the outer dimensions 74 x 135 x 97 mm (W x H x D). A DIN carrying rail/top rail and an N clamp are included and thanks to the sufficient interior, wiring is possible without any problems.
• The small distributor has been already embossed for PG fittings: top 1 x PG-16; bottom: 1 x PG-16. The PG fittings as well as other accessories (circuit breakers, residual current circuit breakers, phase rails, cover strips and extra collection clamps) are available separately.
• Thanks to the protection class II, the small distributor is temperature-resistant from -20 °C to +70 °C and thus it is possible to use almost anywhere.

1-row for 3 modules 74 x 135 x 97 mm. Only N clamp included; Pre-embossings for PG fittings: top: 1x PG-16 bottom: 1x PG-16. 1-row for 4 modules 105 x 170 x 112 mm Only N clamp included; Pre-embossings for PG fittings: top: 2x PG-16 bottom: 1x PG-21 right: 2x PG-25 left: 2x PG-25 1-row for 6 modules 135 x 170 x 112 mm. Only N clamp included; Pre-embossing for PG fittings: top: 2x PG-16, 1x PG-21 bottom: 3x PG-16 right: 2x PG-25 left: 2x PG-25 1-row for 10 modules 220 x 170 x 116 mm. N-clamp: 2x (1-10 mm² + 3x 1-16 mm²) PE clamp: 2x (1-10 mm² + 3x 1-16 mm²). Pre-embossing for PG fittings: top: 5x PG-25 bottom: 2x PG-21, 1x PG-29 right: 2x PG-29 left: 2x PG-29 1-row for 10 modules (higher) 220 x 270 x 120 mm. No PE/N terminals included; PG fittings: None 1-row for 13 modules 270 x 340 x 120 mm. No PE/N terminals included; PG fittings: None 1-row for 13 modules (smaller) 270 x 220 x 121 mm. N clamp: 5x (1-10 mm² + 2x 1-16 mm²) PE clamp: 5x (1-10 mm² + 2x 1-16 mm²). Pre-embossing for PG fittings: top: 4x PG-16, 1x PG-29 bottom: 2x PG-21, 1x PG-29 right: 2x PG-29 left: 2x PG-29 left: 2x PG-29 1-row for 16 modules 340 x 270 x 138 mm. N clamp: 12 x (1-10 mm²) PE clamp: 3 x 12 (1-10 mm²). Pre-embossing for PG fittings: top: 2x PG-21, 1x PG-29 bottom: 6x PG-16, 1x PG-29 right: 2x PG-29 left: 2x PG-29 left: 2x PG-29 2-row for 26 modules 270 x 340 x 120 mm. N clamp: 12 x (1-10 mm²) PE clamp: 3 x 12 (1-10 mm²). Pre-embossings for PG fittings: top: 1x PG-21, 2x PG-29 bottom: 5x PG-16 re
