as - Schwabe Three-phase test plug, 400 V, 32 A, 5-pin, 6 h, three-phase socket tester, high current tester, diagnostic plug, IP44, red, 61478

• Reliable rotary field test: our rotary field test plug allows for safe checking of the rotary field direction of CEE sockets to avoid malfunctions.

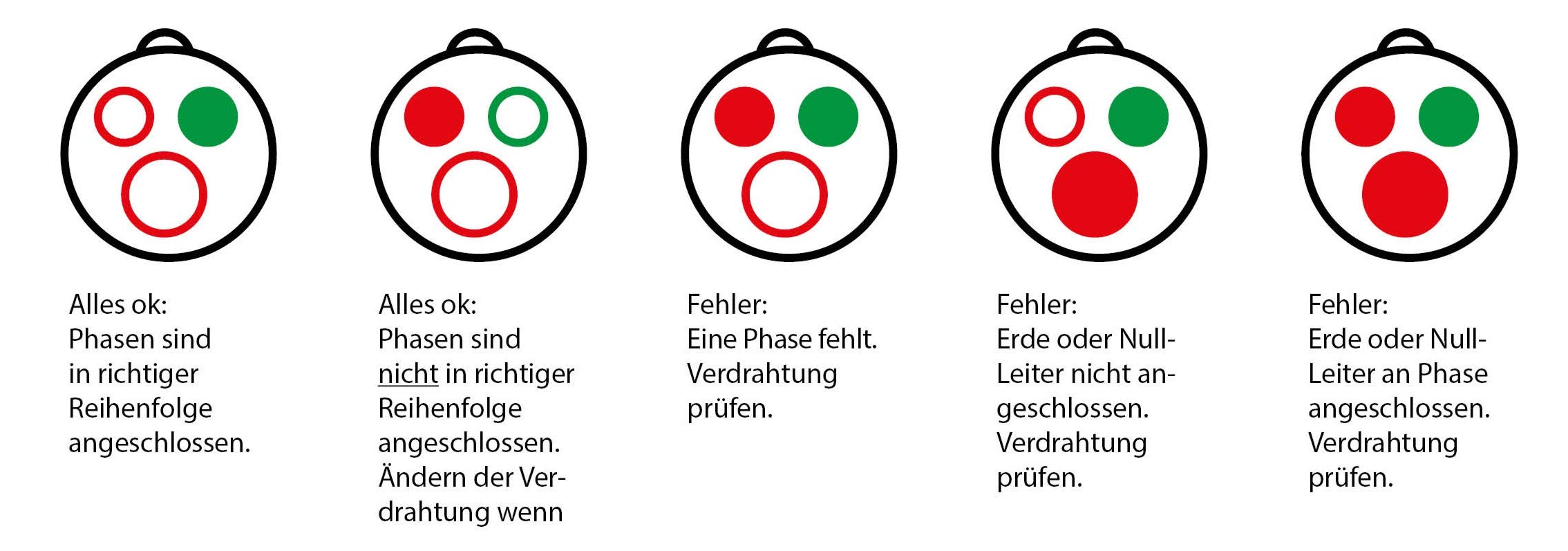

• CLEAR DISPLAY: Clearly visible indicator lights clearly signal right or left rotation field as well as the absence of a phase to enable quick and easy diagnostics.
• CONFORMITY AND PERFORMANCE Tested to IEC 60309 standards, our test plug provides reliable functions at 400V/32A load.
• Robust construction: The three-phase test plug is equipped with a high-quality, impact-resistant housing made of the latest generation polyamide, which is protected from splashing water. For long-lasting use in demanding conditions.
• Weatherproof and durable: effective protection (IP44) against foreign objects and splashes of water for increased safety and durability.

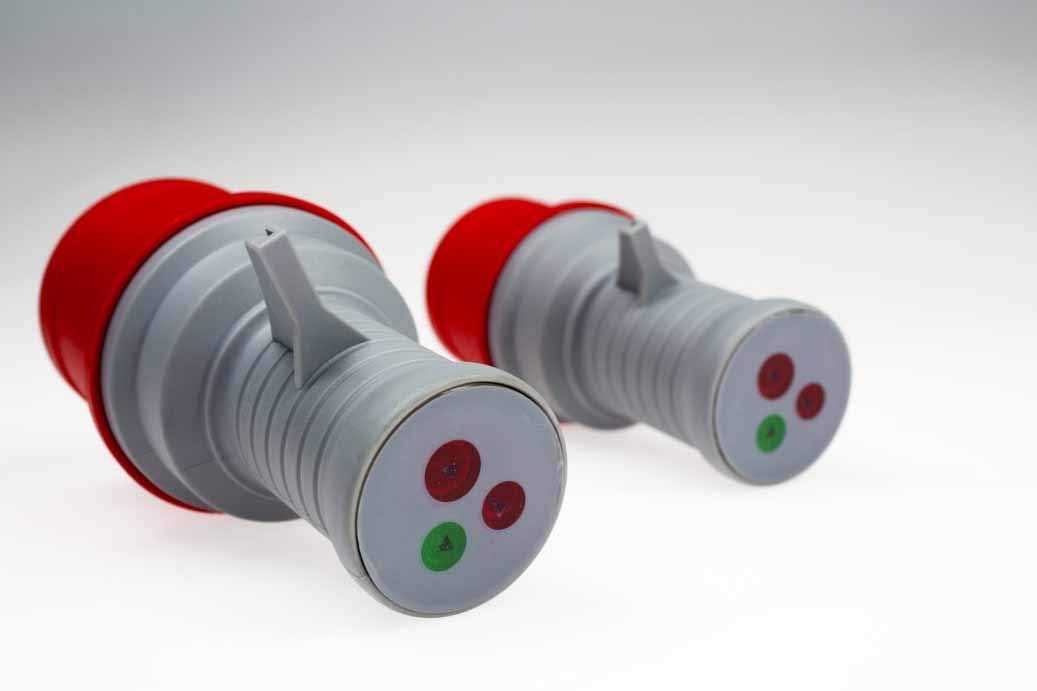

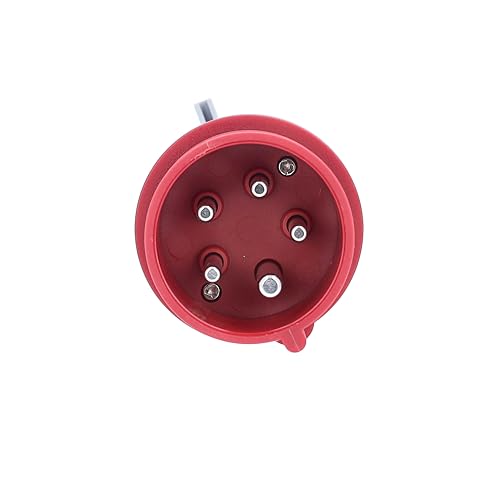

Connection and rotary field test plug. The test plug is used for safe control of the rotary field direction of CEE sockets. According to VDE 0100 § 31b 5, three-phase sockets must be connected in such a way that – the sockets viewed from the front clockwise – results in a clockwise rotation field. The test plug differs from the normal plug due to its transparent housing. It shows right or left rotation field or the absence of a phase via three indicator lamps. 32 A, 5-pin, 6h. Housing made of polyamide. Impact-resistant, splash-proof. Safety: tested according to IEC 60309. Use: protection class IP 44 - suitable for commercial / construction sites. Technical data: 400 V
