ARCELI Motion Detector Device, 5PCS IR Pyroelectric PIR, for Security Surveillance and Energy Management Systems

• AM312 Human Sensing Modules: based on passive body infrared technology, intelligent automatic control products with high sensitivity and reliability, which are widely used in various types of automatic induction electrical devices.
• Low power consumption, small size, easy to install.
• Internal use of digital signal processing, pit interference strong.
• Repeatable trigger mode: that is, after the induction output is high, in the delay time, when the body is in its induction range of activities, the output remains until the delay after the person reaches the low level. (The sensor module automatically detects a delay time after each activity of the human body and takes the last active time as the starting point for the delay time).

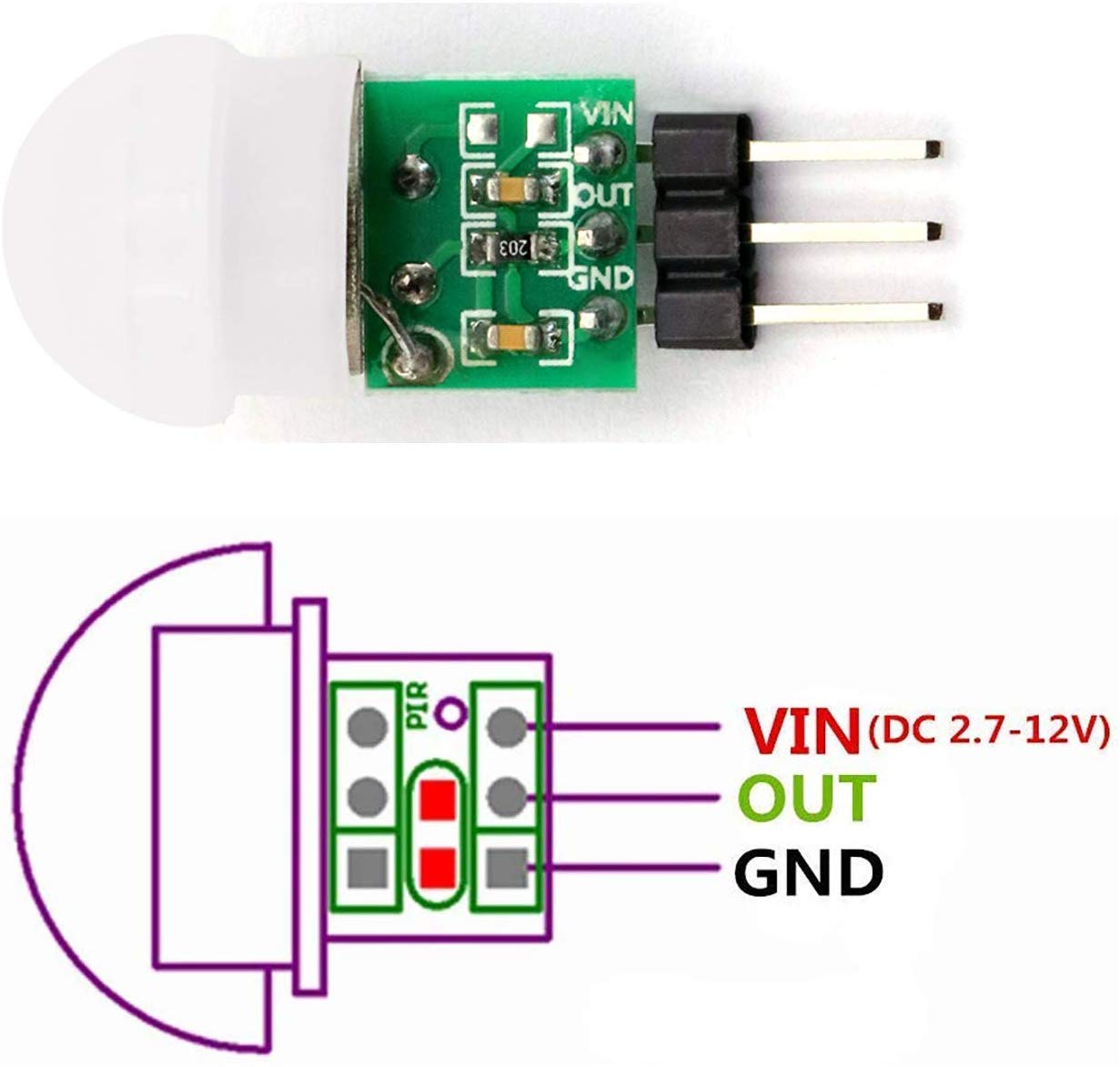

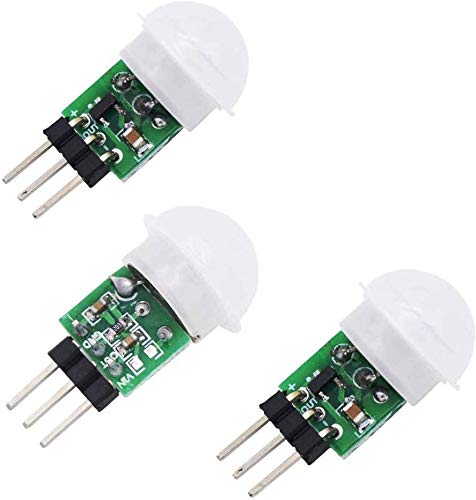

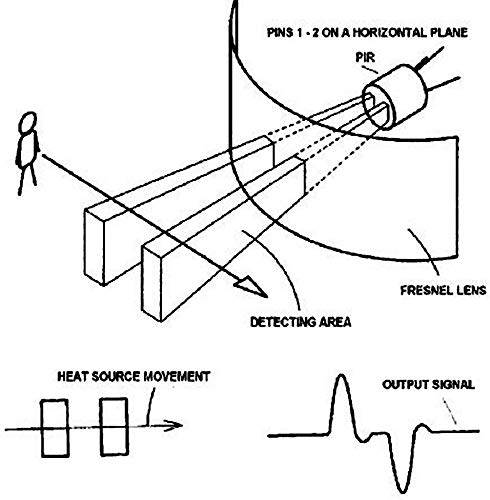

Specification: Working voltage: DC 2.7-12V. Static power consumption: <0.1mA; Delay time: 2 seconds; The lock time: 2 seconds; Trigger: can be repeated. Detection range: ≤ 100 degree cone angle, 3-5 m; (required, depending on the lens) Working temperature: -20 to +60 °C. PCB Size: 10mm x 8mm Total size: approx. 12mm x 25mm Module lens: small lens. Package includes: 5 x PIR sensor module
