XTVTX 5 Pcs Nano V3 328P Development Boards Nano V3.0 Nano 328P Module with CH340 Chip Micro Connector 5V 16M Microcontroller Compatible with Ar-duino Nano

• Easy installation: Atmega nano module install the appropriate computer system driver before performing the procedure. Get the drivers directly from the chip manufacturer or from our website.
• Compatibility: Ardui-no nano V3 module 100% compatible with Ardui-no, uses Mega328P and CH340 chips.

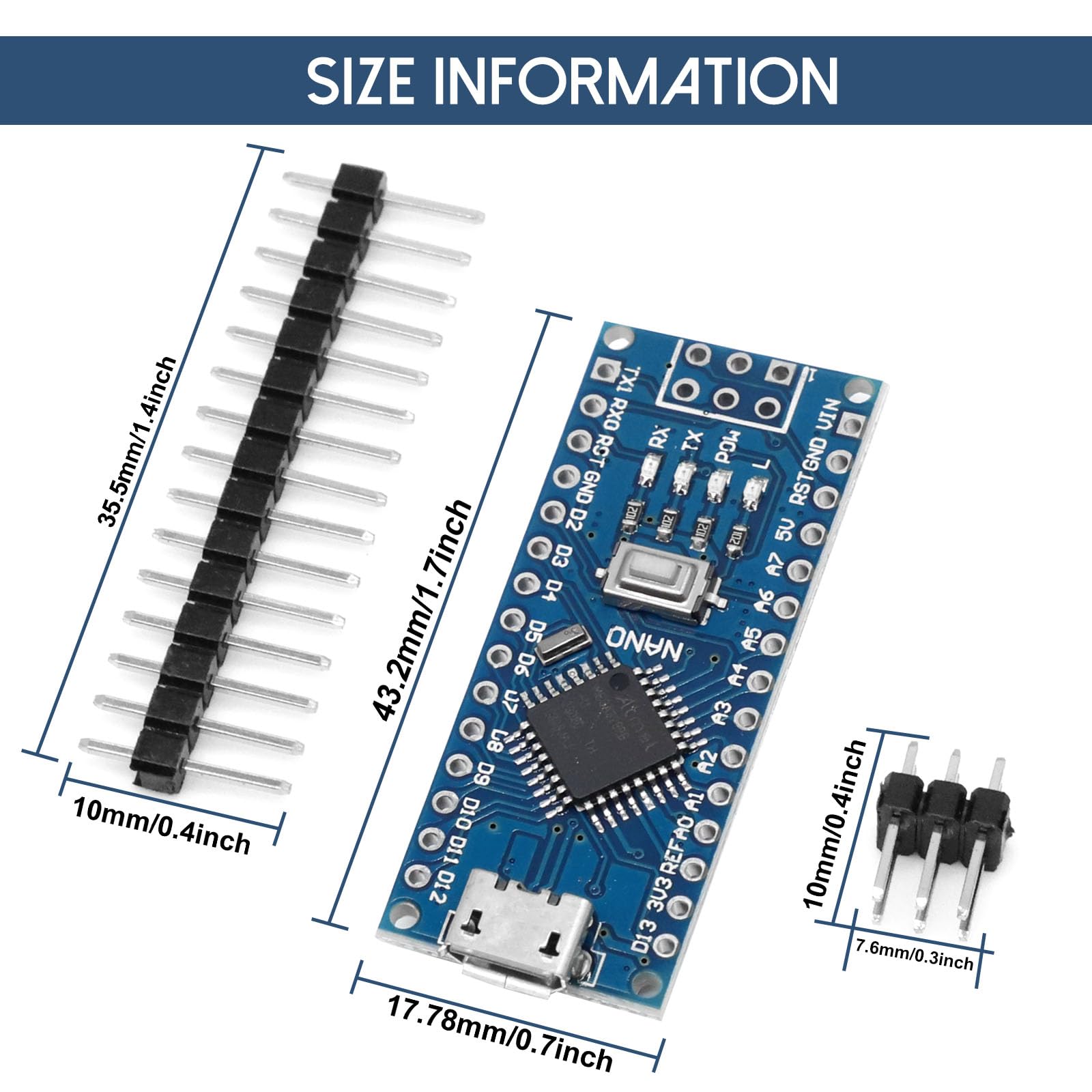

• Small and powerful: Atmega nano development board the smallest, complete and breadboard-friendly board with more analogue input pins and onboard + 5 V AREF jumper.
• Flexible power supply options: The ardui-no nano can be powered via the micro USB port, an unregulated external 7-12 V power supply or a regulated external 5 V power supply.

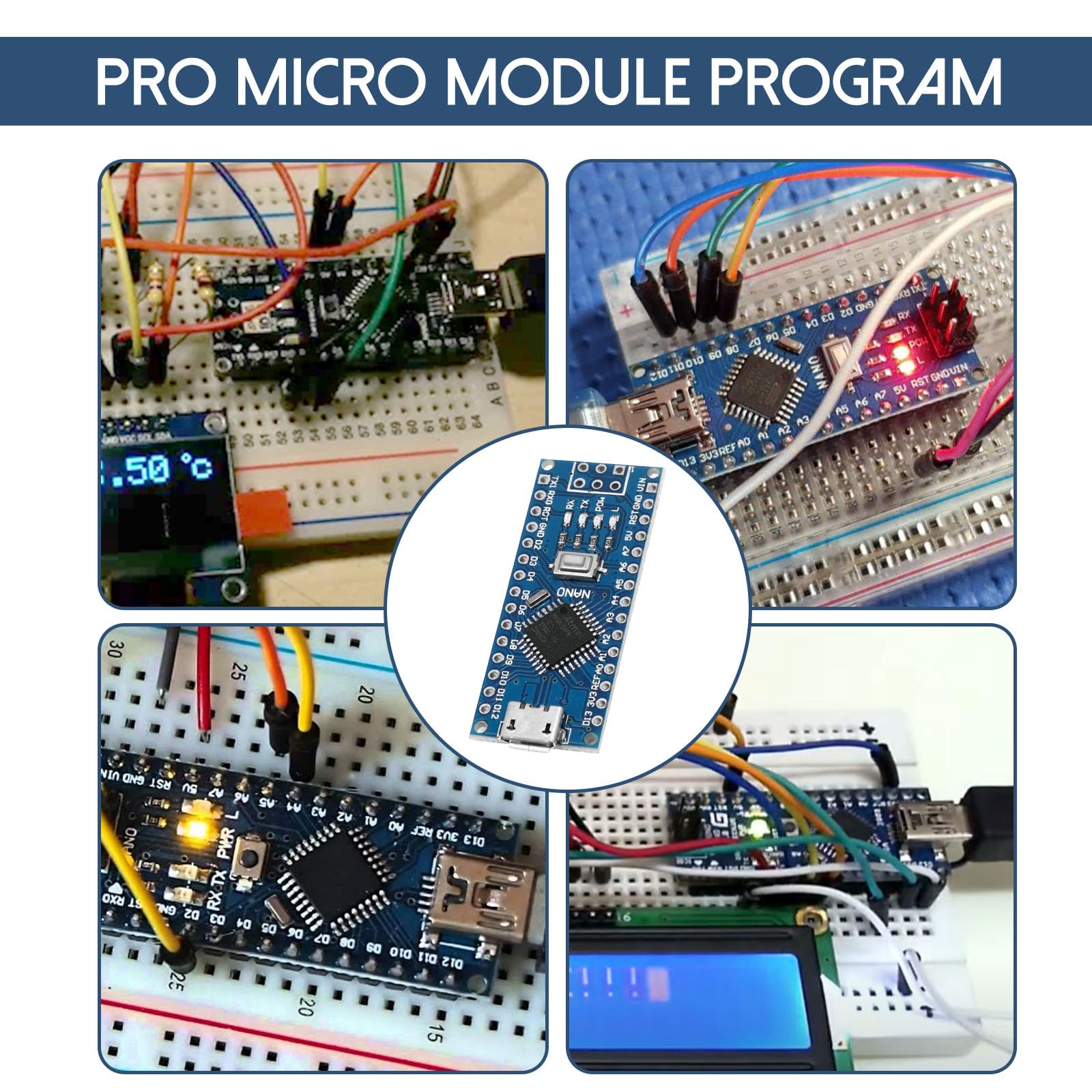

• More space on the breadboard: The ardui-no nano has the breadboard capability of the Boarduino and the Micro USB with a smaller footprint, so you have more breadboard space for your projects.

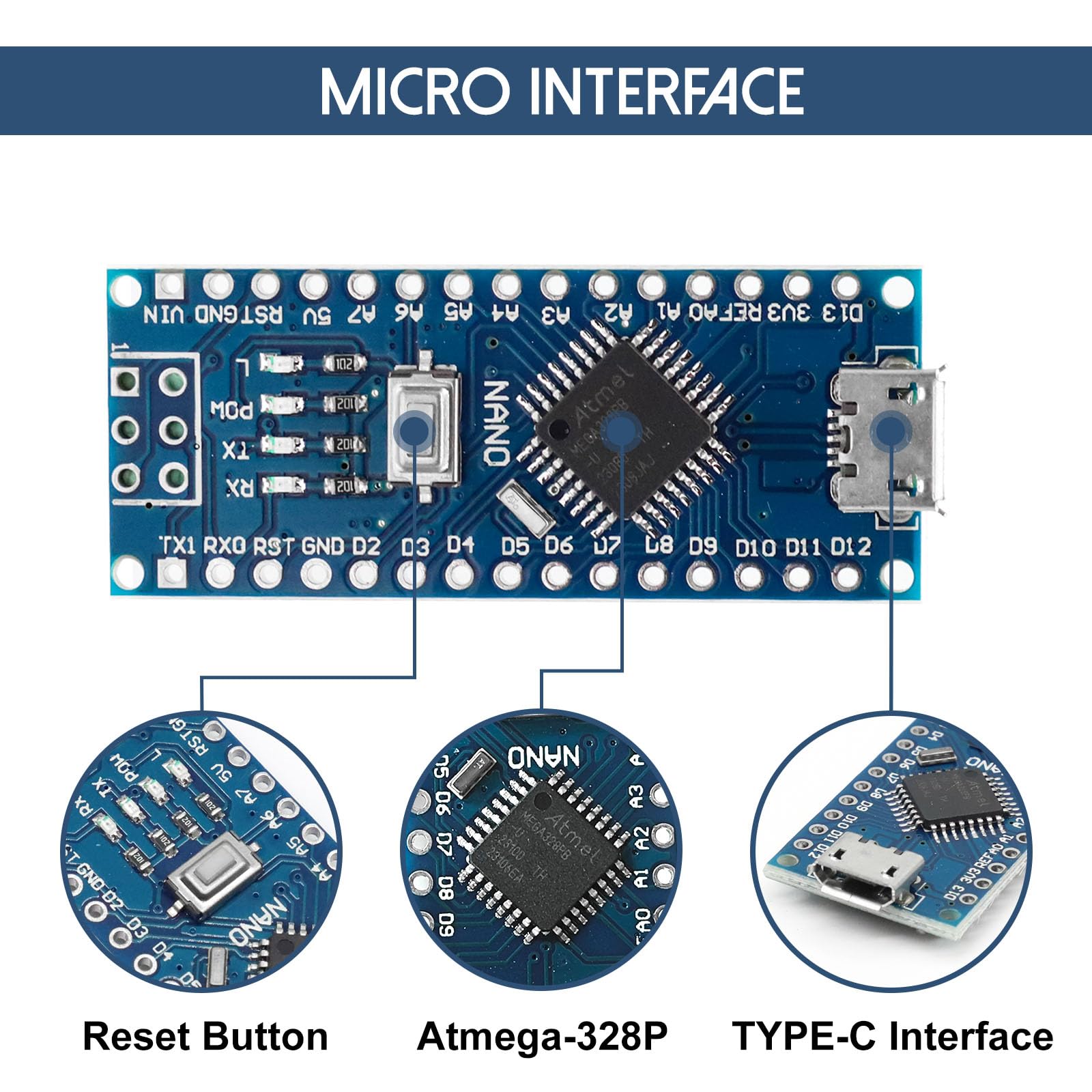

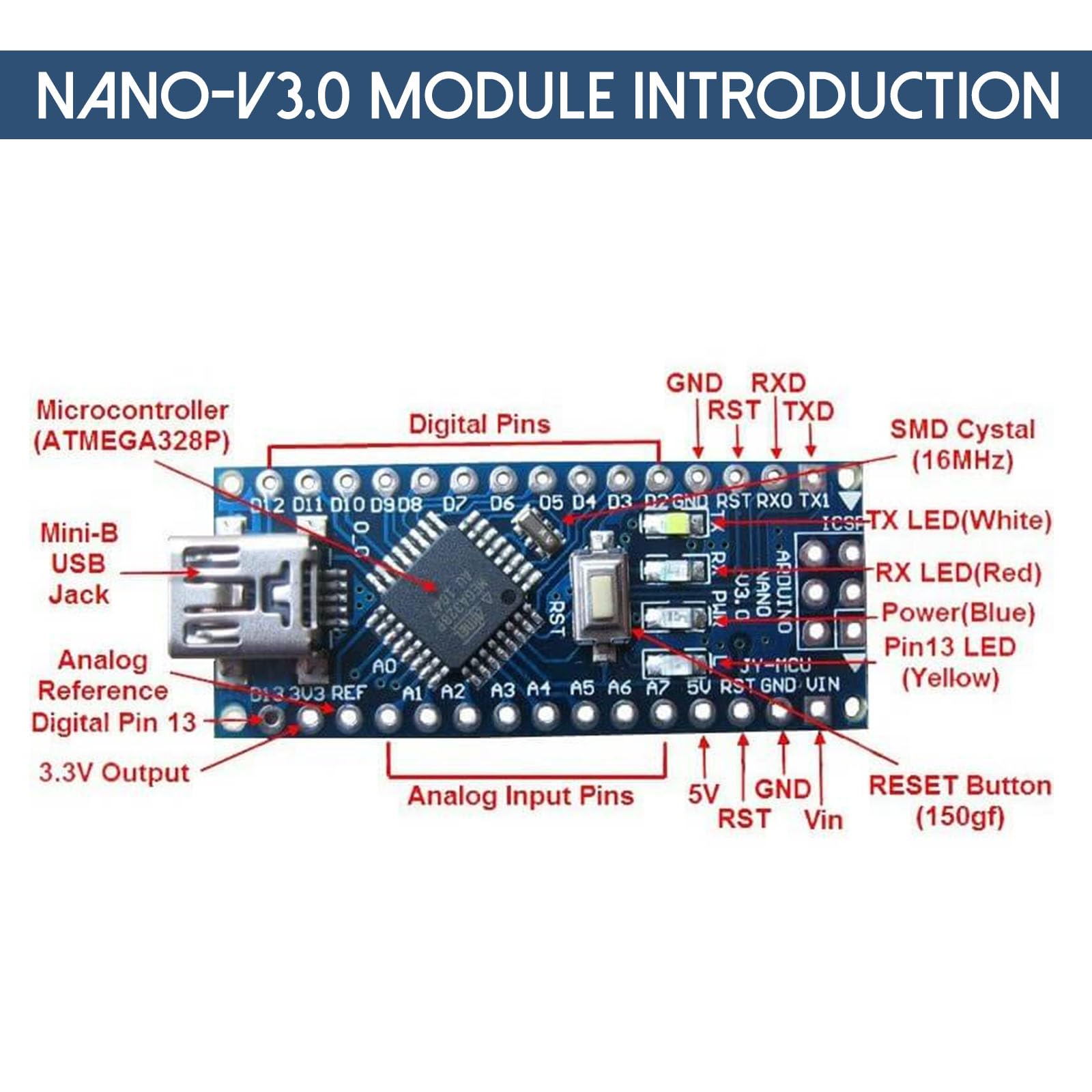

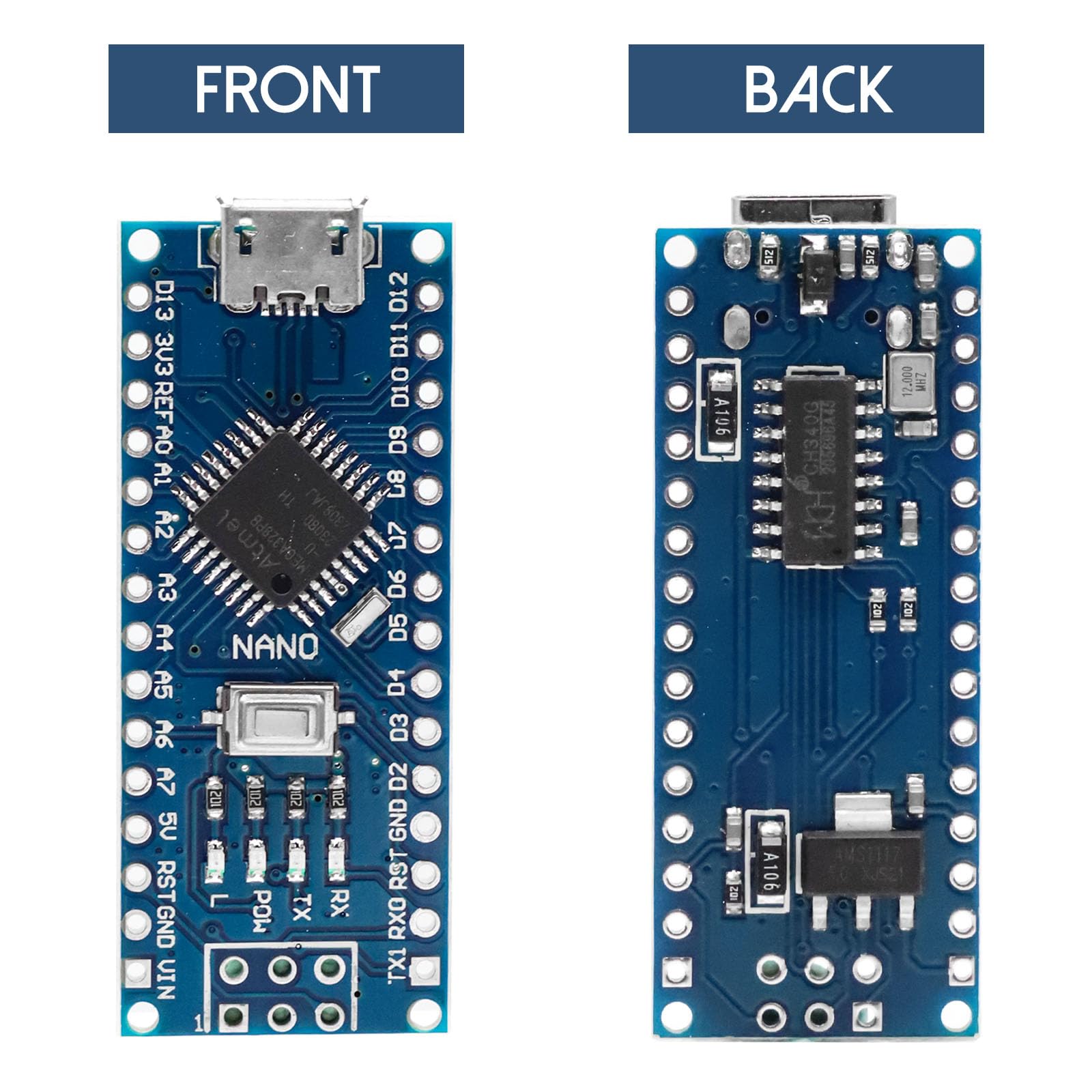

Description of the nano module: The 328P AU module has a micro interface that can be connected conveniently. 8 analog inputs: TX, RX, D2-D13 Chip: CH340. 6 PWM ports: D3, D5.D6.D9, D10, D11TTL level serial and reception port RX/TX. Supports USB-C and external DC5-12V power supply. Note: Before performing the procedure, please install the corresponding computer system driver. Driver: directly from the chip manufacturer: WCH-340 Product Homepage: http://www.wch.cn/download/CH341SER_LINUX_ZIP.html (Linux should also work without the driver) http://www.wch.cn/download/CH341SER_MAC_ZIP.html http://www.wch-ic.com/download/list.asp?id=127 (Windows) http://bit.ly/2pMF4in Mega328 Microcontroller: Microcontroller Mega328P-AU. Fully compatible with Nano V3.0 328P-AU Input voltage (recommended) 7V-12V; input voltage (limits) 6V-20V. Bootloader installed, ready to upload sketches from Ar-duino software Analog input pins 8 Operating voltage: 5 V. DC current per I/O pin 40mA DC current for 3.3 V pin 50 mA. Digital I/O pins 14 (including 6 with PWM output) Flash memory 32 KB (Mega328), of which 2 KB is used by the bootloader. SRAM 2 KB. EEPROM 1KB Clock frequency: 16 MHz. Casing: 5 x Ar-duino Nano Nano V3.0 Mega328P compatible with Ar-duino.
