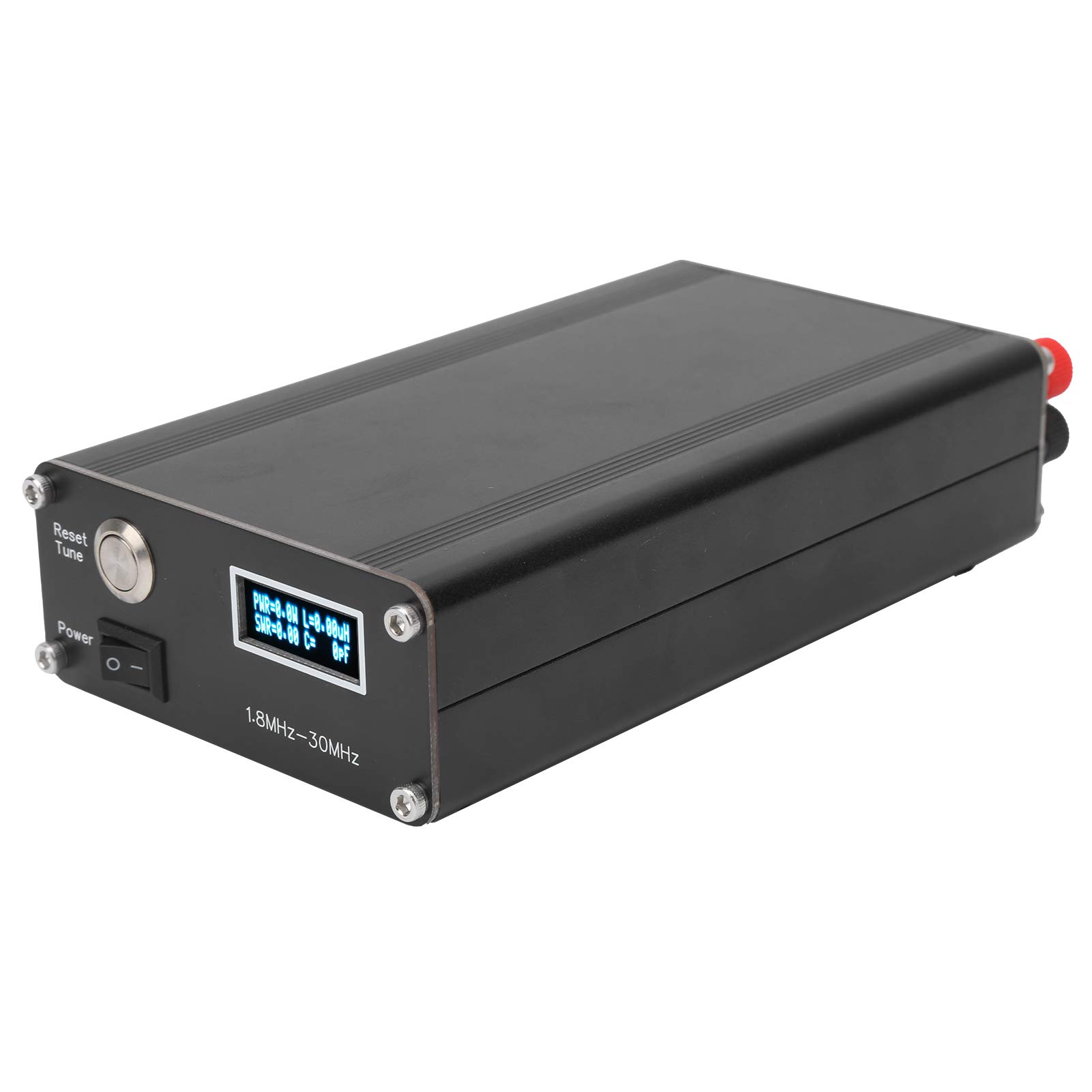

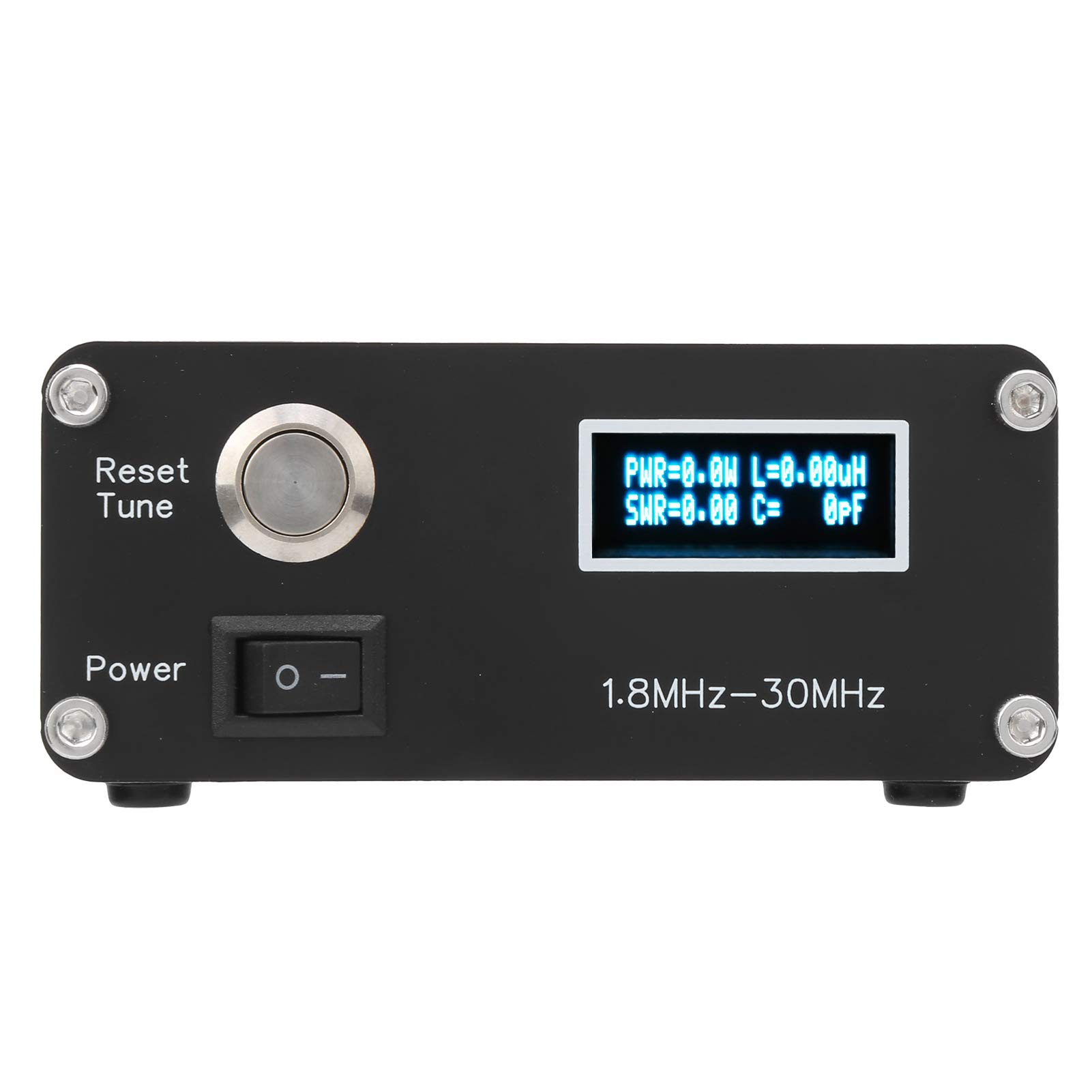

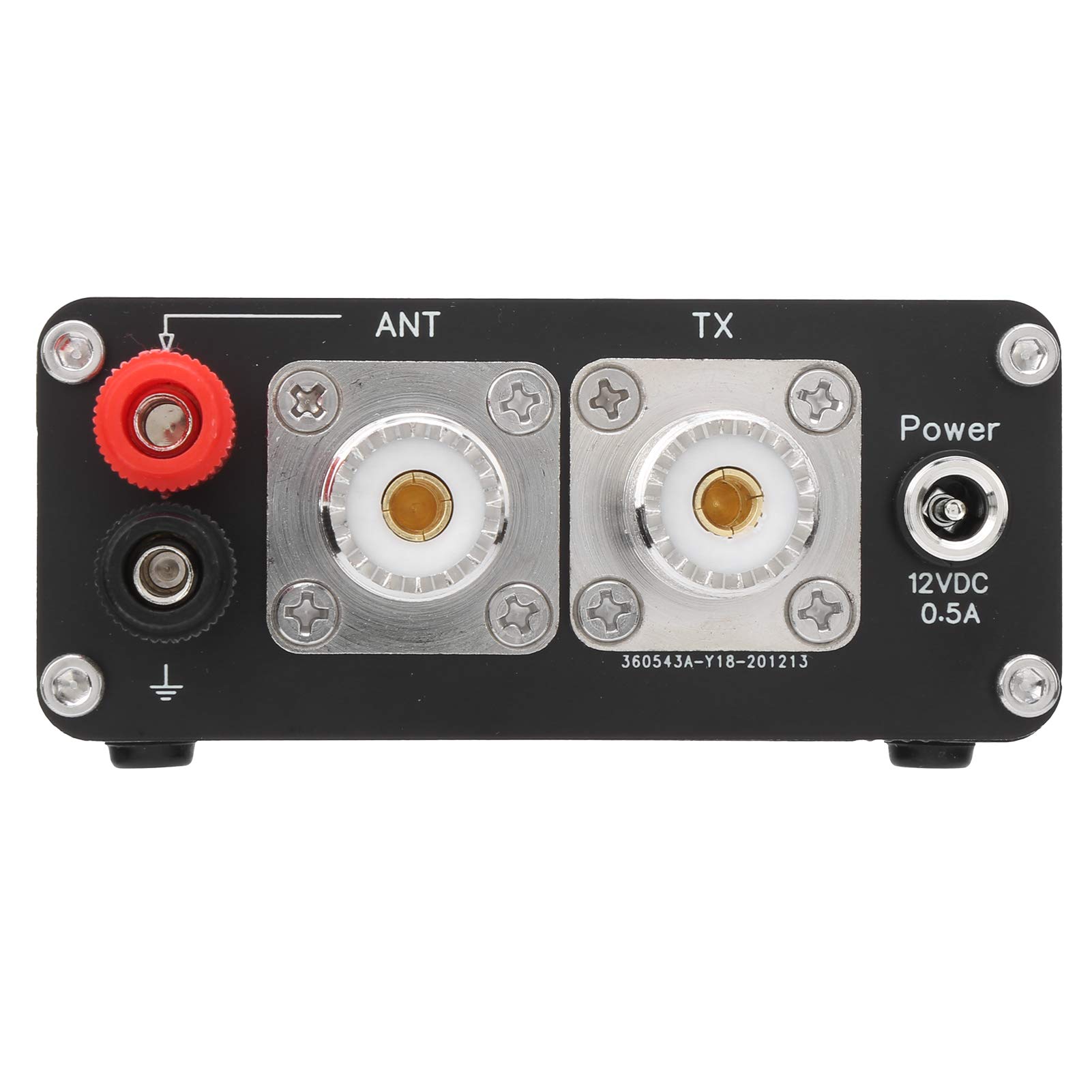

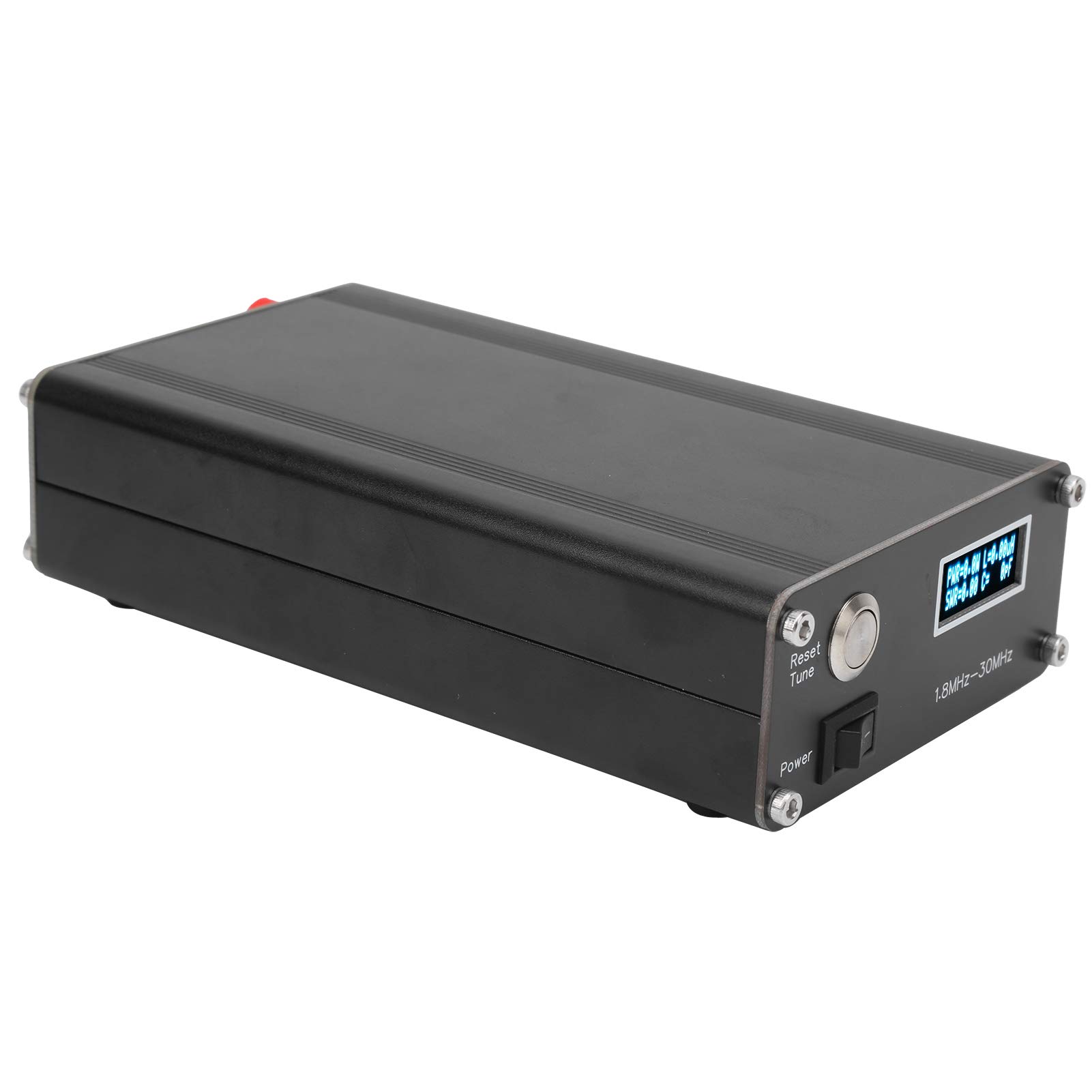

Antenna Tuner - Automatic Antenna Tuner Aluminum Alloy Tester C Type 1.8‑30Mhz ATU‑100 HAM 10‑15VDC

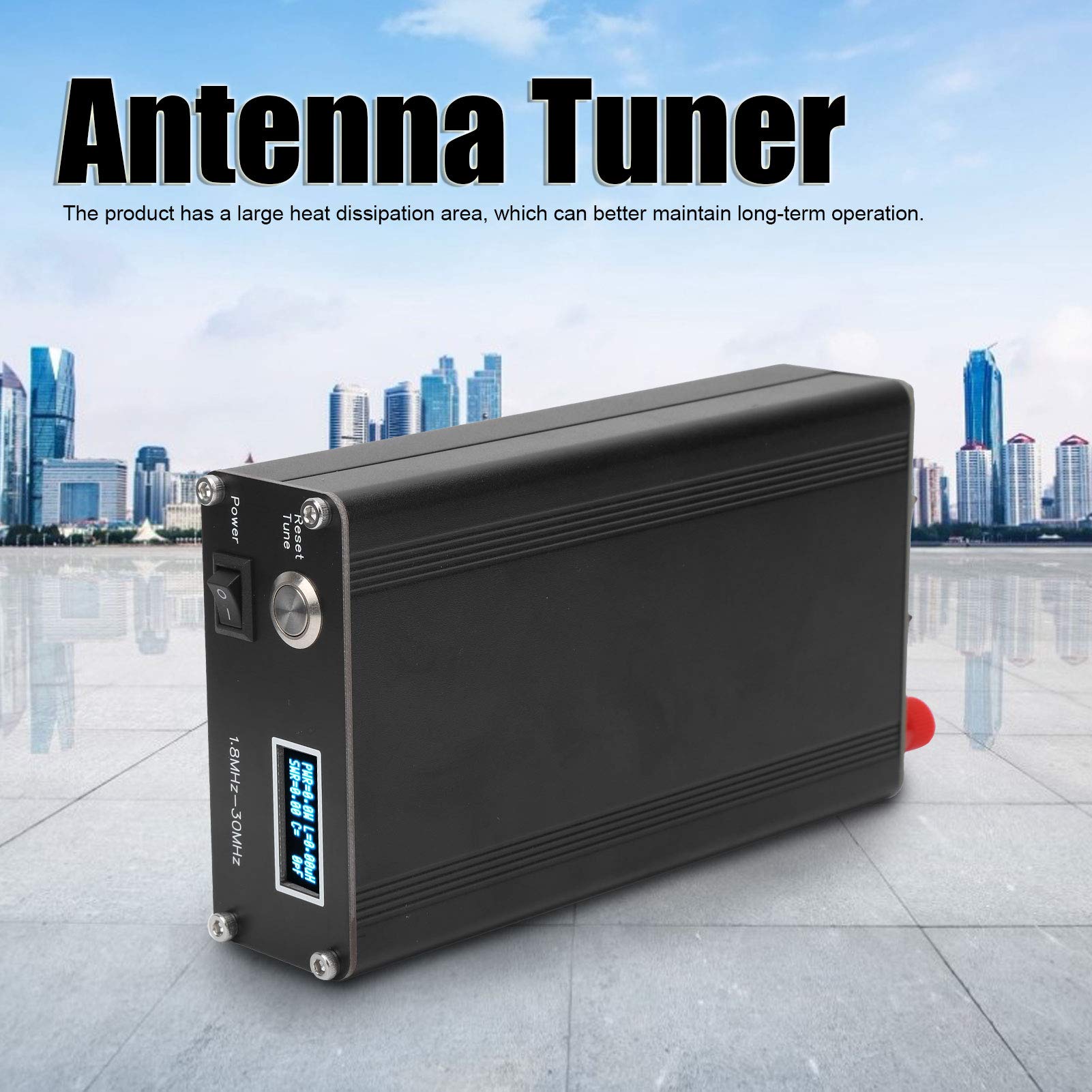

• 【Highly Stable Performance】: This Antenna Tuner assures a high level of stability, with a maximum current consumption of 400mA, and maximum operating and possible measured power of 100W and 150W respectively. It has a large heat dissipation area, ensuring longer periods of flawless operation, delivering consistently reliable performance every time.
• 【Wide Frequency Range】: The Antenna Tuner is designed for high performance and boasts a convenient one-piece molding without burrs. It operates over a wide frequency range of 1.8-30Mhz, and can actually extend up to 50Mhz, assuring seamless tuning across diverse frequency bands.
• 【Superior Durability】: With great attention to detail, we've made the Antenna Tuner from premium aluminum alloy, making it impressively durable and resilient. It is coated with a layer of anti-corrosion paint, enhancing its life span even further, providing you with a tuner that is built to last.
• 【One Year Warranty】: Your satisfaction is our priority. We provide a one year warranty to ensure your 100% shopping satisfaction. Should you have any questions or concerns about your purchase, feel free to contact us. We will provide a professional and timely response to address all your queries.
• 【Ideal Power Measurement Tools】: Alongside its tuning functions, this Antenna Tuner acts as an effective power measurement tool. It comes equipped with a power measurement accuracy error of ±10%, a resolution for 10 Wh power of 0.1W, and a resolution for power greater than 10 watts of 1W. This allows for precise monitoring and control of your radio system's performance.

Specification: Item Type: Antenna Tuner Material: Aluminum alloy Model: ATU-100 Allowable Supply Voltage Range: 10-15VDC Maximum Current Consumption: 400mA Maximum Working Power: 100W Maximum Possible Measurement Power: 150W Minimum Power Required to Start Tuning: 5W The Smallest Possible Measurement Power: 0.1W Measurement Resolution for 10 Wh Power: 0.1W Measurement Resolution for Power Greater Than 10 Watts: 1W Power Measurement Accuracy Error: ±10% Maximum Installation Inductance: 8.53μH Minimum Installation Step of Inductance: 0.05μH Maximum Installed Capacity: 1869 pF Minimum Capacitance Installation Steps: 10 pF Typical Consumption: 100-200mA Frequency Range: 1.8-30Mhz (actually can get 1.8-50Mhz) Package List: 1 x Tester 1 x Connection Line Note: 1.Hex screws and power switch colors are shipped randomly. 2.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
