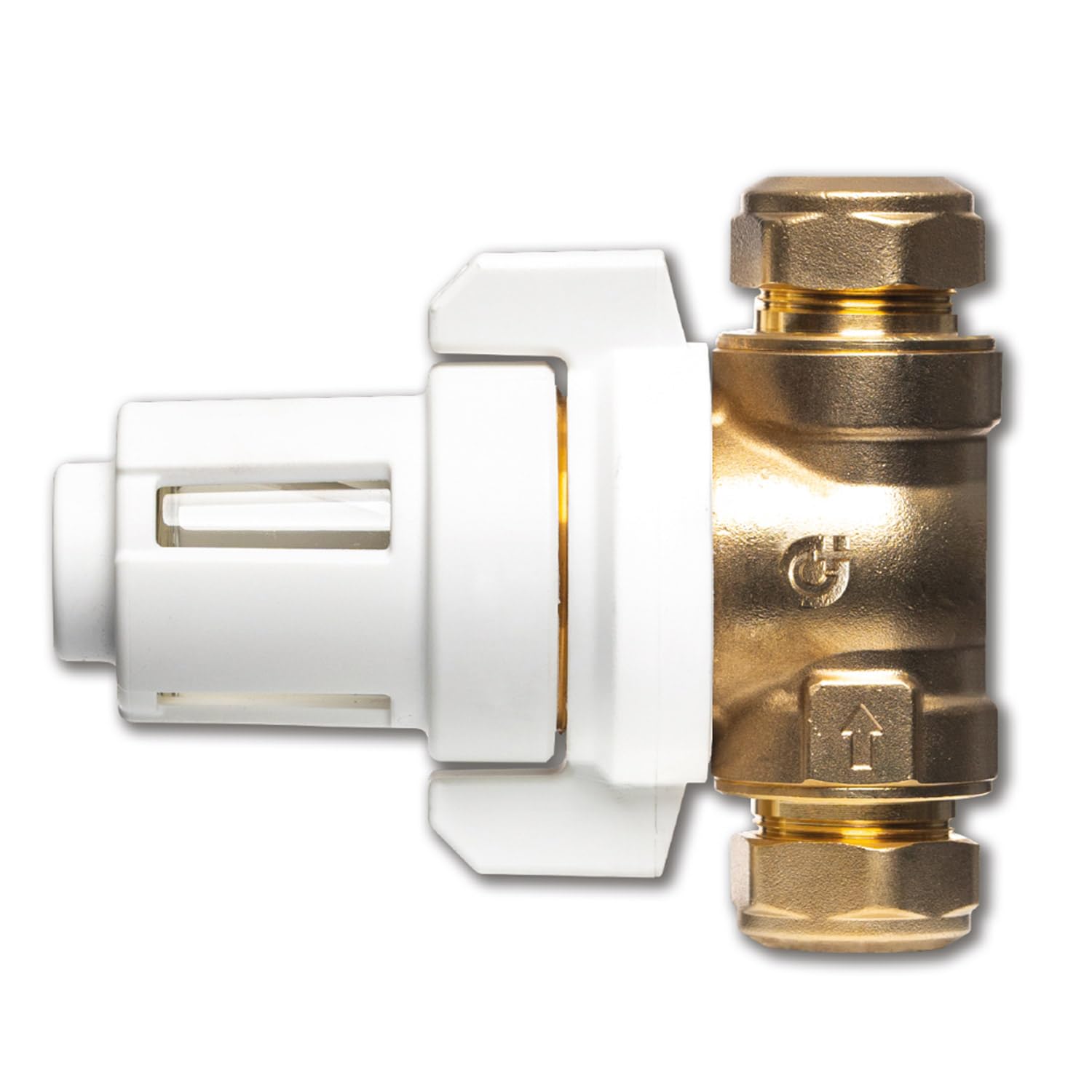

Altecnic Caleffi XS Under Boiler Magnetic Filter 22mm 545912

• Compact under boiler magnetic filter

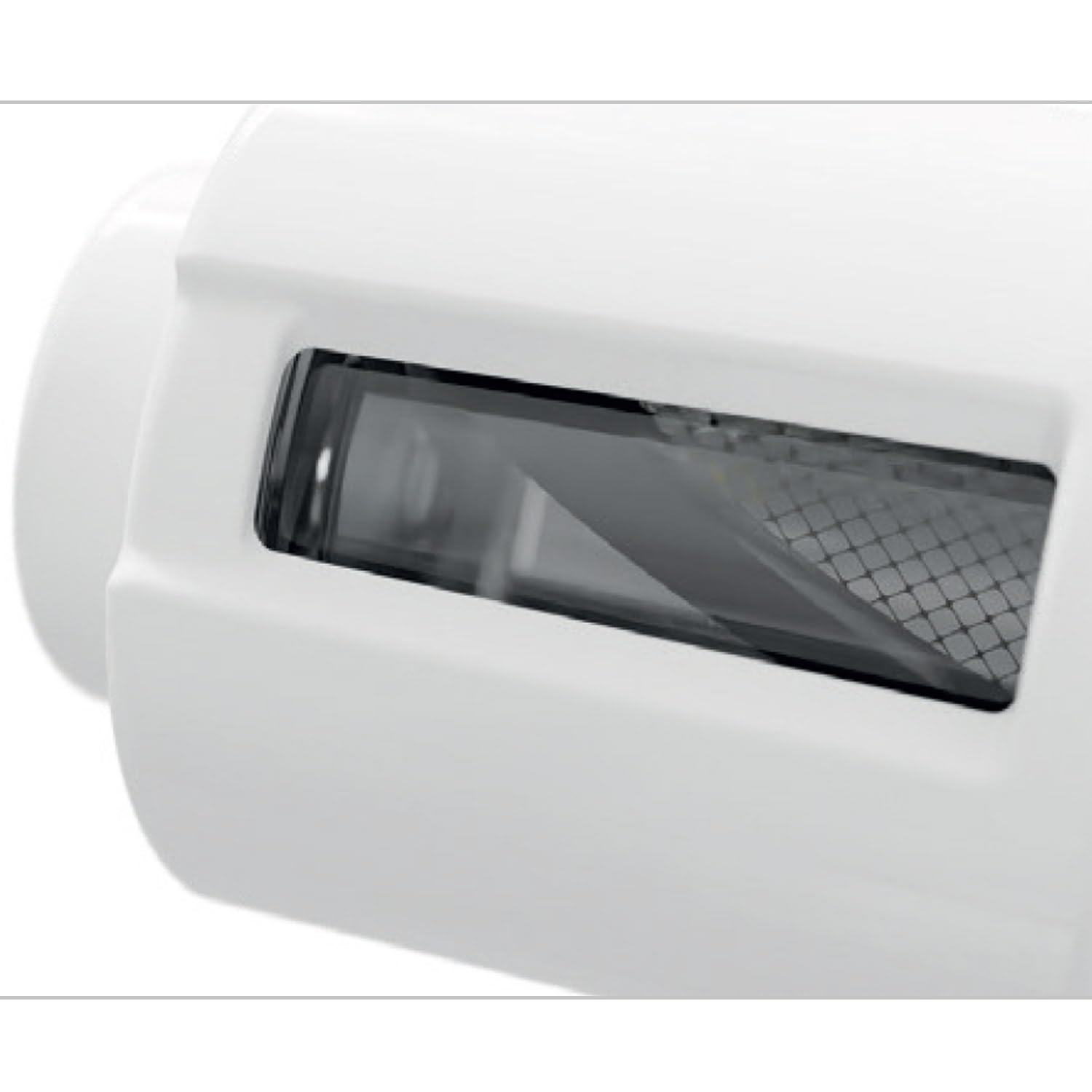

• Glass indicators/windows allow for easy visual system health check
• Internal isolation valve designed so only water in the collection chamber is drained before cleaning the mesh, for quick and easy servicing
• Internal magnet and mesh for effective filtration

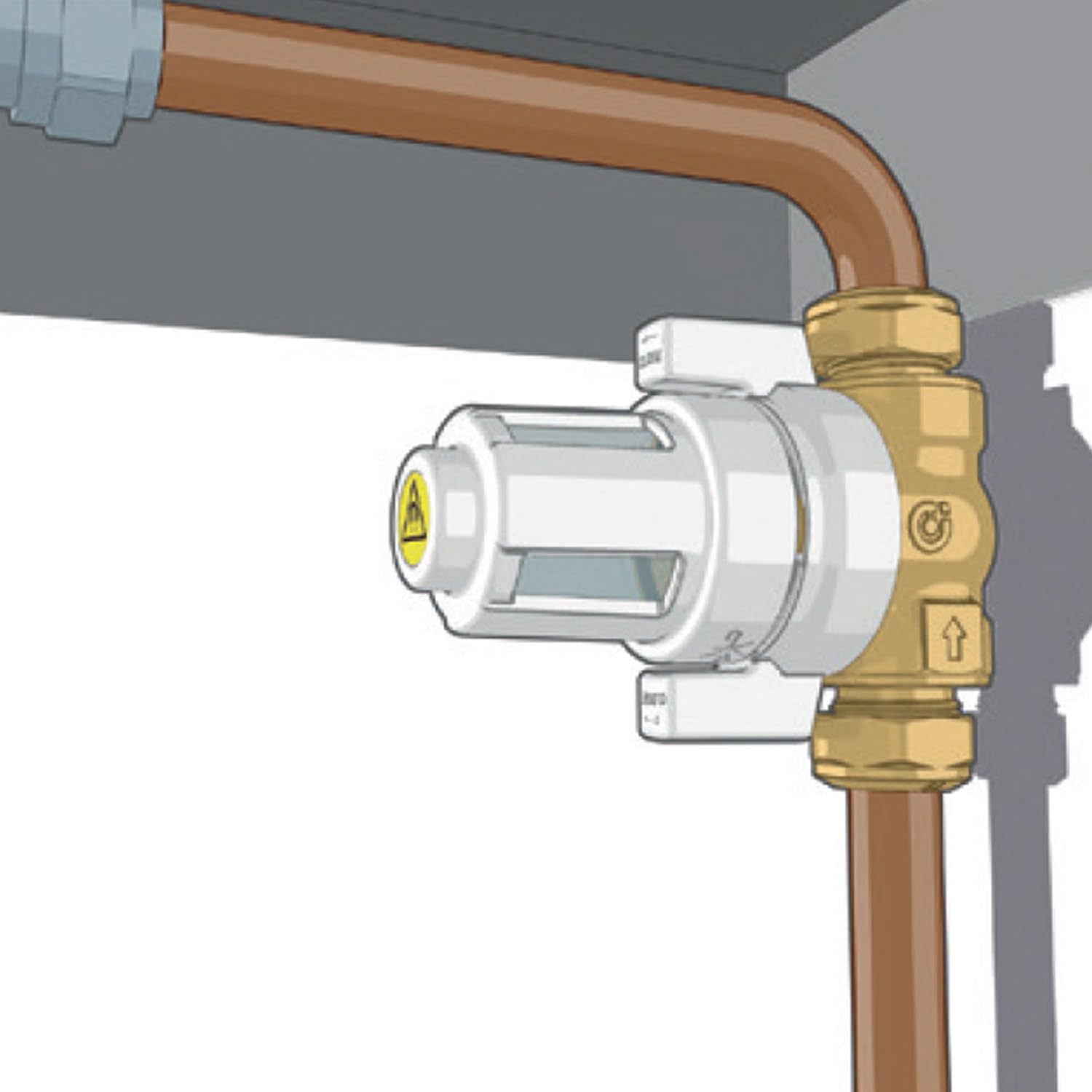

• Suitable for horizontal and vertical installation
• Medium: water, glycol solution
• Max. percentage of glycol: 30%
• Max. working pressure: 3 bar and Working temperature range: 0 to 90˚C
• Filter mesh: 800 μm

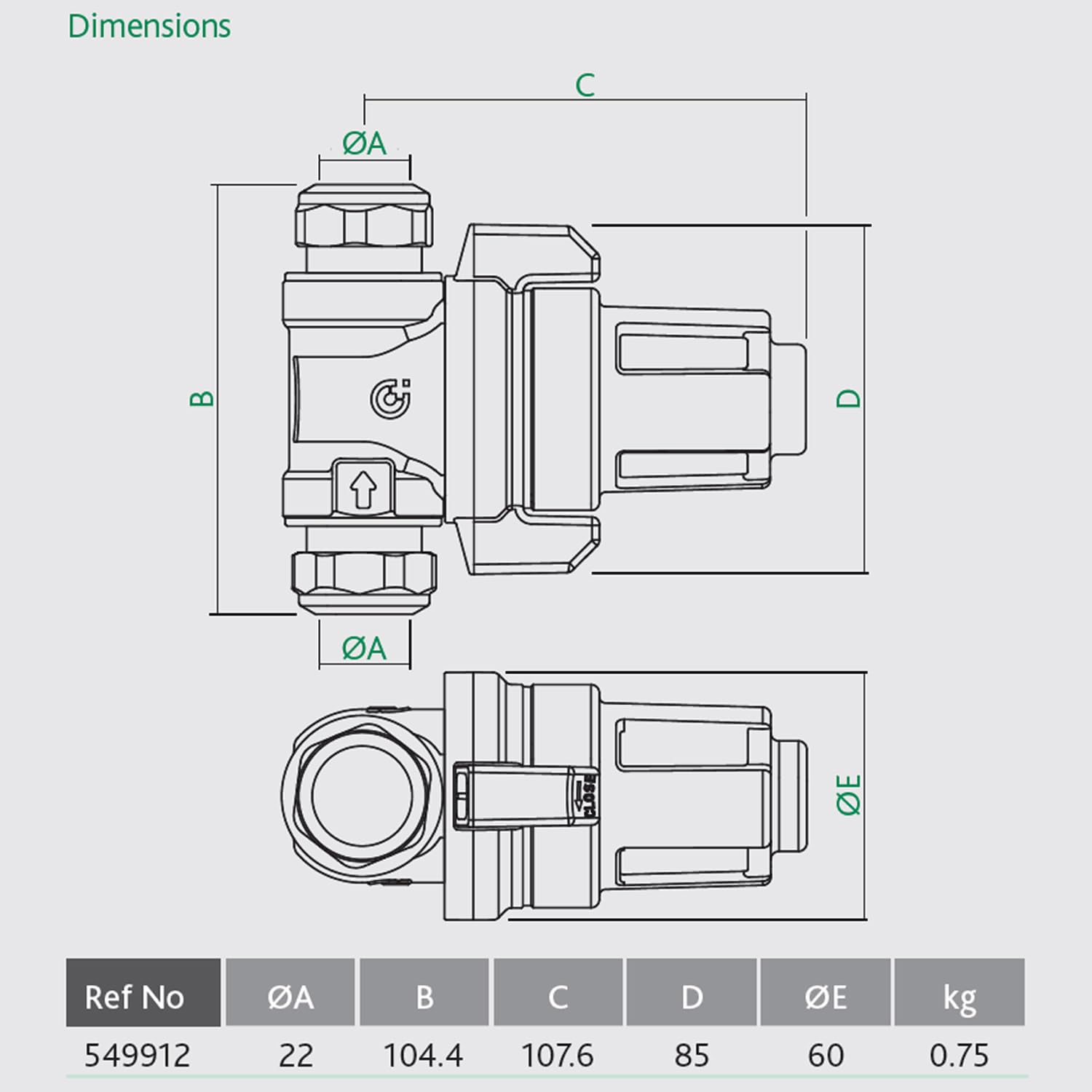

• Connection – 22mm compression: BS EN 12165 CW617N

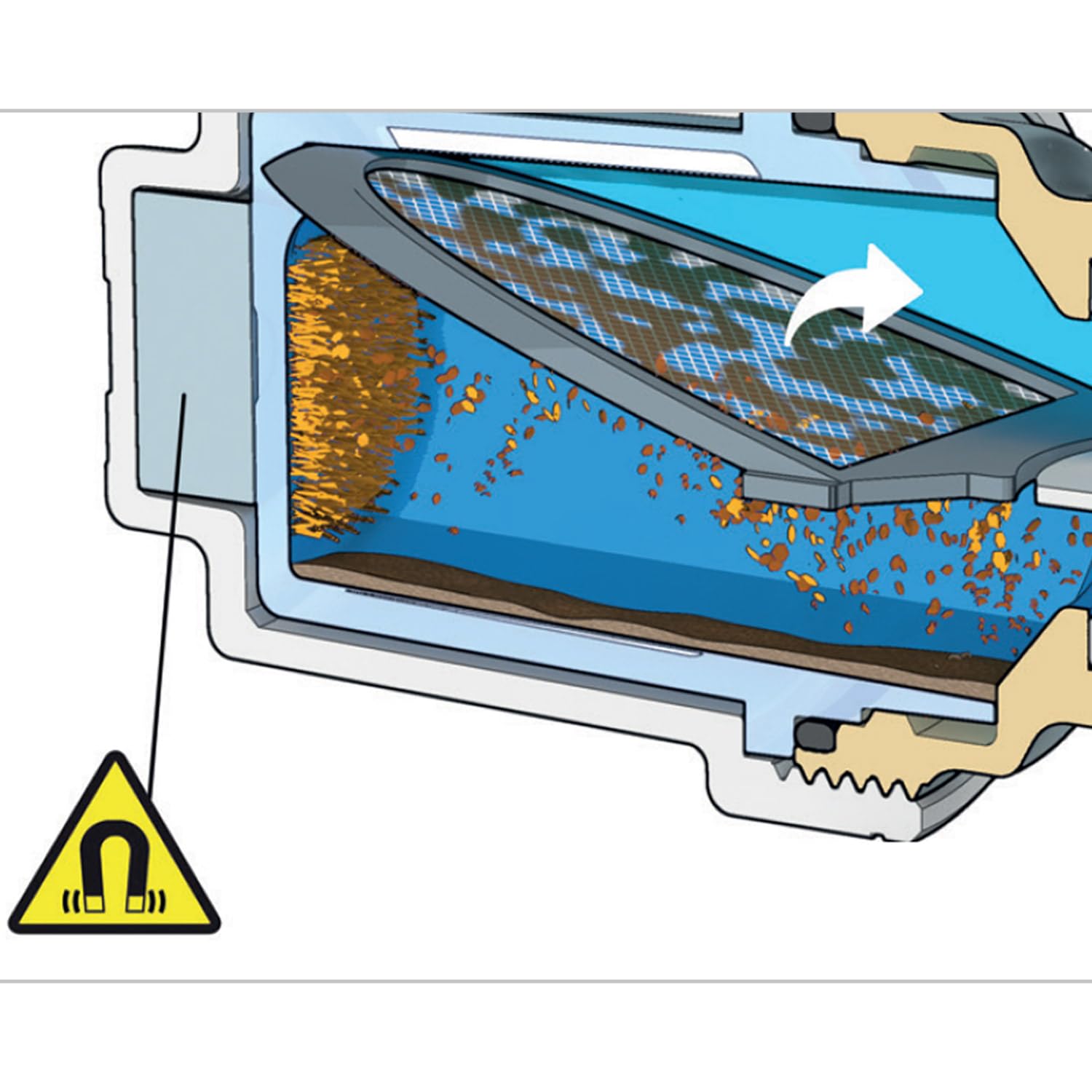

The Altecnic Caleffi XS under-boiler magnetic filter mechanically separates the impurities in heating and cooling systems by means of a mesh filter, a neodymium magnet and a collection chamber for the heaviest particles. The chamber has transparent windows, allowing the user to check whether the internal elements need to be cleaned. Its very small dimensions make it suitable for all generator types.
