Alomejor 36V 48V 350W Electric Bike Brushless Motor Controller with LCD4 Meter Dial Assist Sensor Brake Handle

• HIGH QUALITY MATERIAL: The controller housing is made of high quality aluminum alloy and plastic materials, strong and durable, which undoubtedly extends its service life.
• GOOD HEAT DISSIPATION: The groove design can better protect the internal circuit and avoid thermal overload due to its good heat dissipation function.

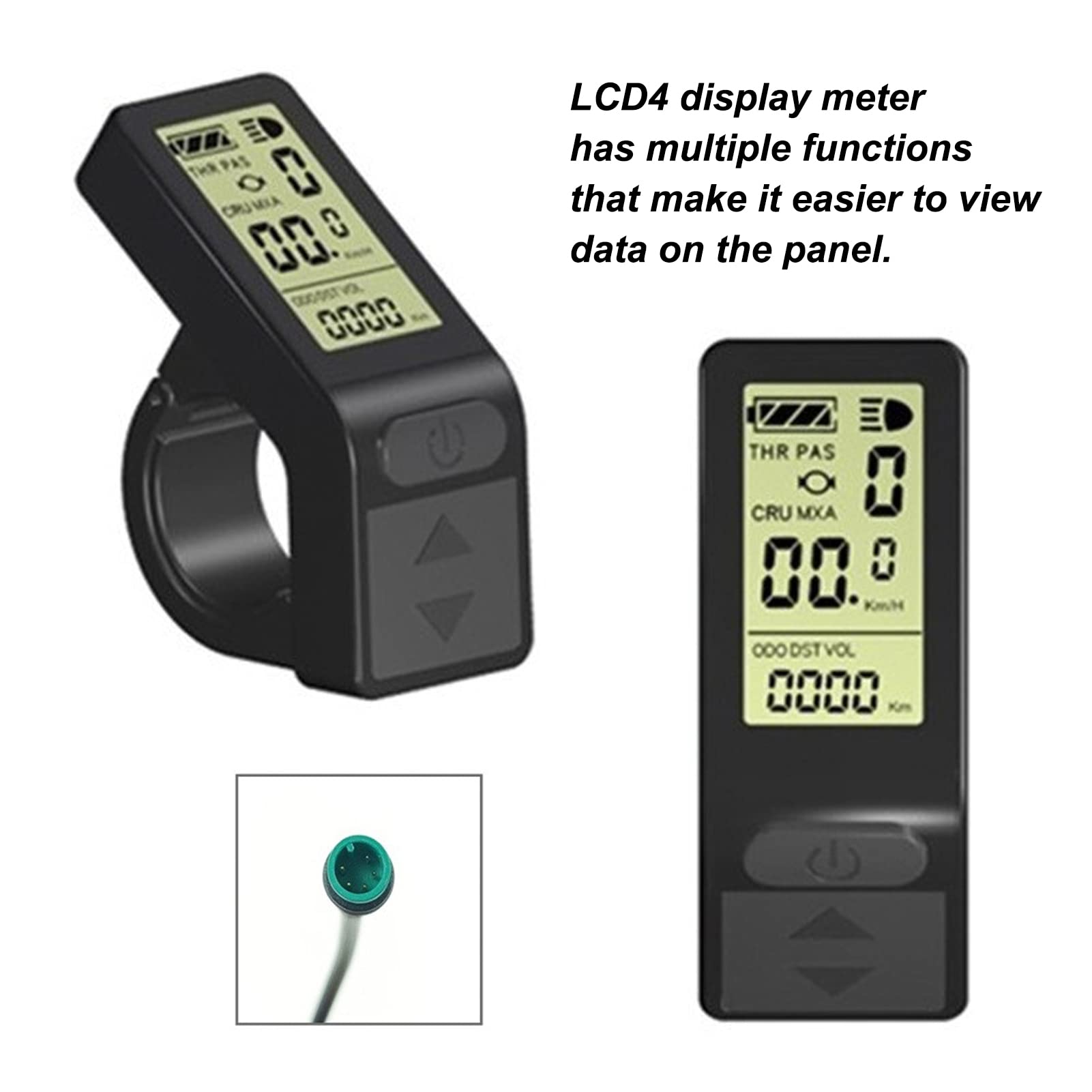

• MULTIFUNCTIONAL LCD4 DISPLAY: The LCD4 display meter has a variety of functions that make it easier to view data on the panel. When riding , the product will display many useful data on your bike, such as power display, battery voltage, backlight display, headlight display, brake display, riding speed, maximum speed, total one way distance, PAS marking, 6km/h thrust assist, cruising function, etc.

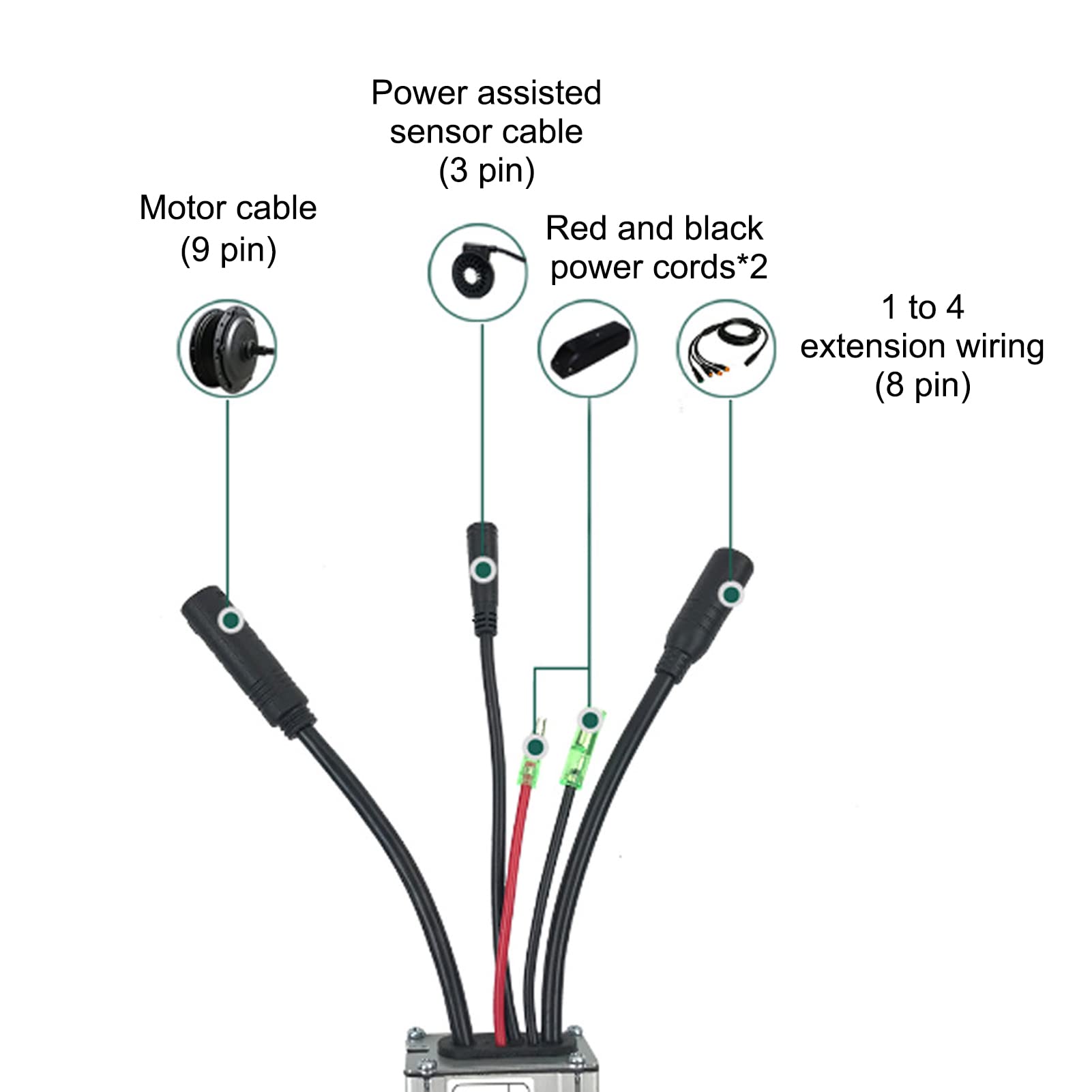

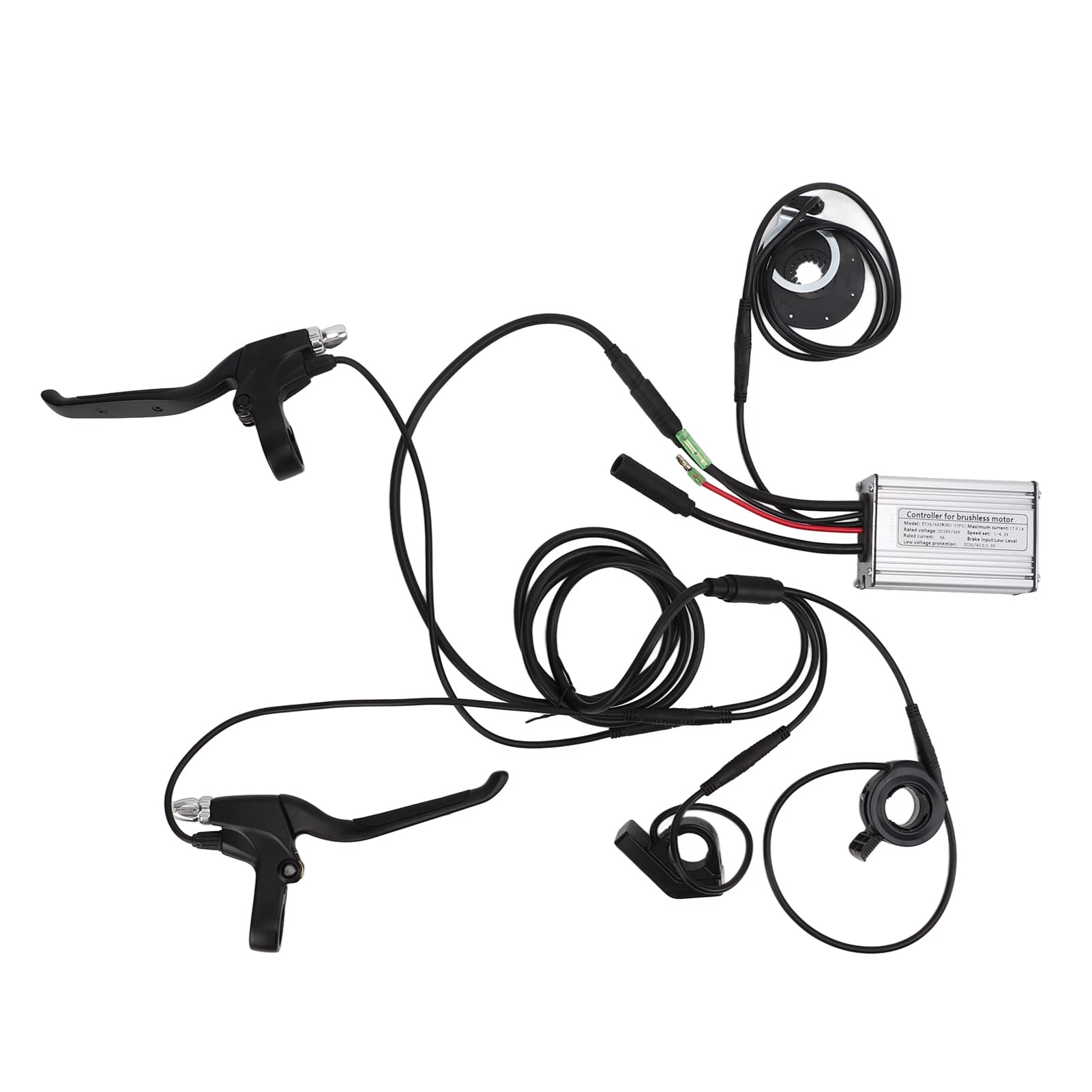

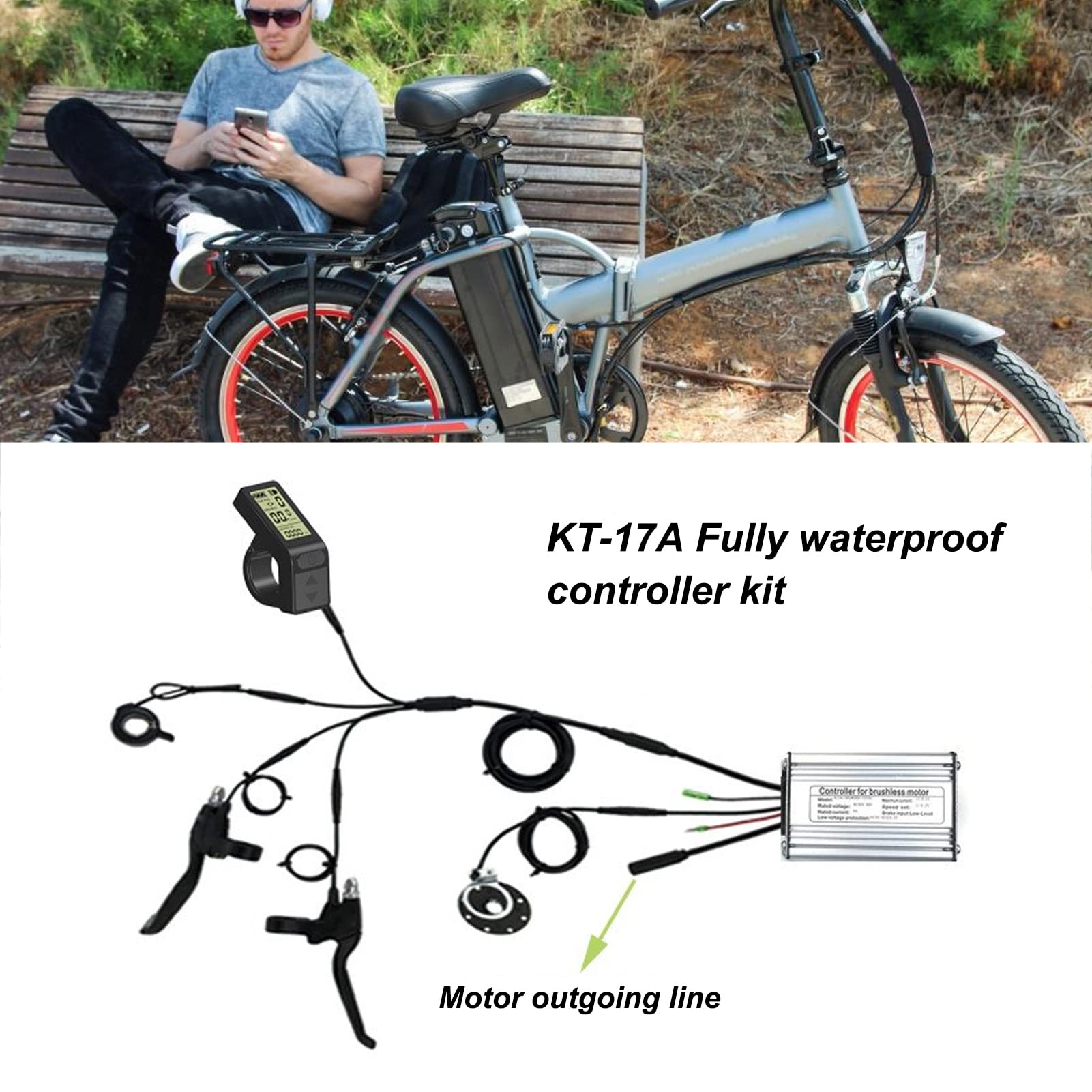

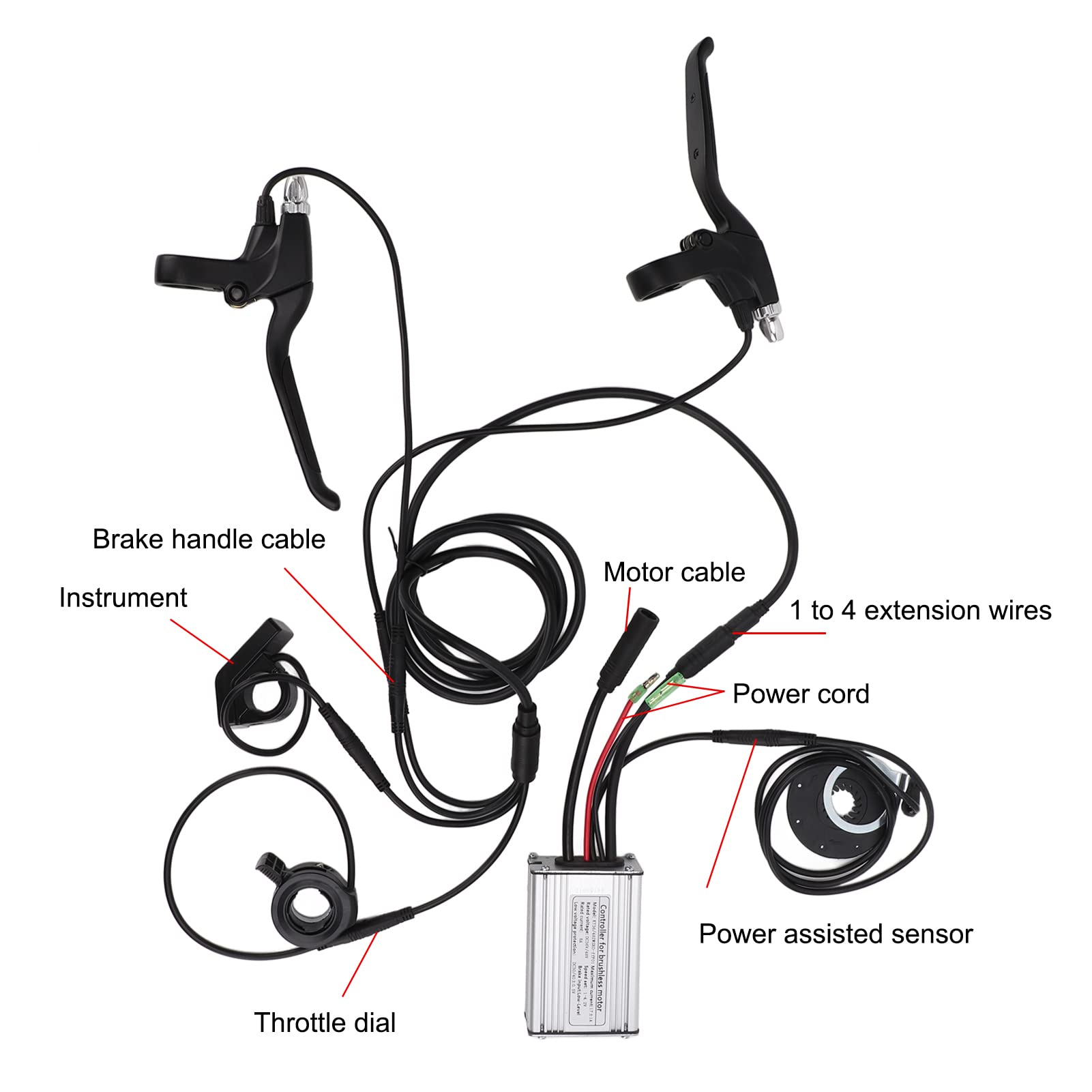

• MODIFICATION KIT: Electric bicycle lithium modification kit contains 17A waterproof controller, LCD4 instrument, 130X dial accelerator, 8C power sensor, a pair of brake handle left and right and one drag four wiring combination kit, suitable for 36V, 48V 350W brushless electric bicycle lithium modification.
• DISPLAY INSTRUMENT FUNCTION: Switch button, up button, down button, battery level indicator, throttle marking, 6km/h thrust assist, brake marking, cruising function, travel distance, total distance, backlight and headlight, power sensor marking, maximum speed, riding speed (metric), battery voltage, distance (metric).

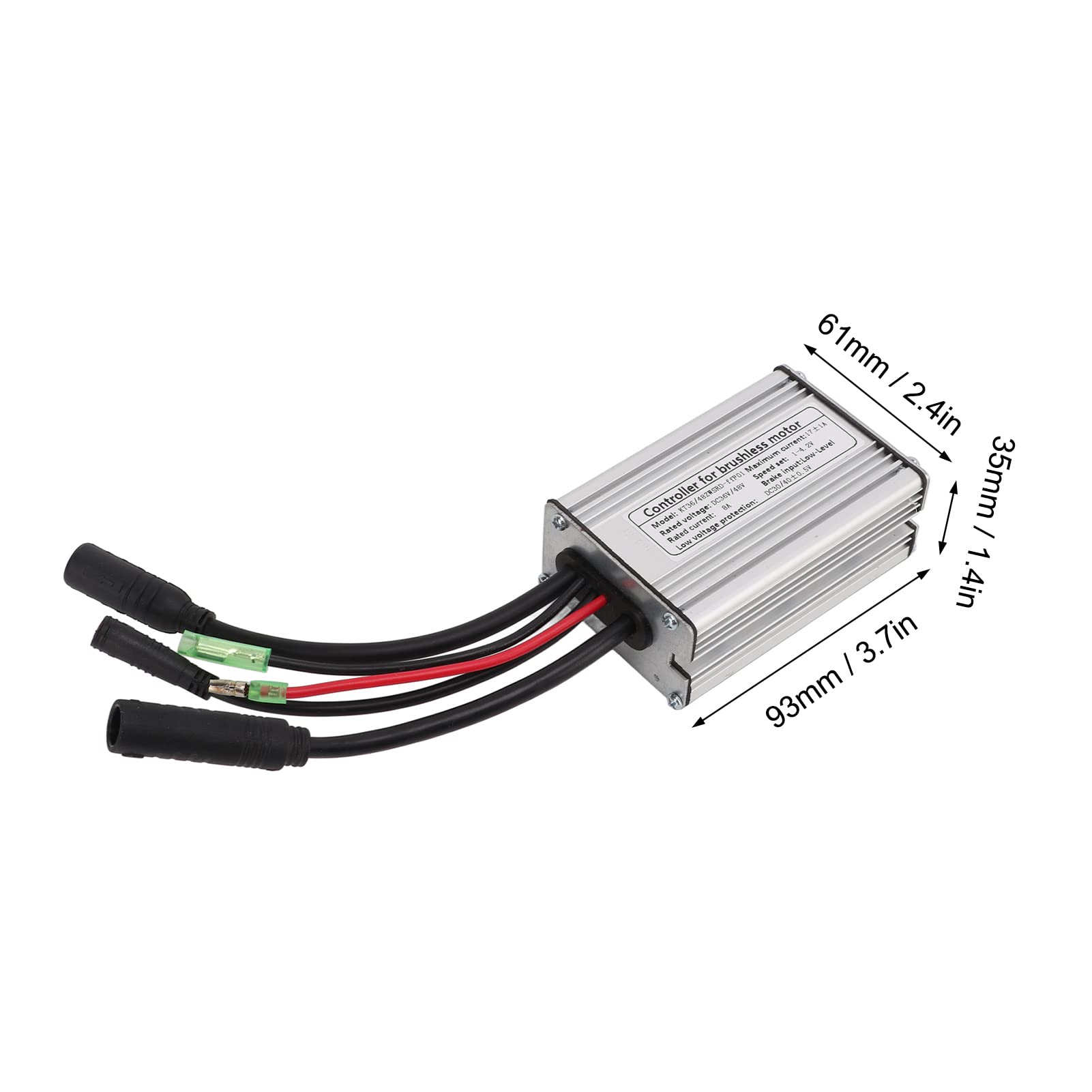

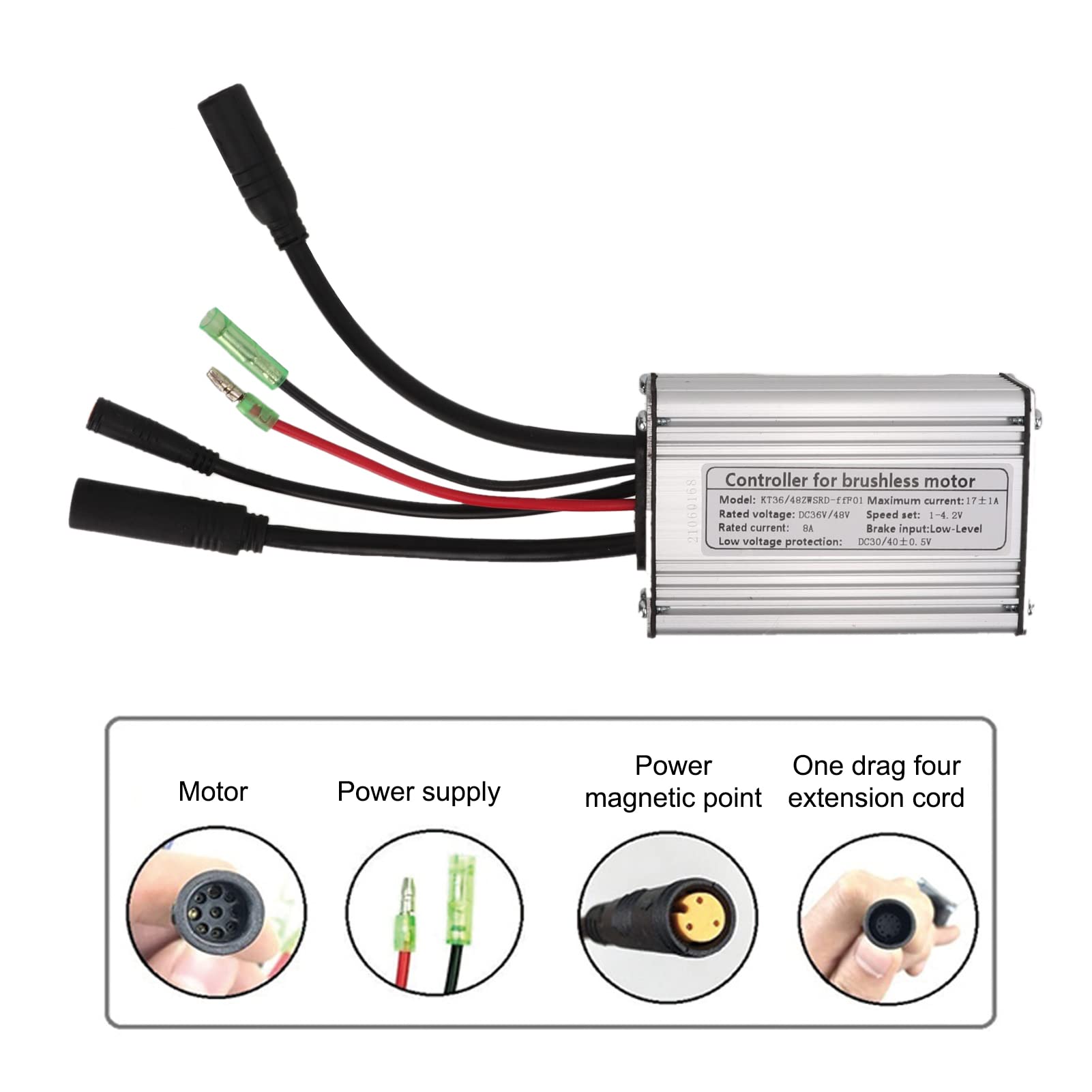

Specification: Item Type: 350W Electric Scooter Controller Weight: Approx.895g / 31.6oz Material: Aluminum Alloy + Plastic Controller Box Size: Approx.93 x 61 x 35mm / 3.7 x 2.4 x 1.4in Controller Connector Type: Waterproof Connector Rated Voltage Of The Controller: DC 36V, 48V Rated Current Of The Controller: 8A Maximum Current Of Controller: 17±1A Controller Speed Setting: 1-4.2V Controller Brake Input: Low Level Controller Low Voltage Protection: DC 30/40±0.5V Applicable Motor Power: 350W Package List: 1 x Controller 1 x LCD4 Meter 1 x Instrument Instruction 1 x Dial Accelerator 1 x 8C Assist Sensor 2 x Brake Handle 1 x 1 to 4 Wiring 1 x Controller Wiring Manual Note: 1. The communication protocol of the product must be applicable to the same brand product 2. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.
