Alomejor 36/48V 30A 1000W Motor Controller Kit Electric Bike Motor Controller Bicycle Controller Meter Kit with S900 Display Meter Shifter Assist Sensor Brake Handle Wire Tail Light

• HOW TO USE:Controller wiring instructions: the controller can be connected to the corresponding wire interface to achieve the function. Define the cable connection according to the cable color of the controller.
• HIGH QUALITY MATERIAL: The controller housing is made of high quality metal with design, which effectively protects the internal circuitry from thermal overload due to its excellent cooling capability.Simple Operation: Simple to operate, easy to use, easy to install and disassemble. Without any difficult requirements even though you use it for the first time.

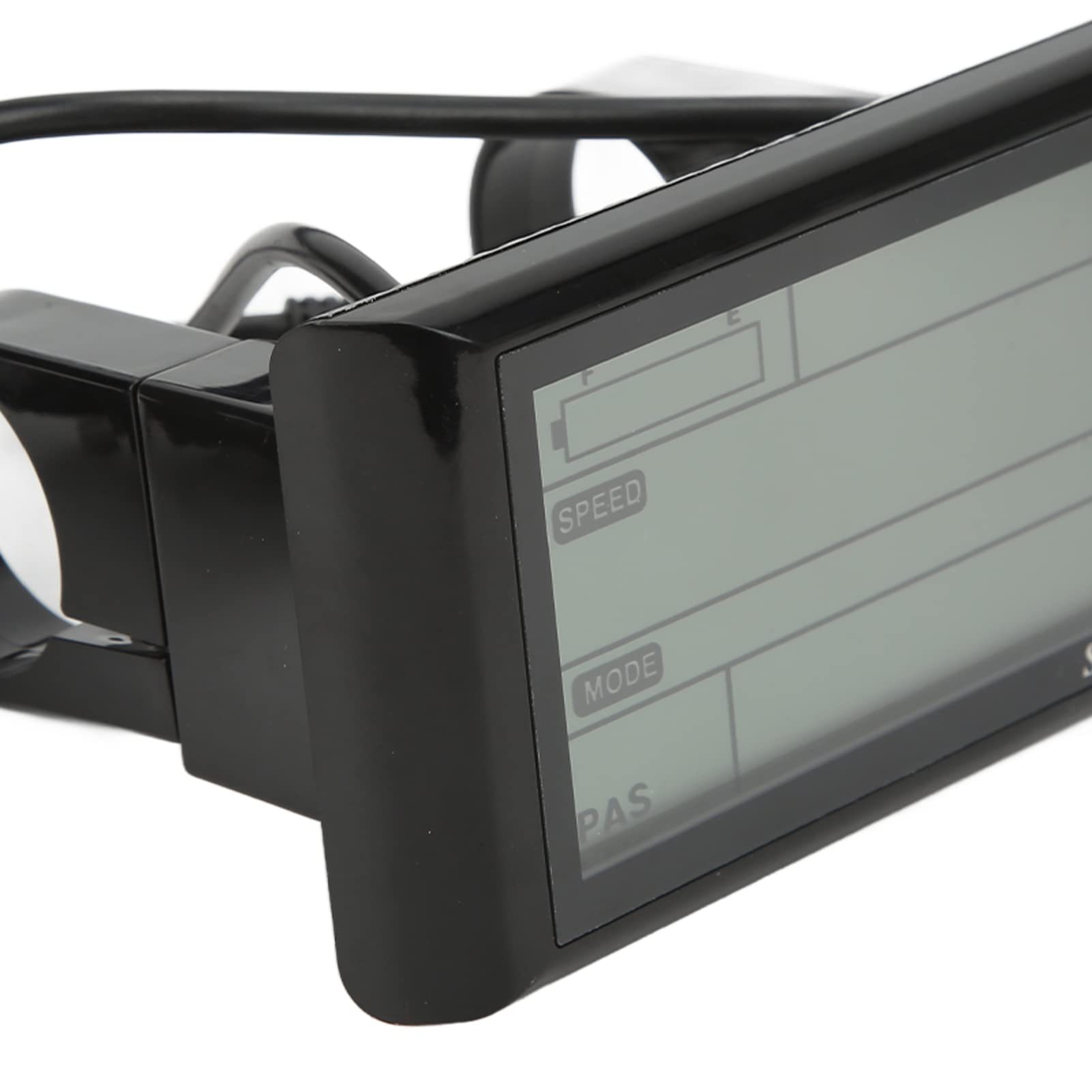

• MULTIFUNCTIONAL DISPLAY: The S900 display has multiple functions, can be used as a driving computer and control the entire electric bicycle system after conversion. It is compatible with 36V and 48V voltages, which can truly reflect the battery power and record the power consumption in real time to ensure cycling mileage.The color display on the meter makes it easier to view the data on the panel.

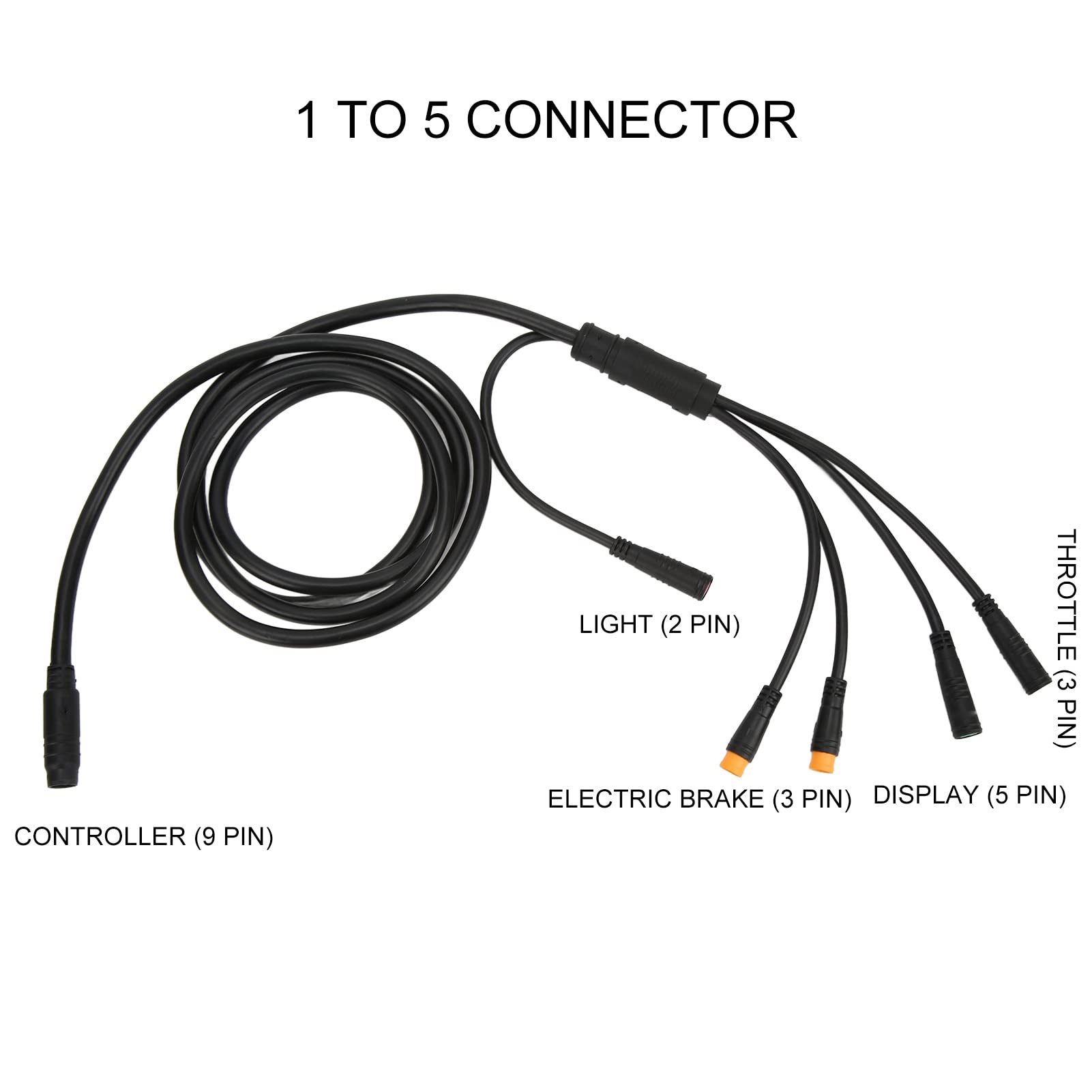

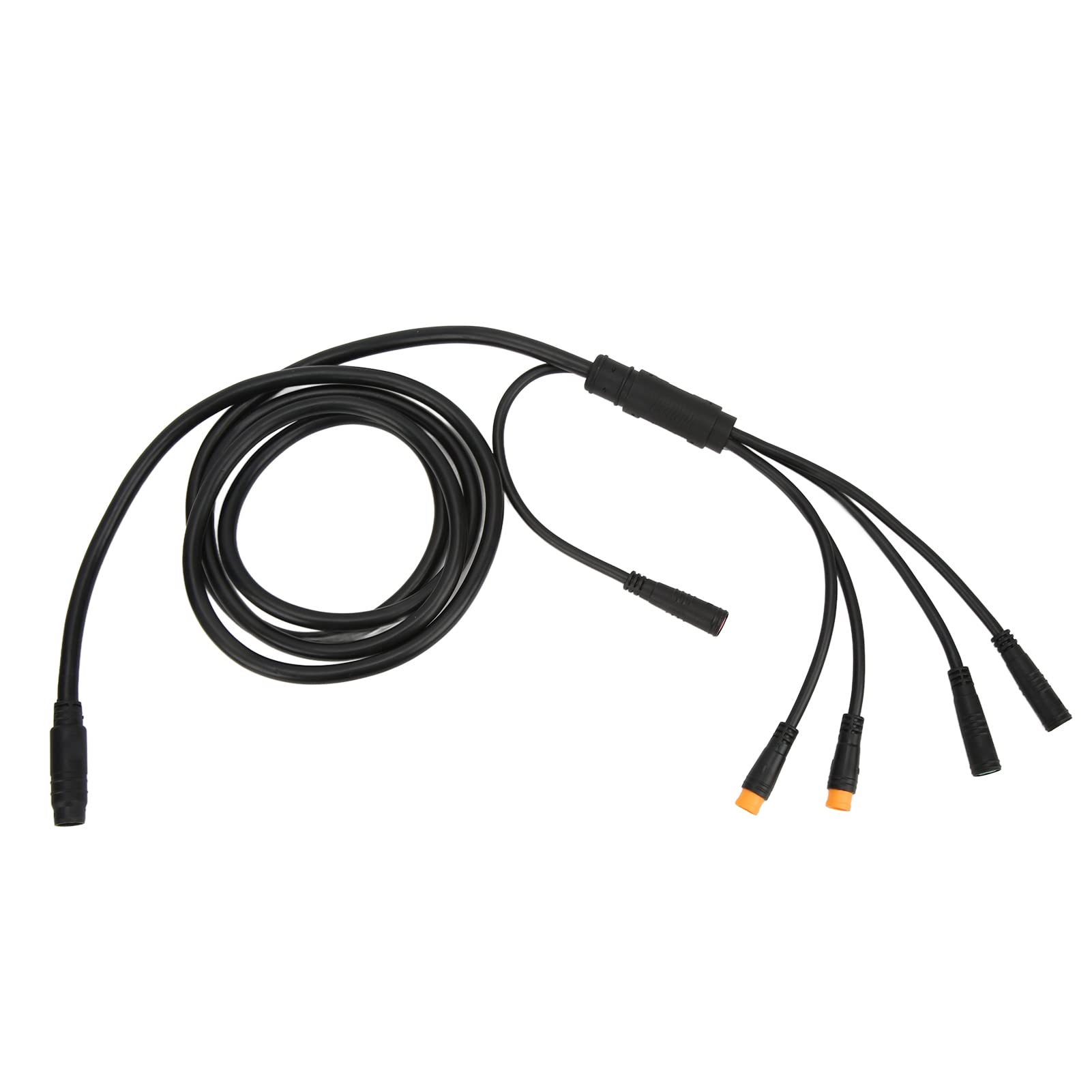

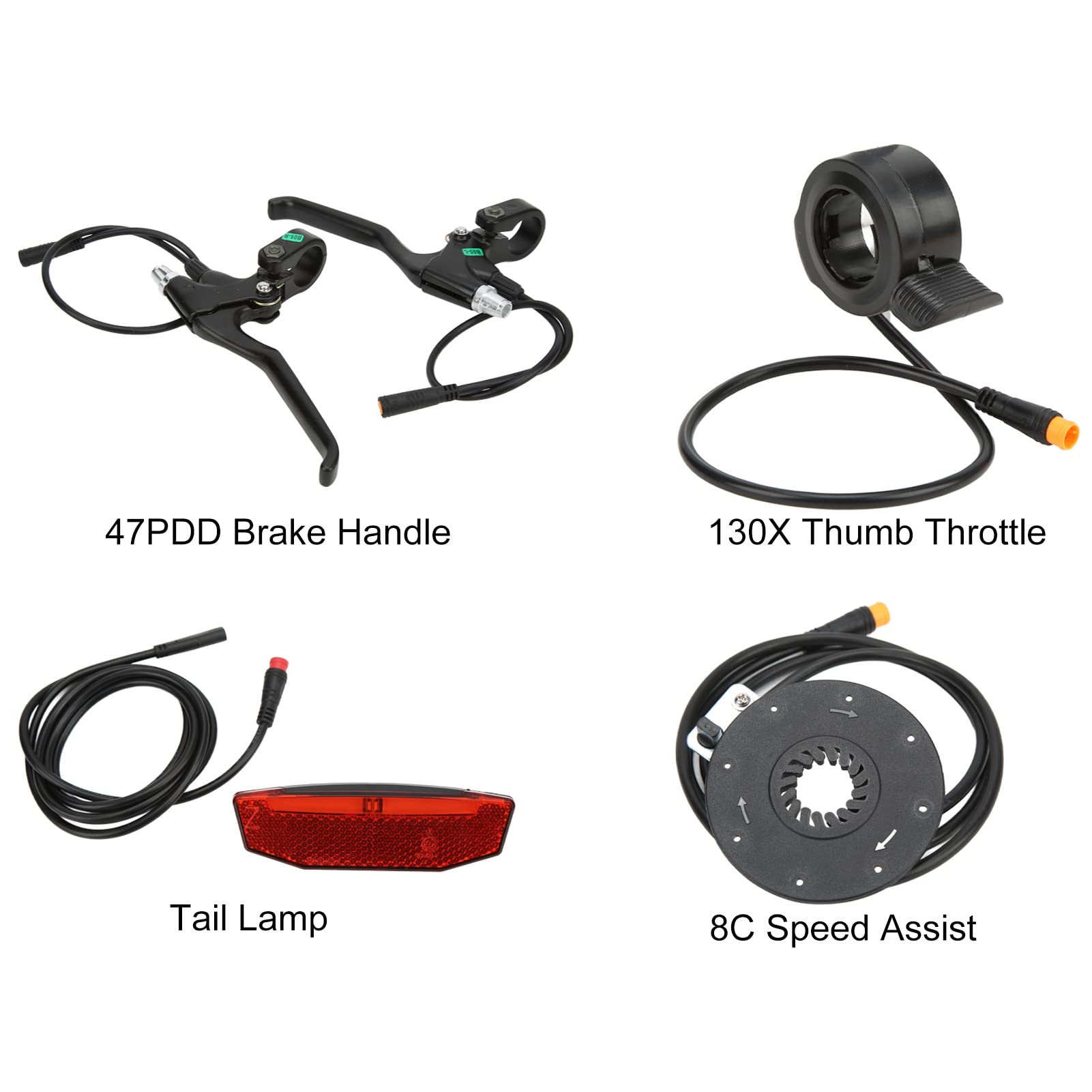

• BICYCLE LITHIUM MODIFICATION KIT: Bicycle lithium modification kit contains 30A waterproof controller, S900 meter, 130X shifter, 8C assist sensor, brake handle, 1 to 5 connecting line and taillight combination kit, suitable for 36V, 48V, 1000W motor bicycle lithium modification.While riding the bike, the product will display a lot of useful data on your bike, such as the remaining battery.

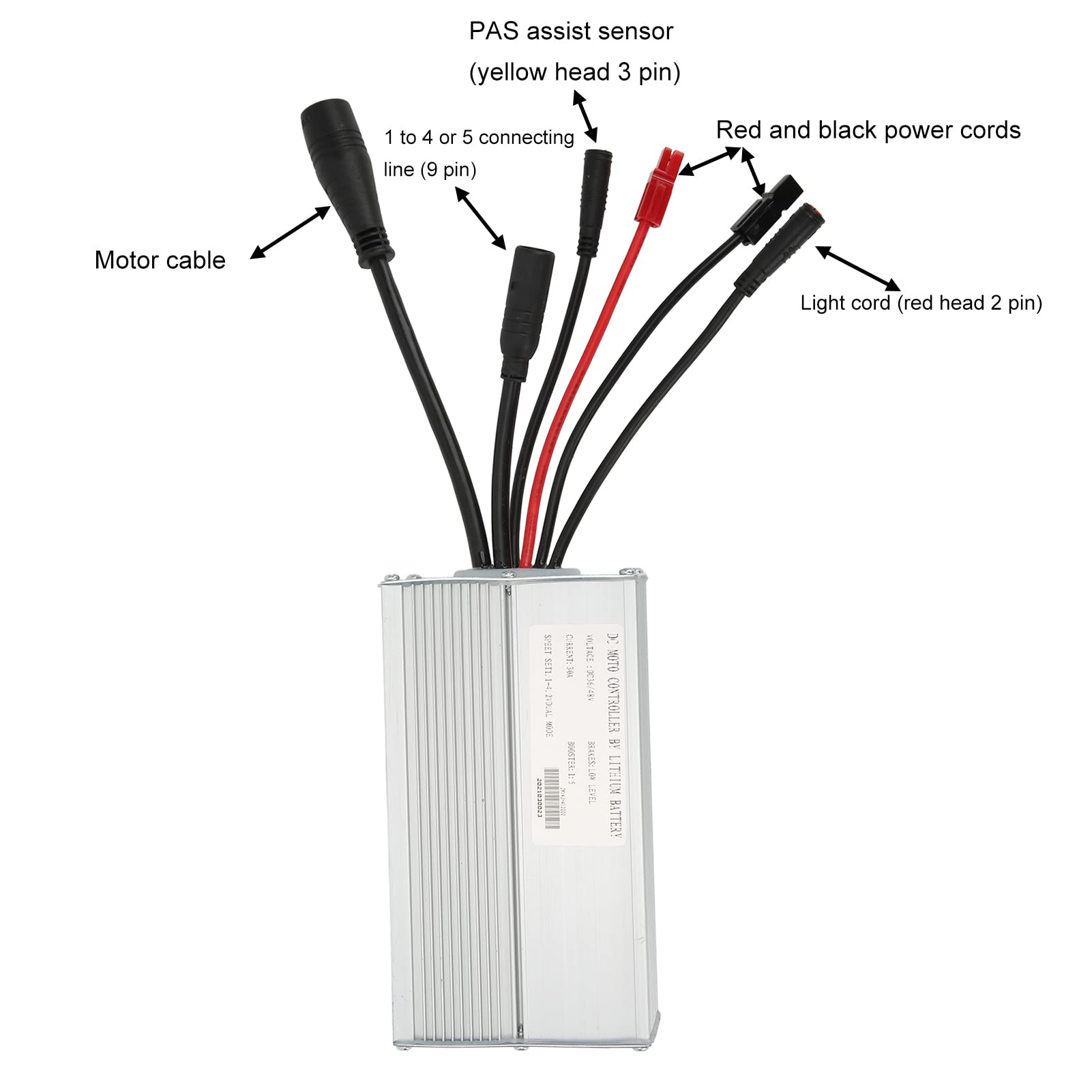

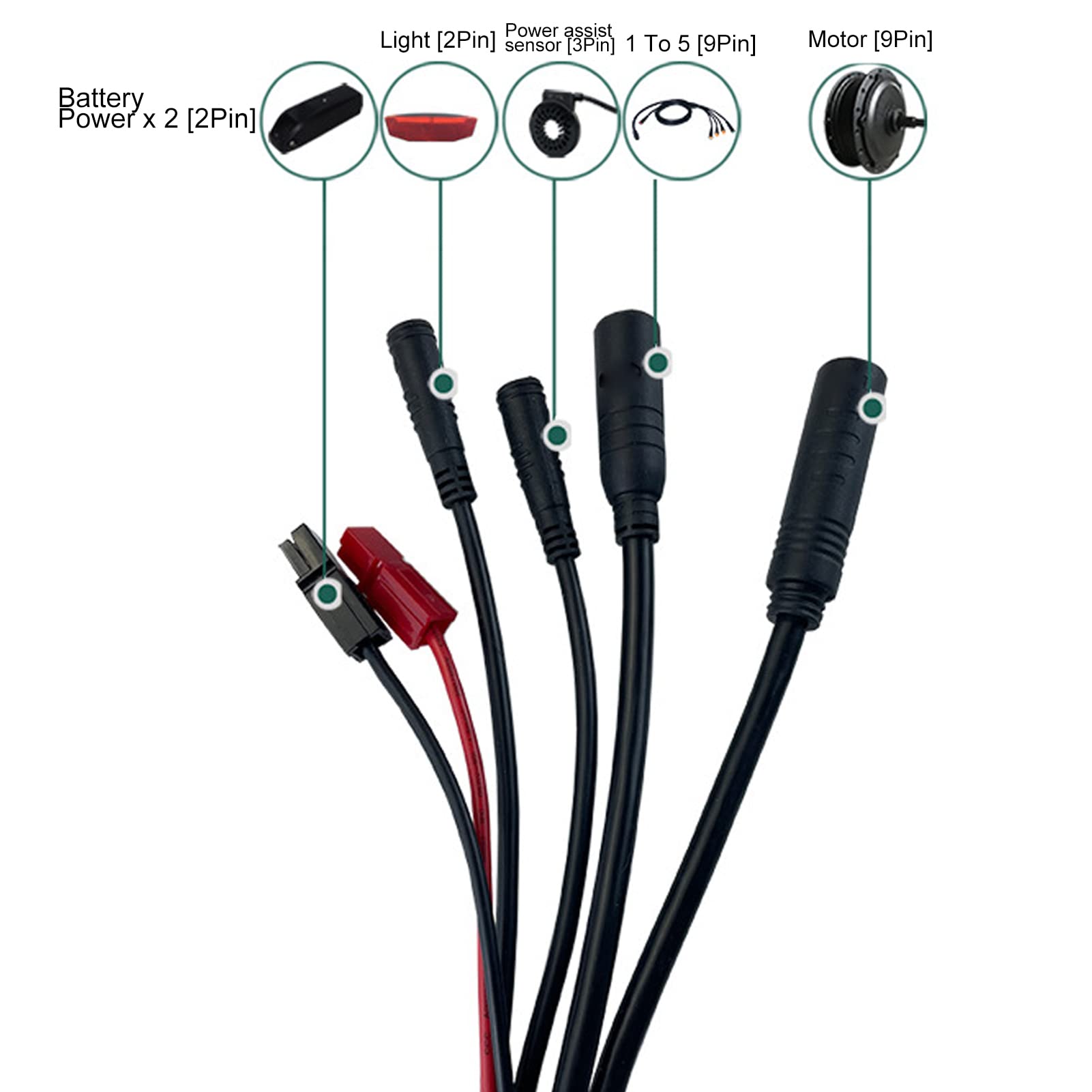

• HOW TO USE:1. Long black head wire: motor wire. 2. Red and black single short cable: power cable. 3. Black long wire (fine hole 9 pin): 1 to 4, 1 to 5 (9 cores). 4. Black wire red head: light wire (2pin).5. Black wire yellow head: power sensor wire (3pin). For specific instructions, please refer to the manual.

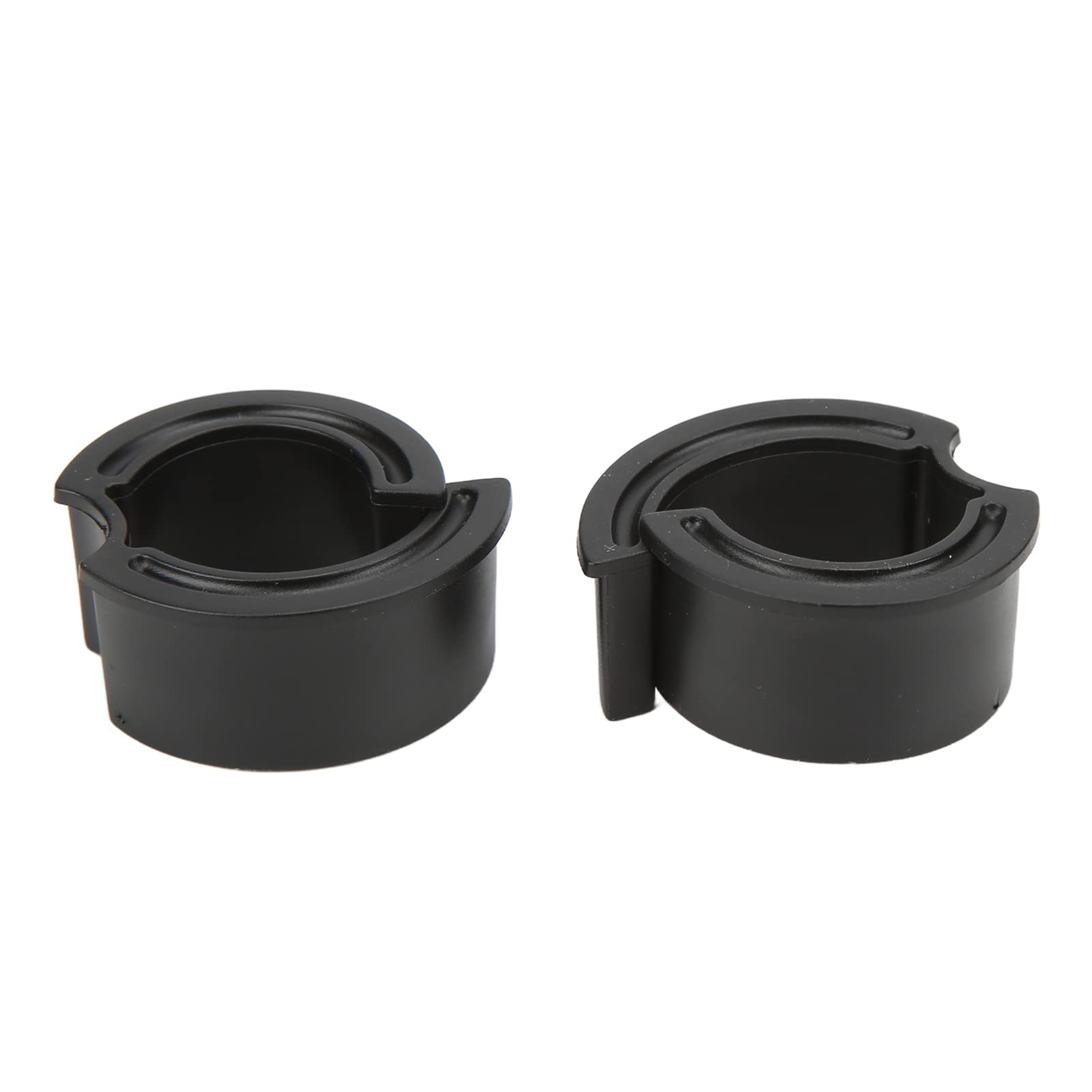

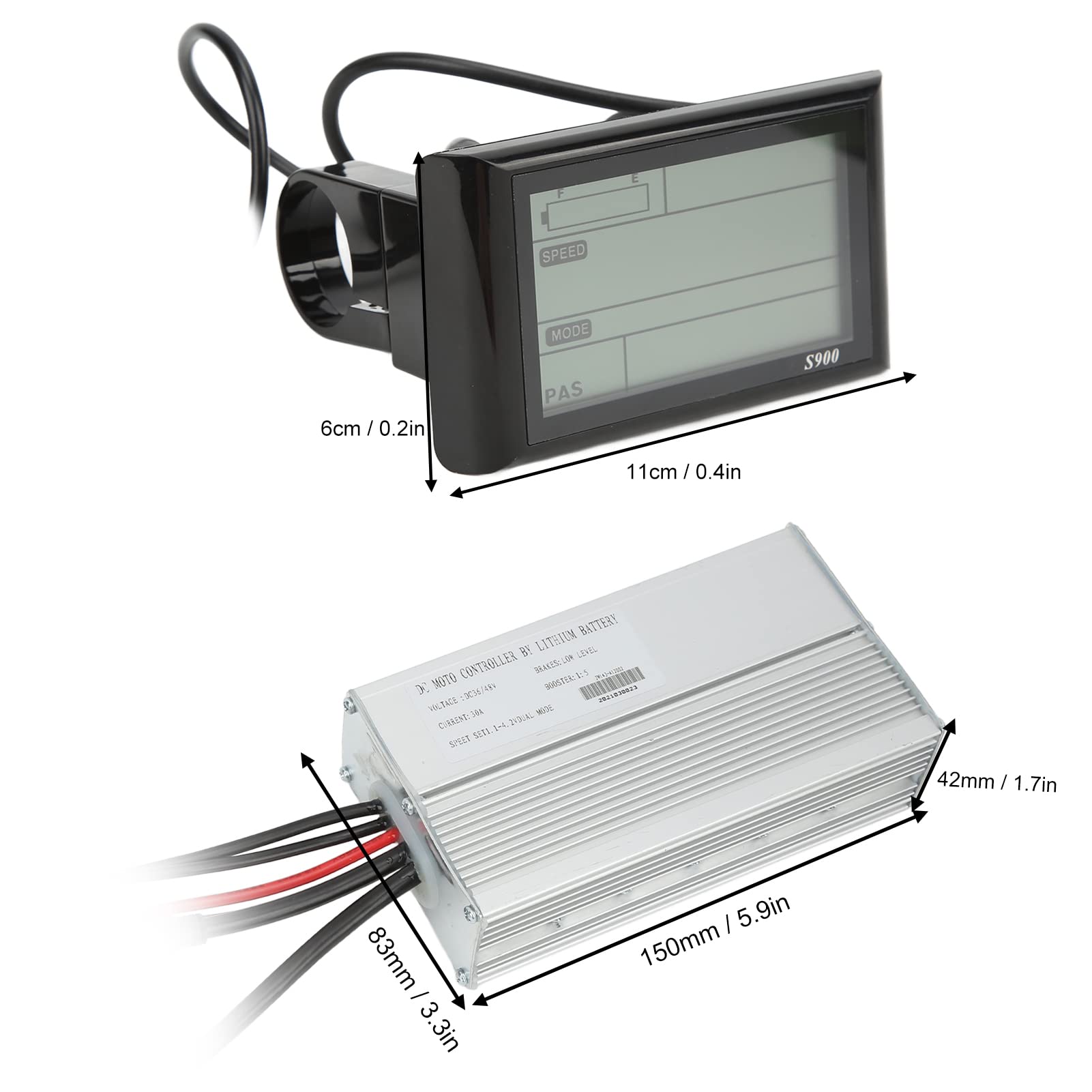

Specification: Item Type: Electric Bike Controller Kit Weight: Approx.1288g / 45.4oz Material: Aluminum Alloy + Plastic Product Size: Controller Box Size: Approx.150 x 83 x 42mm / 5.9 x 3.3 x 1.7in Meter Size: Approx.11 x 6cm / 0.4 x 0.2in Connector Type: Waterproof Connector Rated Voltage Of The Controller: 36V DC, 48V DC Maximum Current Of Controller: 30A Controller Speed Setting: 1-4.2V Controller Brake Input: Low Level 1:5 Applicable Motor Power: 1000W Package List: 1 x Controller 1 x S900 Meter 2 x Meter Washer 1 x Shifter Accelerator 1 x 8C Assist Sensor 2 x Brake Handle 1 x 1 to 5 Connecting Wire 1 x Light Wire 1 x Tail Light 1 x Controller Wiring Manual Note: 1. Use the product that complies with the communication protocol. 2. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.
