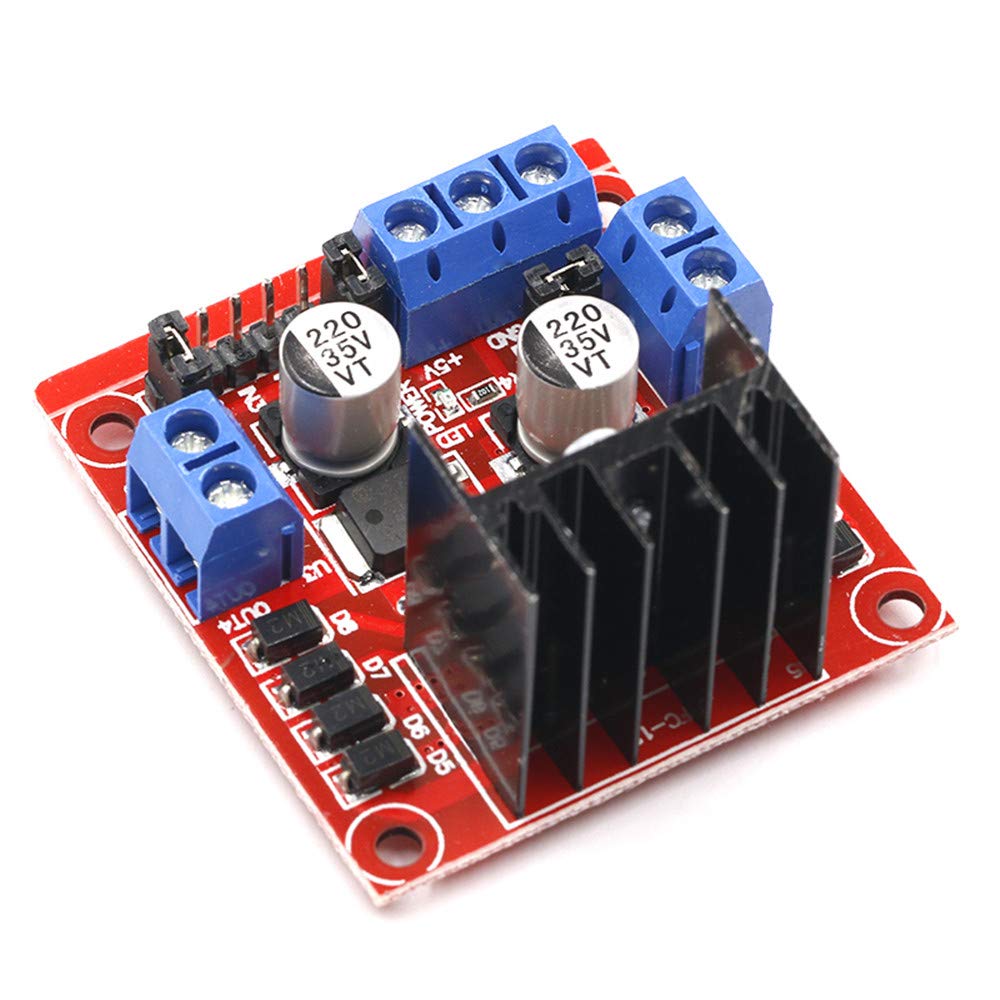

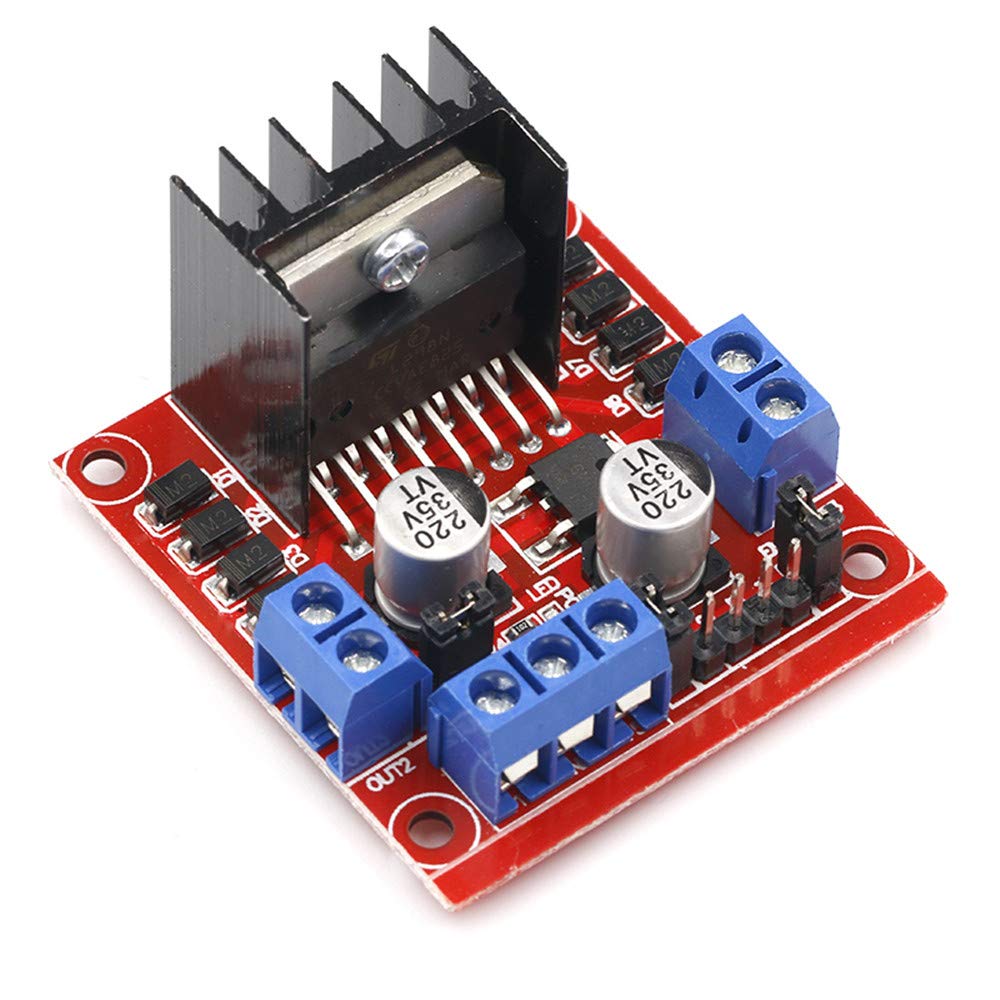

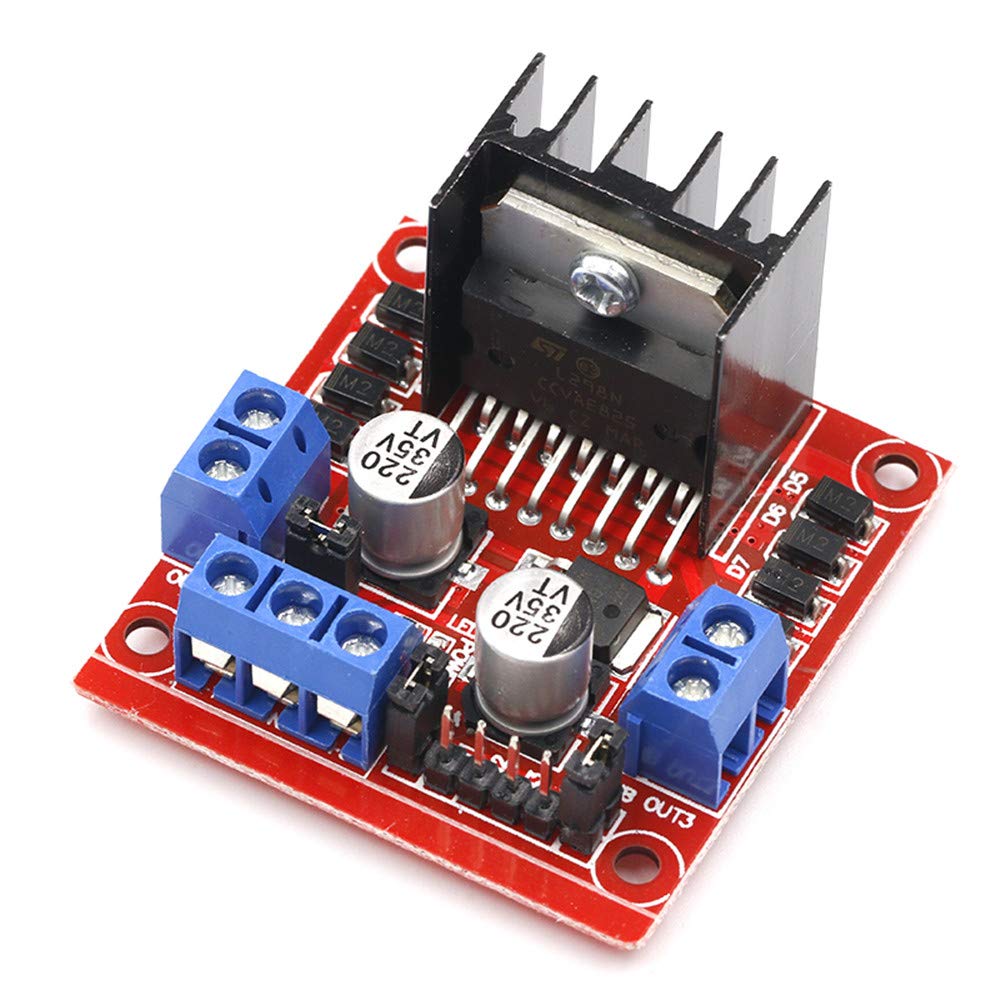

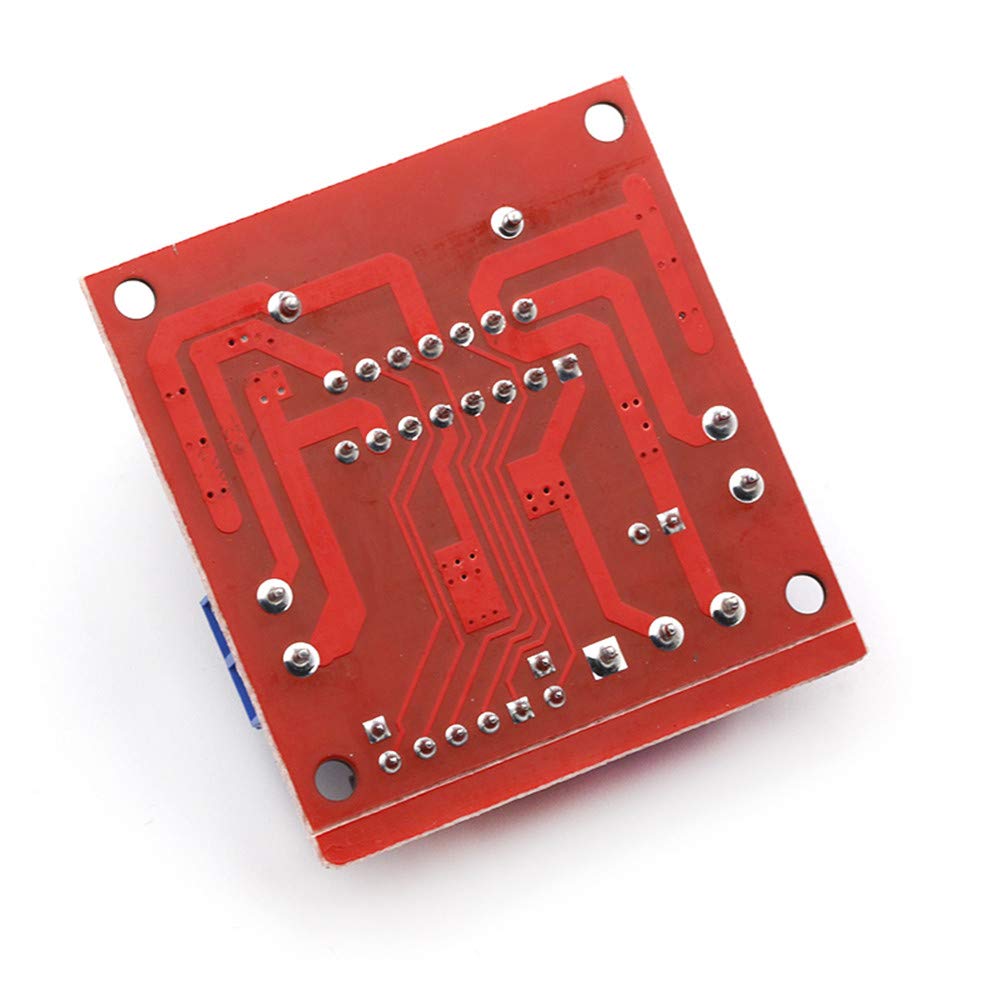

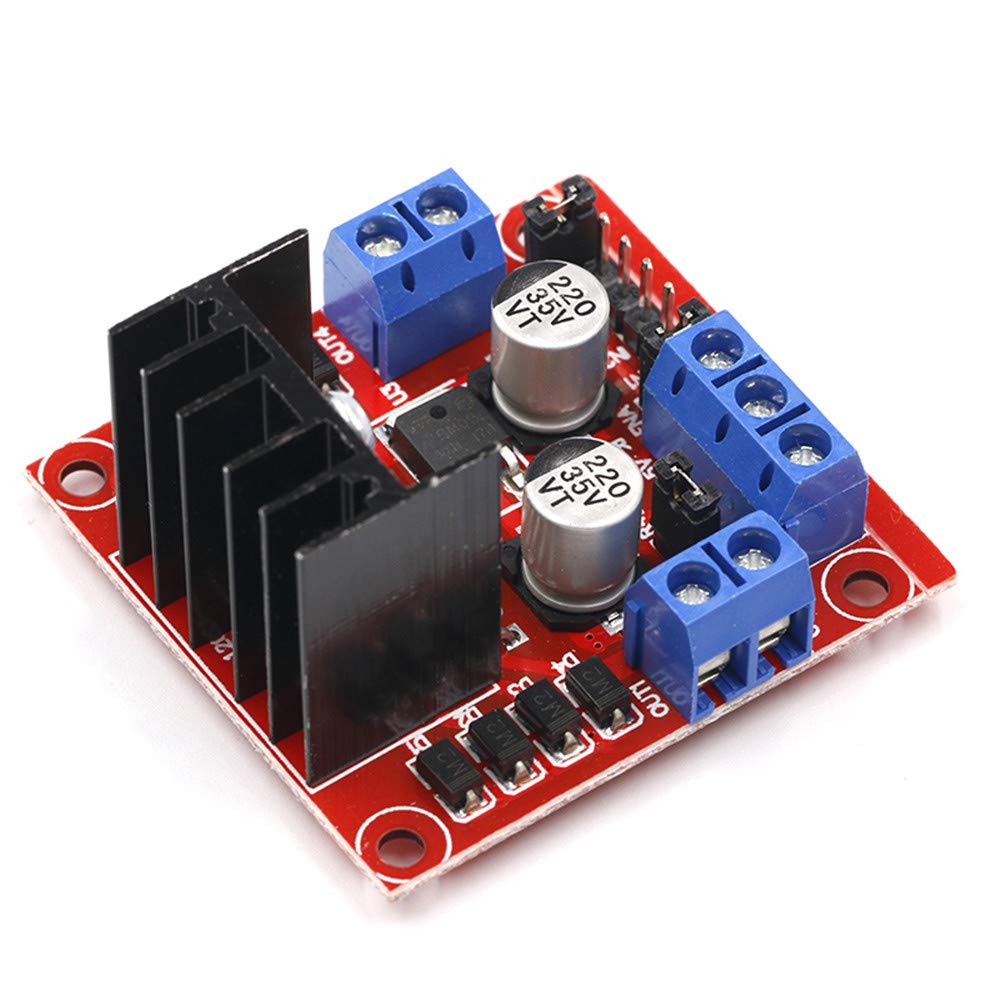

ALMOCN 5pcs L298N Motor Drive Controller Board DC Dual H-Bridge Robot Stepper Motor Control and Drives Module for Arduino Smart Car Power UNO MEGA R3 Mega2560

• When you are driving voltage (above logo for the 12 v input, can actually accept input range is 7 to 12 v) for 7 v to 12 v, can make to onboard power supply 5 v logic, when using the onboard after 5 v power supply, interface of + 5 v The power supply does not input voltage, but can yield 5V voltage for external use.
• The chip manual proposes to support 35V, but according to the book When the maximum voltage is applied to the maximum voltage of 298 conservative applications to 24V, for example, the motor with a rated voltage of 18V shall be driven
• Great for for Arduino DIY Smart Car Robot Power UNO MEGA R3 Mega2560 Duemilanove, if driving voltage is more than 12V, use external standard 5volt TTL outputs to switch the H-bridge circuits
• No assembly required. This L298N board comes ready to go. Just wire up motors and power, easy to use
• Double H bridge design, can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors, high efficient

Product features: This module USES L298N as the main drive chip, with strong driving ability, low heat and strong anti-interference ability. Through this module can use the built-in 78 m05 drive power supply parts of their work, but in order to avoid the voltage regulator chip damage, when using the driving voltage is greater than 12 v, please use the external power supply 5 v logic. This module USES a large capacity filter capacitance, a continuation protection diode, can improve reliability. Module name : dual H bridge motor drive module Work mode : H bridge drive (double road) Main control chip : L298N Packaging : electrostatic bag Logical voltage : 5V Drive voltage : 5v-35v Logical current : 0mA-36mA Driving current : 2A(MAX single bridge) Storage temperature : - 20 ℃ to + 135 ℃ Maximum power : 25W Weight : 30 g Peripheral dimensions : 43*43*27mm Package： 5* L298N driver board module
