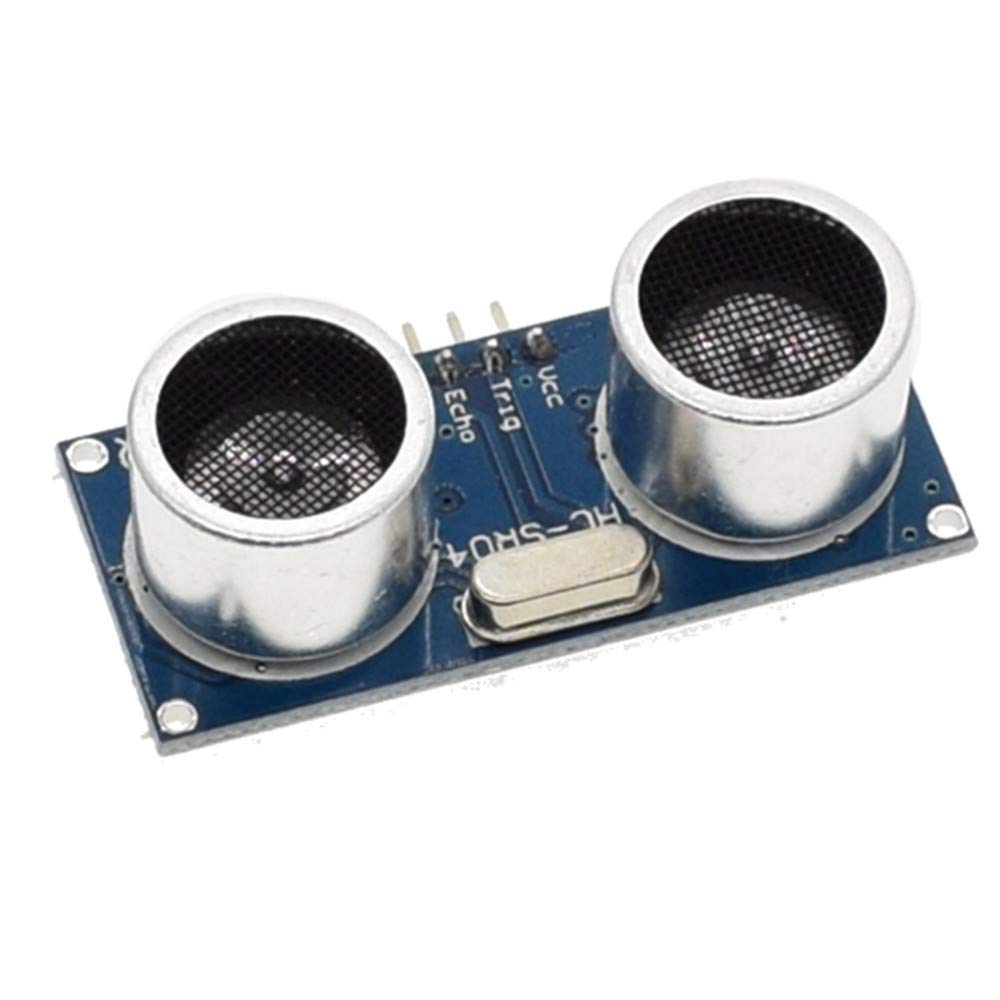

ALMOCN 10pcs HC-SR04 Ultrasonic Sensor Distance Module for Robot XBee ZigBee by ElecRight

• Ultrasonic module distance measuring transducer sensor.
• HC-SR04 Ultrasonic Sensor Distance Module: using IO trigger for at least 10us high level signal
• This module has stable performance and accurate measurement distance.
• Detection distance: 0.78~196 in/ (2cm~500cm); High precision: up to 0.12 in/(0.3 cm); Detection angle: <15 °.
• This module is fully Compatible with GH-311 anti-theft module.

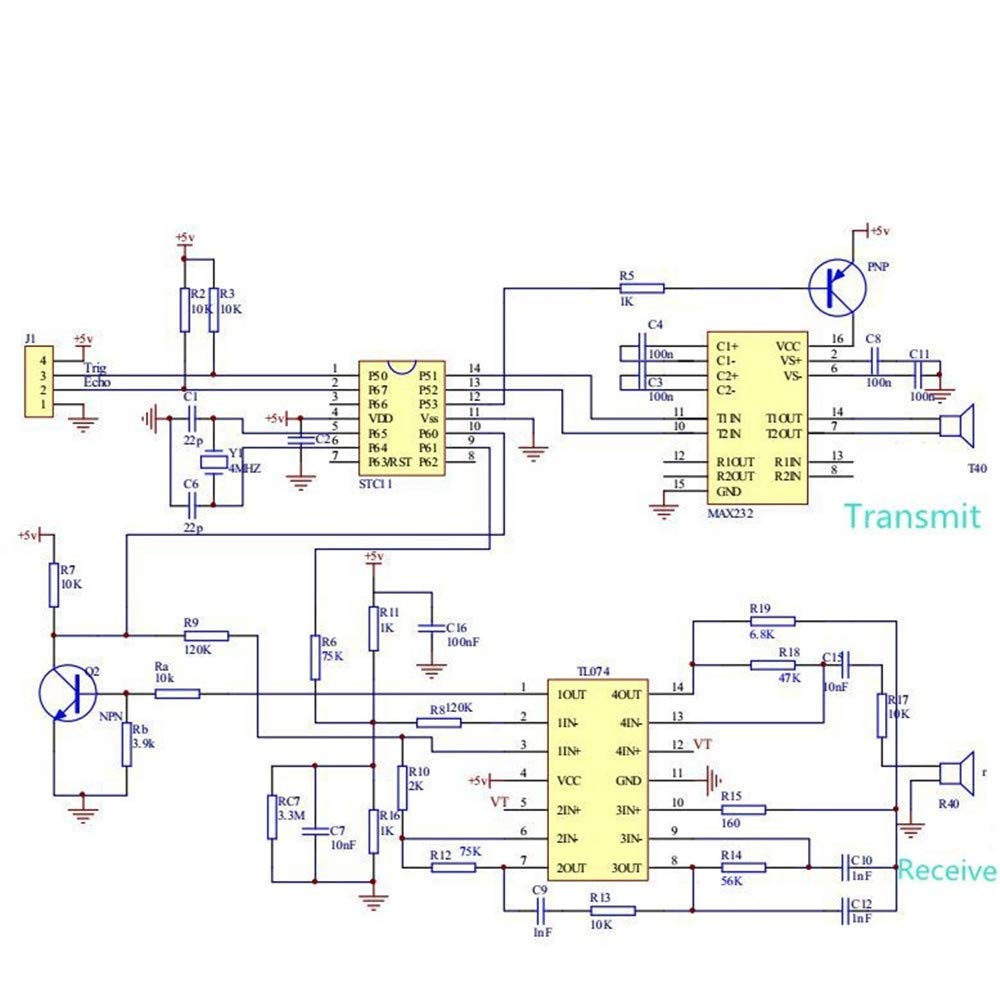

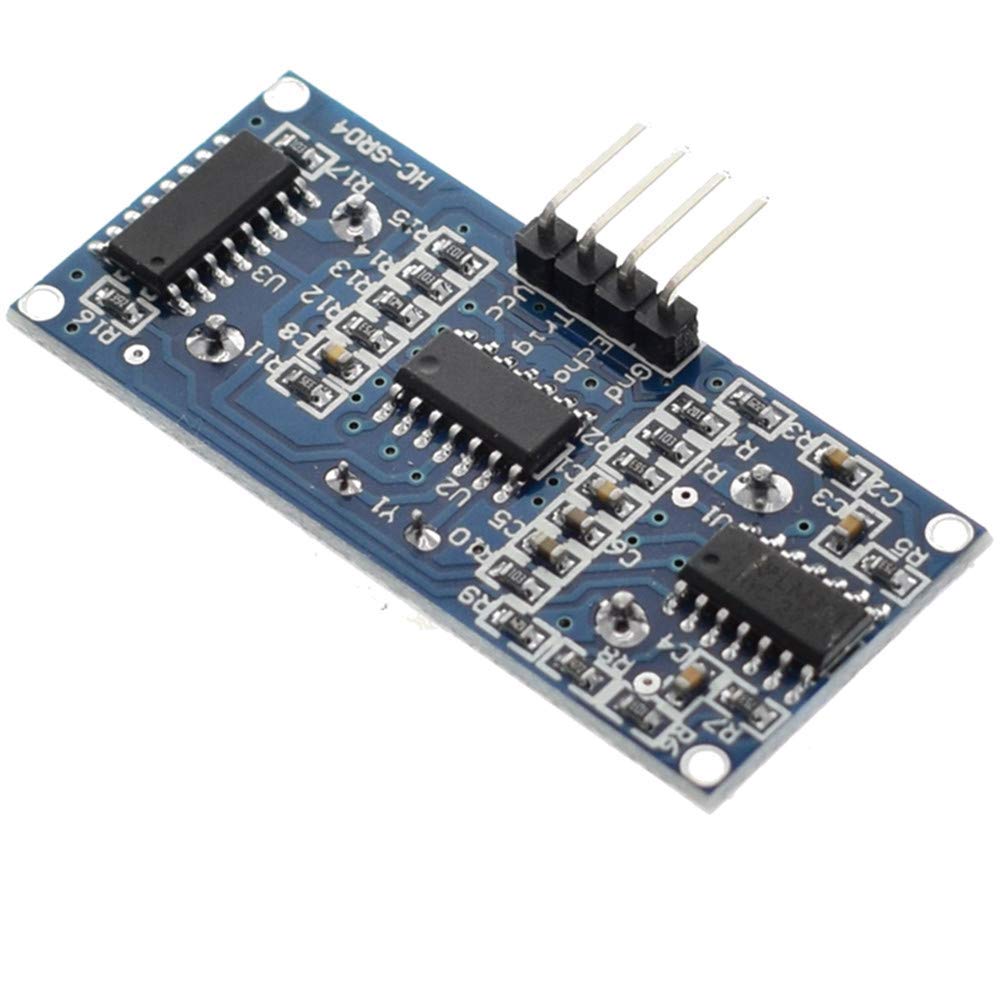

Description: Technical Specification Power Supply :+5V DC Quiescent Current : 3mA Working Current: <5mA Effectual Angle: <15° Ranging Distance : 2cm - 300 cm/1″ - 10ft Resolution : 0.3 cm Measuring Angle: 30 degree Trigger Input Pulse width: 10uS Dimension: 45mm x 20mm x 15mm HC-SR04 Ultrasonic Sensor is a device that can measure the distance to an object by using sound waves. It measures distance by sending out a sound wave at a specific frequency and listening for that sound wave to bounce back. By recording the elapsed time between the sound wave being generated and the sound wave bouncing back, it is possible to calculate the distance between the sonar sensor and the object. Ultrasonic Sensor HC-SR04 is great for all kind of projects that need distance measurements, avoiding obstacles as examples. HC-SR04 provides 2cm-400cm non-contact measurement function, the ranging accuracy can reach to 3mm. The modules include ultrasonic transmitters, receiver and control circuit. Operatiing Principle of Ultrasonic Sensor As the name indicates, ultrasonic sensors measure distance by using ultrasonic waves. The sensor head emits an ultrasonic wave and receives the wave reflected back from the target. Ultrasonic Sensors measure the distance to the target by measuring the time between the emission and reception. The distance can be calculated with the following formula: Distance L = 1/2 × T × C where L is the distance, T is the time between the emission and reception, and C is the sonic speed. (The value is multiplied by 1/2 because T is the time for go-and-return distance.)
