ALINCO DX-10 10-Meter Multi-Mode Emitter

• Multi-mode: lsb, usb, am, fm and cw
• Frequency jumps: 10hz, 100hz, 1khz and 10khz
• Input Voltage: 13.8v

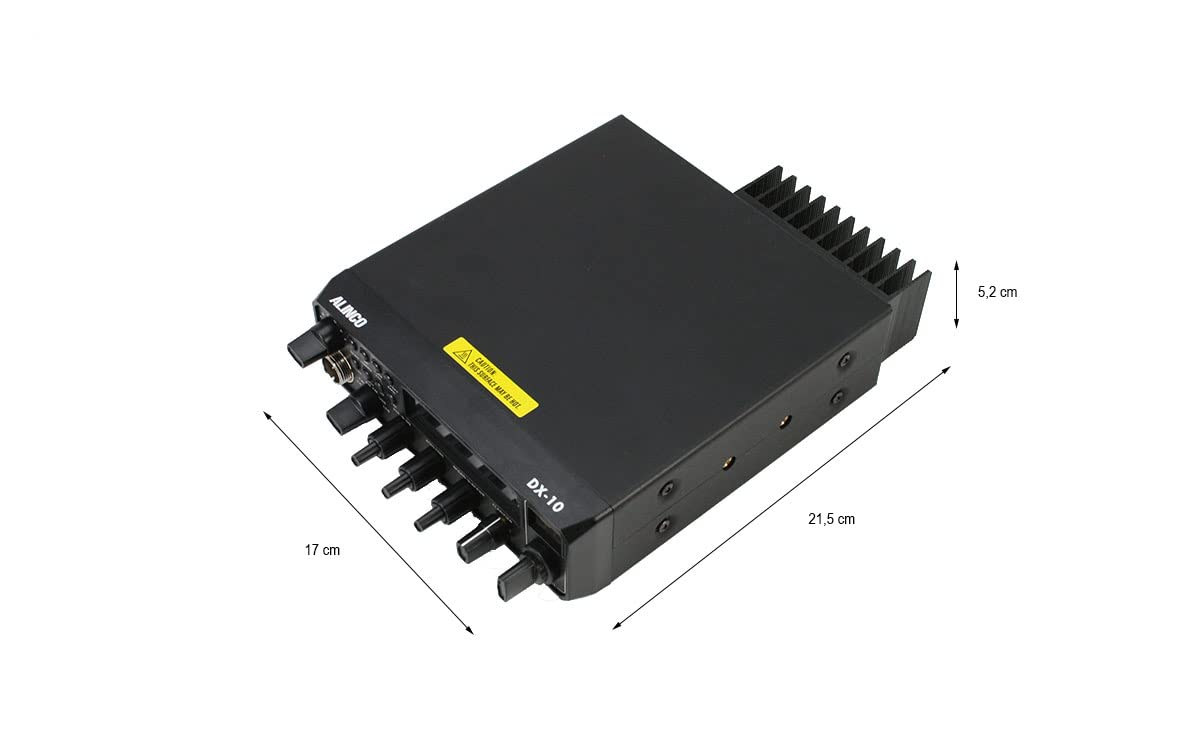

• Dimensions: 170 x 52 x 215 mm
• Impedance: 50 ohms
• · Am/fm/cw power: 1 to 12 W adjustable · USB/lsb power: 0 to 25 W adjustable · Audio power: 3 W
• Memory: 60 channels
• Functions: Standby Timer, Scanner, Keyboard Lock, Voltage Meter, S-RF, SWR,..., Dual-Watch, Roger-Beep

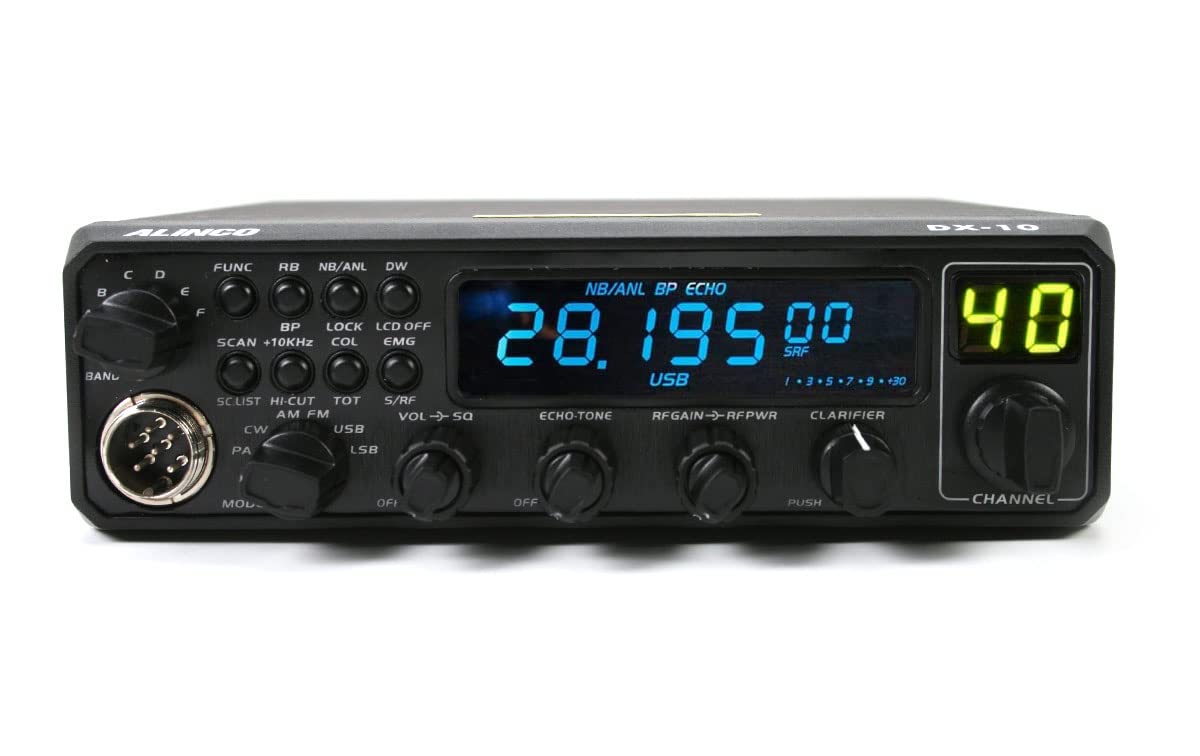

• Features a large backlit display

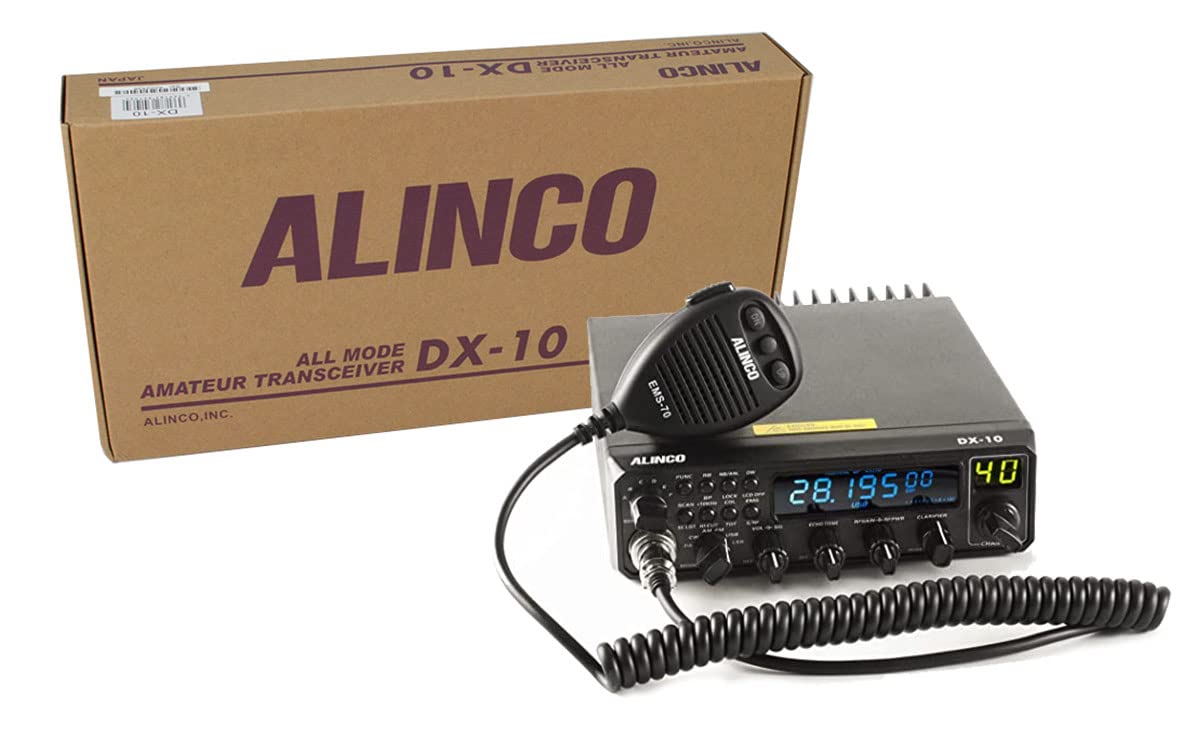

• Includes handheld microphone

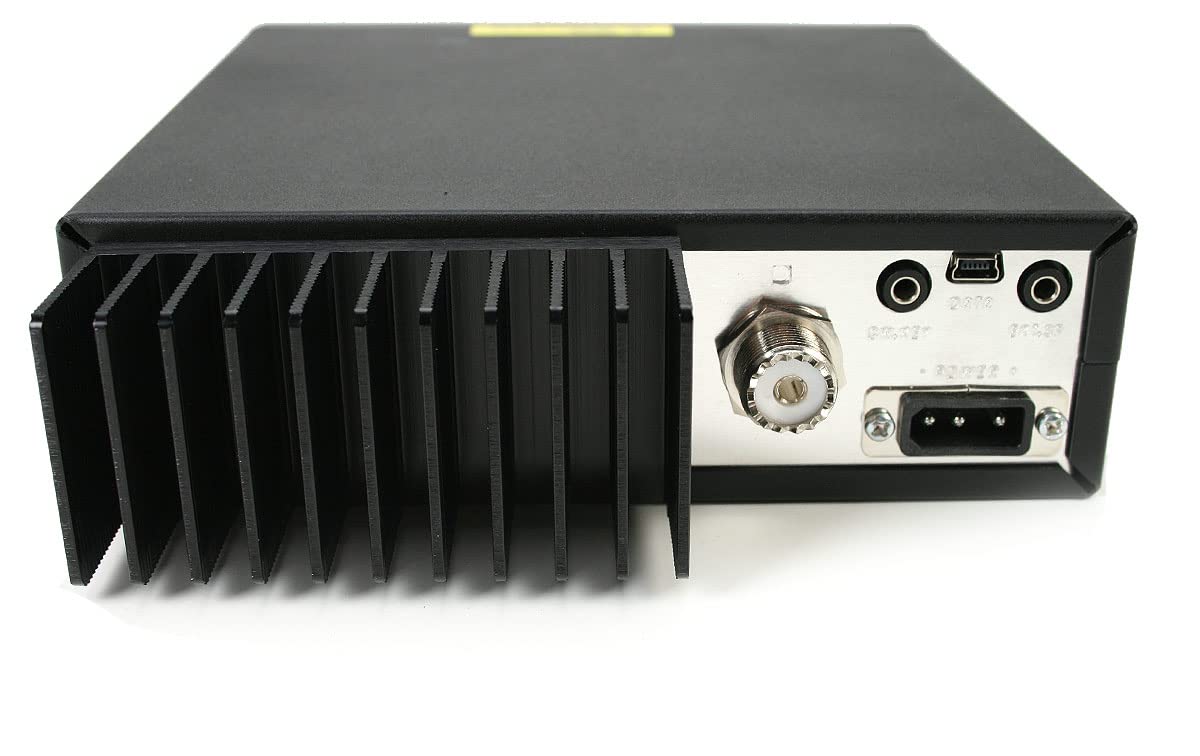

Product identification Product code PNI-AL-DX-10 General characteristics Frequency 28,000-29,700 MHz (Programmable) AM-FM-SSB broadcast band type Channels 40 programmable channels in each band Power supply 13.8 VDC + / -15% Dimensions (W x H x H / Weight) 238 X 173 X 51 mm 1687 g Microphone type (pins) 6 pins Audio power speaker 3 W Transmission power 1-12 W FM / FM / CW 0-25 W USB / LSB Absorbed current 6A max Furniture model Additional external speaker jack Yes, 3.5 mm Special features Dual Watch Scan channel RF Gain Mic Gain NB (Noise Blanker) and ANL (Automatic Noise Limiter) noise filter Roger Beep clarifier Frequency step adjustment Multicolor screen 7 colors 9/19 emergency channel button Echo function SQ - Squelch RF PWR SWR meter S-meter Yes TOT - Time out Time Sound key Multifunctional backlit screen Rear panel connections Additional speaker connection CW connection (walrus) The package contains CB Radio Microphone CB Radio Microphone holder Support mounting CB Radio Power cord
