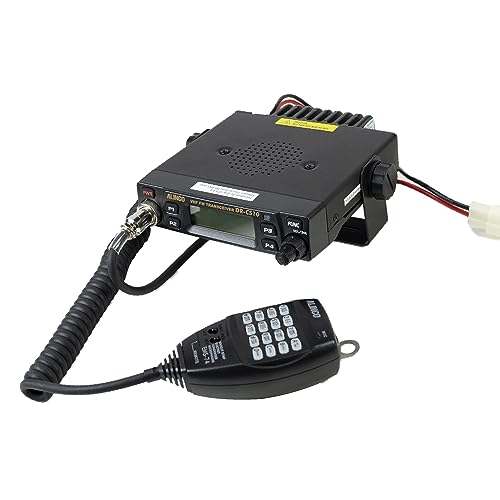

Alinco DR-CS10: A 60W VHF Radio Transceiver, VHF 136-174MHz, 200 channels, DMTF, with Various Scan Functions and PC Programmability

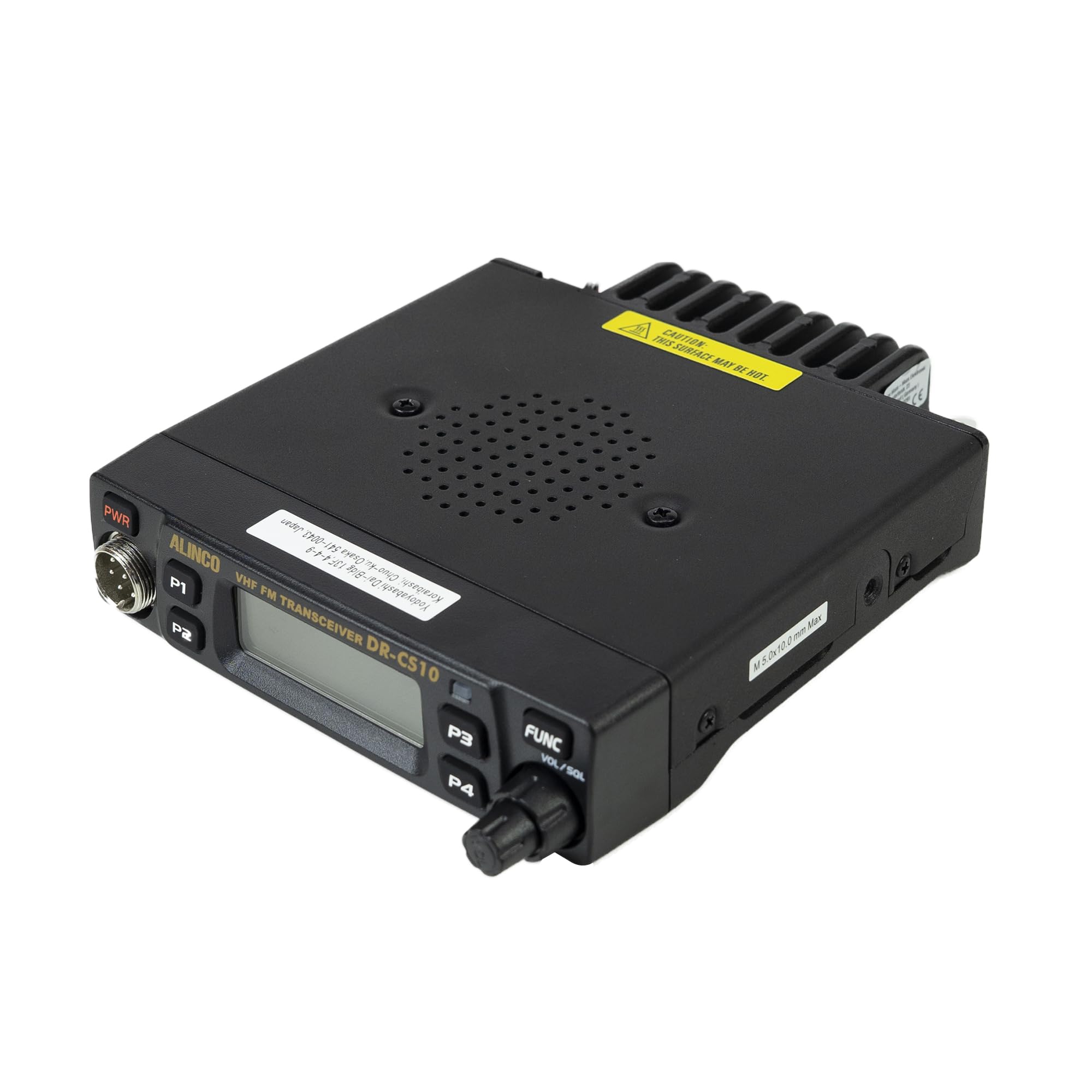

• 【Full power of 60W in a compact size】 The Alinco DR-CS10 delivers high performance and reliability in a slim and lightweight body. It measures only 33 mm in thickness and weighs just 1400g.

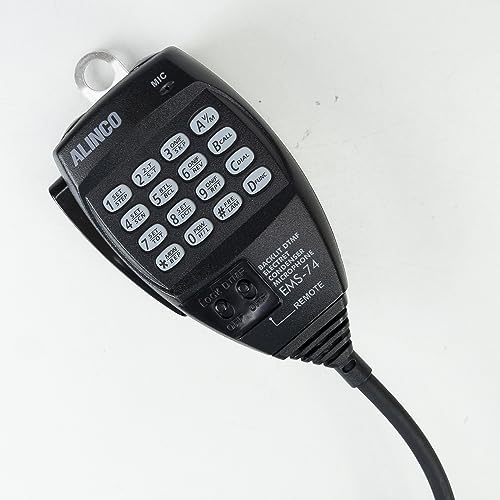

• 【Easy operation and clear audio】The Alinco DR-CS10 features a large back-lit display and microphone, full radio control through the microphone, and excellent audio quality for both transmission and reception.
• 【200 channel memory and various scan functions】The Alinco DR-CS10 can store up to 200 channels with alphanumeric names, CTCSS/DCS tones, and offset frequencies. It also offers various scan modes, such as priority, program, memory, and tone scan.
• 【PC programmable and export mode available】The Alinco DR-CS10 can be programmed via PC software (optional) for more customization and convenience. It also supports export mode, which allows the user to access the extended frequency range of 136-174 MHz.

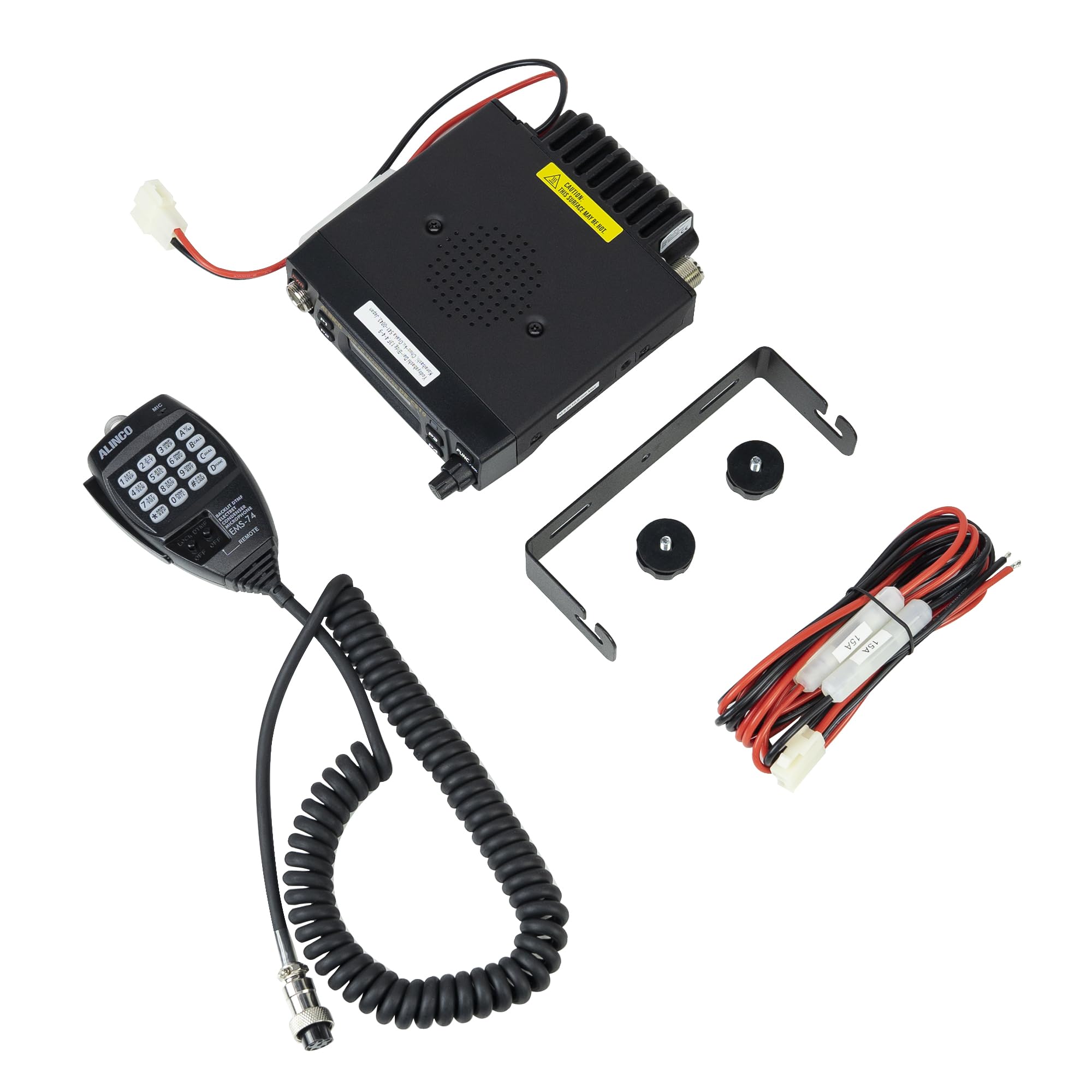

Product identification: Product code PNI-DR-CS-10 Functions: Talk Around Scan Timeout Timer BCL (Busy Channel Lockout) Emergency Yes Squelch Yes Programmable by software DTMF Dual watch Key lock Transmit Indicator Signal Strength Compander Repeater Monitor General characteristics: Frequency 136 - 174 MHz VHF operating band Programmable channels 200 channels Security codes 1024 DCS / 51 CTCSS Frequency step 2.5 / 5 / 6.25 / 8.33 / 10 / 12.5 / 20 / 25 / 30 / 50 KHz Power supply 13.8 Vdc Consumption 0.6 A in RX / max 10 A in TX Operating temperature -20 to +60 degrees C Output power 60W / 25W / 10W Weight 1.4 kg Dimensions 140 X 160 X 33 mm LCD screen The package contains: VHF radio station Microphone Power cable Mounting supports User manual
