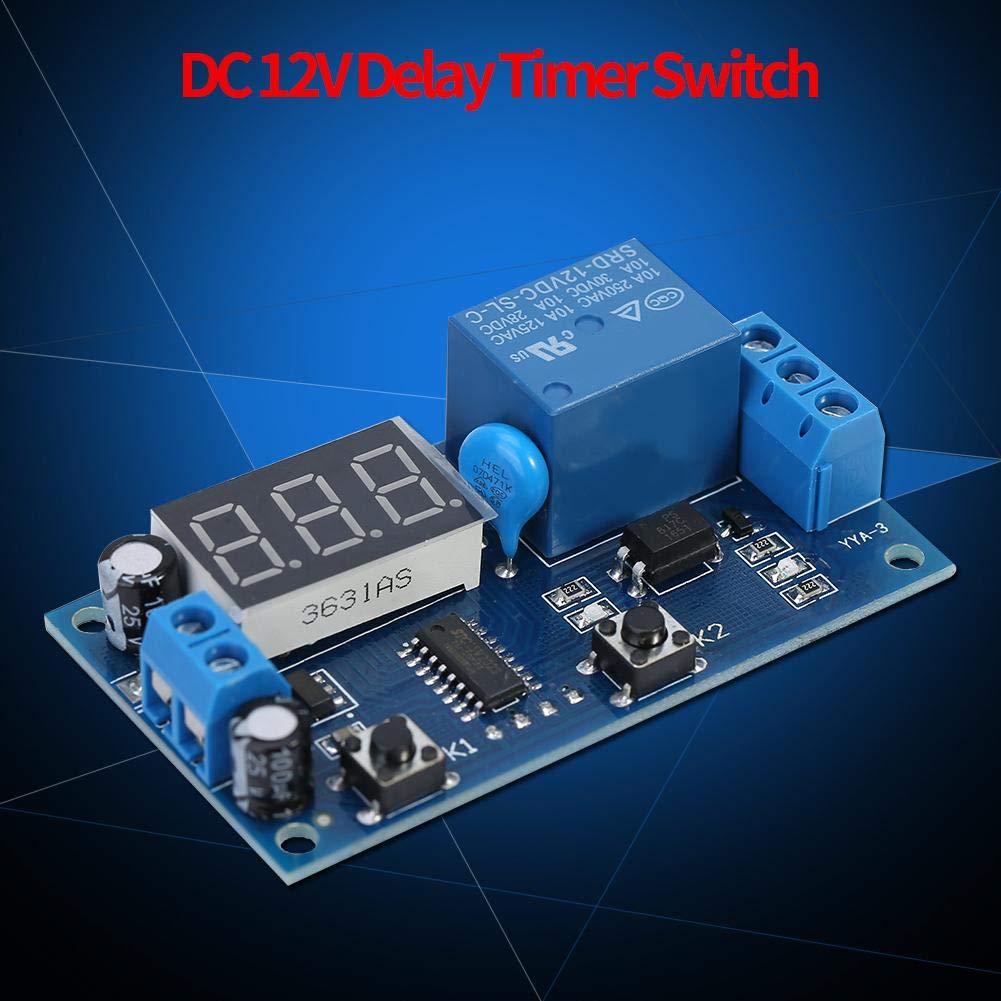

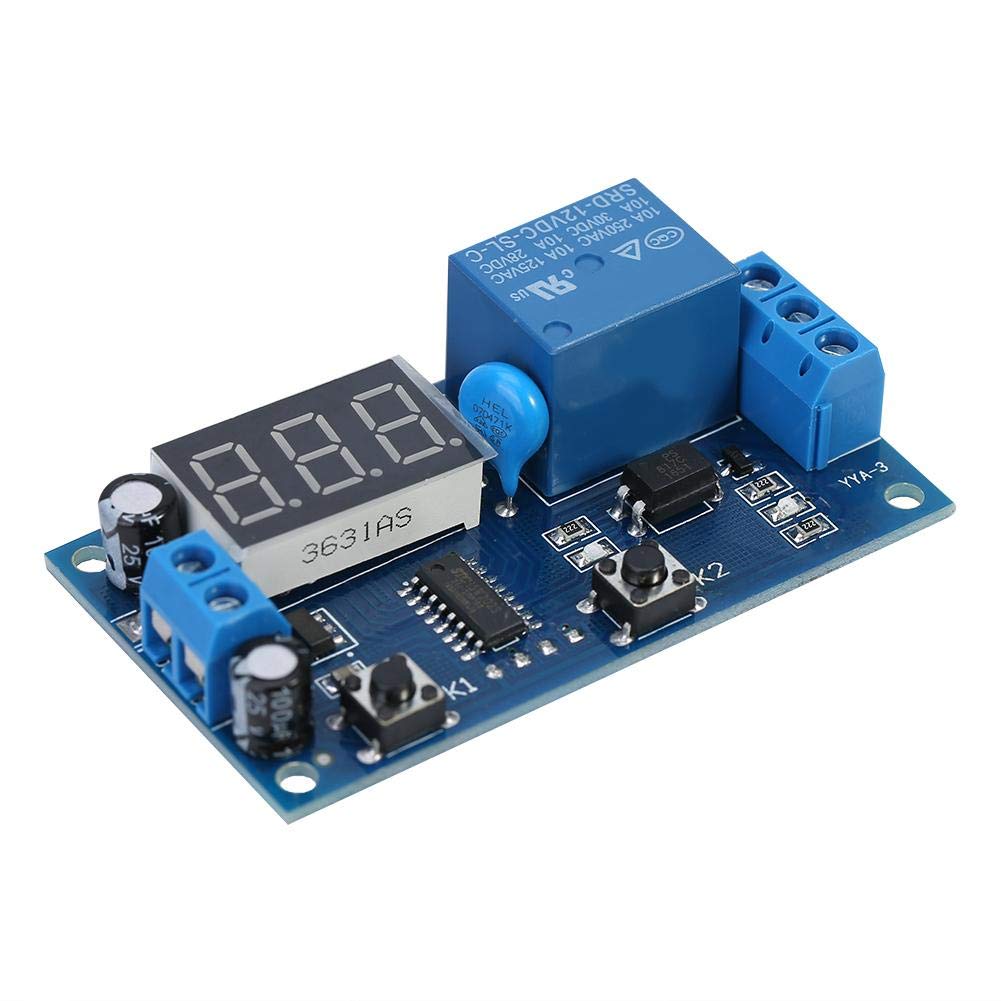

12v 1hr timer + Akozon Timer Relay Module DC 12V Cycle Delay Timer Switch Adjustable Relay Module Board Infinite Loop with LED Display

• Timer Relay Module---It is a timer relay module with high precision, stable and performance.Widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc.
• Instruction---It is great to control the reciprocating stroke, or repetitive power on and off for equipment and products burn-in test.After power on, the timer will start to countdown. When time is up, relay will work.

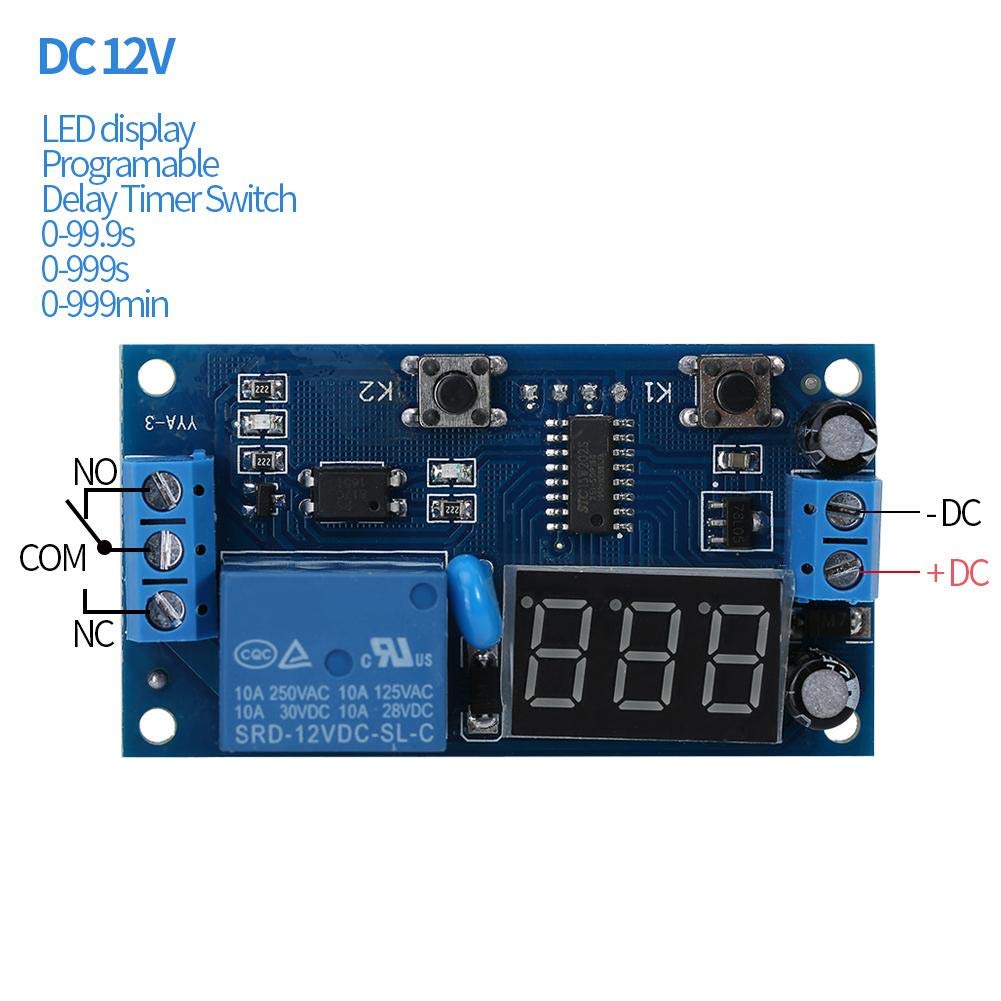

• LCD Display---The time delay relay module is designed with LCD display, can clearly and directly show the current mode and parameters.
• Service---If you have any problems after the purchase, you can feel to contact us. We have the best service team to solve all customer's questions and problem.
• Auto Save---There is a wide time range that you can set, both "on" time and "off" time are adjustable.Connect for a period of time, and disconnect for a period of time, infinite loop, support memory when power failure.

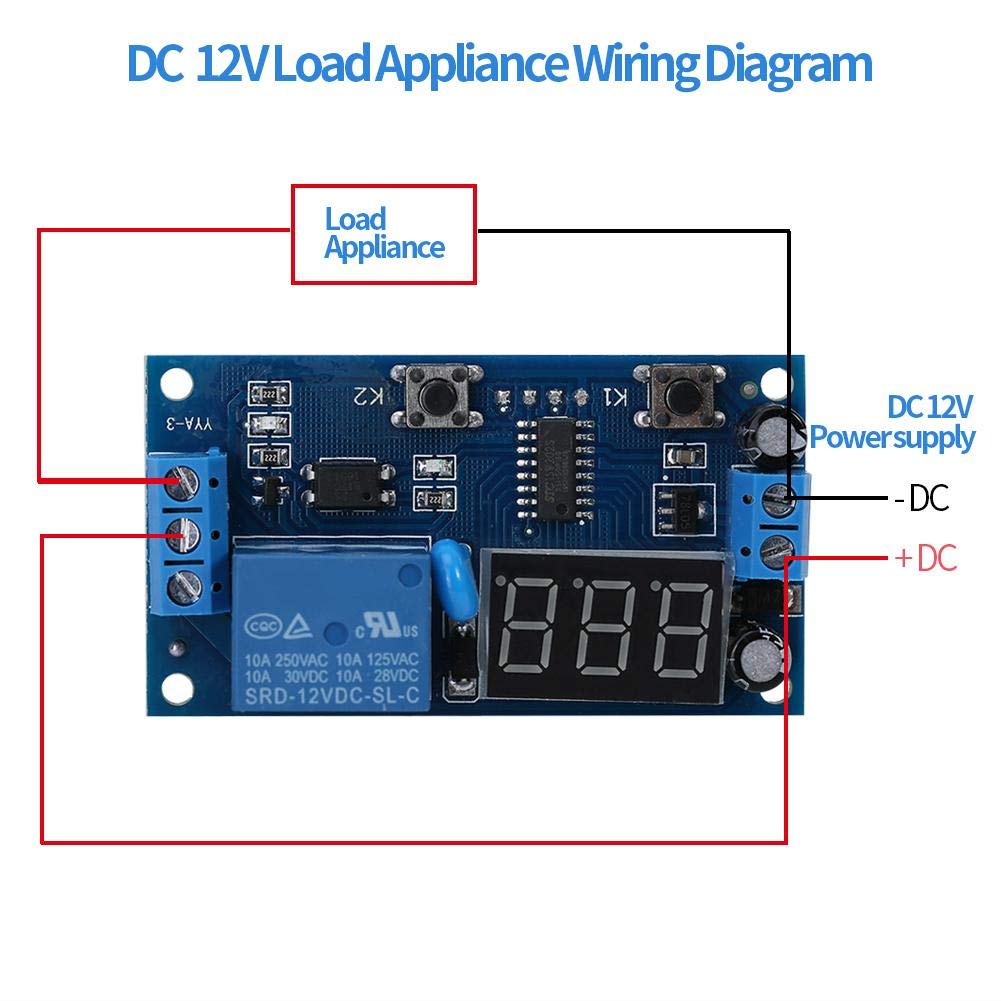

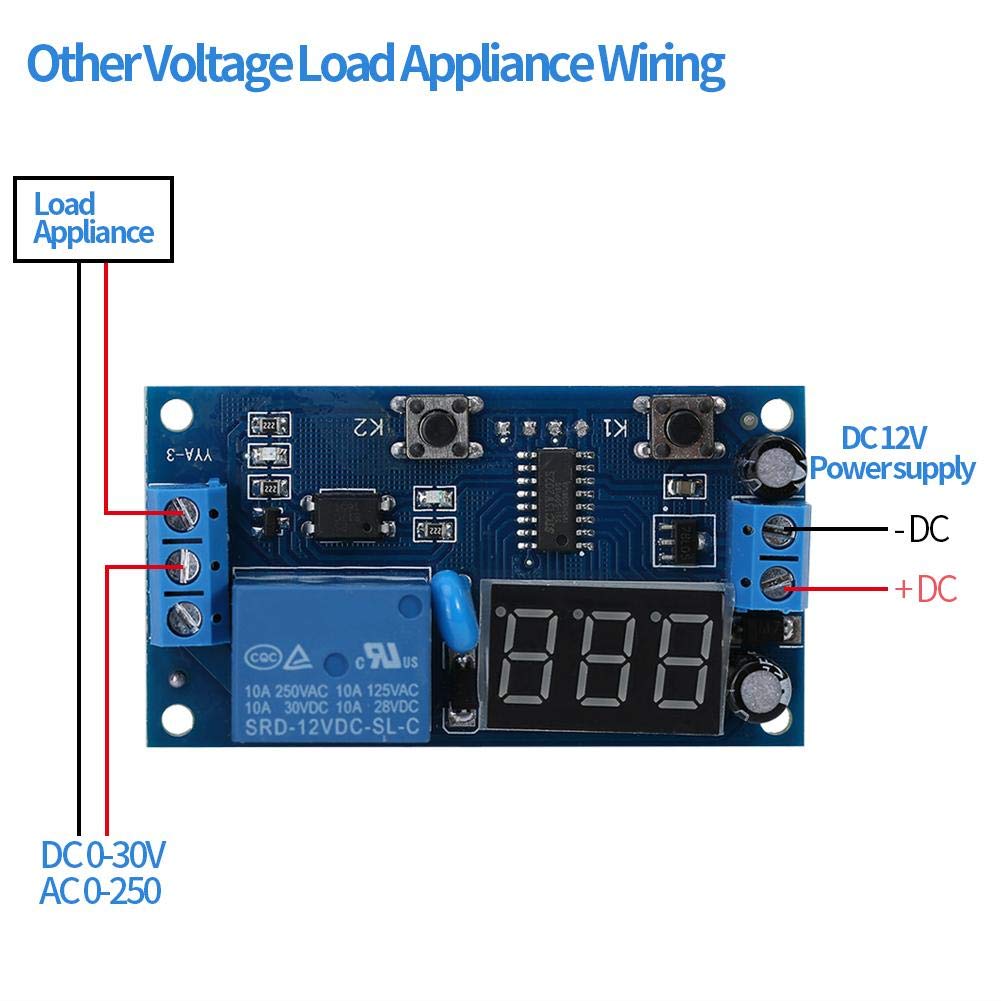

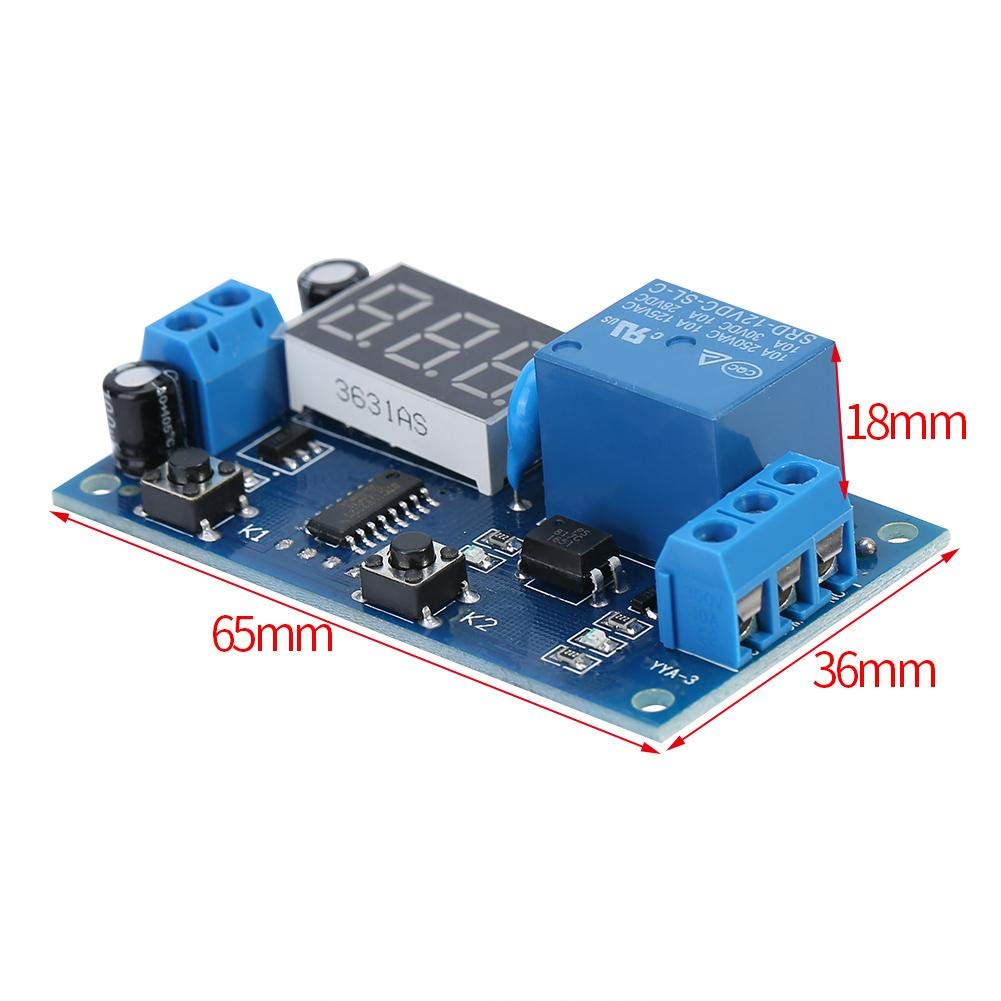

Specifications: Size: 65mm*36mm*18mm Output Capacity: DC 5V~30V, AC220V10A Quiescent Current: 20mA Working Current: 50mA Working Voltage: DC12V（fluctuate between 10V~16V won't be affected） Operating Temperature: -40℃~85℃ Instruction: After power on, the timer will start to countdown. When time is up, relay will work. Time Setting K1 cycle includes 6 steps. Step 1,2,3 are setting "ON" time, step 4,5,6 are setting "OFF" time. 1, Press K1, the first digit flashes, press K2 to change the number; 2, Press K1, the second digit flashes, press K2 to change the number; 3, Press K1, the third digit flashes, press K2 to change the number; 4, Press K1, the first digit flashes, press K2 to change the number; 5, Press K1, the second digit flashes, press K2 to change the number; 6, Press K1, the third digit flashes, press K2 to change the number; Press K1 till display stops flashing, then press K2 to change decimal point in order to select time range.The third decimal point indicates 0 to 999 minutes, the second decimal point indicates 0 to 99.9 seconds. No decimal point indicates 0 to 999 seconds. Long pressing K2 can turn on/off the display. Package Includes: 1 x Timer Relay Module
