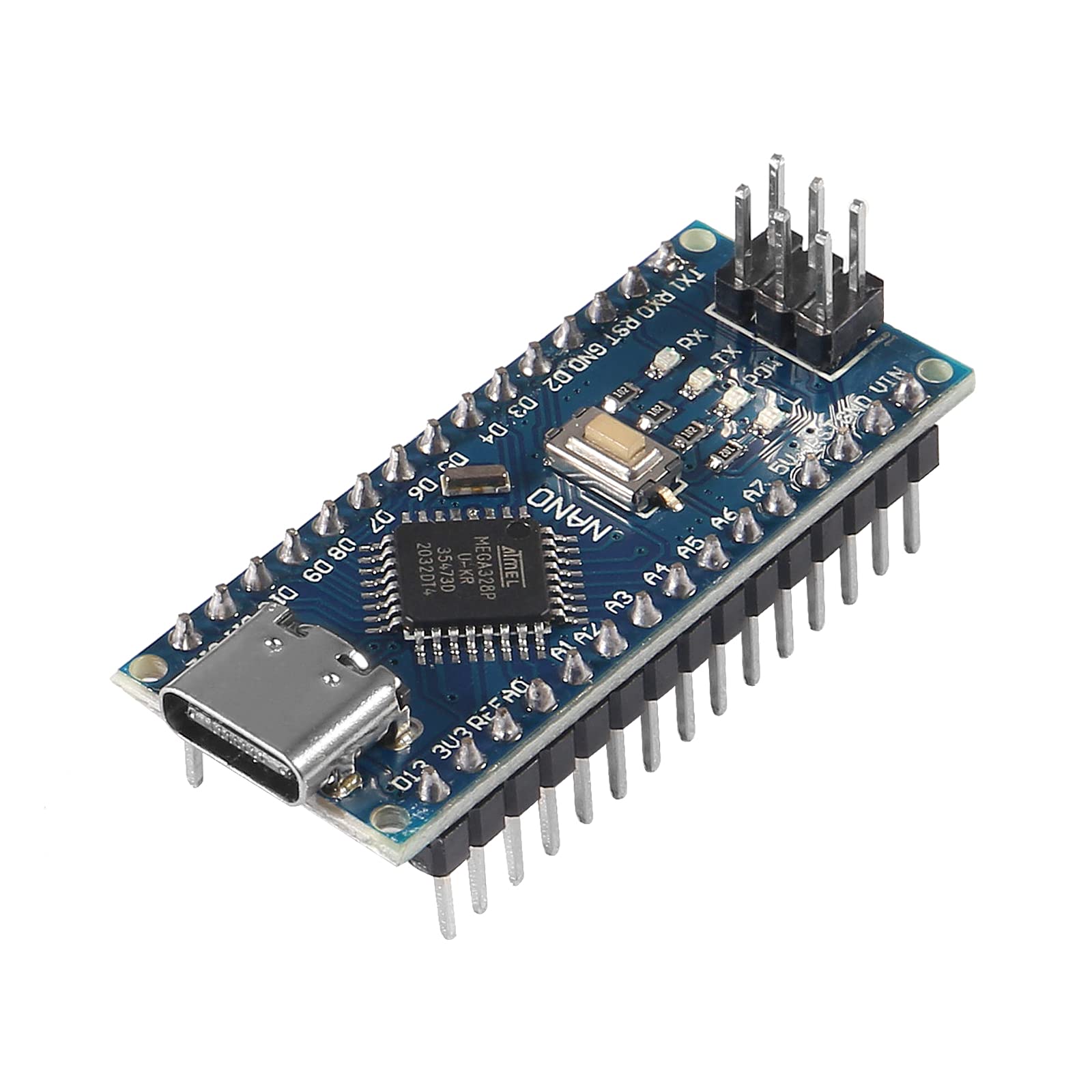

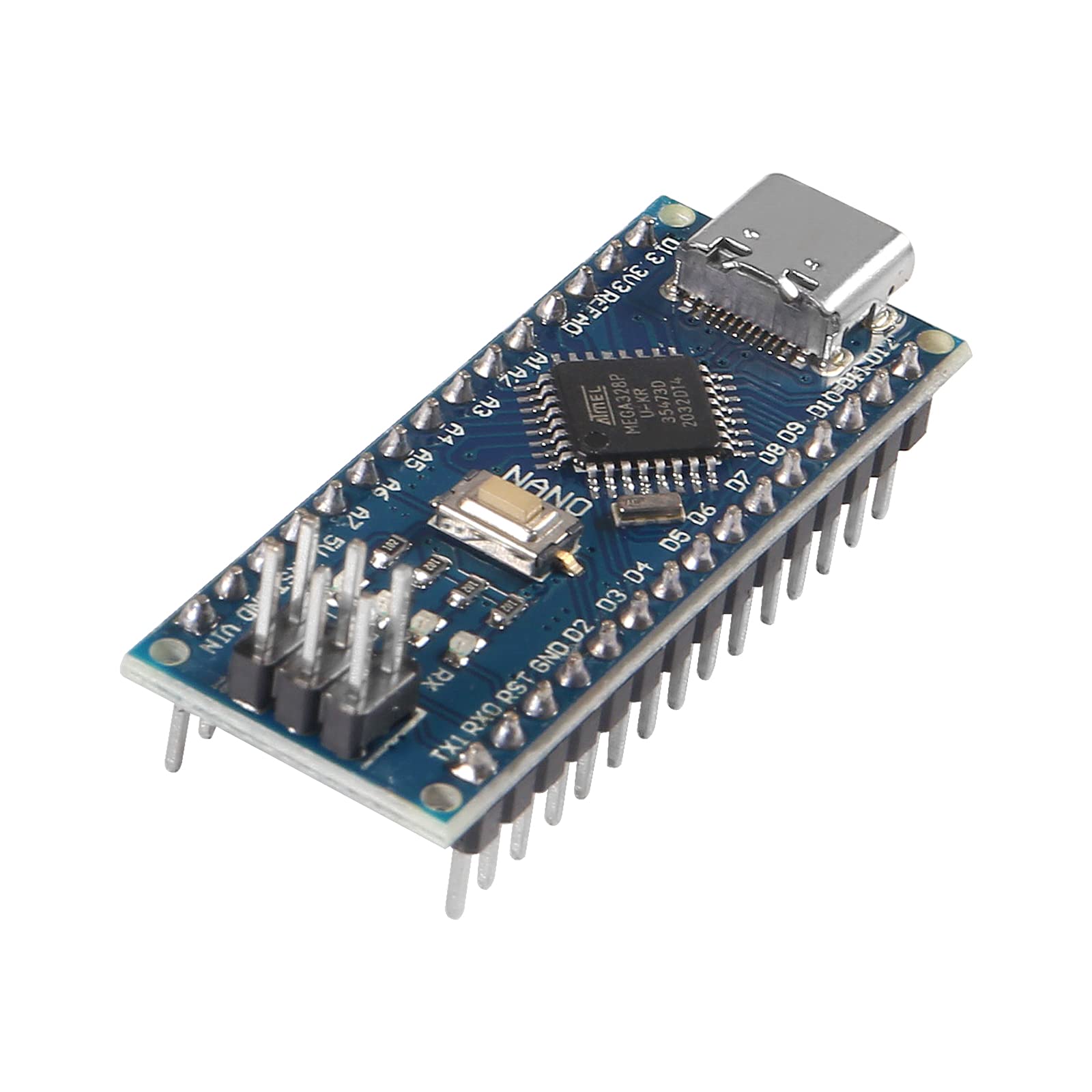

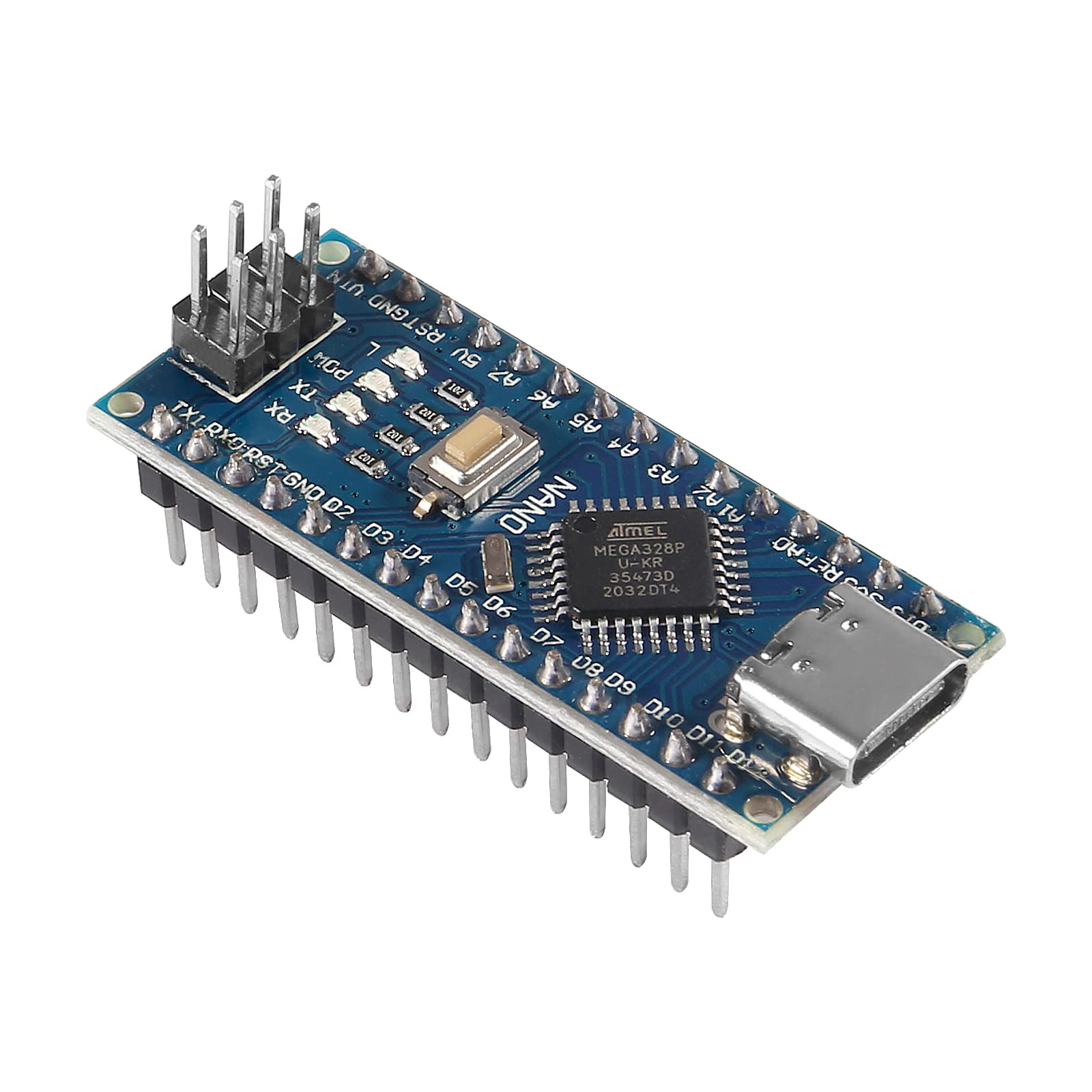

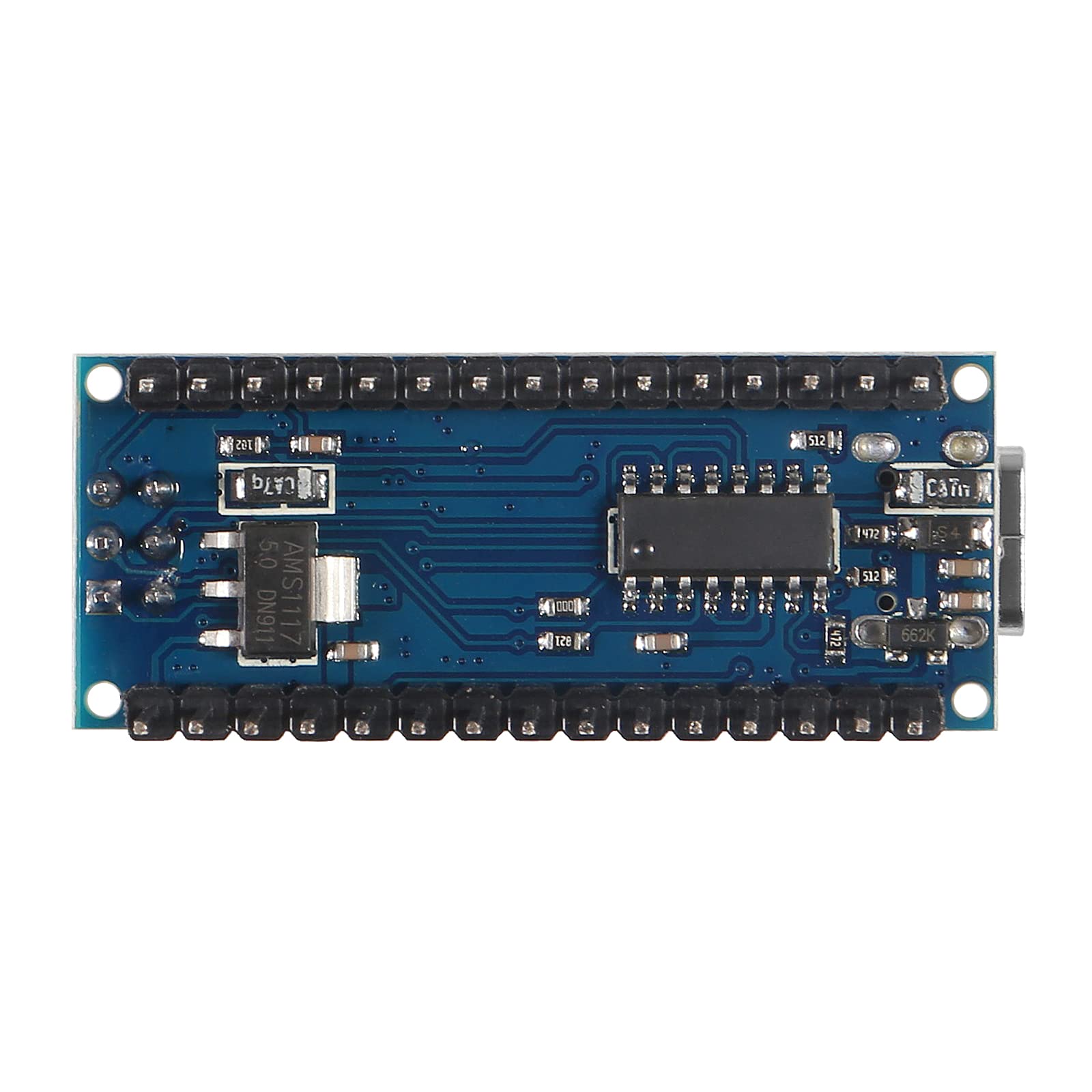

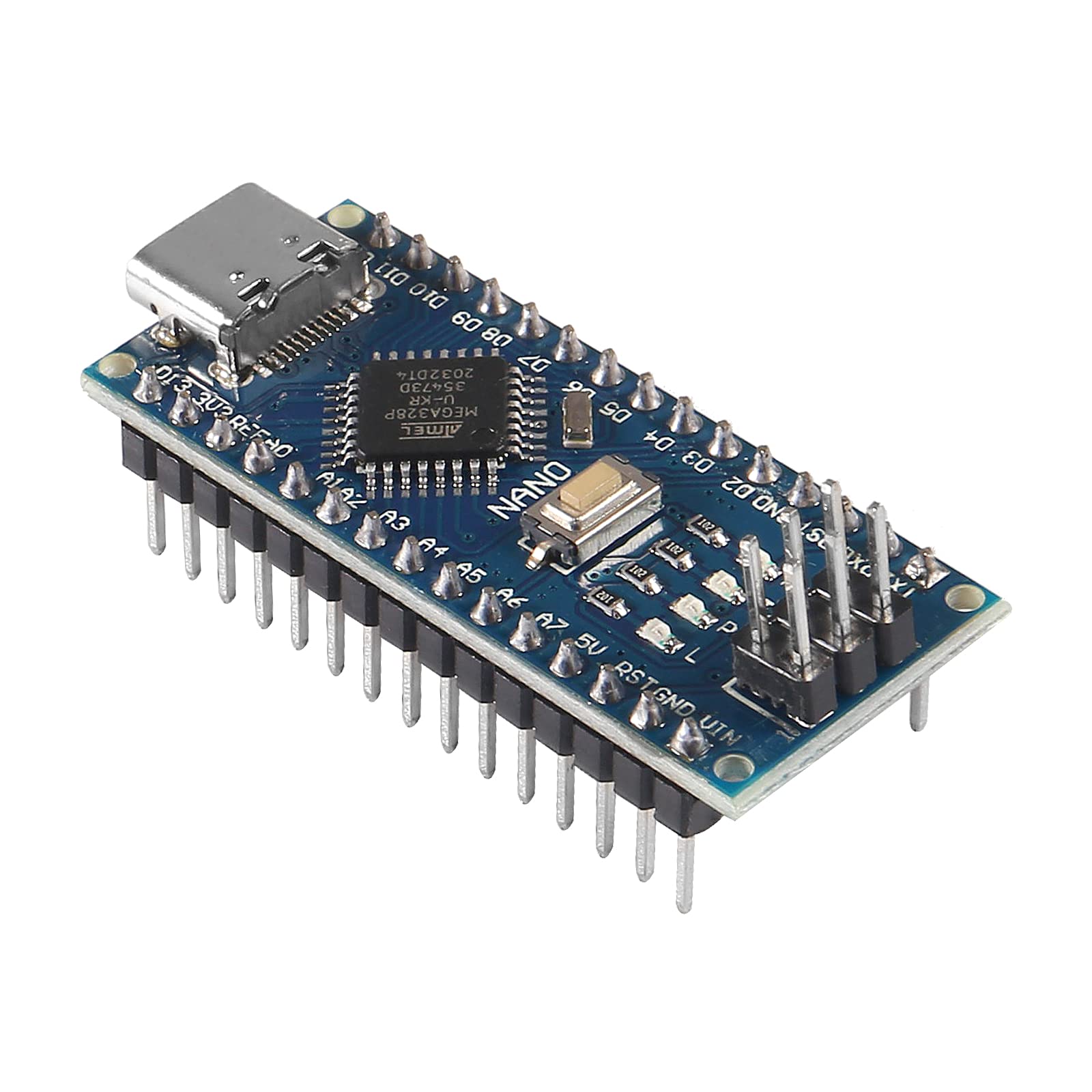

AITRIP 5pcs for Nano Board CH340/ATmega+328P Without USB Cable, Type-C Connection Compatible with Arduino for Nano V3.0,Welded Module

• The Nano can be powered via the Type-C USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
• Support for external 5V~12V DC power supply, Support power supply by 9V battery.
• The Nano is using the chips ATmega328P and CH340, Replace FT232RL.
• It is a smallest, complete, and breadboard friendly board. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper.
• Uses the CH340G instead of the FTDI FT232RL IC which can improve the transfer speed, increase the stability in windows and solve the issues with FTDI drivers bricking non-original chips, ATMEGA328P offers even more programming and data memory space. It also has a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one side, power, and ground on the other).
• Comes with 5packs each is equipped with 3pcs pin headers (2pcs 15pin headers +1pcs 6pin headers), no welding needed.

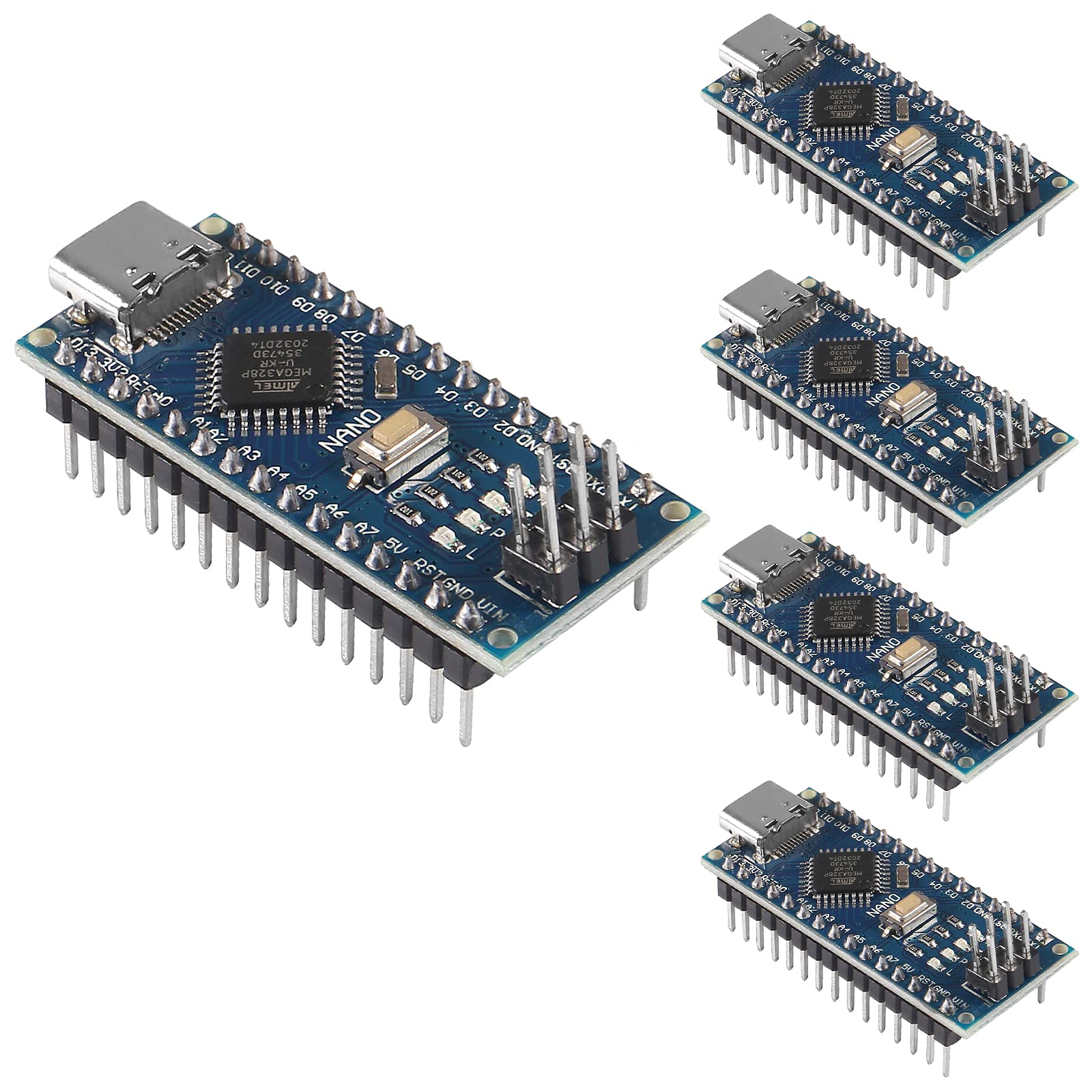

Features: CH340G Replace FT232RL Operating Voltage(logic level):5V 8 analog inputs ports:A0 ~ A7 14 Digital input / output ports:TX,RX,D2 ~ D13 6 PWM ports:D3, D5, D6, D9, D10, D11 1 pairs of TTL level serial transceiver ports RX / TX Using Atmel Atmega328P-AU MCU Support USB download and Power; external 5V ~ 12V DC power supply;power supply by 9V battery; Support ISP download Package included: 5 pcs USB Type-C Connector for Nano V3.0 ATmega328P CH340G Controller Board( soldered)
