AAOTOKK DB25 Long Bolt Screw Adapter D-SUB DB25 Male Jack Port to 25 Pin/Way Female Terminal Breakout Board Connector with Case&Screw (2-Pack/Male-Bolt) — image 1
Adapter BoardsAAOTOKK✓ In stock

AAOTOKK DB25 Long Bolt Screw Adapter D-SUB DB25 Male Jack Port to 25 Pin/Way Female Terminal Breakout Board Connector with Case&Screw (2-Pack/Male-Bolt)

$48.99

Options

3 available
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

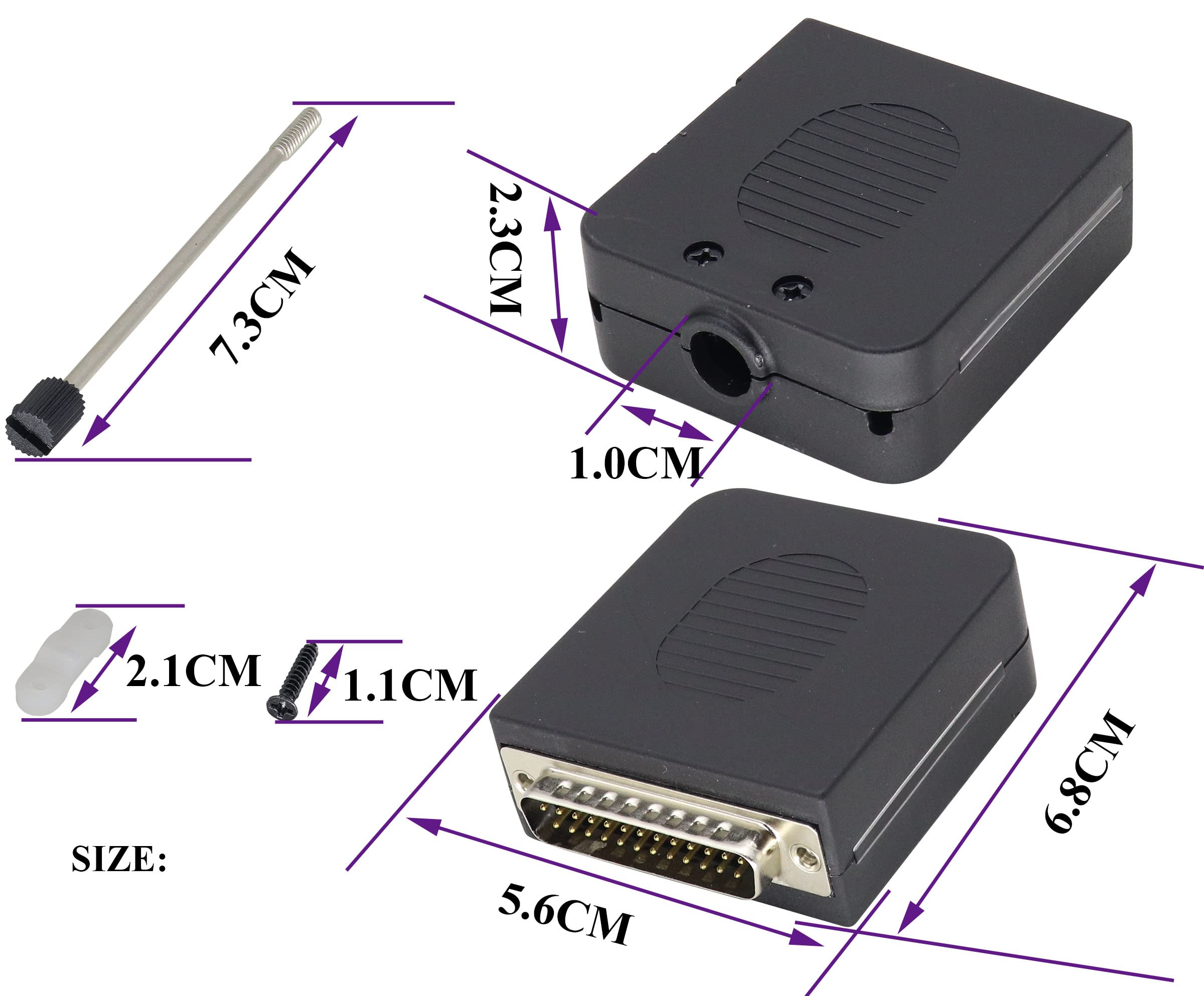

  • Quantity:(2-Pack) Size:Length, width, height(6.8*5.6*2.3cm) Material: plastic. Color:(Black)

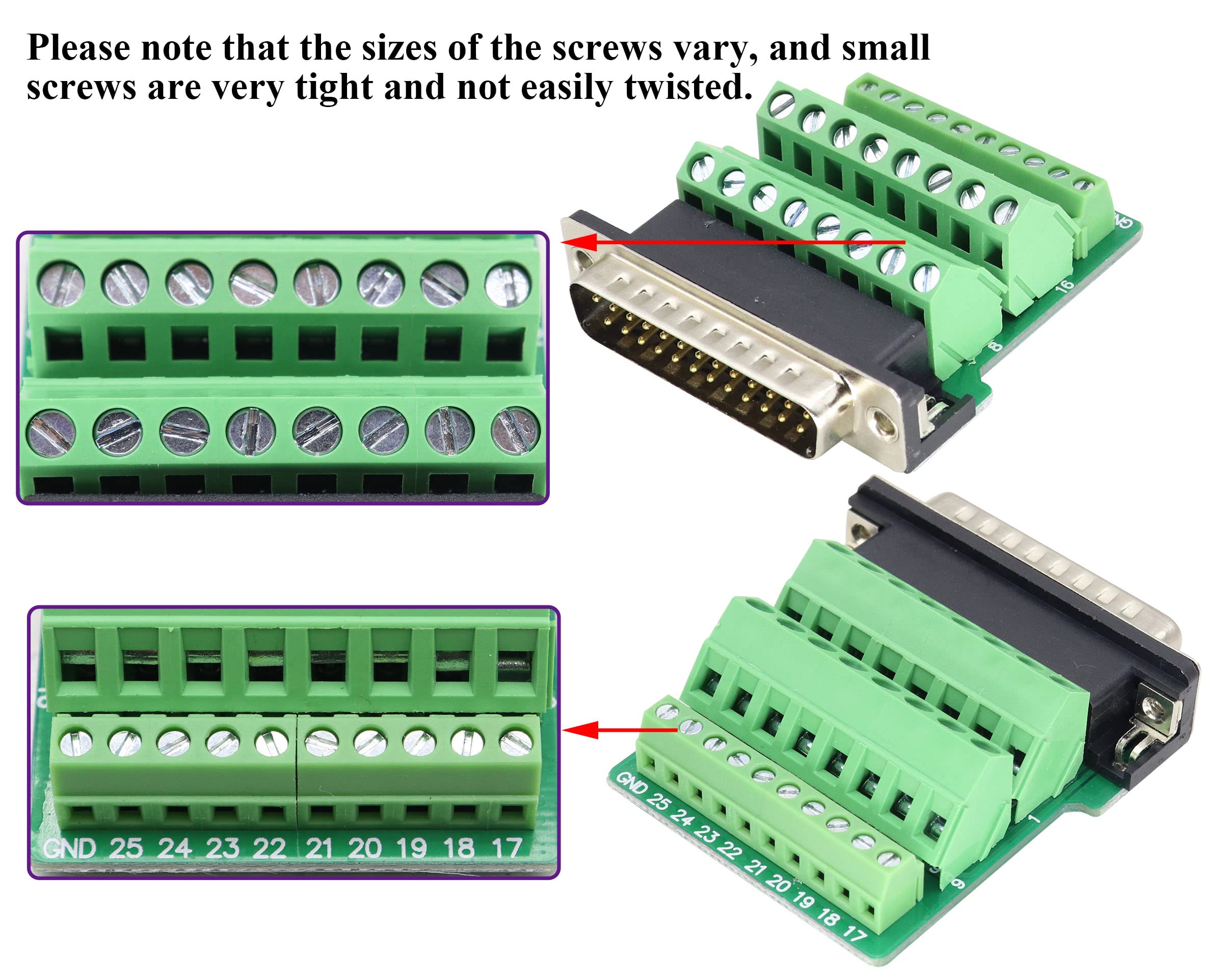

  • Connectors 1 : DB25 (25 pin) male jack .Connectors 2 : 25+1 Pin female screw terminal block jack. (Contains ground wire(GND)

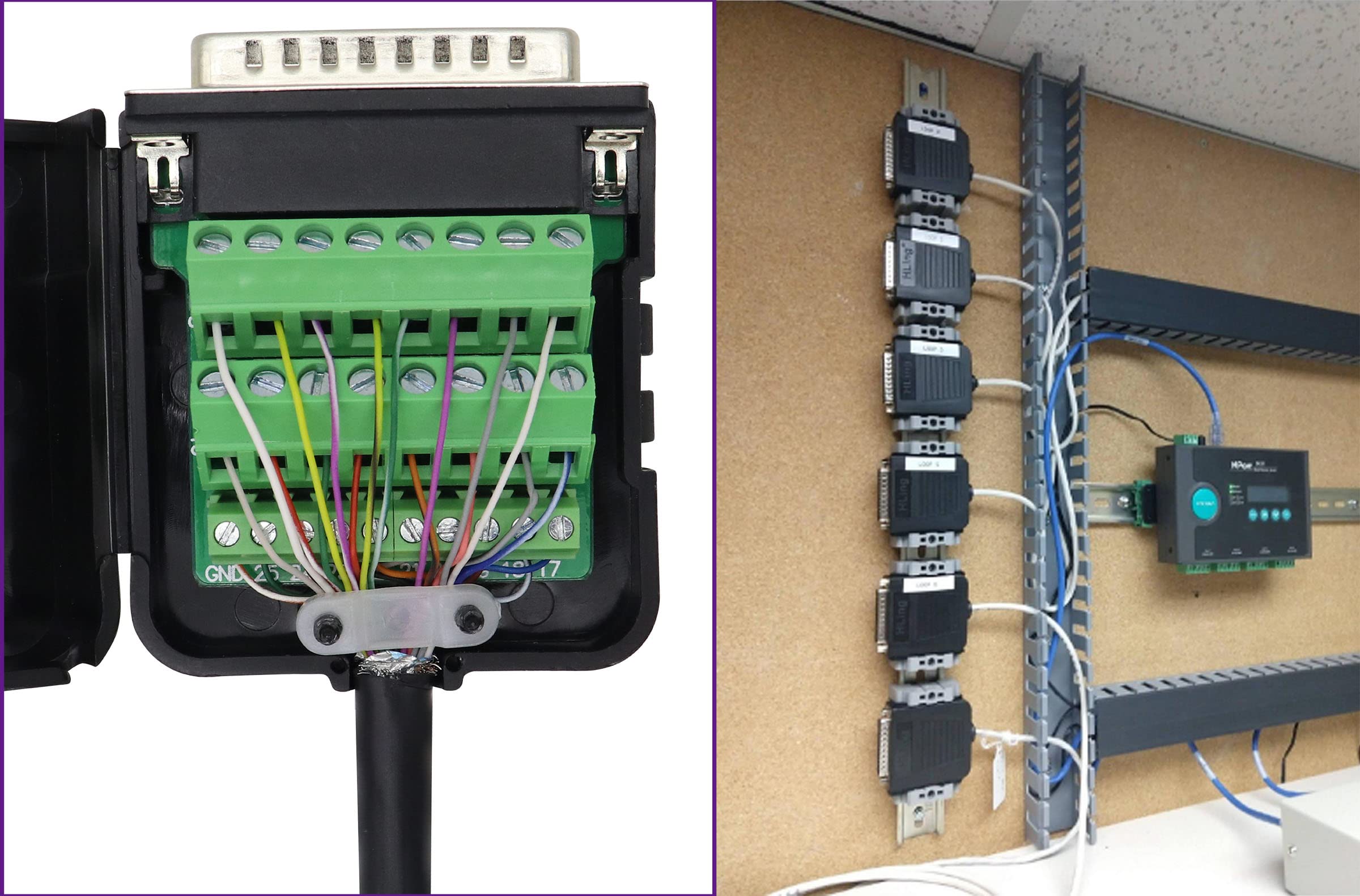

  • DB25 Scope of Application:D-SUB DB25 does not need to weld serial devices, which is suitable for RS232 / RS422 / RS485 serial adapter, Use for computer, tax control machine,Barcode Machine, PLC, industrial instrumentation and other equipment for communication.Can extend the length of the DB25 cable, Connecting single wires with open cable heads to your DB25 jack.
  • Wire range: 1 to 16 Pin/Way Female interface Wire range(AWG16~26),17 to GND Pin/Way Female interface Wire range(AWG20~26), Pin: GND way/pin(Contains ground wire), Compact design and reliable connection for the male DB25 to secrew terminal adapter cable

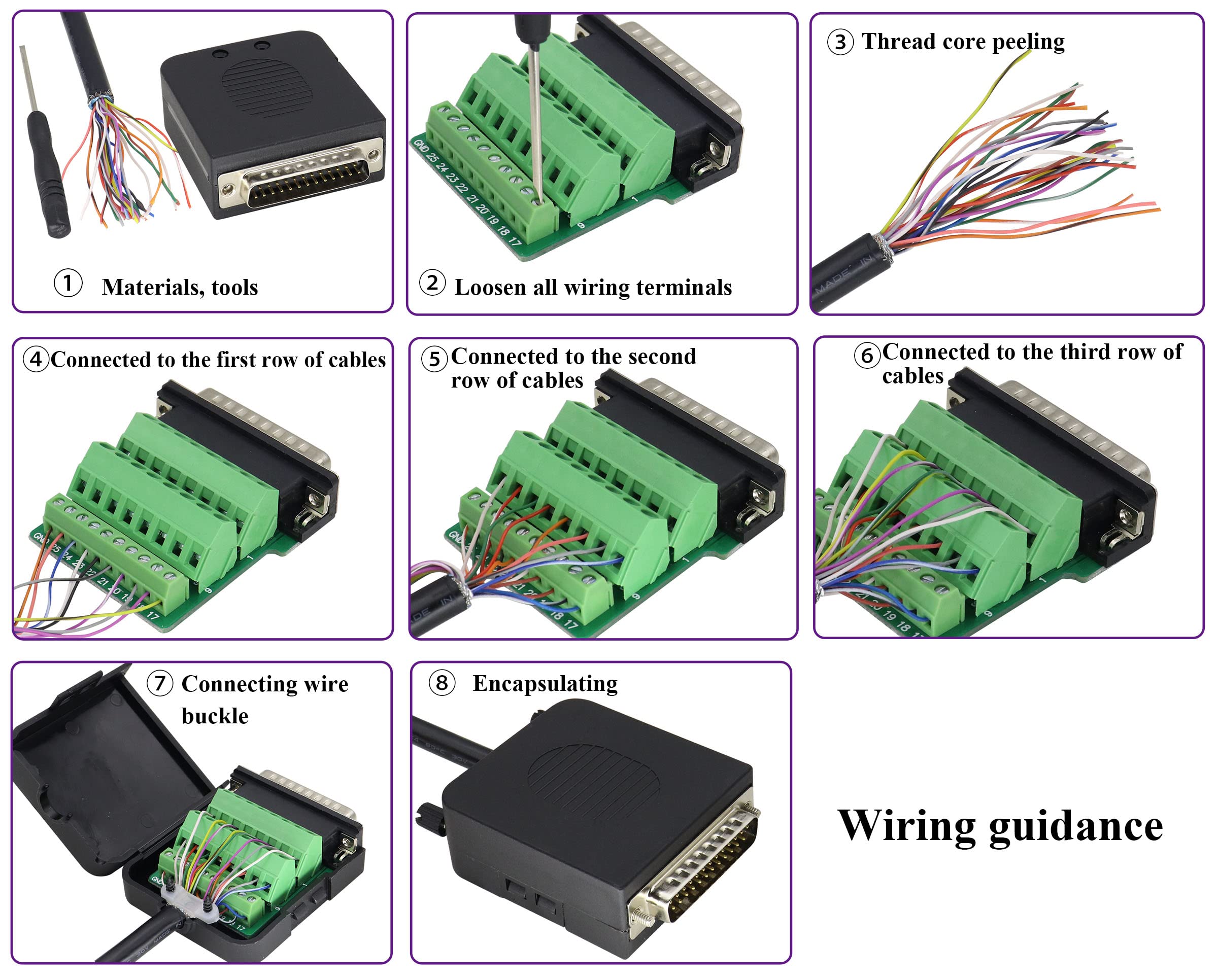

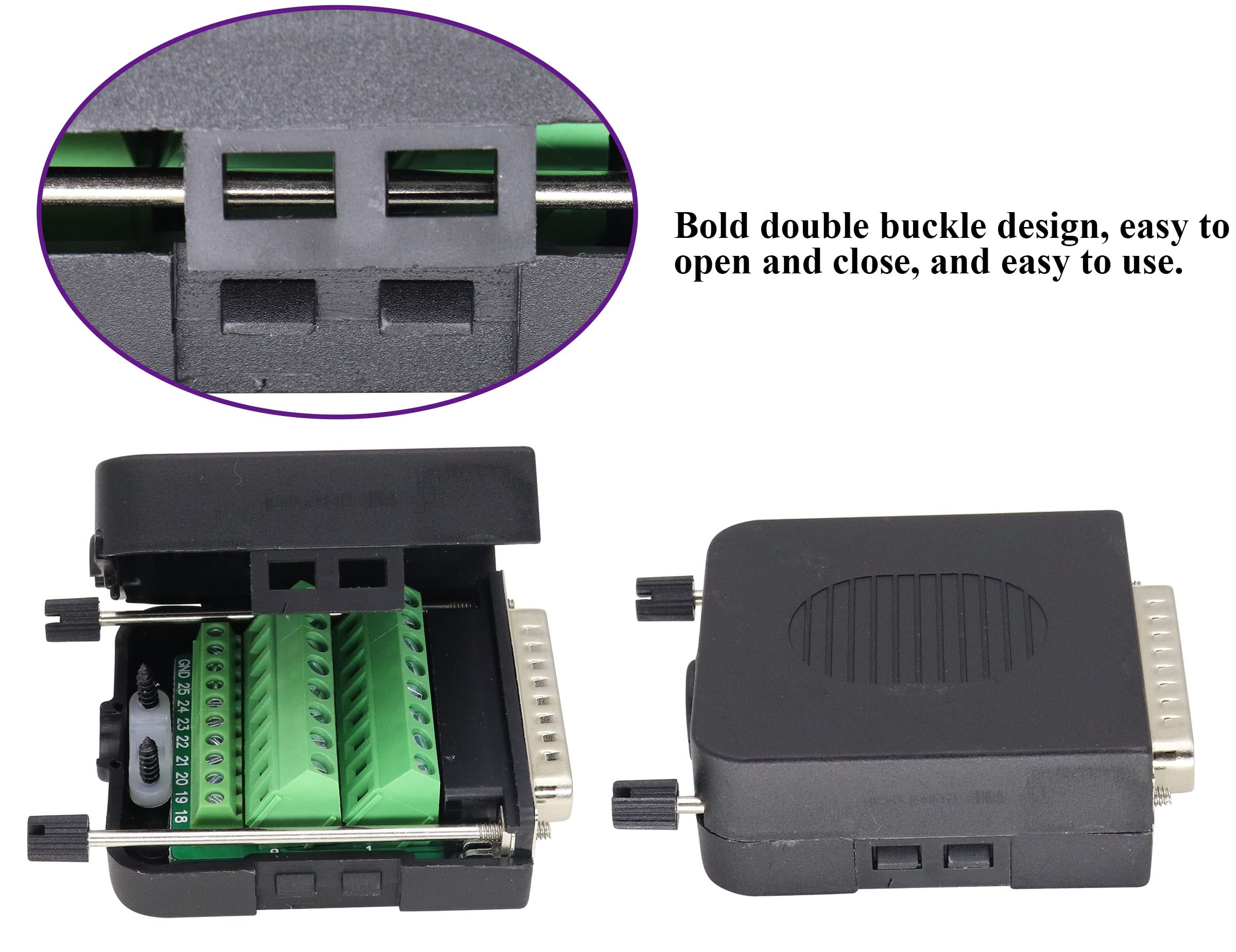

  • Screw/solderless type,No soldering required, easy to use,Requires only a screwdriver and a wire stripper to terminate DB25 cables,Saves time and hassle for installers.The housing is designed with a folding buckle for easy assembly and disassembly without tools.
Product description

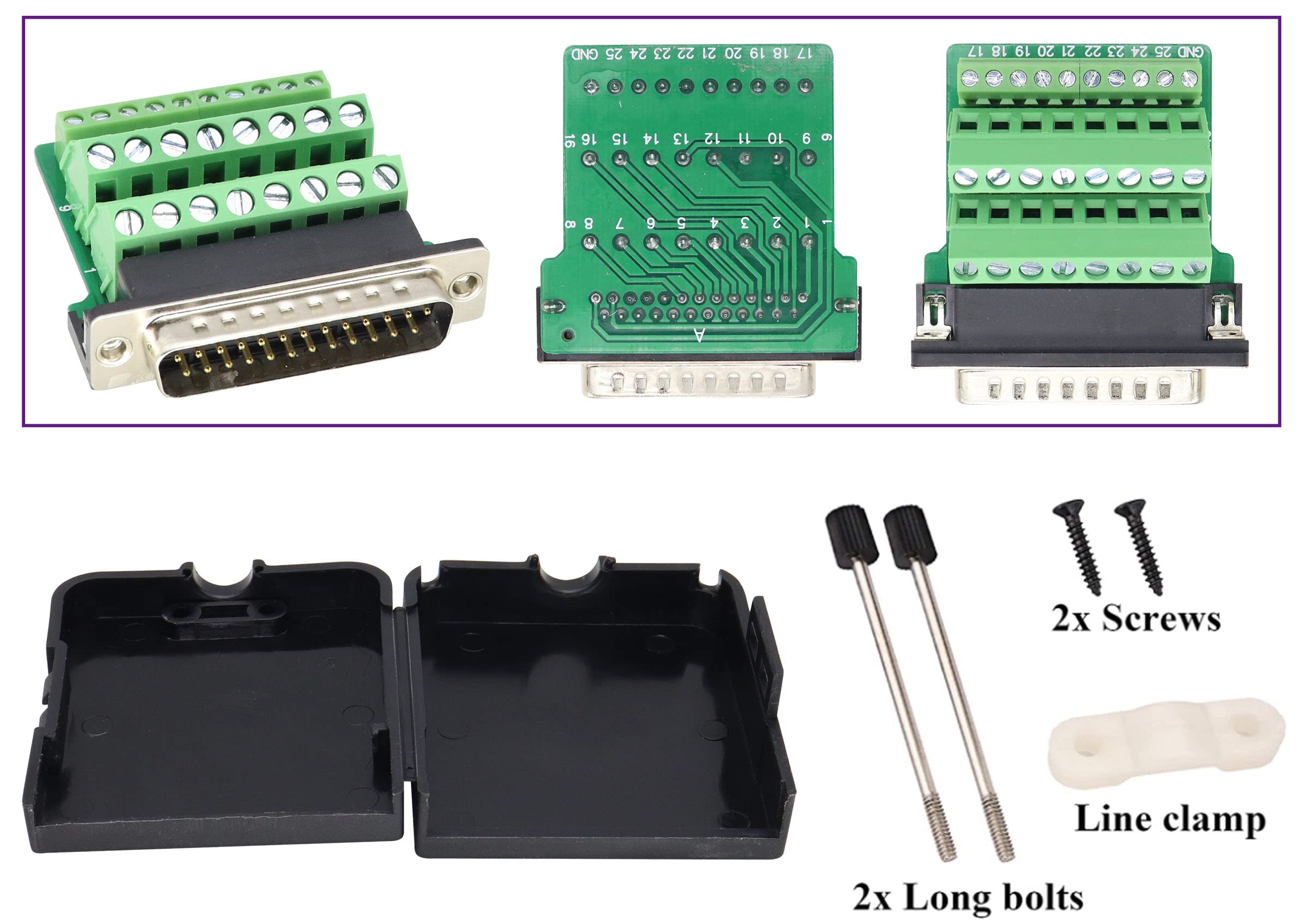

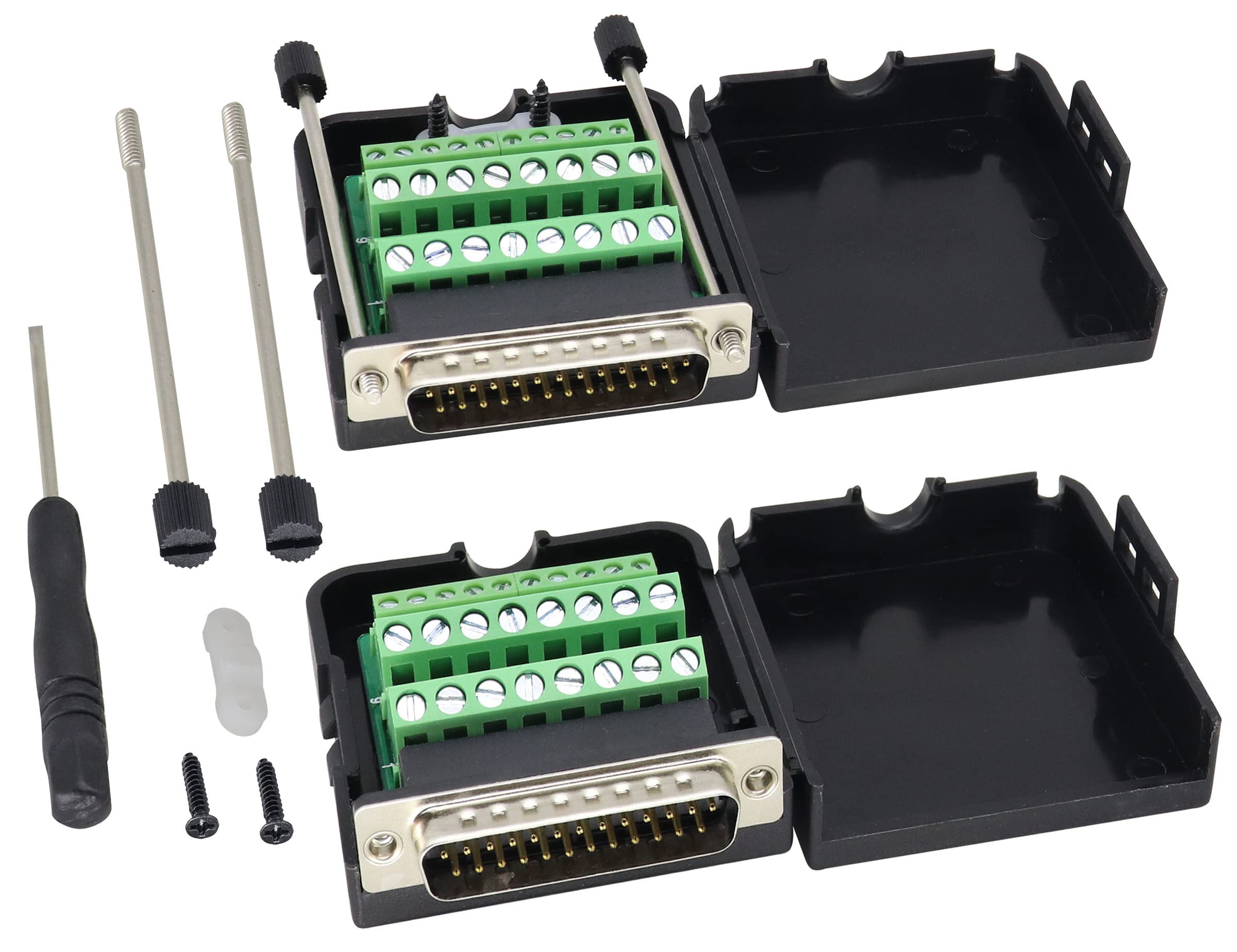

Quantité:(2-Pack), taille:longueur,largeur,Hauteur(6.8*5.6*2.3cm) Matériau:Plastique. Couleur:(Noir) Connecteur 1:Prise Mâle DB25(25 Broches). connecteur 2:26+1(GND)Broche femelle prise de borne(câble de mise à la terre inclus). Plage de câblage:1 à 16Broches/Plage de câblage d'interface de routeur (AWG16~26), 17 à la plage de lignes D'interface GND Pin/Routeur(AWG20~26), Pin:GND Pin/Route(Contient le fil de masse), L'ensemble comprend: 2xAdaptateur Mâle DB25 avec boîtier 2 serre câbles 4vis 4 longues tiges filetées. Produits Équipement applicable: convient pour les ordinateurs,les machines de contrôle fiscal,les machines de codes à barres,les PLC,les instruments industriels et autres instruments. Le câble db25 peut être étendu pour connecter un câble avec une extrémité ouverte à votre prise db25. tous les fils 26+1 (GND)référencés sur la carte, y compris le fil de terre, sont clairement marqués sur la carte, ce qui rend le câblage plus pratique.

Product details
Brand
AAOTOKK
Manufacturer
AAOTOKK
Material
plastic
Colour
Male-Bolt
Weight
0.15 kg
Model number
D-SUB DB25
Part number
D-SUB DB25
