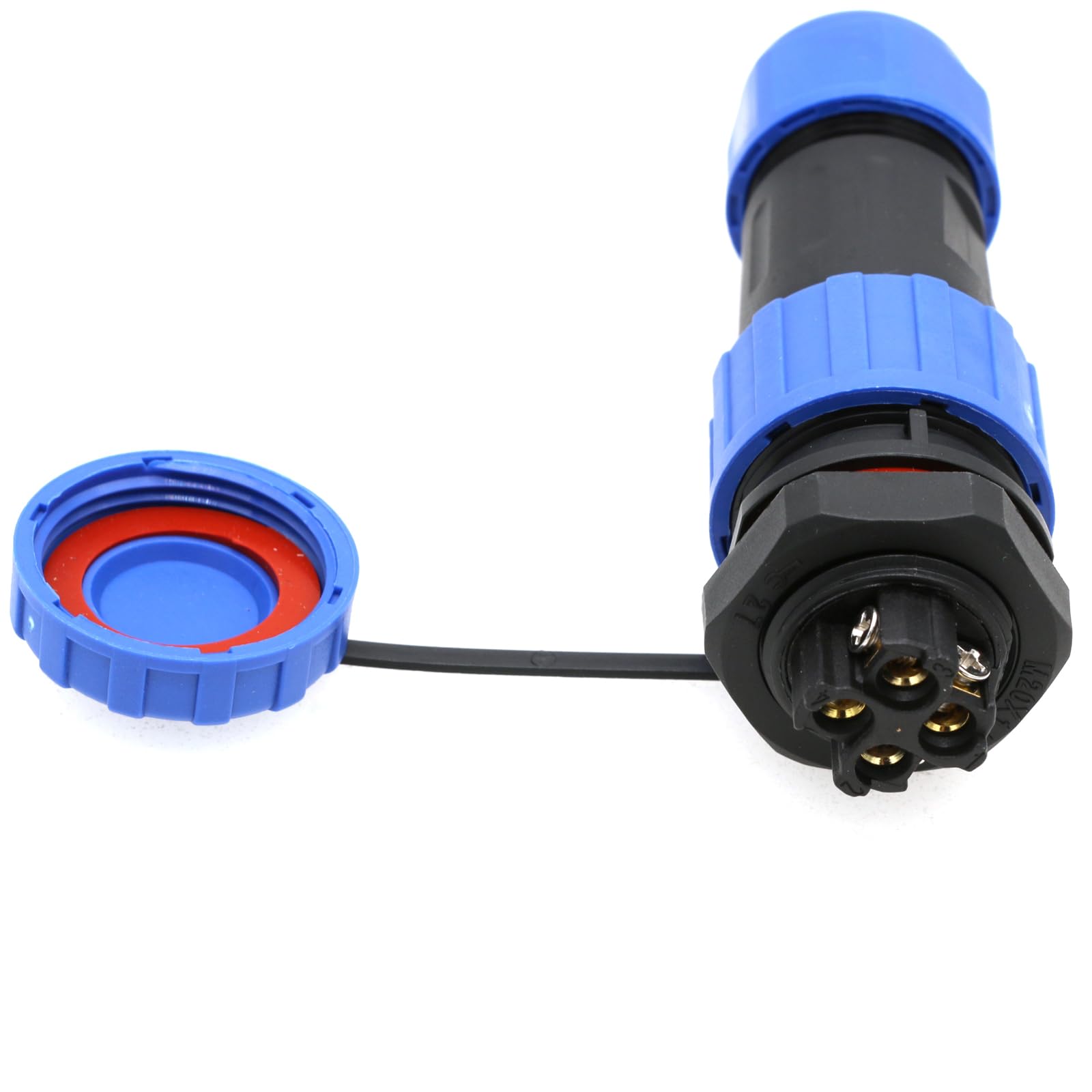

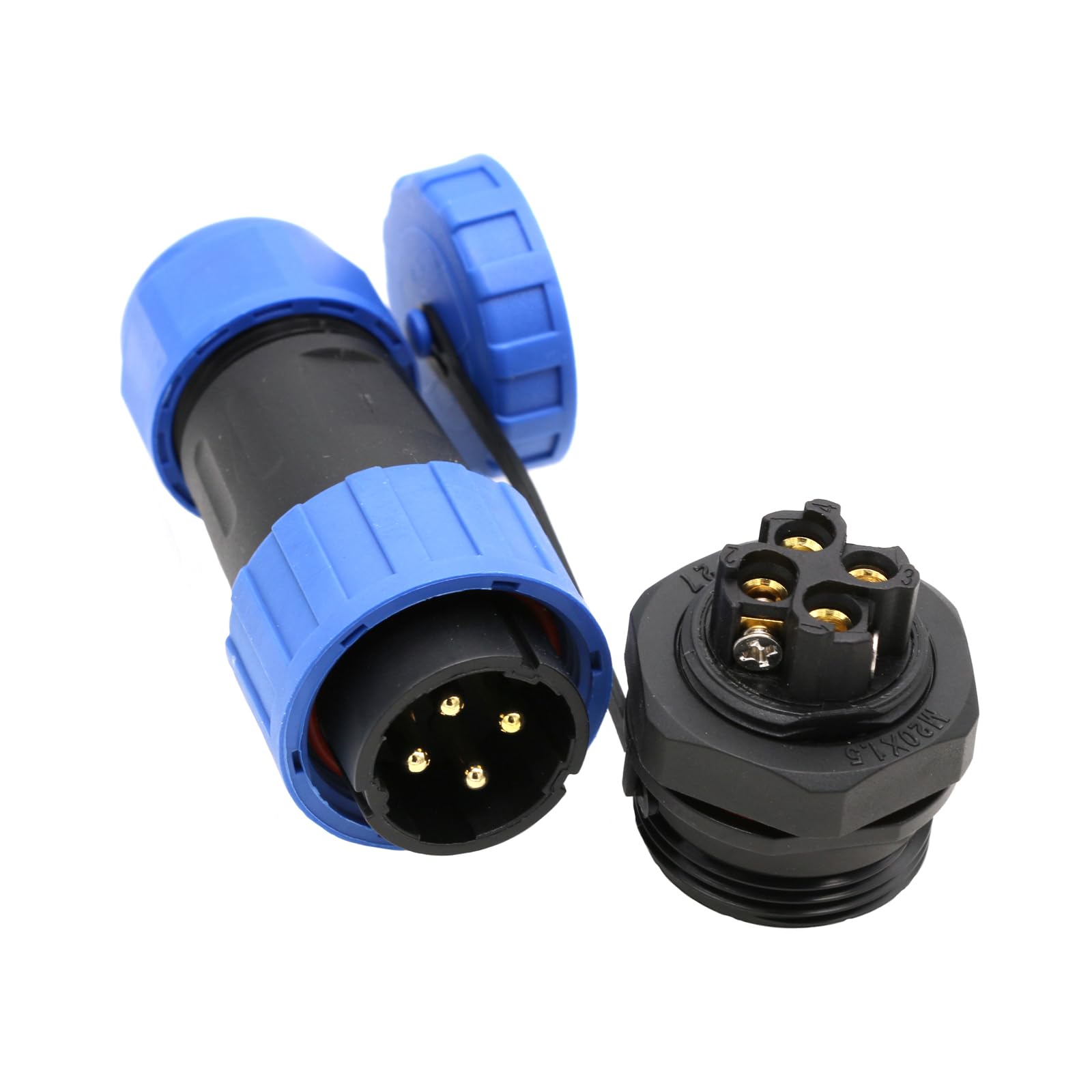

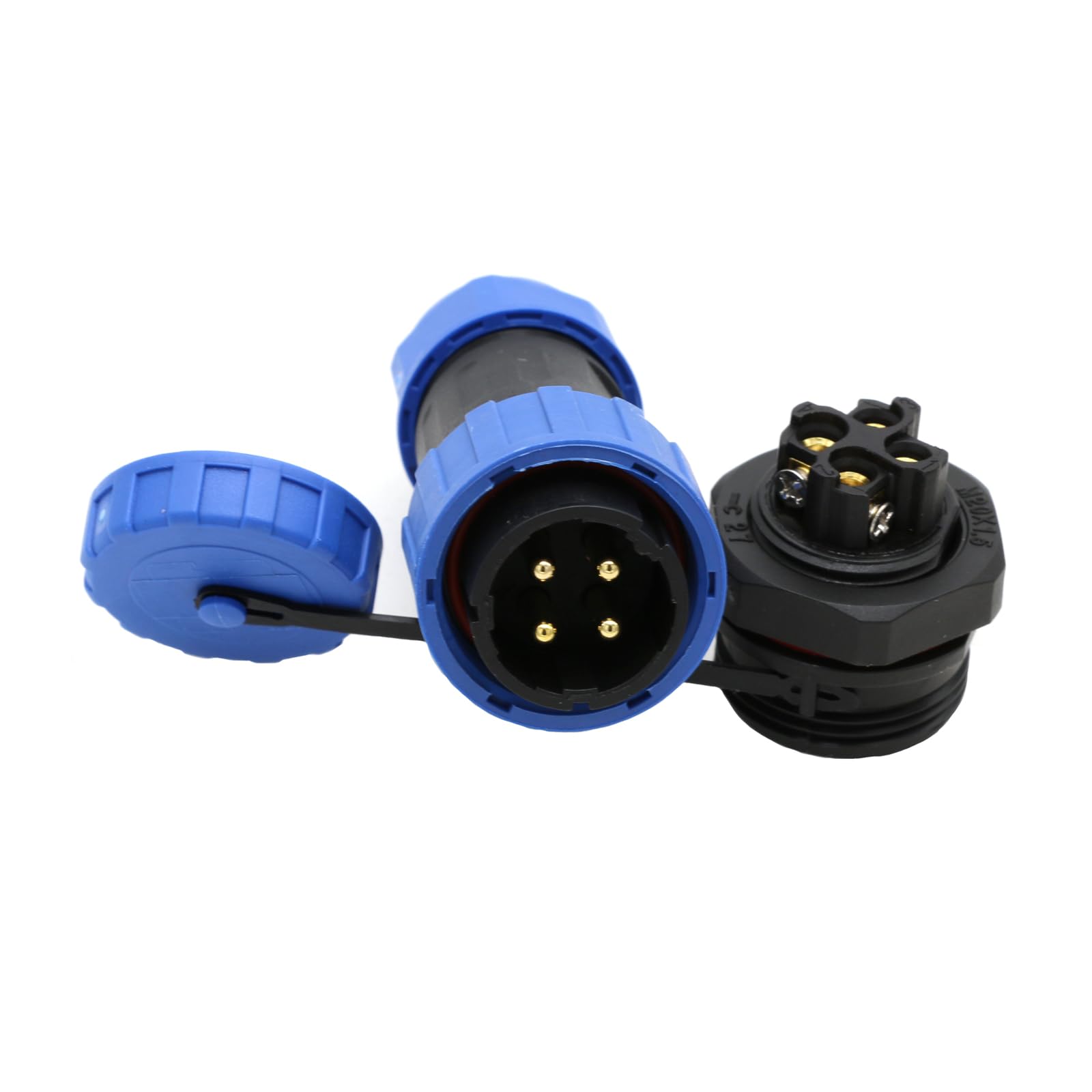

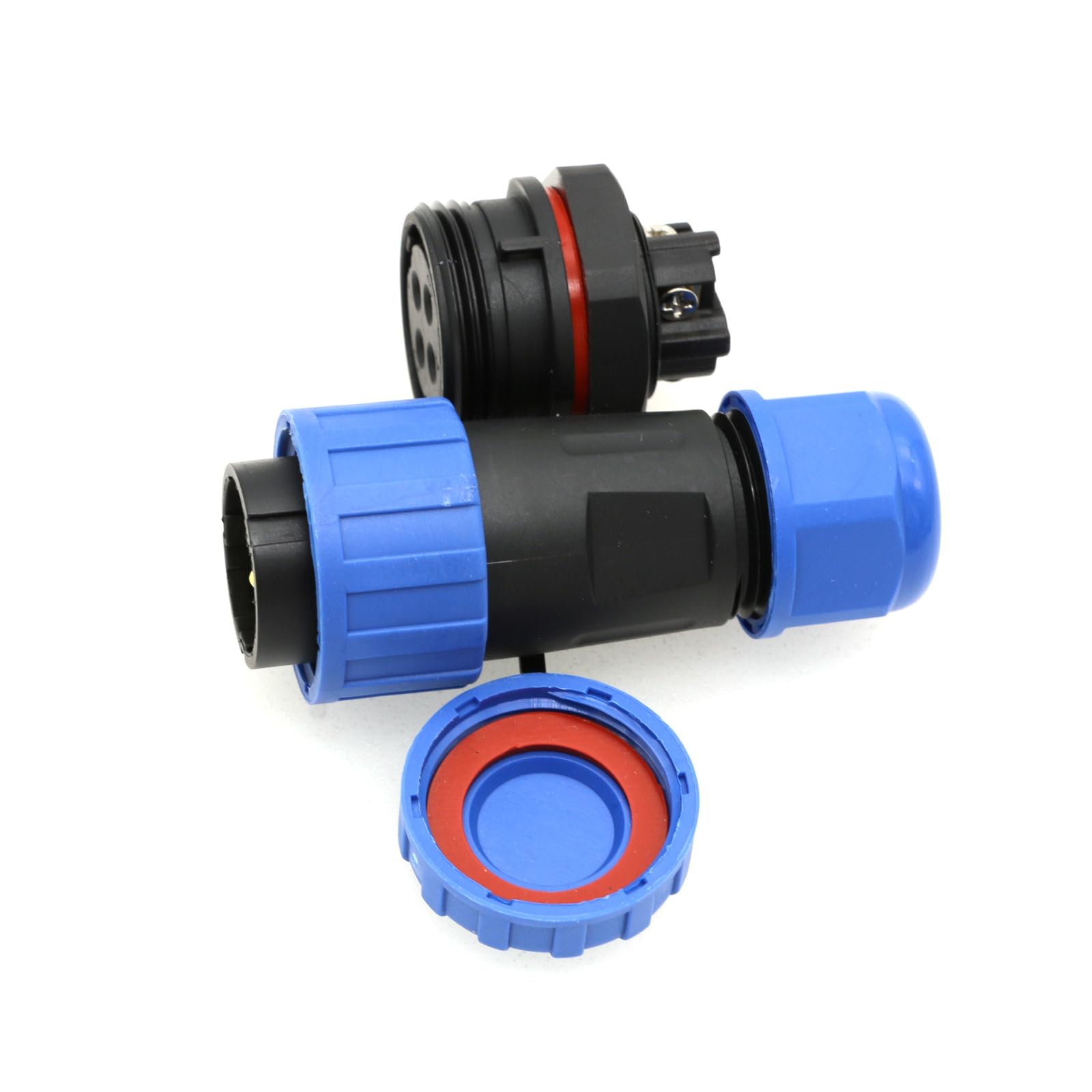

ZBLZGP TY20 4-Pin 25A Bulkhead Waterproof Connector Quick Disconnect Male Female Cable Connector Socket Solderless Screw Connection Panel Mount Round Plug

• TY20 4 pin nut waterproof no welding plug screw crimping panel mount male female female connector electrical cable connector. Applicable wire outer diameter range: 6.0~11.5mm.
• Rated current/voltage: 25A/380V; dielectric strength: AC 1500V; contact diameter: Φ2.8mm*4; contact resistance: 1mΩ; insulation resistance: 2000mΩ; wire thickness: 4mm²/12AWG.
• Housing material: thermoplastic PA66; insulator: thermoplastic PPS high temperature resistant 200°C; contact material: brass with gold plating; sealing ring: silica gel; connection: threaded connection. Connection mode: solderless
• Connection mode: solderless screw connection; temperature range: -25°C - 85°C; plug-in times: more than 500 times. Threaded wiring for more comfort, efficiency and repeated use.
• TY series connector: docking direct use, no need to fix the installation; rear nut need to open the hole, nut fixed installation; flange and square need to open the mounting and screw holes, fixed installation with screws. Use of high quality solid copper, high conductivity, corrosion and oxidation resistance.

Tips: As a professional connector and cable manufacturer, we produce and sell cost-effective cables and connectors. Our products and service would earn your trust and satisfy your demand. In addition, we offer you a discount if you order a large amount of plugs and cables. If you are interested in them, please feel free to contact us, thank you!
