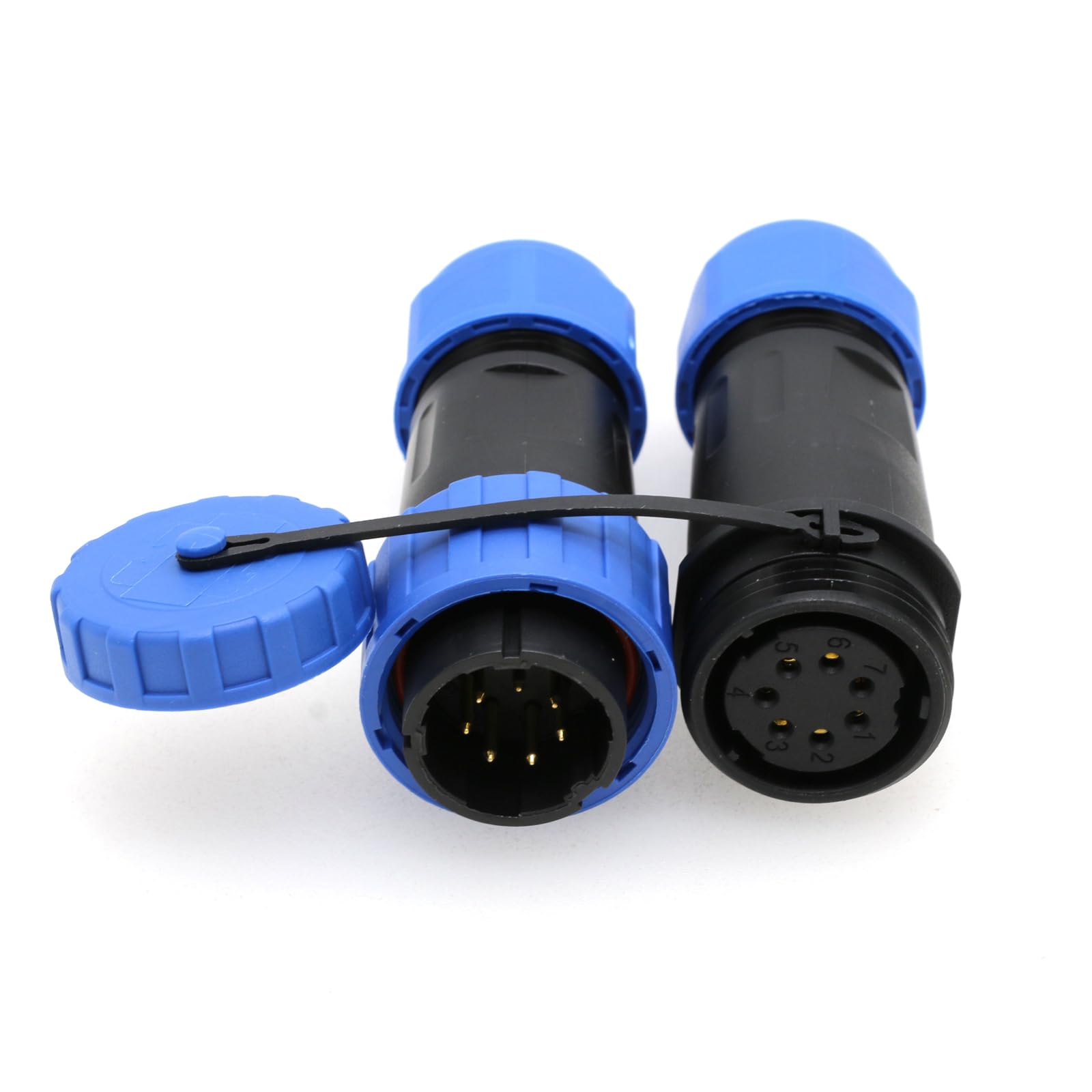

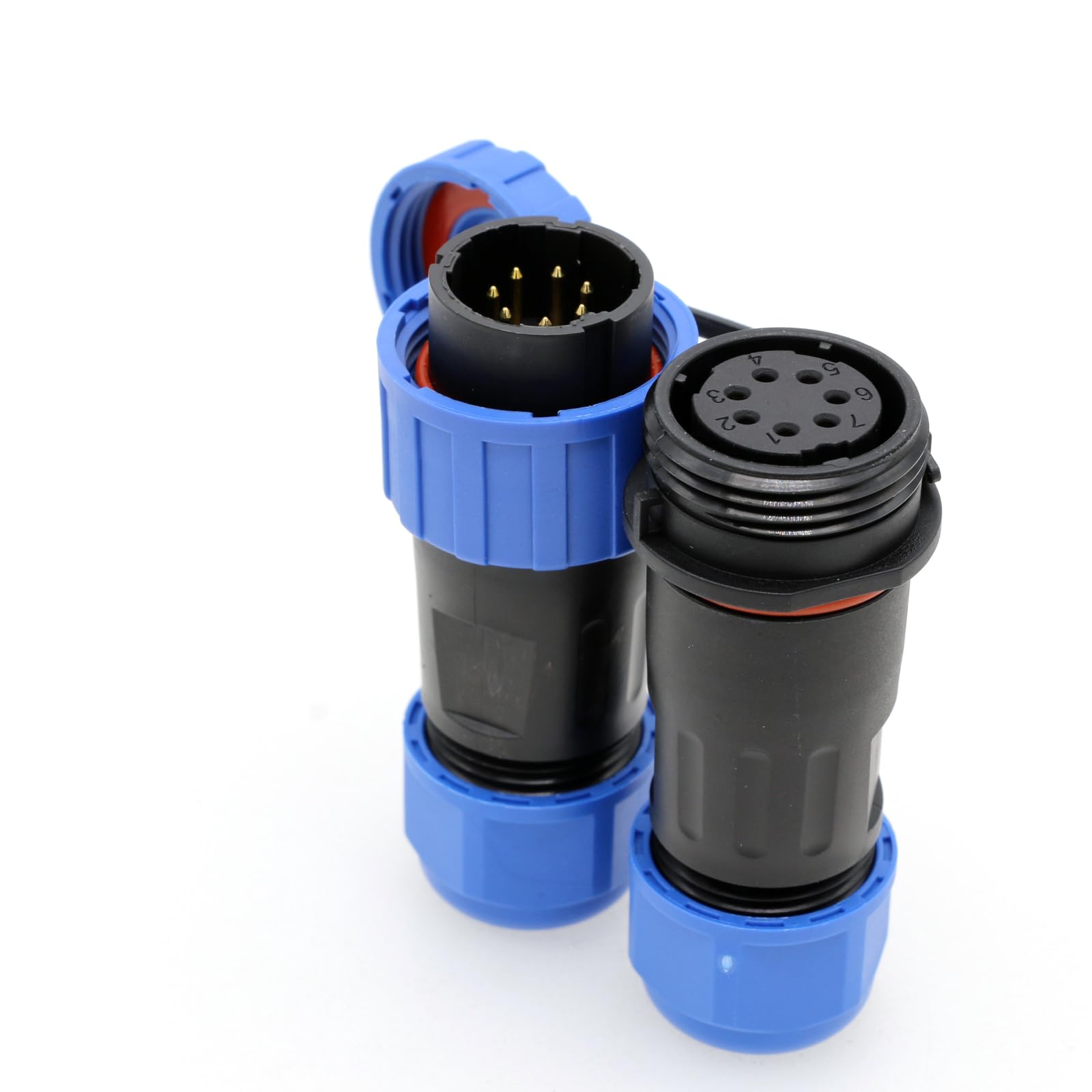

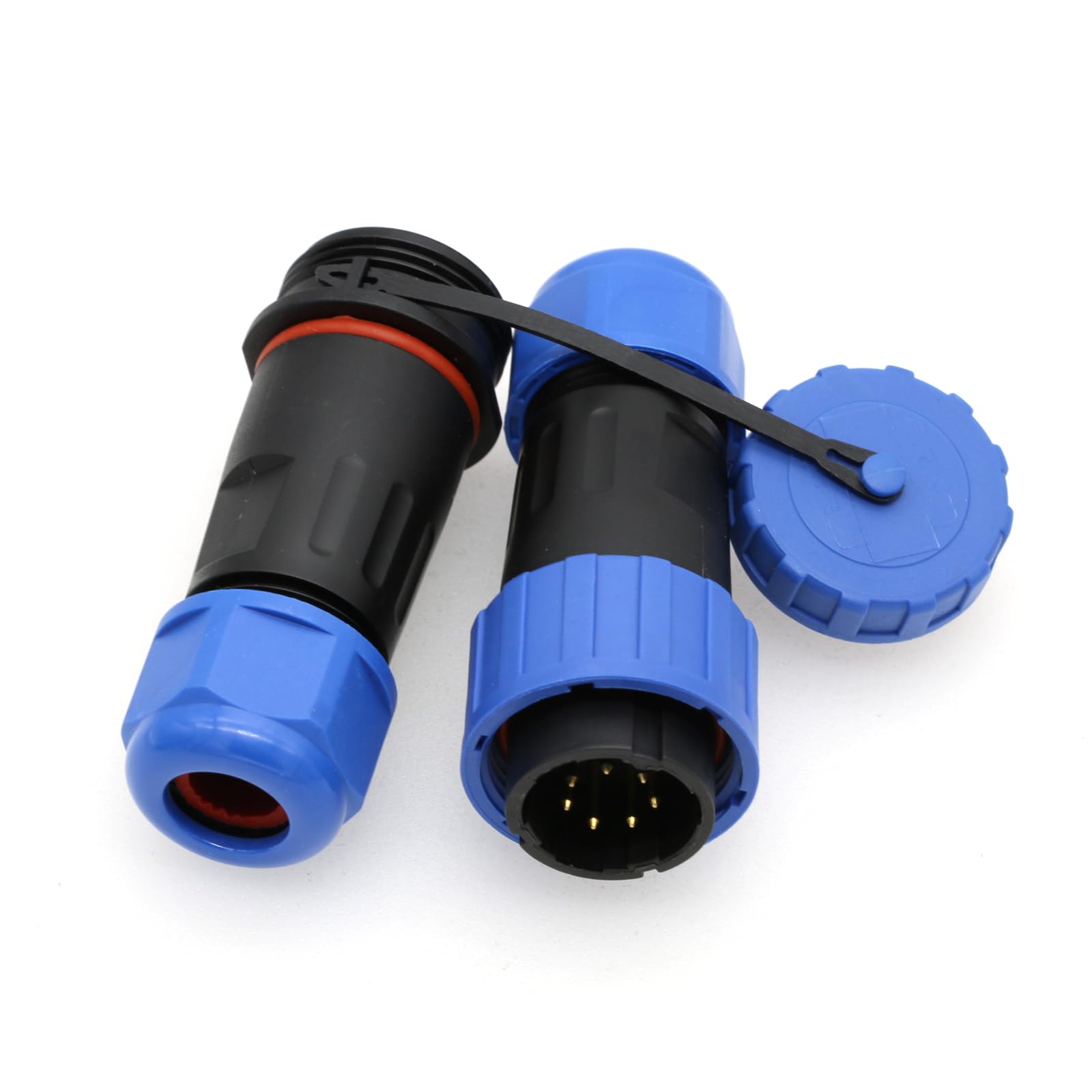

ZBLZGP TY20 7 Pin 5A Solderless Aviation Waterproof Plug

• TY20 7 Pin Waterproof No Welding Plug Screw Crimping Male Female Socket Plug Electric Cable Connector.Applicable Wire Outer Diameter Range: 6.0~11.5mm.
• Rated current/voltage: 5 A/250 V; standing voltage: AC 1500 V; contact diameter: Φ1 mm x 7; contact resistance: 5 mΩ; insulation resistance: 2000 mΩ; wire thickness: 0.75 mm²/18AWG.
• Housing material: thermoplastic PA66; insulator: thermoplastic PPS high temperature resistant 200°C; contact material: brass with gold plating; sealing ring: silica gel; connection: threaded connection. Connection mode: solderless
• Connection mode: solderless screw connection; temperature range: -25°C - 85°C; plug-in times: more than 500 times. Threaded wiring for more comfort, efficiency and repeated use.
• TY series connector: docking direct use, no need to fix the installation; rear nut need to open the hole, nut fixed installation; flange and square need to open the mounting and screw holes, fixed installation with screws. Use of high quality solid copper, high conductivity, corrosion and oxidation resistance.

Tips: As a professional connector and cable manufacturer, we produce and sell cost-effective cables and connectors. Our products and service would earn your trust and satisfy your demand. In addition, we offer you a discount if you order a large amount of plugs and cables. If you are interested in them, please feel free to contact us, thank you!
