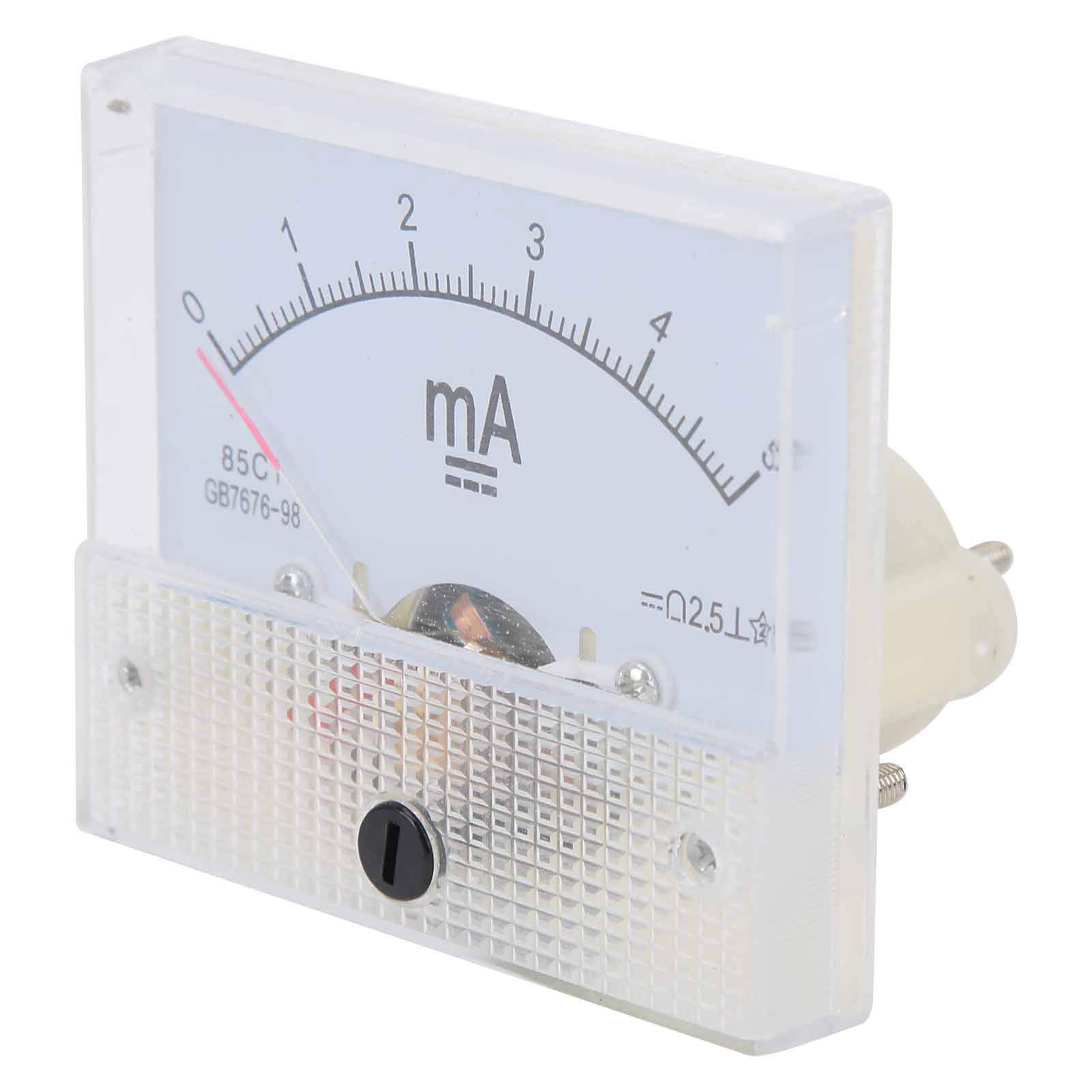

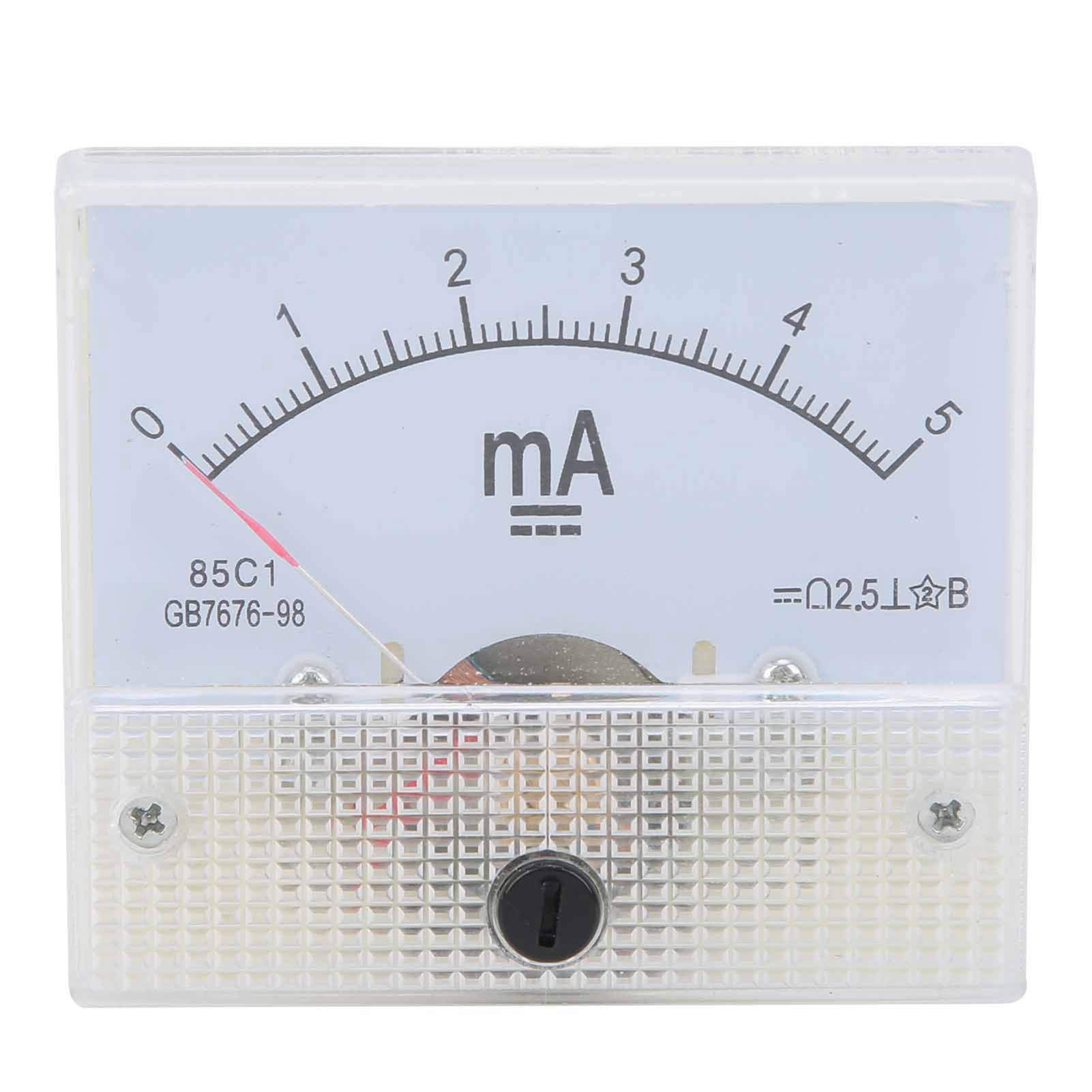

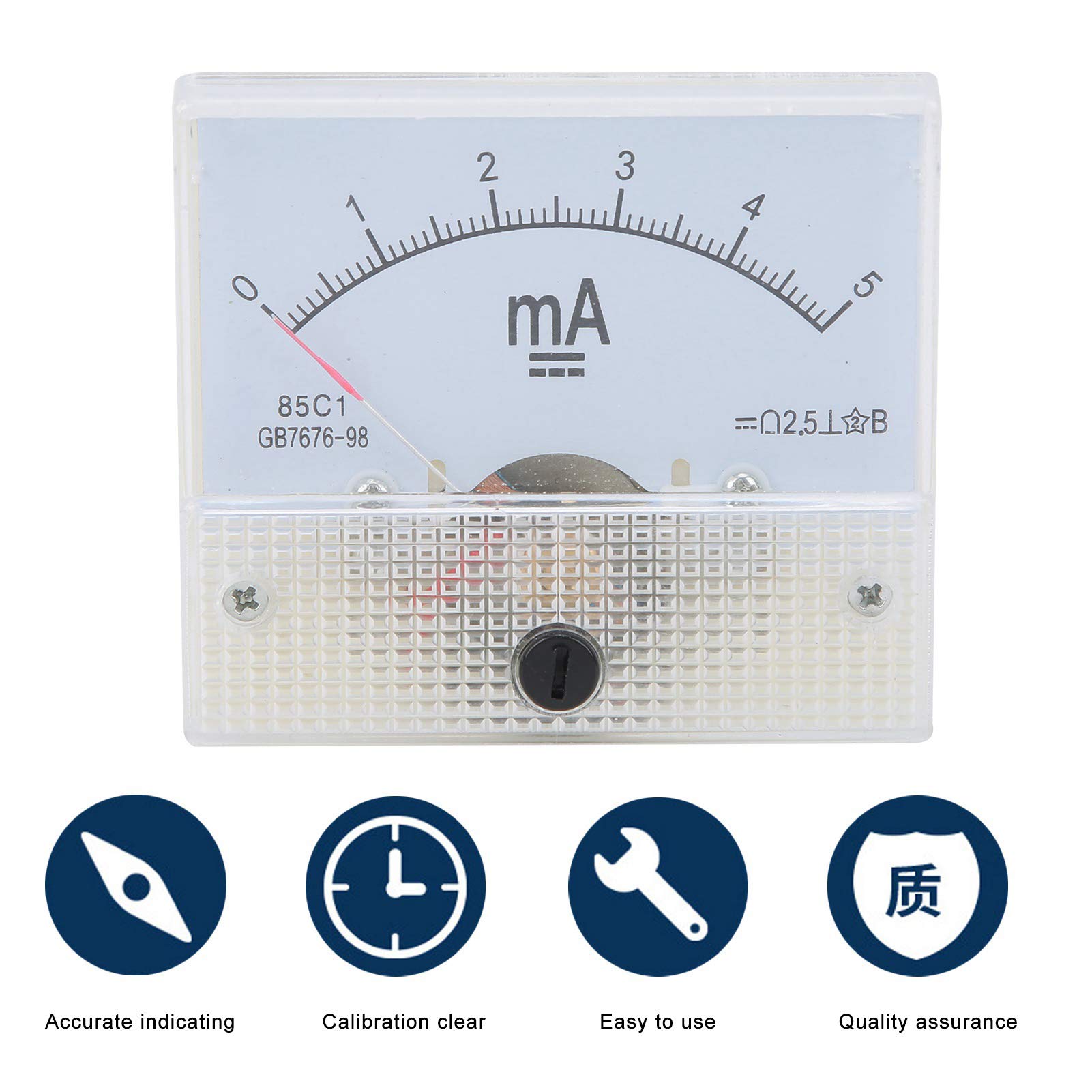

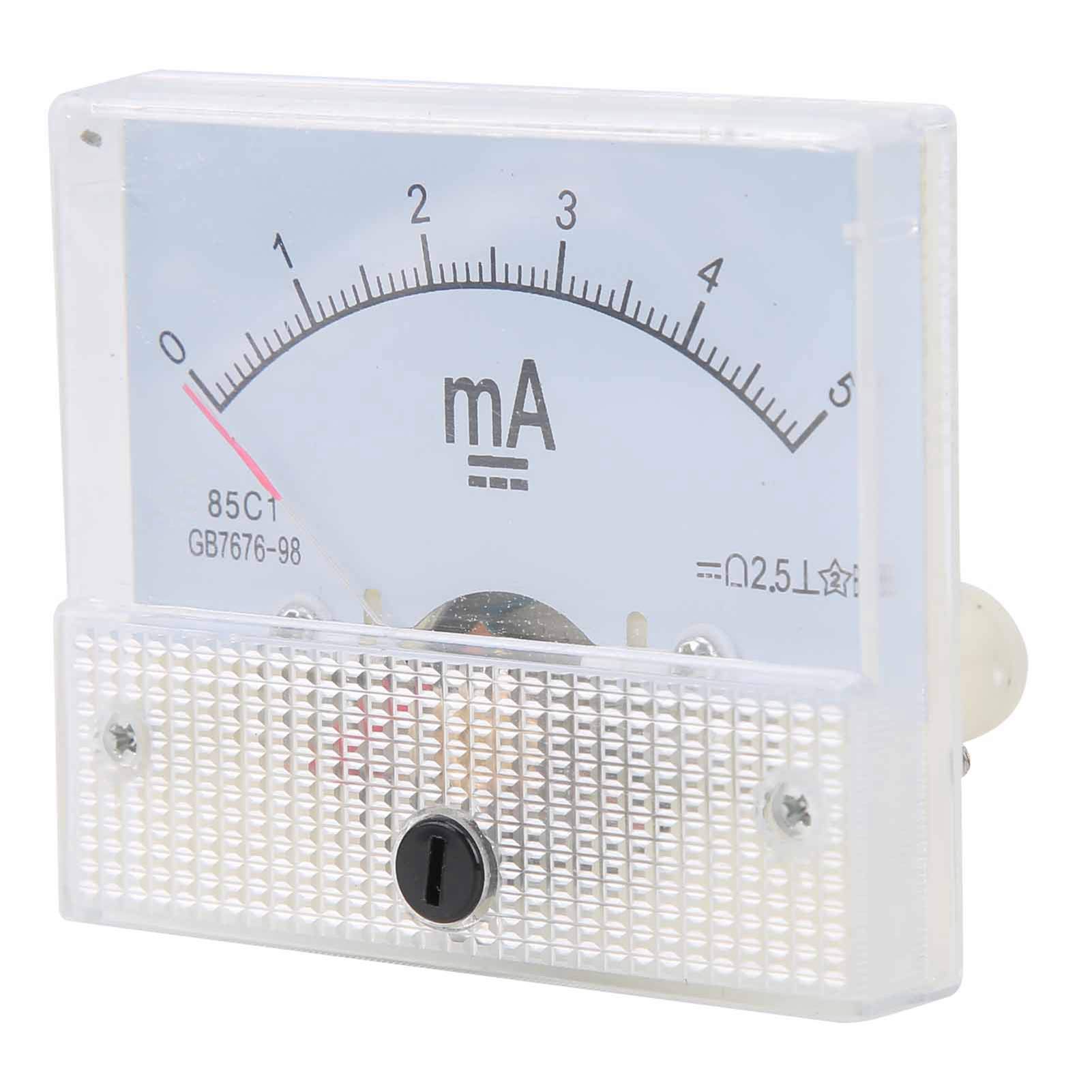

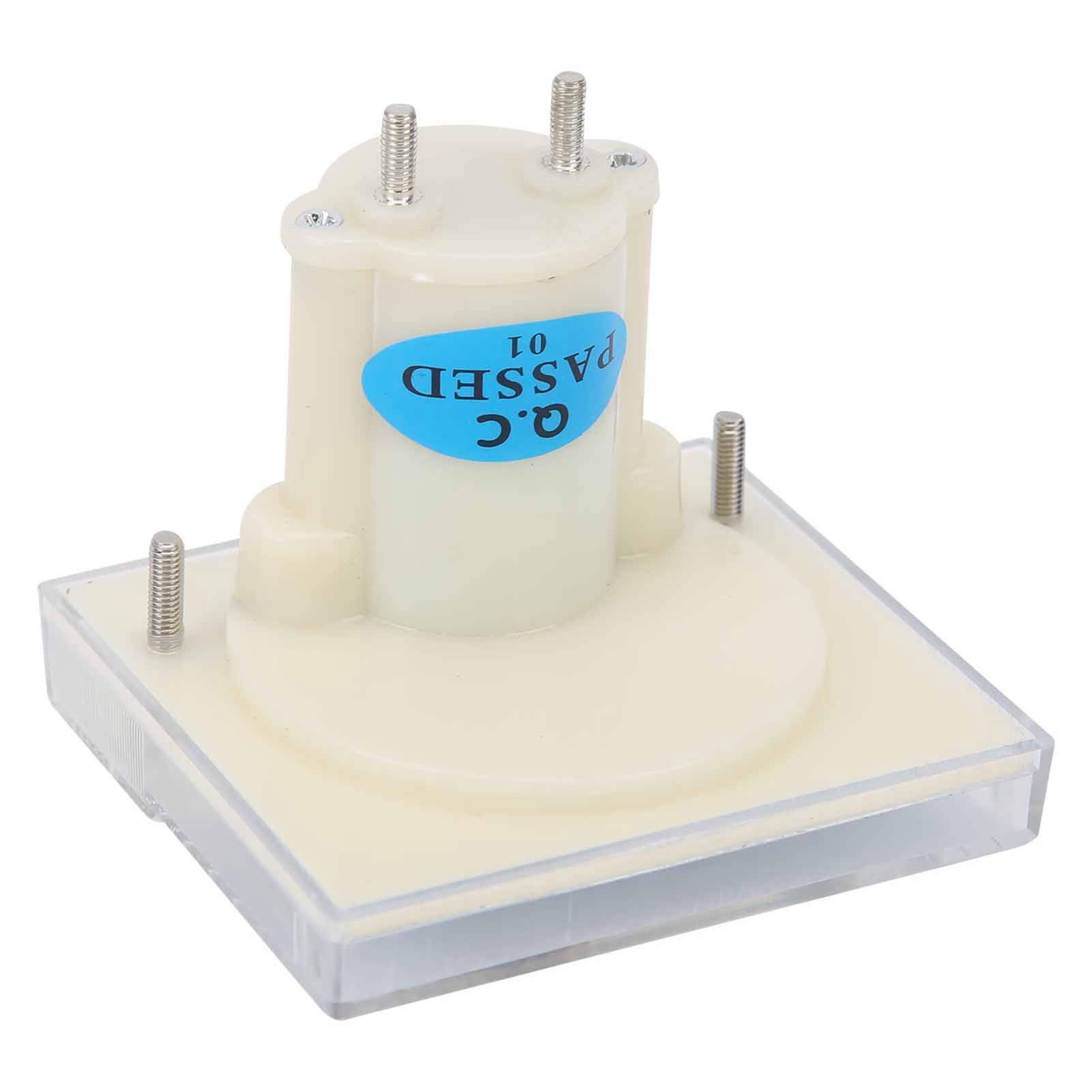

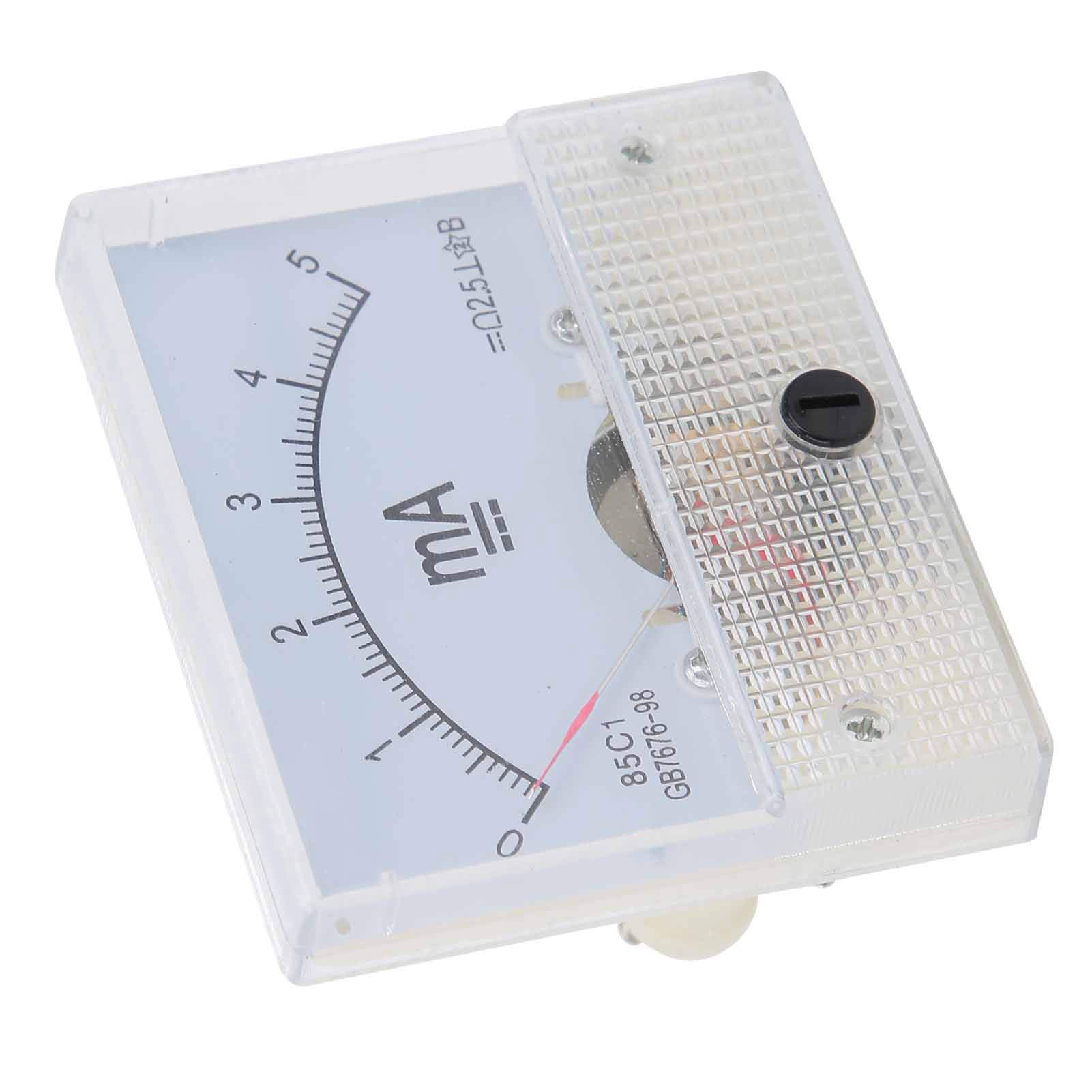

85C1 Analog Current Panel Meter DC 0‑5MA Pointer Amp Ammeter Gauge Meter for Electrical Equipment

• 【CLEARLY VISIBLE】--The dial's silk‑printed scales are clearly visible, with black characters on a white background, red pointers, color contrast.
• 【WIDE APPLICATION】--Analog current panel meter is suitable for voltage stabilizers, power distribution cabinets, and test benches.

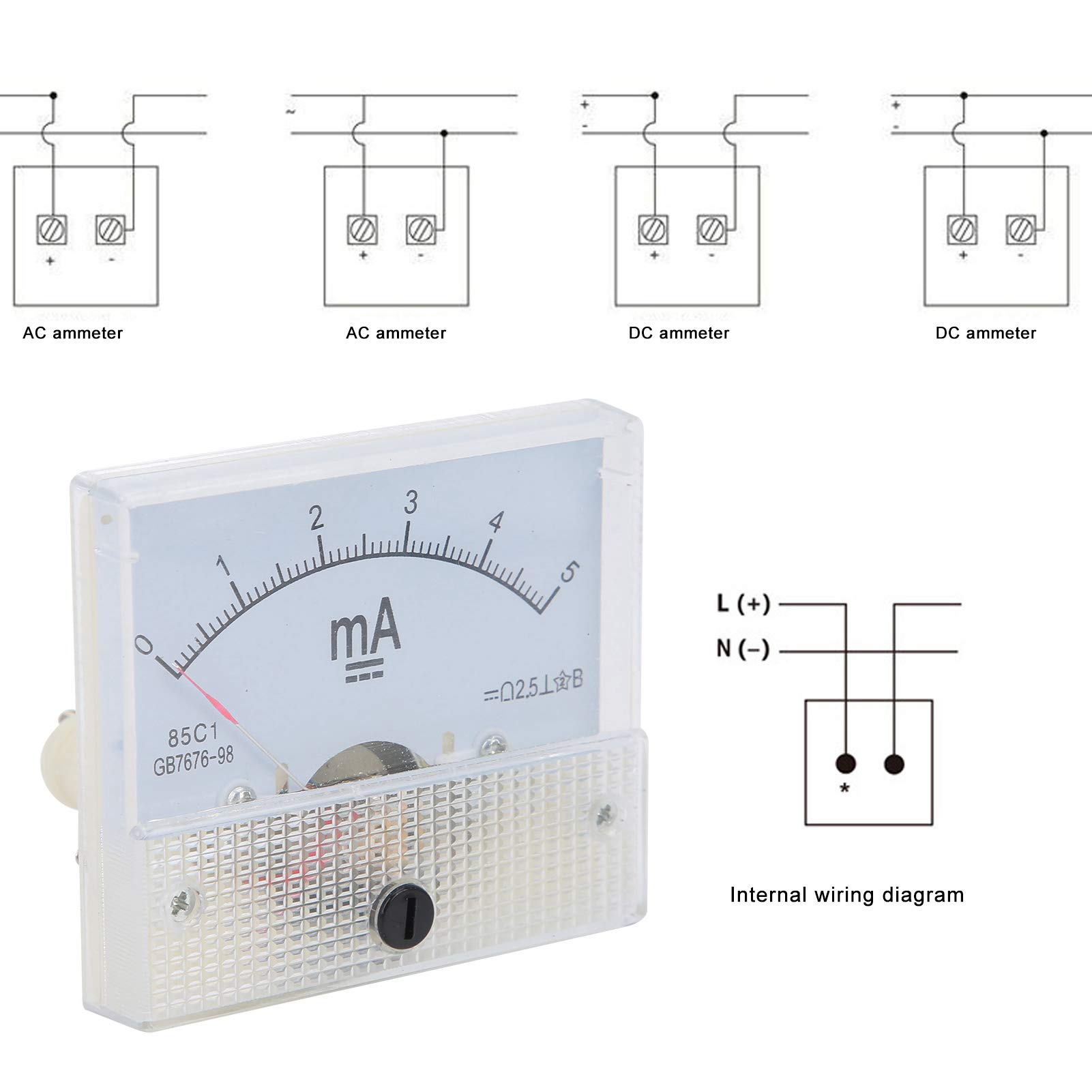

• 【QUALITY ASSURANCE】--The wiring terminal is simple and convenient, embedded installation, beautiful and generous, and quality assurance.
• 【HIGH QUALITY ABS MATERIAL】--Adopts high quality ABS material, durable and sturdy, strong anti - interference ability, anti - shock, can be used for a long time.
• 【APPLICATION】--It can be used on some electrical equipment and electrical equipment in the power transmission and distribution system.

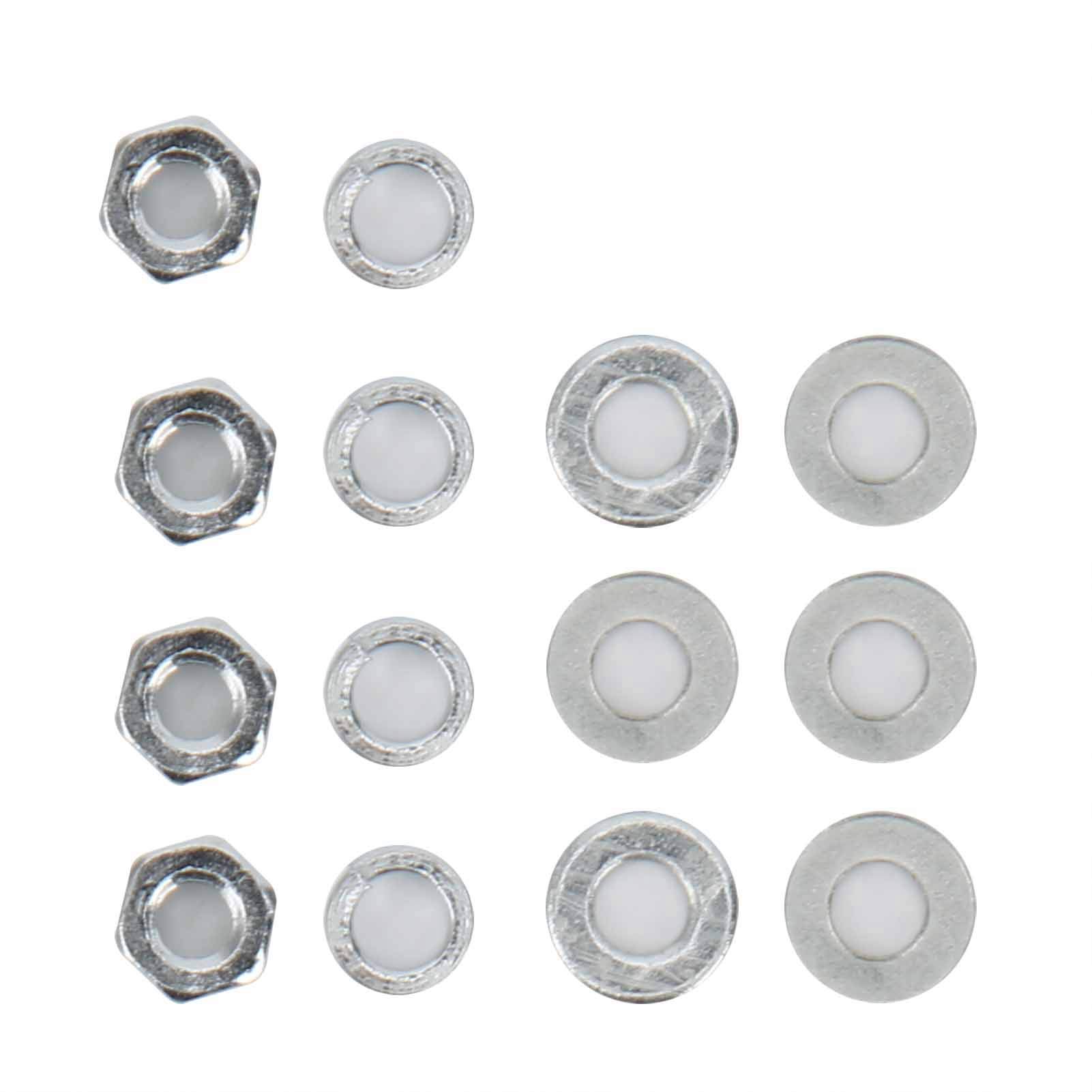

Specification: Item Type: Pointer Current Meter Material: ABS Color: As Picture Shown Weight: Approx. 69.0g/2.4oz Model: 85C1-A DC 0~5MA Accuracy Grade: ±2.5% Insulation Resistance: >20MΩ / DC500V Damping Time: Less Than 4s Product Use: Measuring line current Installation Method: Suitable for vertical installation (except for special regulations) Storage Temperature: -40℃-70℃ Working Temperature: -20℃-40℃, Relative Humidity ≤85% Insulation Strength: can withstand a voltage withstand test of 50Hz sine wave AC 2kv voltage lasting 1min Use Scenarios: Voltage stabilizer, power distribution cabinet, test bench Package List: 1 x Pointer Current Meter 4 x Stainless Steel Nut 4 x Elastic Washer 6 x Flat Gasket
