7inch Touchscreen Display for Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+, DSI Interface, 800x480 Capacitive TFT Screen, Support Raspberry Pi OS/Ubuntu/Kali/WIN10 IoT and Retropie, up to 5-points Touch

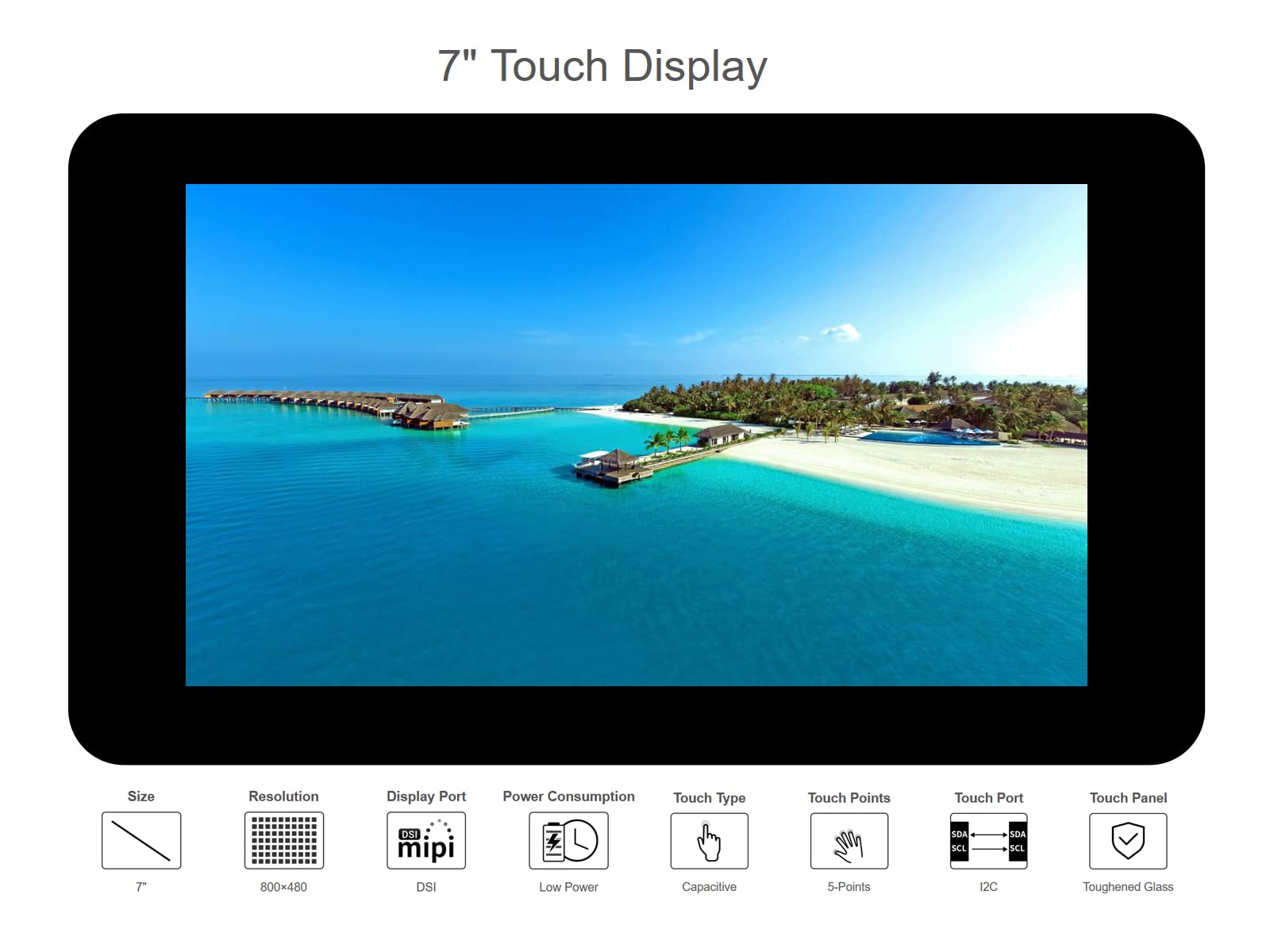

• 7inch touchscreen dispaly for Raspberry Pi, DSI interfac, TFT screen, 800x480 hardware resolution, toughened glass capacitive touch panel, support up tp 5-points touch, driver free
• 7inch DSI LCD supports Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+. Another adapter board is required for CM3/3+/4
• Supports Raspbian, 5-points touch; Supports Ubuntu / Kali / WIN10 IoT, single point touch; Supports Retropie, driver free
• Driven directly through Raspberry Pi's DSI interface, refresh rate up to 60Hz

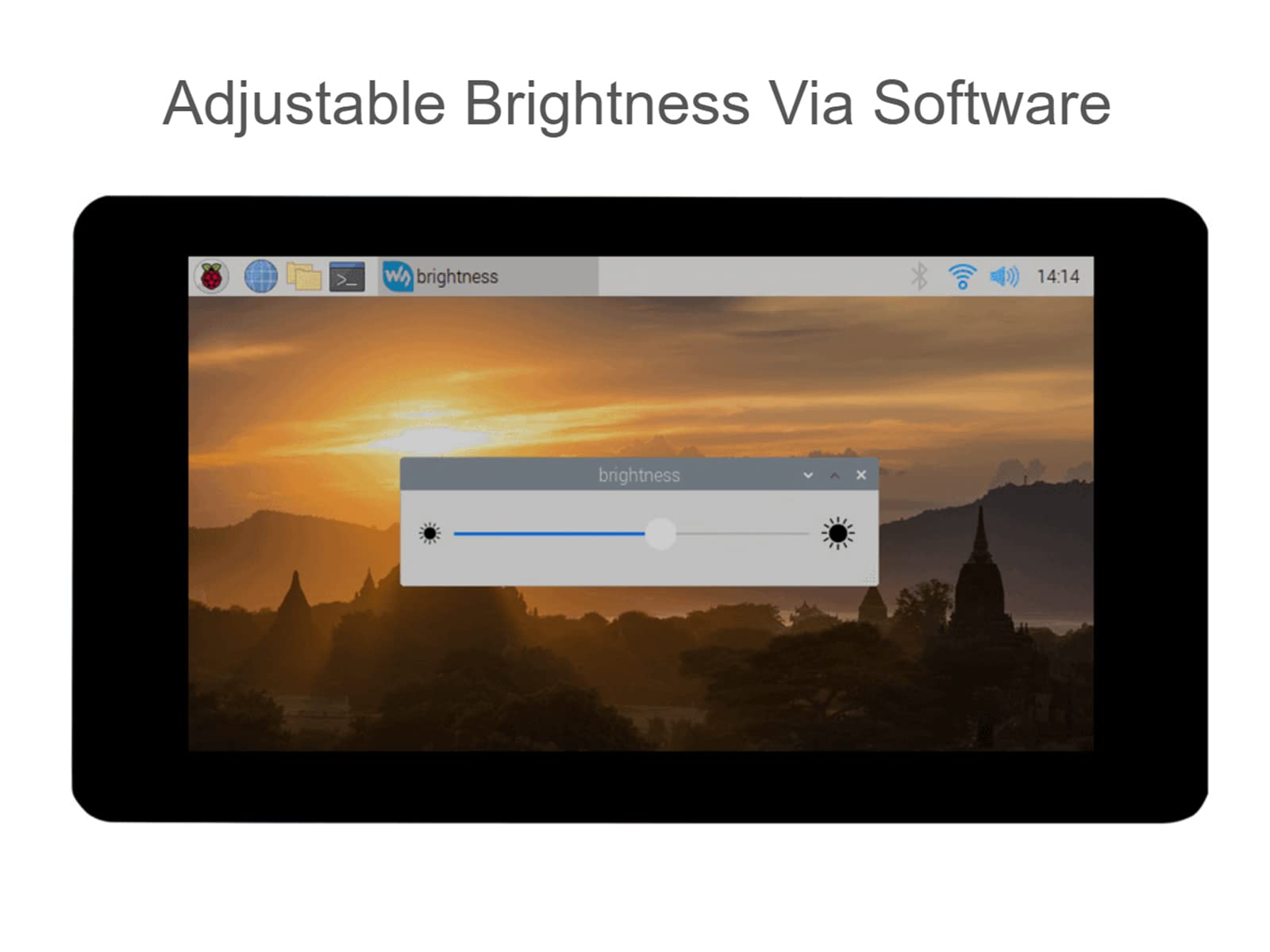

• Support backlight adjusts by software
• raspberry pi 7inch touchscreen dsi lcd display 800x480 7inch capacitive touch screen monitor Raspbian 7inch dsi lcd touch display tft screen

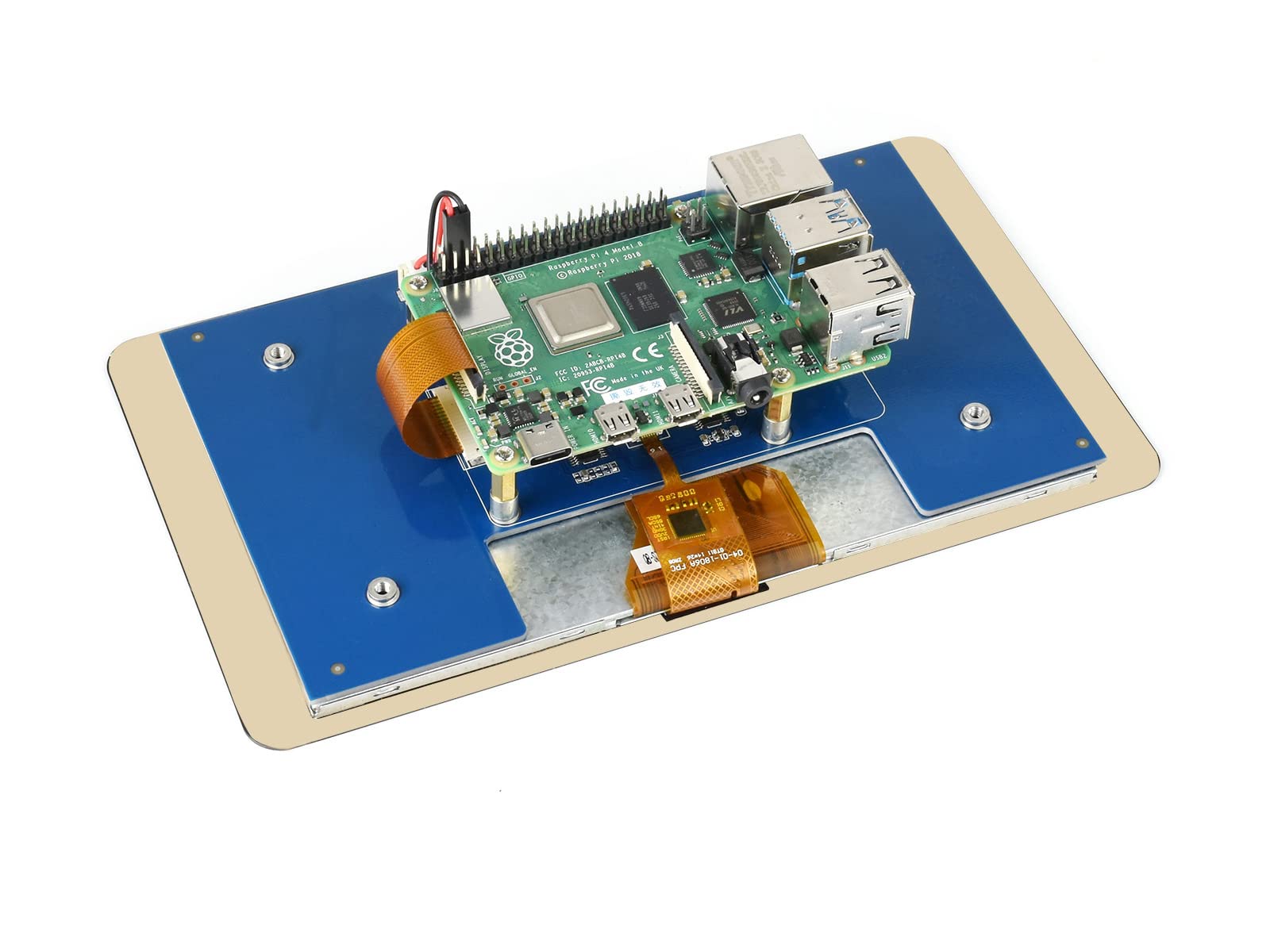

User guide 1. Hardware connection 1) Connect the DSI interface of 7inch DSI LCD to the DSI interface of Raspberry Pi through 15PIN FPC cable. 2) Use the 2PIN power cable to connect the power interface of the LCD to the 40PIN GPIO interface of the Raspberry Pi. 3) For easy use, you can fix the Raspberry Pi on the backside of the 7inch DSI LCD with screws. 2. Software setting 1) Download image from the Raspberry Pi website. 2) Download the compressed file to the PC, and unzip it to get the .img file. 3) Connect the TF card to the PC, use SDFormatter.exe software to format the TF card. 4) Open the Win32DiskImager.exe software, select the system image downloaded in step 2, and click ‘Write’ to write the system image. 5) After the image has finished writing, save, and quit the TF card safely. 6) Power on the Raspberry Pi and wait for a few seconds until the LCD displays normally. And the touch function can also work after the system starts. 3. Backlight Controlling 1) Open a terminal and type the following command to adjust the brightness. Note: If the command reports the 'Permission denied' error, please switch to the 'root' user mode and execute it again. echo X > /sys/class/backlight/rpi_backlight/brightness X can be value in range 0~255. The backlight is darkest if you set it to 0 and the backlight is set to lightest if you set it to 255 echo 100 > /sys/class/backlight/rpi_backlight/brightness echo 0 > /sys/class/backlight/rpi_backlight/brightness echo 255 > /sys/class/backlight/rpi_backlight/brightness NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem! 4. Package Content 1) 7inch DSI LCD x1 2) FPC 15PIN 1.0 pitch 50mm (opposite sides) x2 3) PH2.0 2PIN wire 10cm x1 4) Screws pack x1
