5 PCS Servo Motors Kit Mini for Fixed Wing Helicopter Model QC Standard Steering Gear Car Boat Remote Control Blue

• 9G micro servo motor for remote control helicopters, micro robot, robot arm and boats. Fit for ALL kinds of R/C Toys and also make electronics DIY compatible with Arduino, Raspberry Pi.

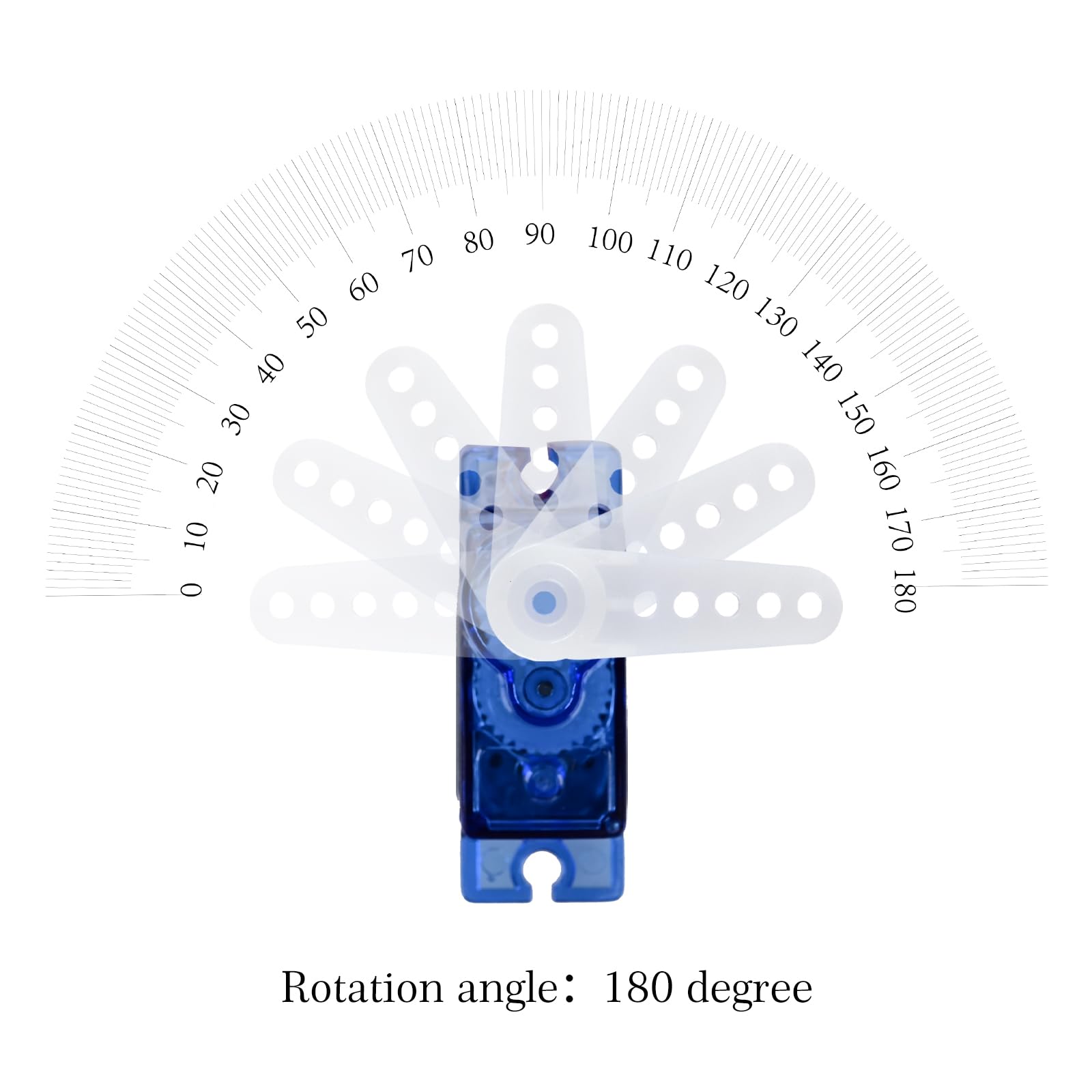

• Compatible with JR & FUTABA interface. Running Speed (at no load): 0.09 ± 0.01 sec/60°(4.8V ) 0.08 ± 0.01 sec/60°(6V). Running angle: 180 degree.
• servo motor compatible with the project like Robot Arm/ Robot hand/ control the servo with potentiometer/ multi servo control.

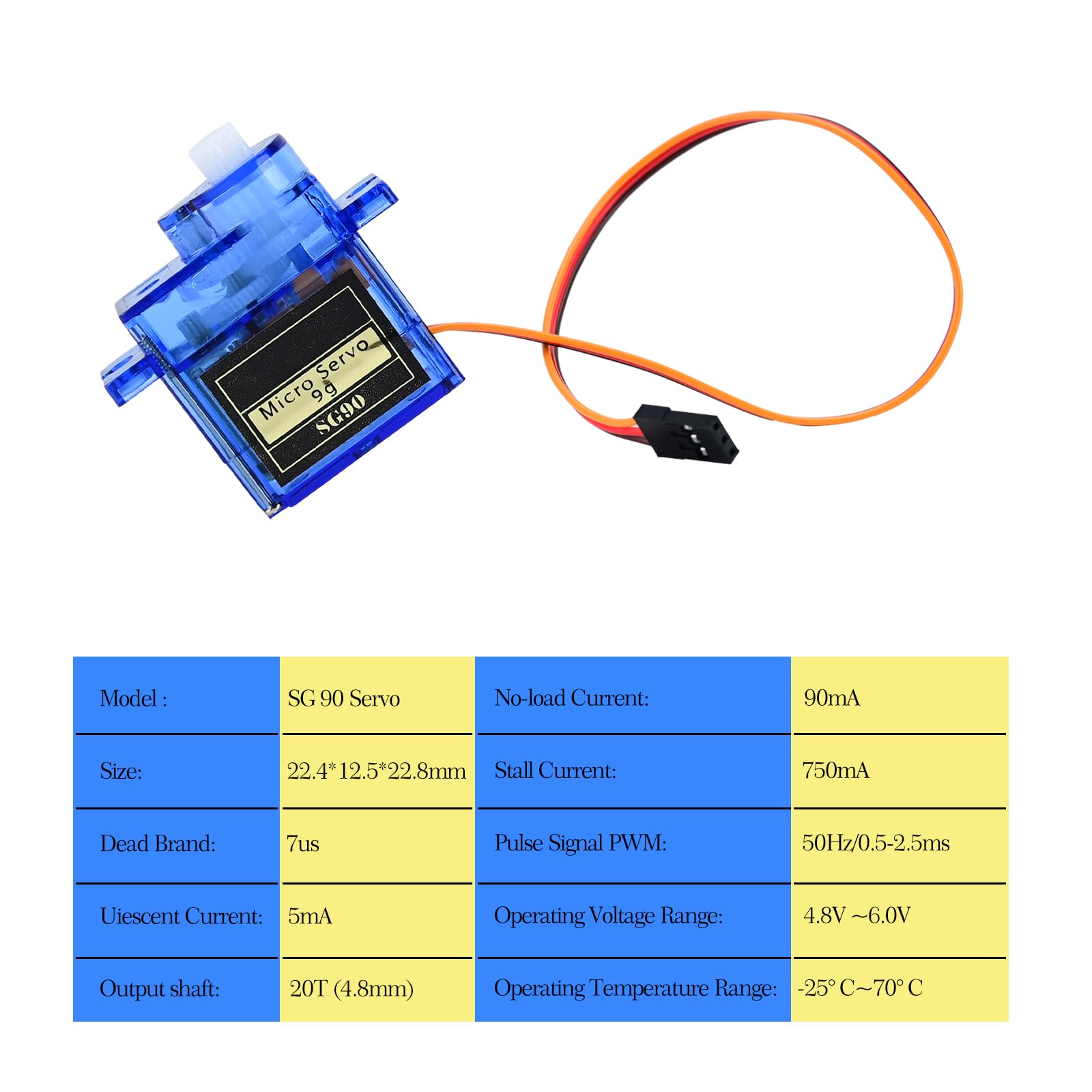

• Micro Servo Motor Stall Torque (4.8V): 17.5oz /in (1kg/cm). Dead band width: 7usec. Operating Voltage: 4.8V～6.0V.
• Mini servo is tiny and lightweight with high output power.Recommended only for ordinary small electric aircraft models.

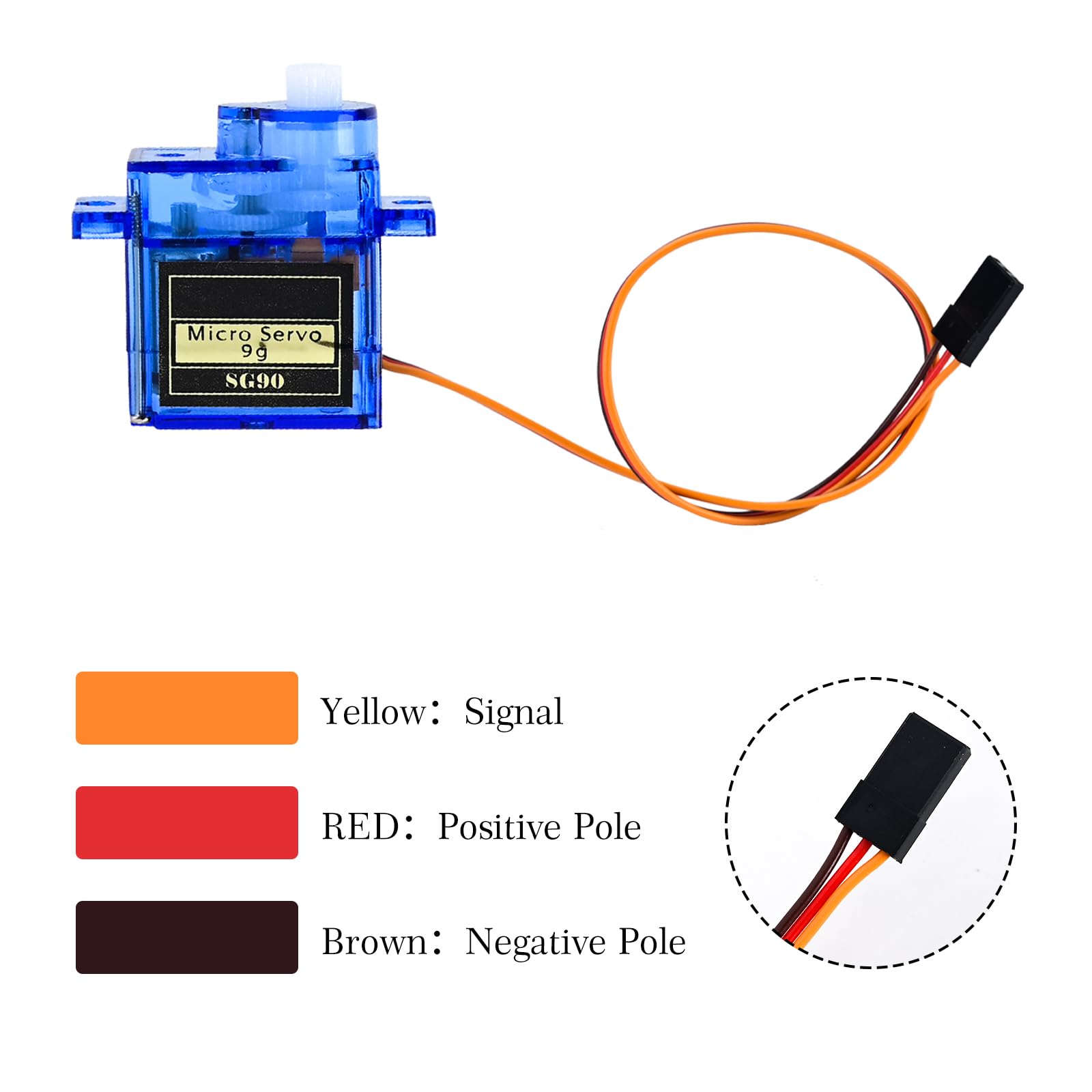

3 wire interfaces in which the connections should be made as follows: Red wire-5V, Brown Wire-Ground, Yellow wire-digital pin 9. Operating speed: 0.12second/ 60degree ( 4.8V no load) ; 0.10 seconds / 60 degrees (6.0 V) Stall Torque (4.8V): 17.5oz /in (1kg/cm) Operating voltage: 3.0V~ 6V Temperature range: -30 to +60 Dead band width: 7usec No Load Running Speed: 0.09±0.01 sec/60° at 4.8V Rotary Angle: 180°
