4G / 3G HAT for 4/3/2/B+, Support LTE for Downlink Data Transfer, 4G Connection, Making Call, Sending SMS, for Micro USB PC/Laptop

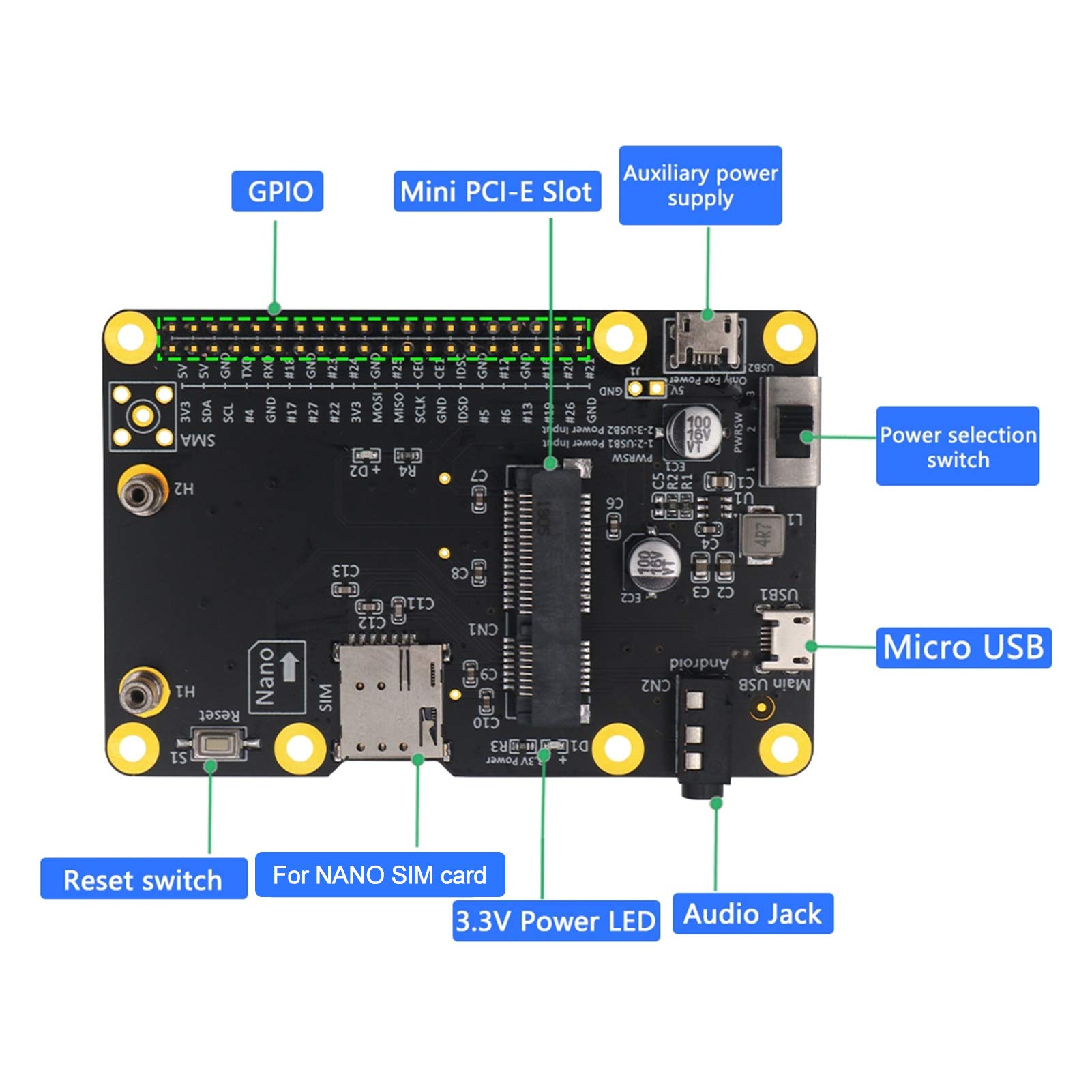

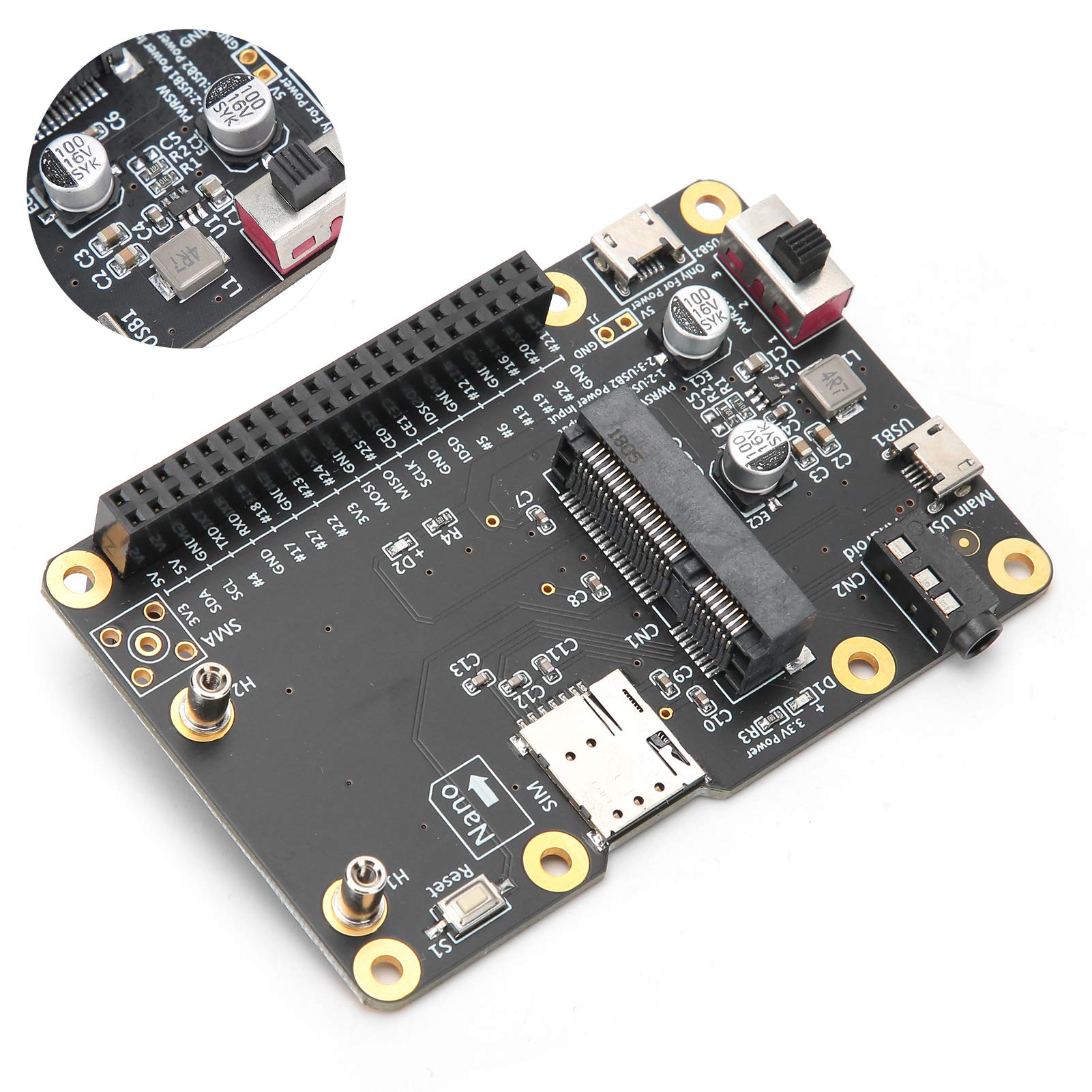

• Totally compatible with for 4/3/2/B+ models with the 40-pin GPIO header
• Clipin mini PCIE socket is compatible with worldwide LTE, for UMTS/HSPA+ and for GSM/GPRS/EDGE coverage with regional or global modules which work with different frequencies and carriers
• For NANO SIM card socket can easily reachable from the upside of the HAT
• Can be used standalone with PC/Laptop over micro USB without stacking with for
• Efficient and low quiescent current power circuit can support up to 3Amps

Specification: Item Type: 3G/4G LTE Base Hat Working Temperature Range: -40 ~ 80 Compatible with the Following Brand Boards: 1.For 4, 3, 2, B+ 2.For Tinker Board 3.For Rock 64 4.For ARTIKs Board 5.For Latte Panda Compatible with the Following Brand Mini PCI-E Modules: For Quectel: EC25/EC21/ EC20 /UC20/ LTE-EP06 For Sierra: AirPrime MC Series For LM960, LE910V2, HE910, LE910Cx For ME909s-120, ME909s-821, etc. For Simcom: SIM7100, SIM7230, etc. For ZTE: ZM8620, etc. For U-Blox: MPCI-L2 Series For Thales: PLS62W, mPLS8, mPLAS9 Size: Approx. 85 x 55mm / 3.3 x 2.2in 25mm / 1in Package List: 1 x 3G/4G LTE Base Hat 1 x USB 2.0 to Micro USB Cable 1 x Screw Driver 1 x Accessories Package 1 x User Manual
