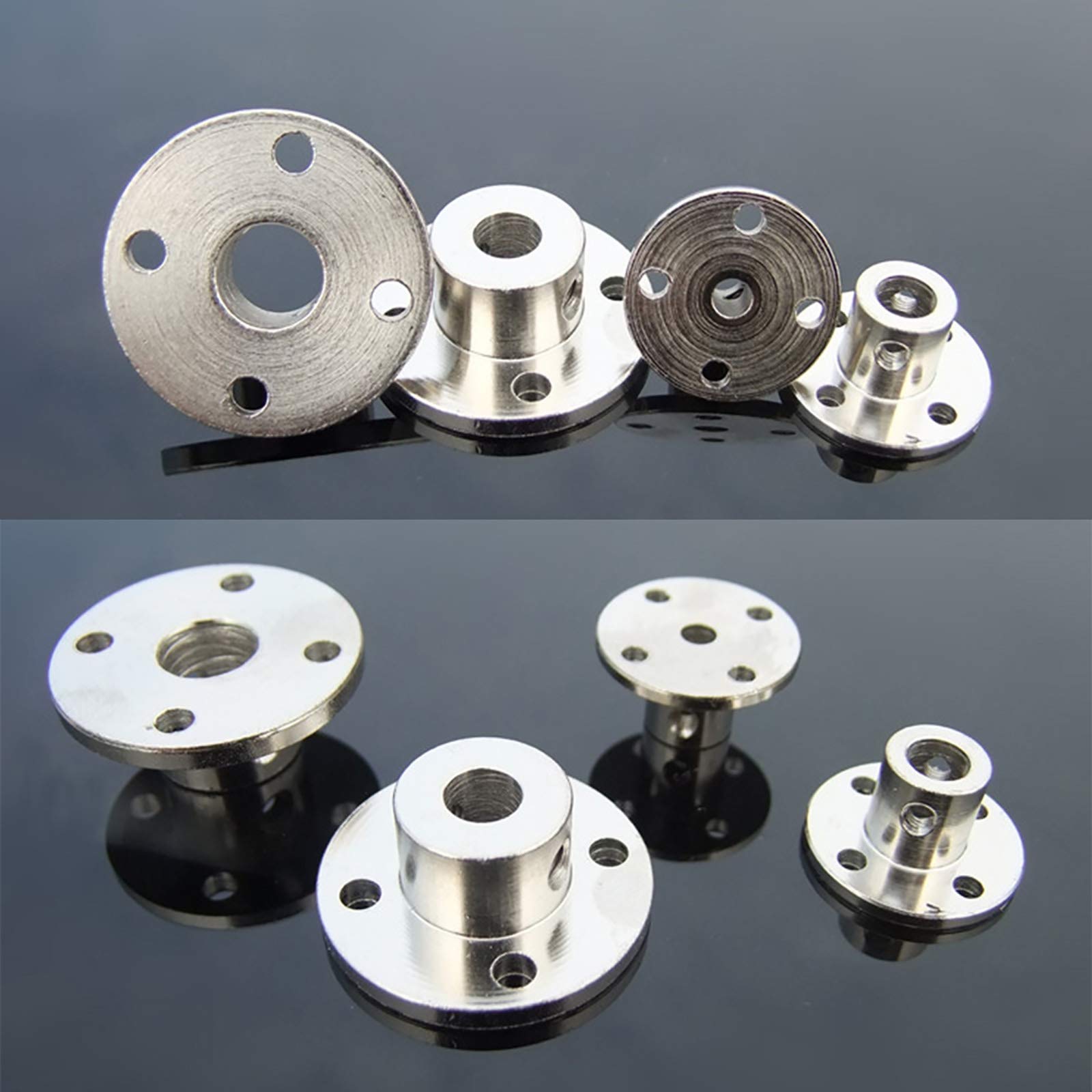

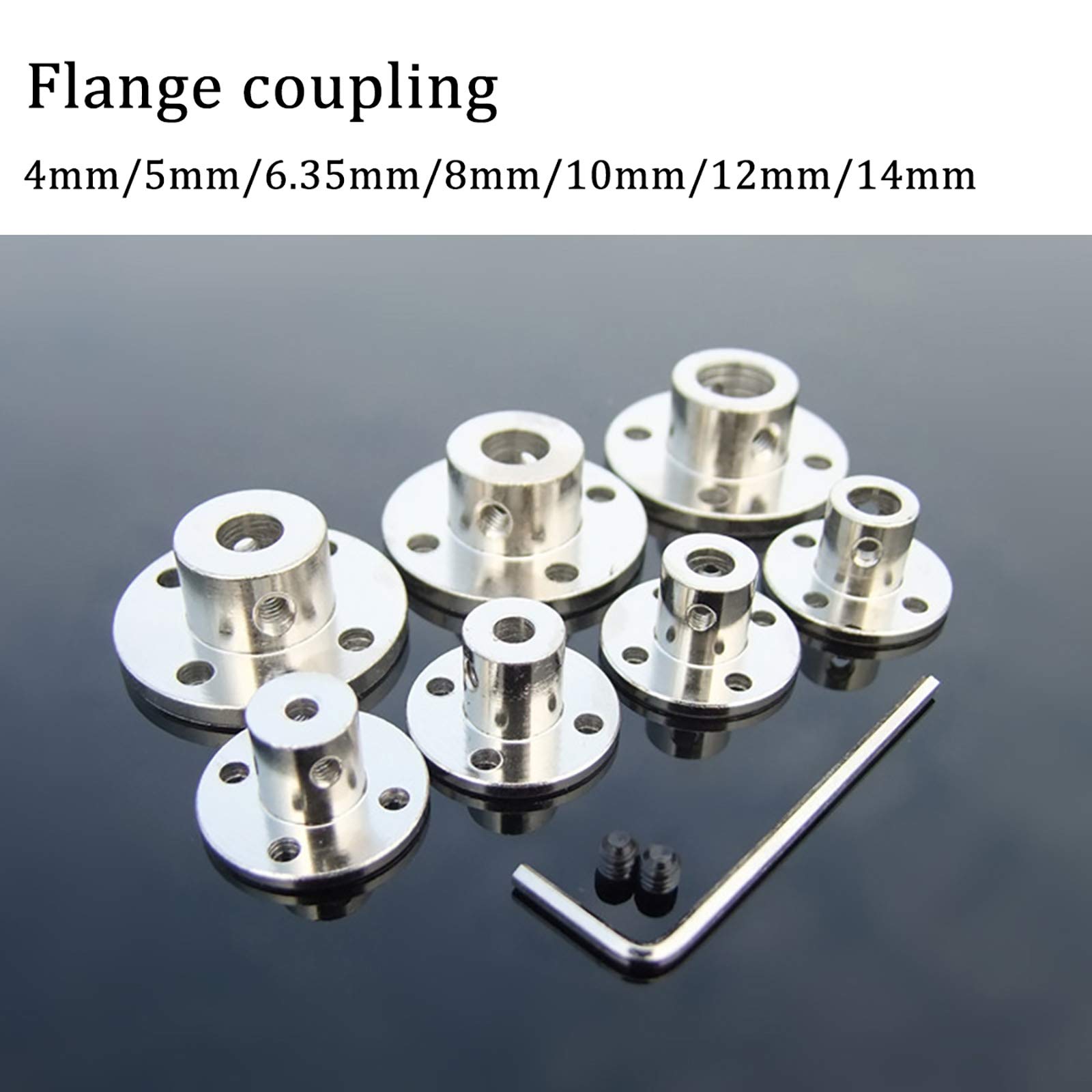

4/5/6.35/8/10/12/14mm Rigid Flange Coupling Motor Guide Shaft Coupler Motor Connector

• ✔Flange coupling is made of 45# steel, heat and electroplated process make it sturdiness and insulation.
• ✔Flange coupling rigid flange disc shaft couplings optical axis easy for installment and replacement.
• ✔Nominal torque: 100 N.m. Shaft hole: 8mm. Dimensions: 16mm. Allowable speed: 10000 r/m. Aperture: 8mm.
• ✔A special coupler, which can fix one shaft to a plane and install other parts on the shaft easily. This seat could make your shaft more stable.
• ✔Widely used in model shaft connection, perfect accessories for RC Model motor.

Features: Flange Coupling Rigid Flange Disc Shaft Couplings Optical Axis Support Fixed Seat. Easy to install and replace. Durable and insulation. This seat could make your shaft more stable. Specifications： Material: 45# steel Nominal torque: 100 N.m Shaft hole: 8mm Dimensions: 16mm Allowable speed: 10000 r/m Aperture: 8mm Inner diameter: 4mm, 5mm, 6.35mm Cylindrical outer diameter: 10mm Cylinder height: 10mm Overall height: 12mm Fixed hole screw: M3 Fixed Hole Distance: 16mm Inner diameter: 8mm, 10mm, 12mm Cylindrical outer diameter: 18mm Cylinder height: 10mm Overall height: 13mm Fixed hole screw: M4 8mm/10mm Fixed Hole Distance: 24mm 12mm Fixed Hole Distance: 26mm Inner diameter: 14mm Cylindrical outer diameter: 19mm Cylinder height: 10mm Overall height: 13mm Fixed hole screw: M4 Fixed Hole Distance: 26mm Package includes： 1 × Coupler 1 × wrench 2 × Screw
