381-B Floor/Shower Drain 122 x 122 mm Stainless Steel DN 50 Traps Odour

• Attachment piece can be rotated and universally shortened from 75 to 25 mm
• Stainless steel grate: 122 x 122 mm

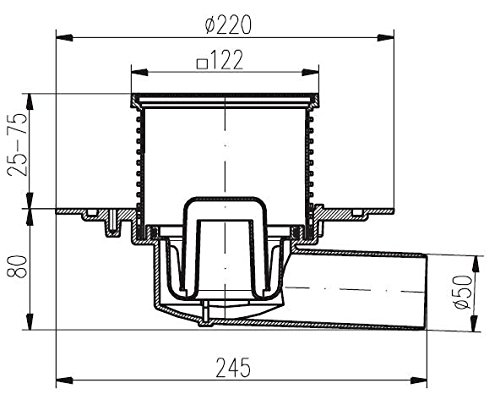

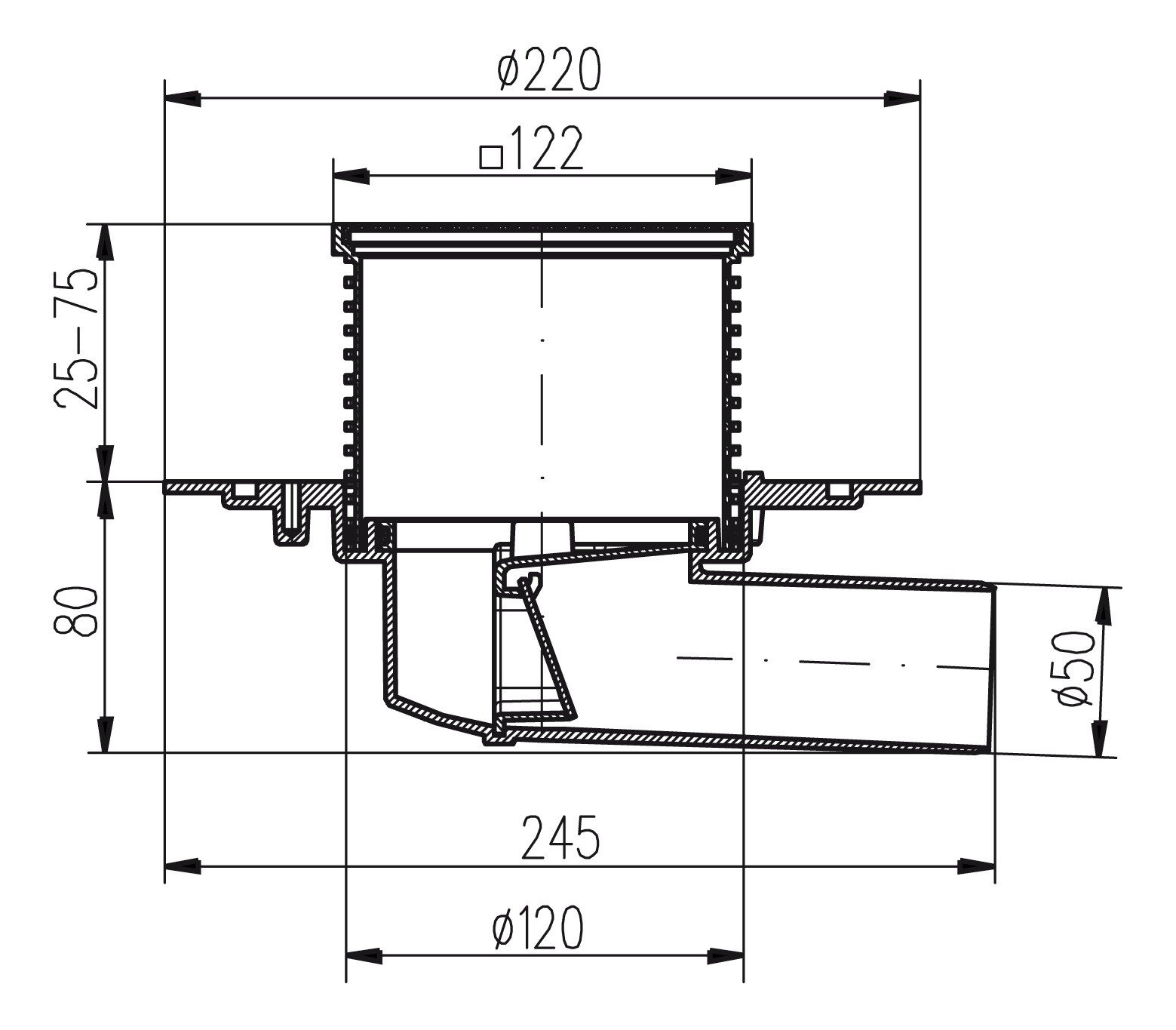

• Installation height incl. Rust: min. 105 mm to max. 155 mm
• Made of polypropylene - standard EN 1253-1 and stainless steel
• Load K3-300 kg

Shower drain, bath drain, floor drain, order no. : 381-B safety and ISO certified by TÜV SÜD. With sealing flange incl. Stainless steel screws for waterproof connection to the surface horizontal outlet - DN-50: 50 mm. Universal DN-50 with stainless steel grate (122 x 122 mm and 1.5 mm thick). Equipped with 2 interchangeable odour traps and hair strainer: 1 x dry flap (empty, therefore frost-proof especially for outdoor use), 1 x syphon system (residual water prevents odour leakage), so for use both indoors and outdoors. Flexible Can be shortened from 75 to 25 mm. Installation height incl. Rust: min. 105 mm to max. 155 mm. Made of polypropylene. Standard EN 1253-1 and stainless steel. Load capacity K3-300 kg. Heat resistance up to 90 °C. Flow rate 80 l/min. Dry seal. Flow rate 50 l/min. Water closure. An assembly video can be found on youtube.de under the search term 'PVBU' (film titled 'Podlahohoho). à VPPust´bocni univerzálni PVBU 381') also order the sealing film/hydro insulation film suitable for the drain in our shop. #supremeWidgetFooter216725 {padding: 5px 0px 0px 0px; font family: Arial, Helvetica, sans-serif;} #supremeWidgetFooter216725 p {float: left; font-size: 8px; colour: #FFF; margin: 0px; padding: 5px 0px 0px 0px;} #supremeWidgetFooter216725 a,#supremeWidgetFooter216725 a:visited {font-size: 12px !important; text-decoration: none;} #supremeWidgetFooter216725 a:hover {text-decoration: underline;} #supremeWidgetFooter216725 img {float: right;}#supremeWidgetFooter216726 {padding: 5px 0px 0px 0px; font family: Arial, Helvetica, sans-serif;} #supremeWidgetFoo
