36V 35A 10S Li-ion Battery Board P CB Fit for Ternary Cobalt Cells with Balancing, Power Inverters

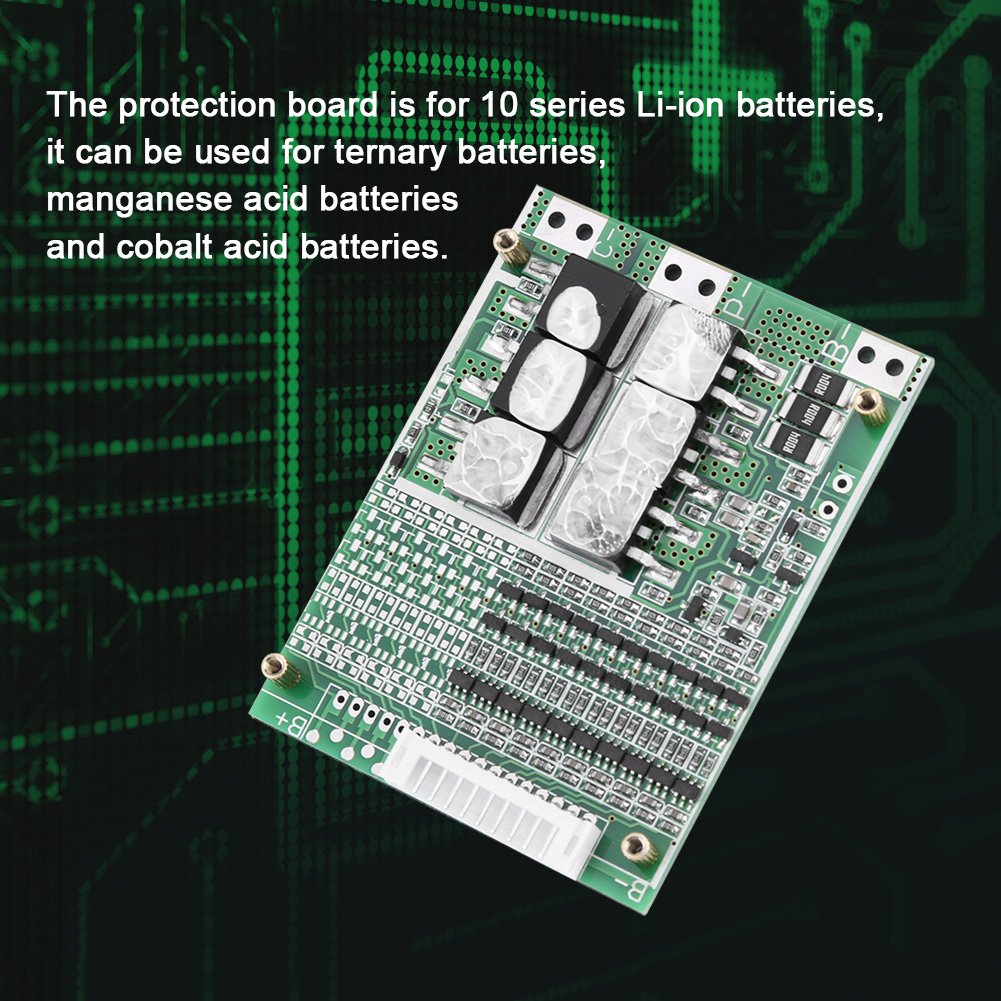

• The board is suitable for 10-cell lithium-ion batteries, and can be used for ternary batteries, manganese acid batteries and cobalt acid batteries.

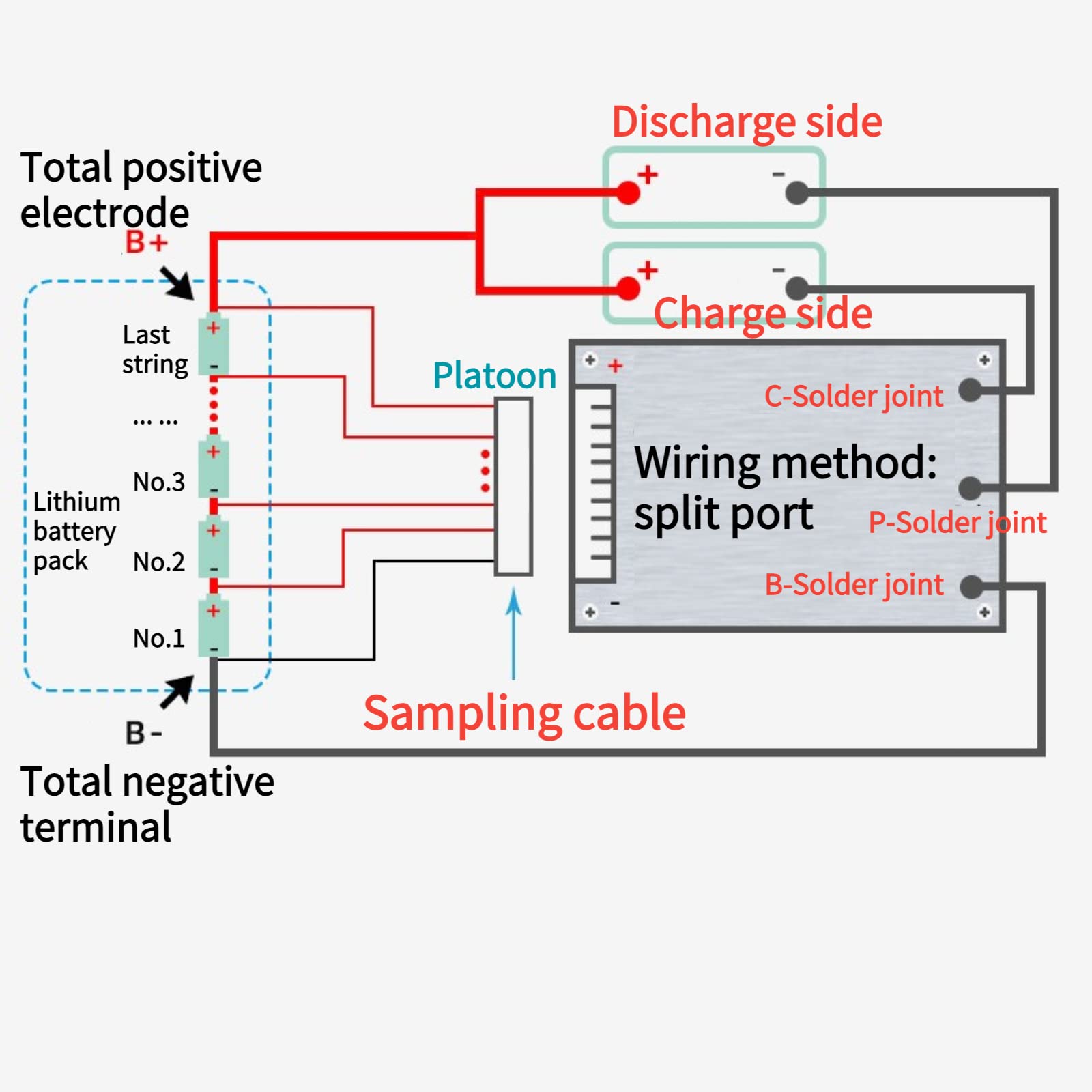

• The charging connector and the discharging connector are separated, and the discharge current is 35A. To provide you with a choice.

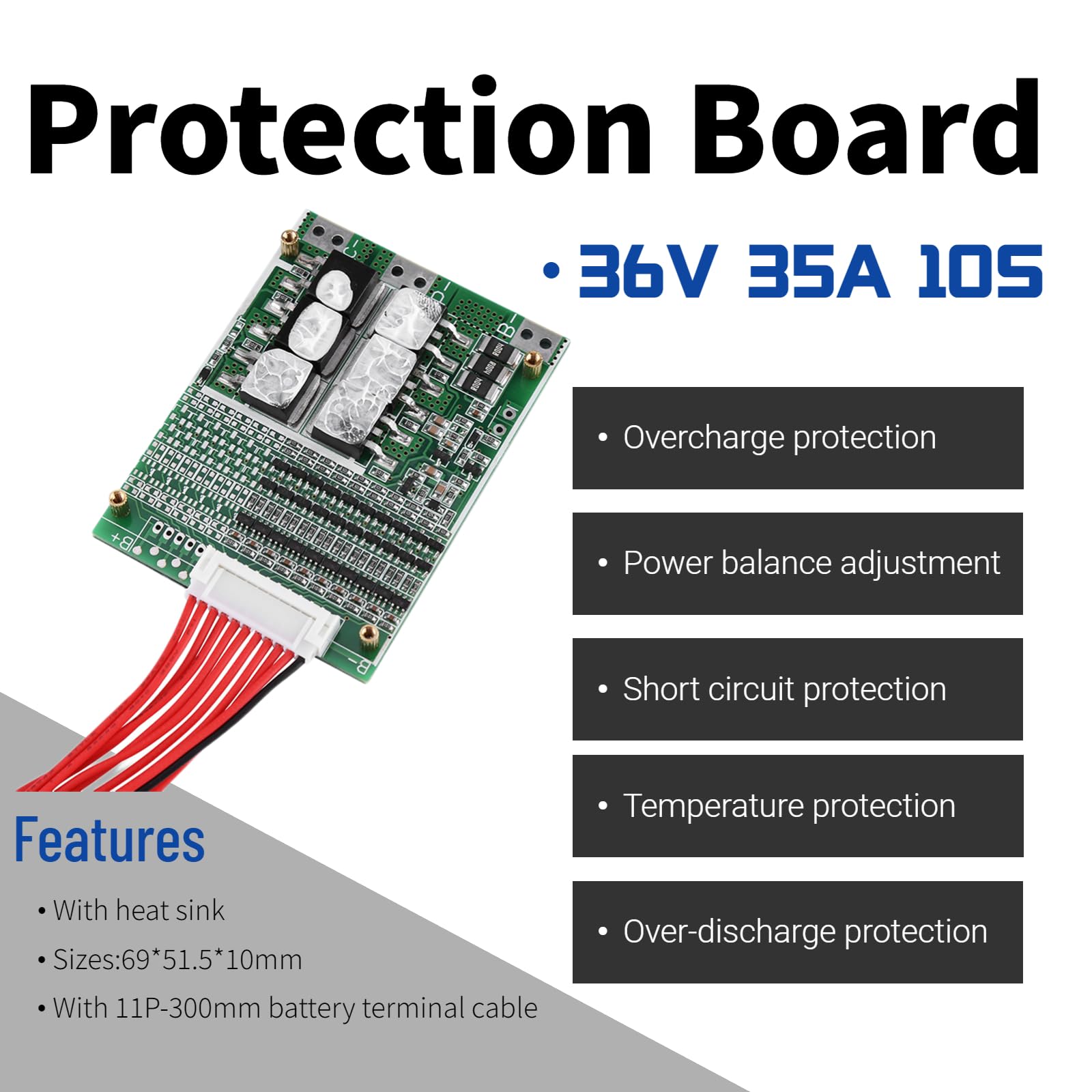

• The battery board has various stable charging and discharging functions, such as overcharge protection, overdischarge and short circuit

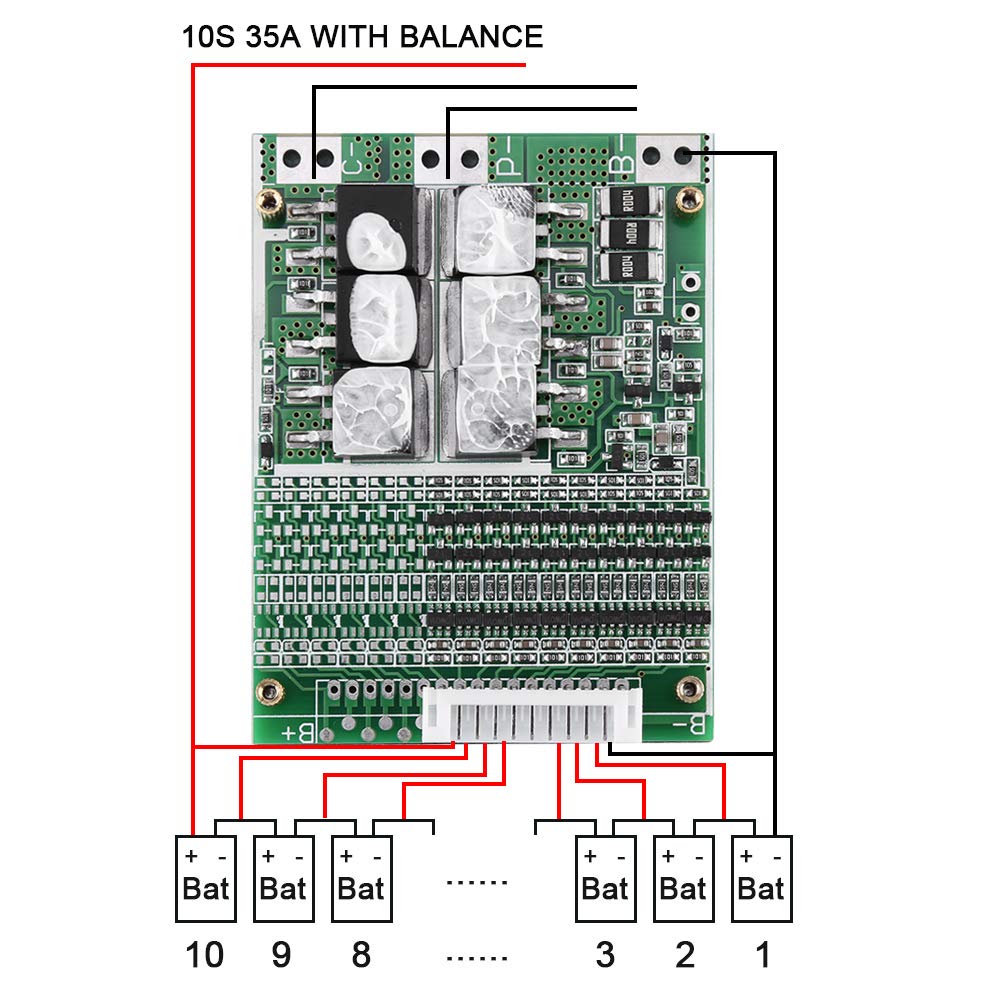

• The lithium battery board has a balance function to ensure that each battery cell is fully charged at the same time.
• Choosing the right board and using it properly is essential to extend battery life. Product quality is guaranteed.

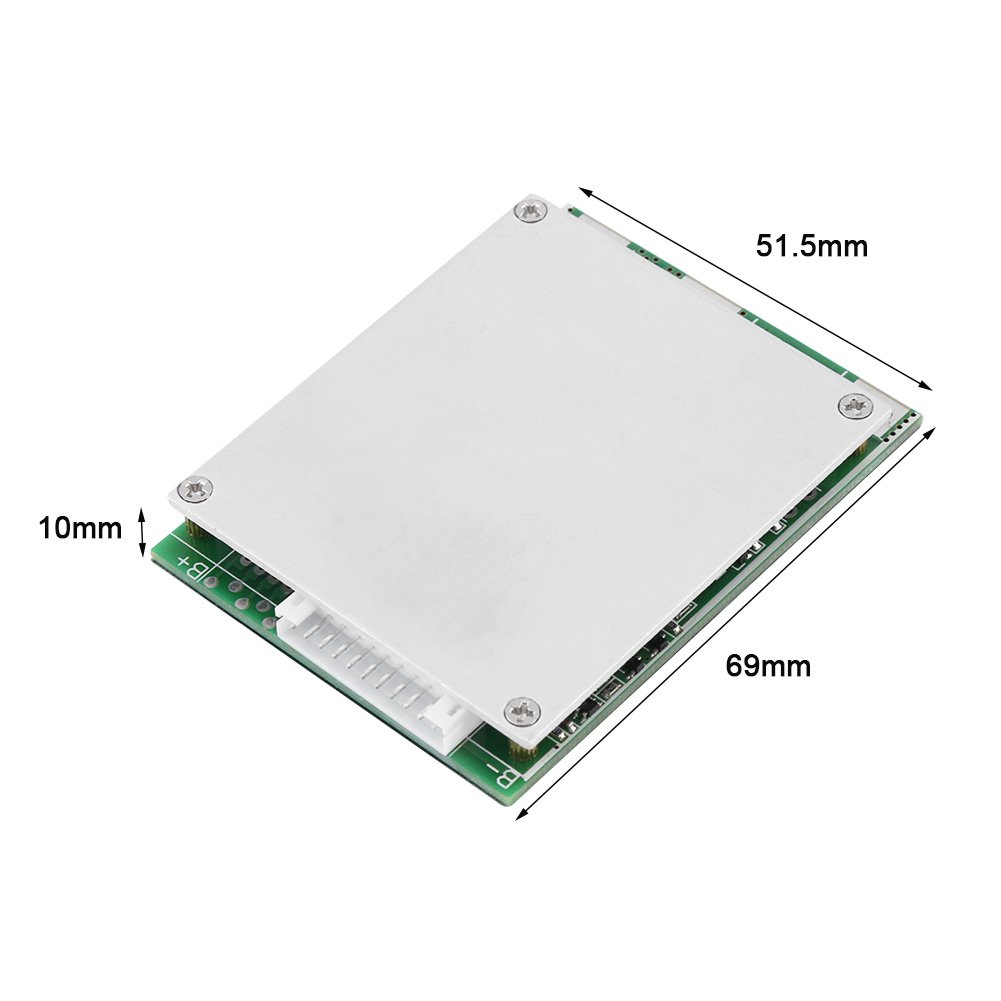

Description Specifications: Discharge: Continuous discharge current: 35A Momentary discharge current: 100A Load: Charging voltage: 42 V. Charging current: 8A (max.) Overload protection: Overload detection voltage: 4.28±0.05V Overload protection time: 100mS Overload cancellation voltage: 4.08±0.05V Balance: Balance detection voltage: 4.2±0.025V Balance cancellation voltage: 4.2±0.05V Balance current: 56±5mA Overdischarge protection Over discharge detection voltage: 2.55±0.08V Excessive discharge detection time: 50 ms Over-discharge cancellation voltage: 3.0±0.1V Overcurrent protection: Over current detection voltage: 150mV Overcurrent detection time: 15 ms Over current protection current: 120±5A Protection cancellation condition: load disconnection Short circuit protection: Short circuit protection condition: outdoor load short circuit Short circuit detection delay: 200uS Protection cancellation condition: load disconnection Internal resistance: Main circuit internal conduction resistor15mΩ Clean energy consumption: Working current: 50uA Standby current (excessive battery discharge): 10uA Operating temperature: -30 ~ +80 Size: 69 x 51.5 x 10 mm/2.71 x 2.02 x 0.39 inches. Package includes: 1 x protective panel. 1 x cable.
