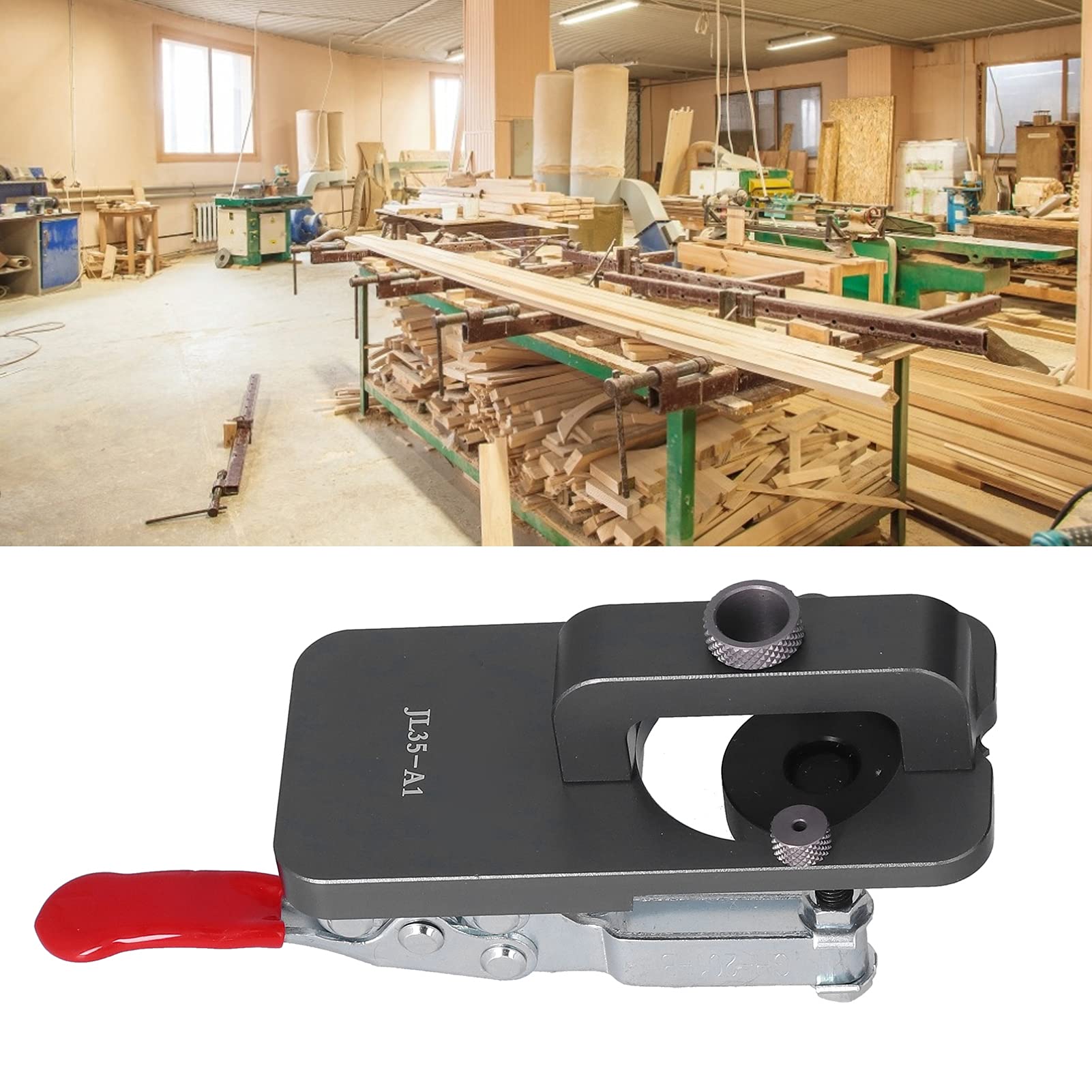

35mm Concealed Hinge Jig with Clamp and Forstner Drill Bit, Cabinet Hinge Hole Puncher Woodworking Hinge Installation Tools for Kitchen and Cupboard

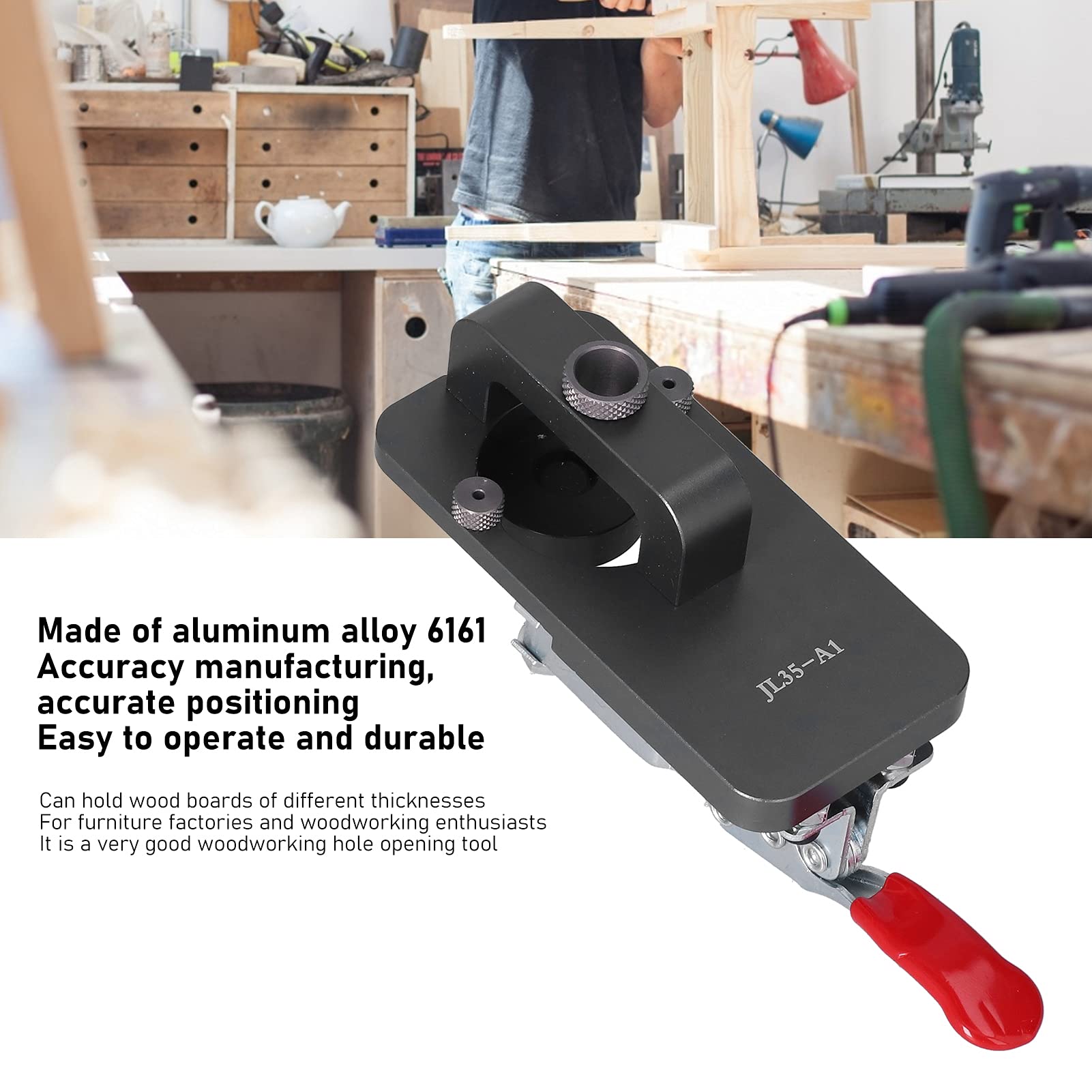

• Aluminum Alloy Manufacturing: The hole opener is made of aluminum alloy 6161, with precise manufacturing, accurate positioning, convenient operation, and durable.

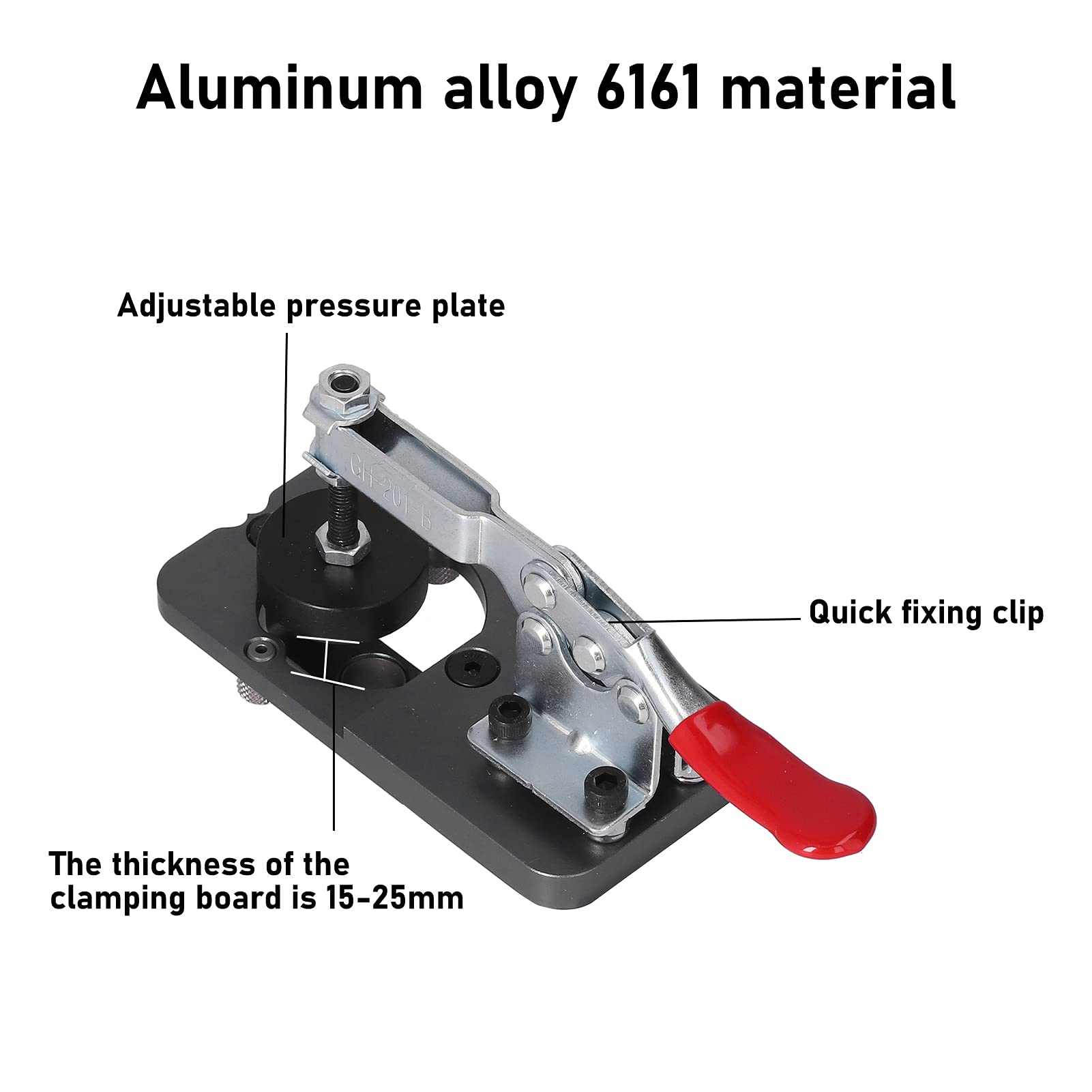

• Clamping Different Wood Boards: The locator can clamp wood boards of different thicknesses. For furniture factories and woodworking enthusiasts, locator is a good woodworking hole opening tool.
• Precise Fixation: This is a hole opener that can be accurately fixed and drilled to prevent injuries during and improve accuracy.

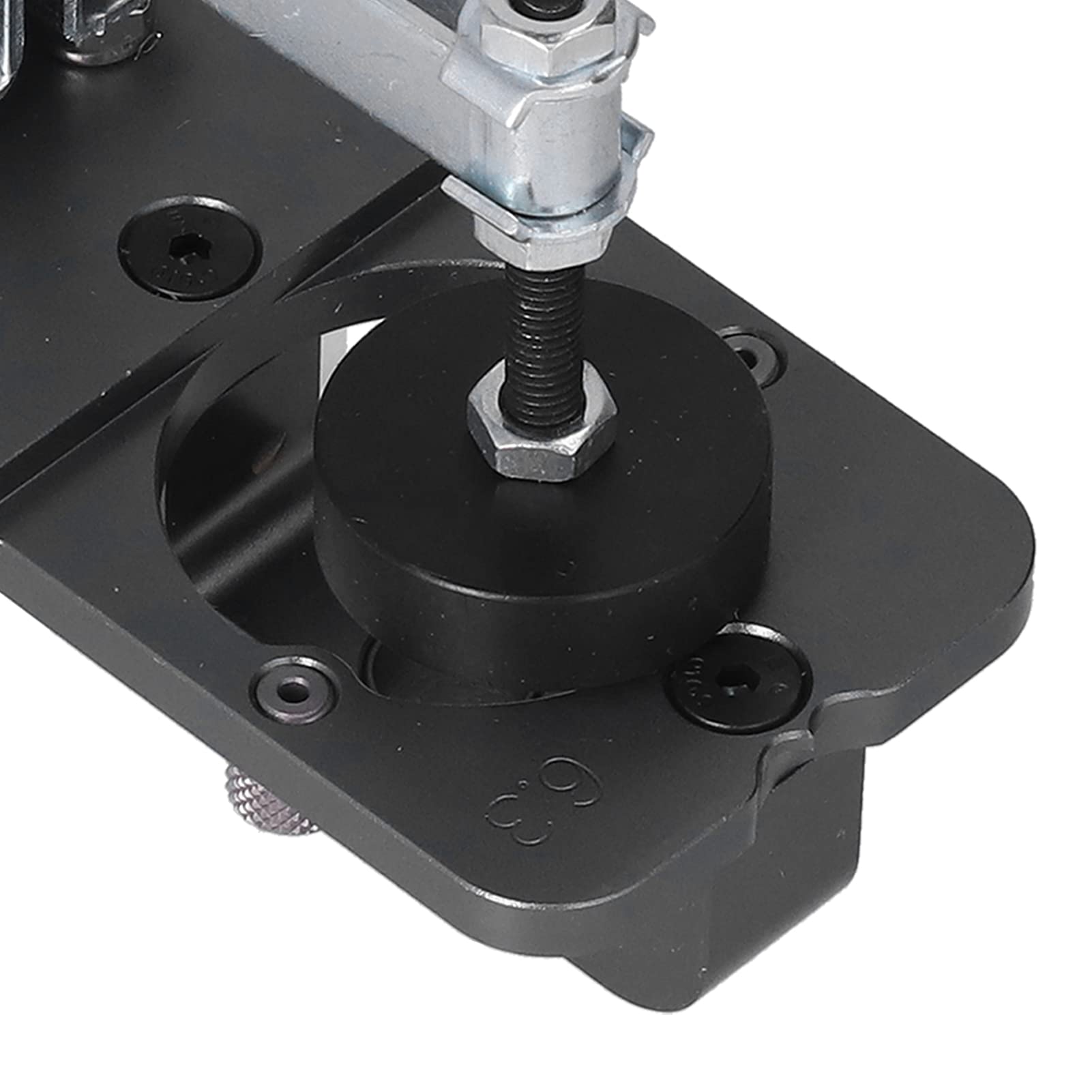

• Secure Drilling: The hole opener will not move when drilling, and the drilling is firmer. You can use a wrench to adjust the pressure plate to fix the plate without slipping during the drilling process.
• Application: The hole opener has a wide range of applications, suitable for hinge opening installation and door hinge drilling and positioning.

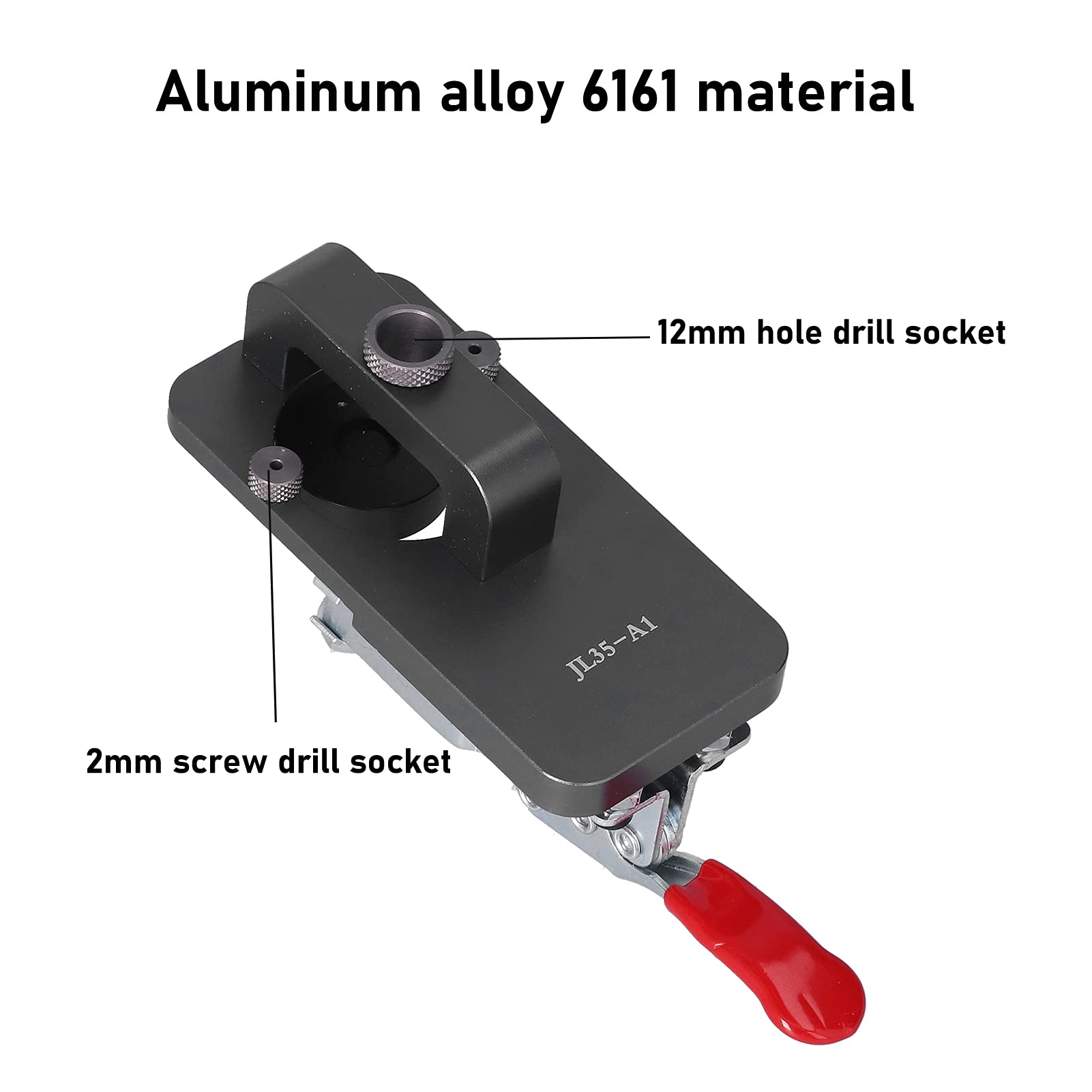

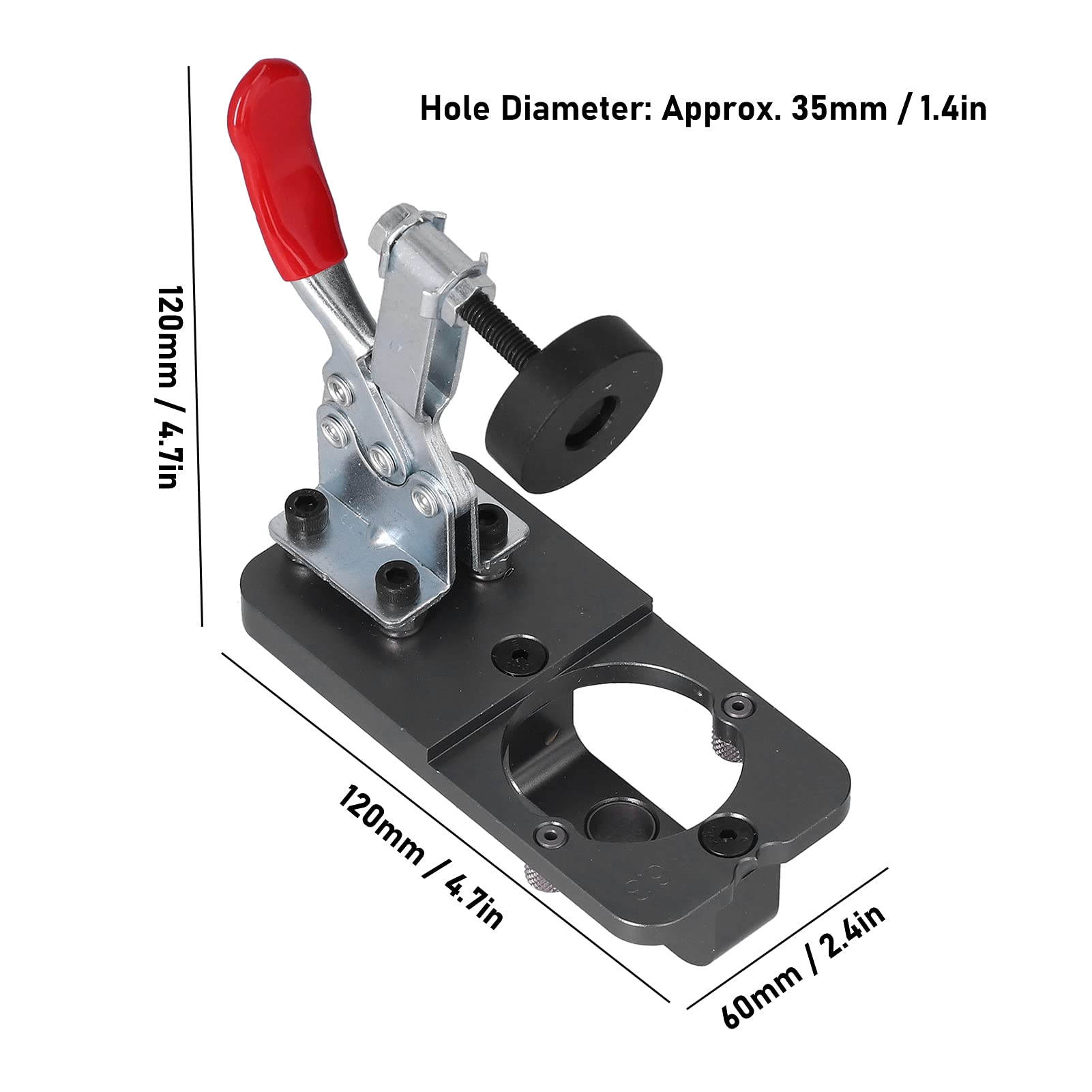

How to Use: 1. Install a 35mm hole opener, adjust the drilling depth, which is normally 12‑13mm, and then lock the limit ring 2. Adjust the fixed size of the black pressing block of the quick clamp (note: the tool can adjust the fixed board size to 15‑25mm) 3. Move the hole punch to the board marking and punching position, and lock the quick clamp 4. Clamp the handle of the hole opener with an electric drill, press down to make the hole to a depth of 12‑13mm at a constant speed, and then drill 2mm screw holes on the left and right sides 5. The distance from the 35mm hole to the edge is 5mm, which is suitable for most commonly used hinges Specification: Item Type: Hinge Hole Drill Locator Model: JL35-A1 Material: Aluminum Alloy 6161 Hole Diameter: Approx. 35mm / 1.4in Purpose: Make a hole in the wooden board, so that the 35 hinge can be fixed and installed on the wooden board. Package List: 1 x 35mm Hinge Hole Locator 1 x 35mm Hole Opener 2 x Wrench 1 x Hex Wrench 1 x Drill Bit 1 x Limit Ring 1 x Limit Screw 1 x Plastic Box
