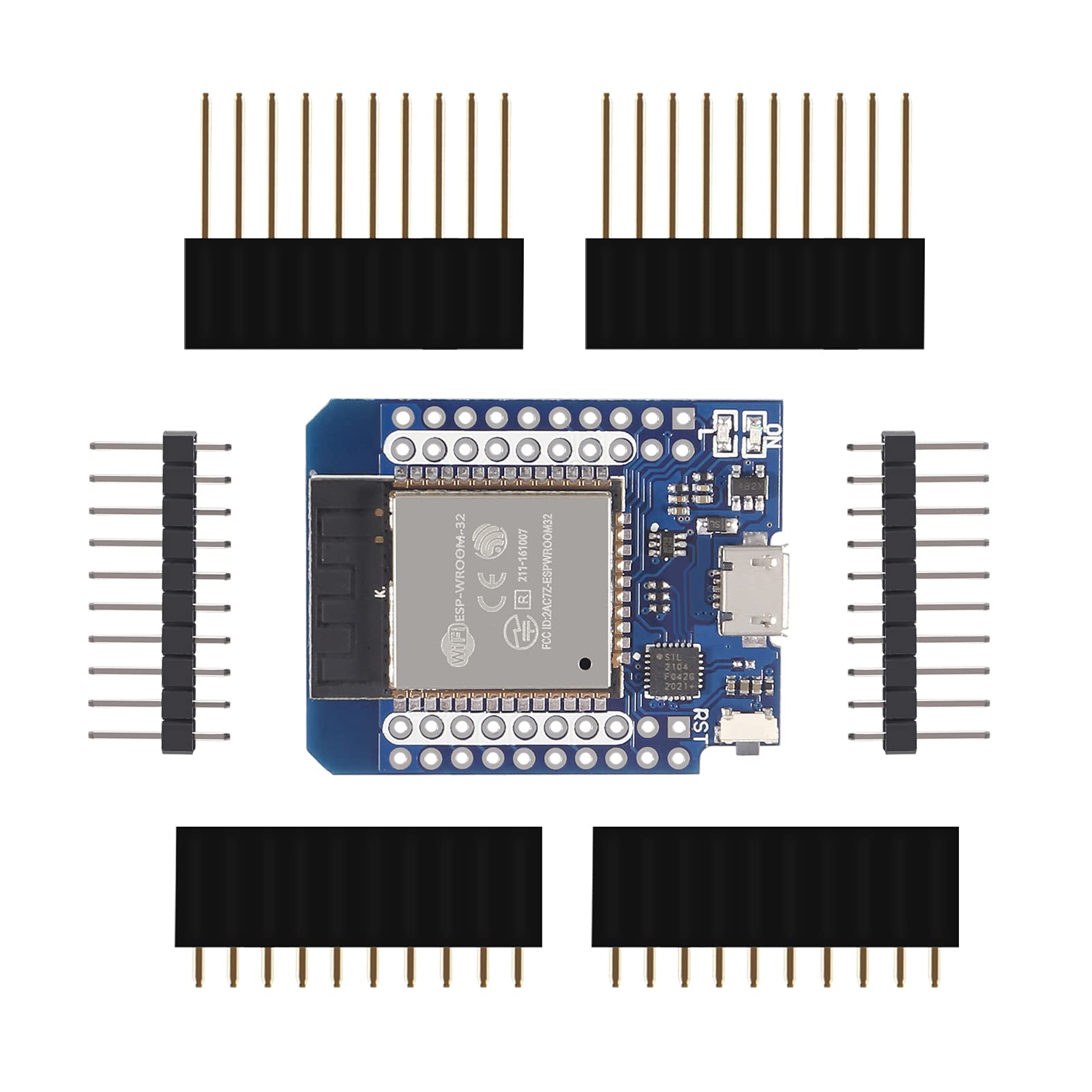

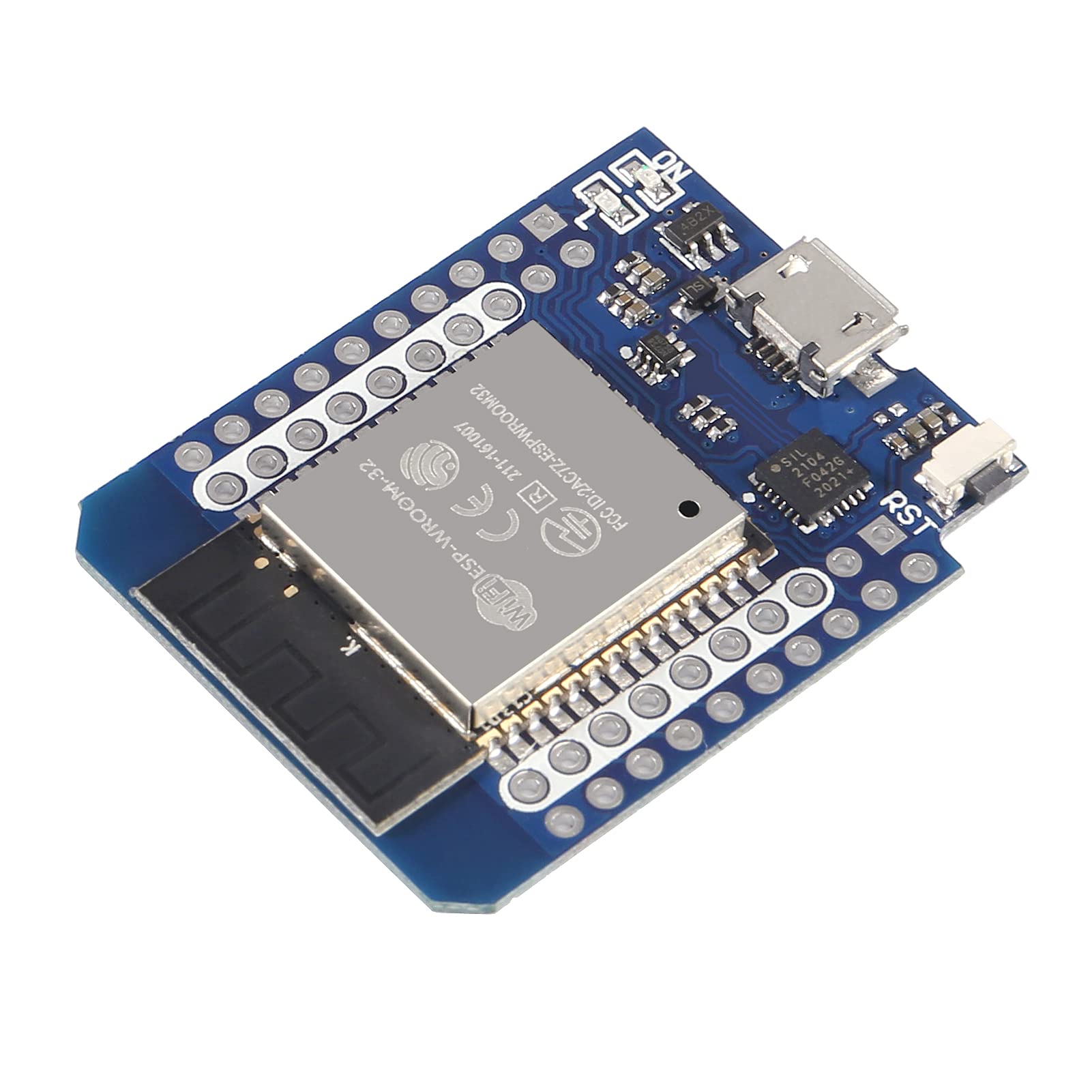

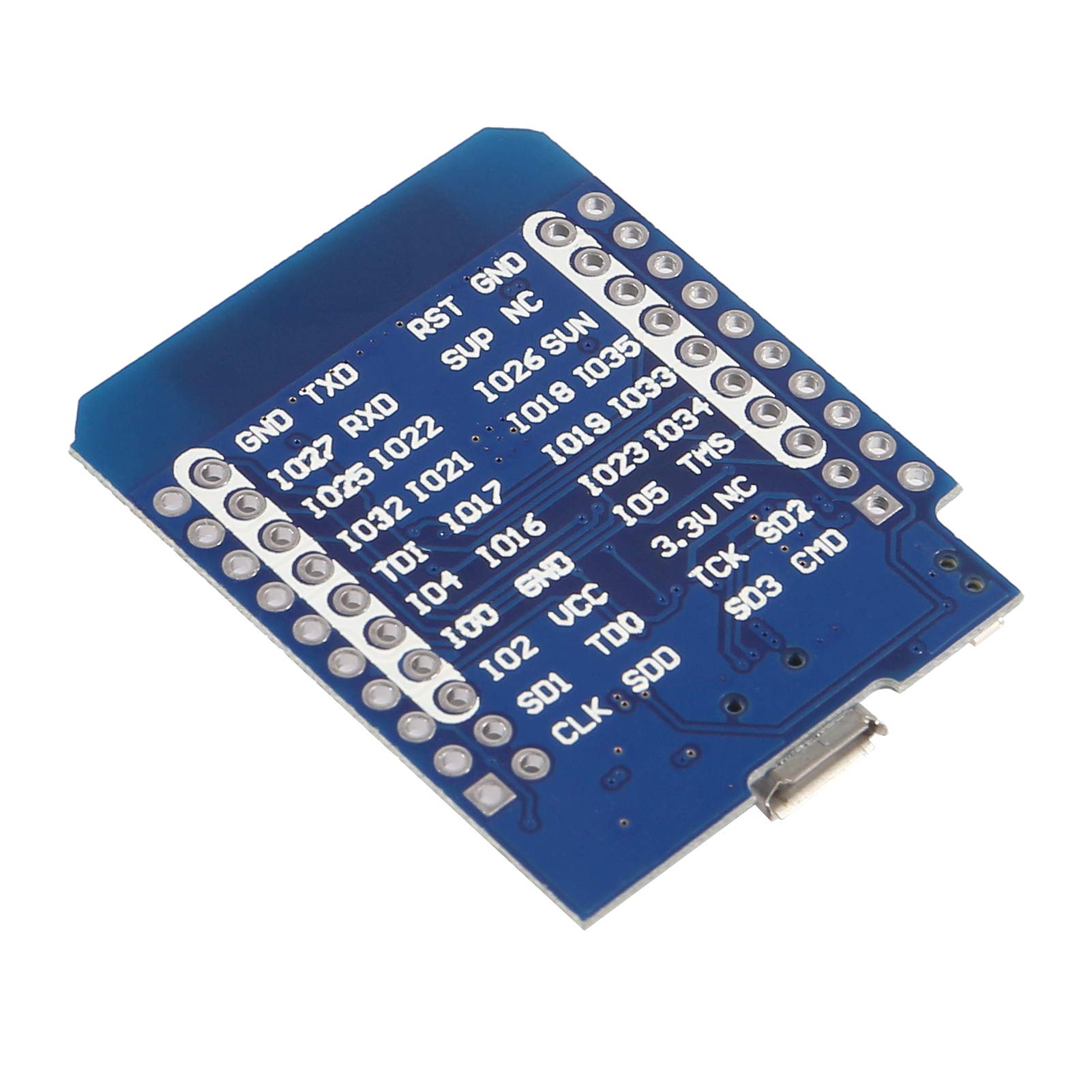

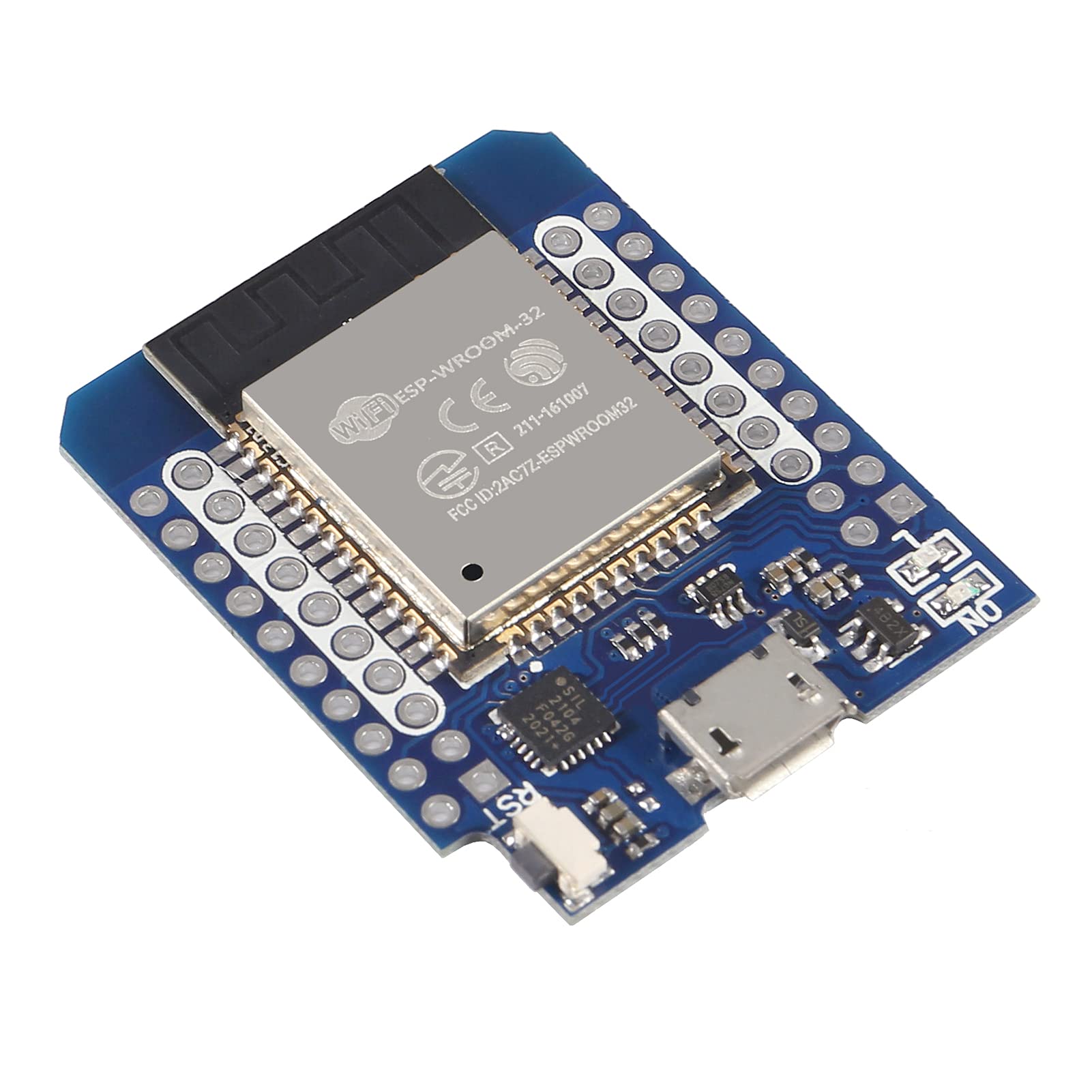

2PCS ESP32 NodeMCU Board Live Mini Kit for ESP32 WiFi Module Bluetooth Internet of Development Board Based ESP8266 Fully Functional with Pins for DIY Kit

• The WeMos Mini ESP32 Pro development board, everything needed to program the latest ESP32 module (the ESP-WROOM-32), ESP32/32S WIFI Development Bluetooth ESP8266 Module CP2104 for Arduino.
• Different than ESP8266 Mini V2 and ESP8266 Mini Pro, the ESP32 Mini carries the ESP32-WROOM-32 module while keeping the same form factor.
• The DOIT esp32 devkit is a single chip solution that combines Bluetooth and 2.4 GHz Wi-Fi capabilities.
• The WeMos Mini family of boards is one of the latest additions to the ESP32- and ESP8266-based Internet Of Things (IoT) ecosystem.
• Together with a growing set of expansion boards (shields), the WeMos family is a great solution for building projects quickly using both the ESP8266 and ESP32 SoC.

Feature: SPECIFICATIONS: Power Supply Voltage : 5V DC (4.5~ 6V) Operating Current: ~80mA (Supply above 500mA) Logical Voltage (Inputs/Outputs): 3.3V SoC: ESP32 (ESP32-D0WDQ6) CPU: Dual core Tensilica LX6 (32 bit) Clock Frequency: 240MHz SRAM: 520KB External Flash Memory: 4MB Digital Pins GPIO: 34 (including all peripherals) UART: 2 SPI:3 I2C:2 Capacitive touch sensors: 10 SD Interface Timers: 3 (16-bit) PWM Led:16 Independent channels (16-bit) ADC: 18CH (12-bit) DAC: 2 (8-bit) Wi-Fi, Protocol 802.11 b/g/n/e/i (802.11n up to 150 Mbps) The chipset that incorporates is the ESP32-WROOM-32 and a chipset for the CP2104 serial port with 4 megs of space for development. It has good wifi coverage, despite its small size. ESP32 Wi-Fi and bluetooth development board compatible with WeMos mini shields (plug and play). Different than our ESP8266 V2 and ESP8266 mini pro, the ESP32 carries the ESP32-WROOM-32 module while keeping the same form factor. Together with a growing set of expansion boards (shields), the WeMos family is a great solution for building projects quickly using both the ESP8266 and ESP32 SoC. ESP32/32S WIFI development bluetooth ESP8266 module CP2104 for arduino WCH CH340 USB to UART Bridge ESP-WROOM-32 FCC certified Wi-Fi and bluetooth module PCB-mounted antenna Onboard Micro-USB connector (i.e., USB Micro-B) Package Included: 2 X ESP32 Module
