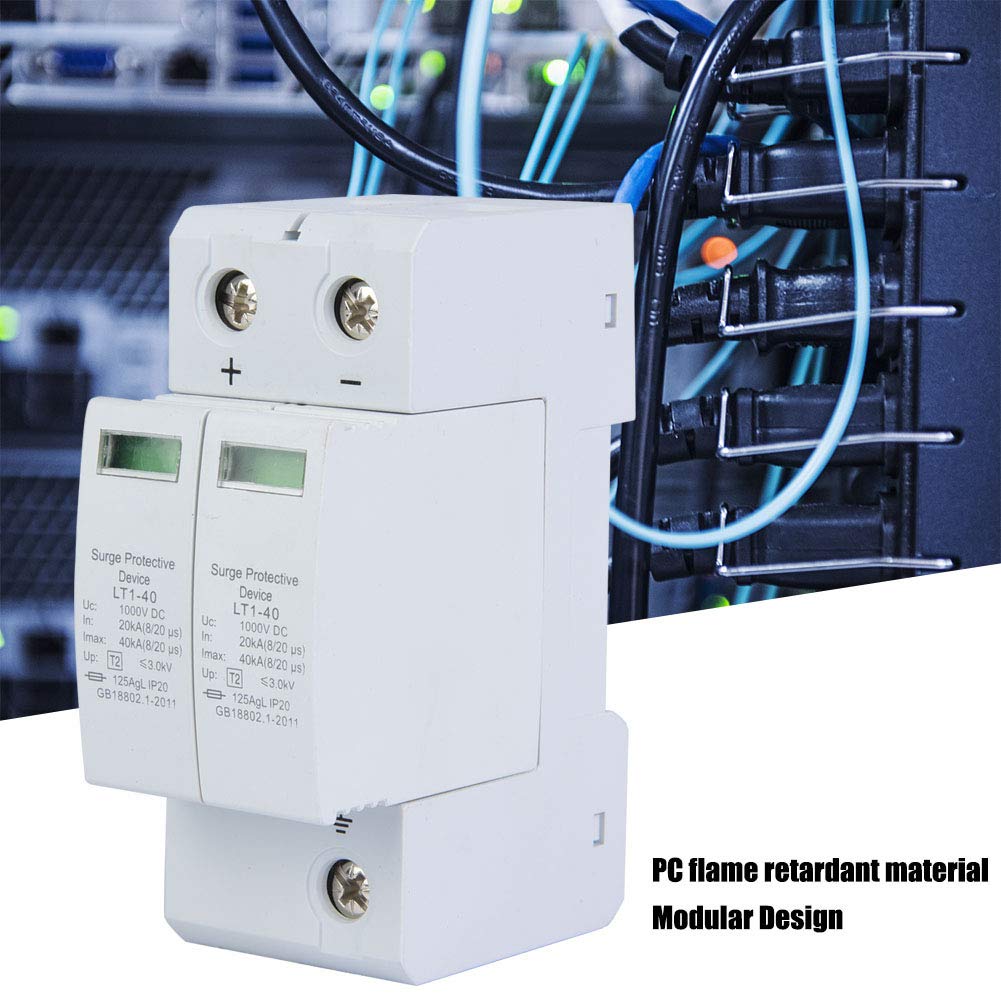

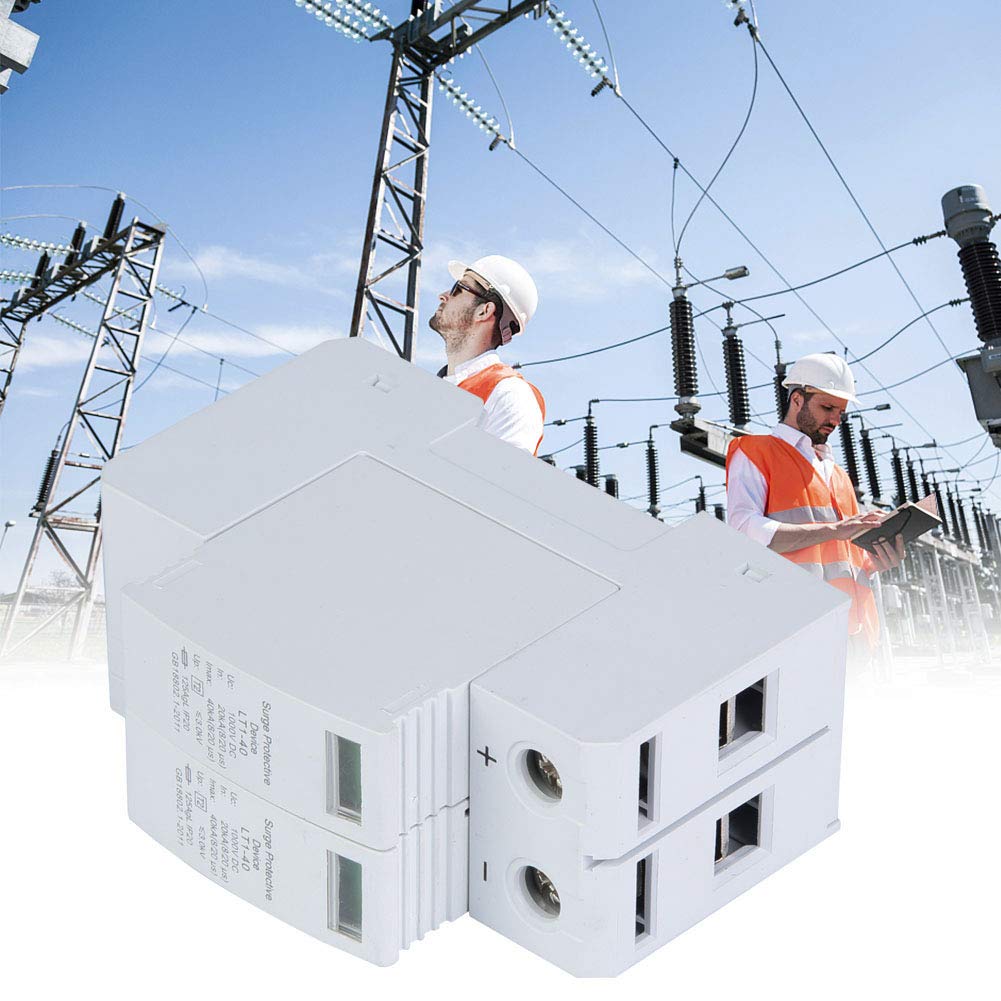

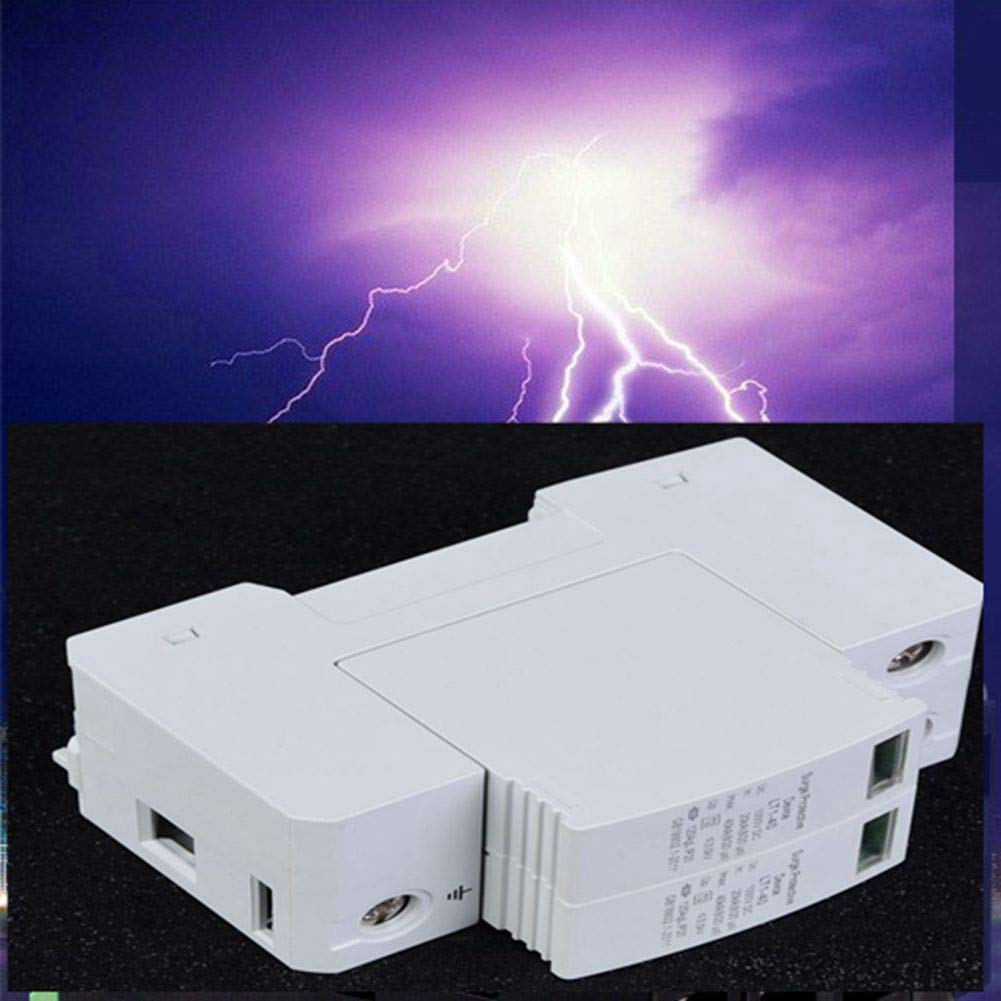

2P Protective Device 1000V DC PC Flame Retardant Shell Photovoltaic Protector Low-voltage Arrester, Installation with Standard 36MM Guide Rail (2P 40KA)

• [Flame Retardant Material] The of the protective device against overvoltage is made of fireproof material of PC, that is most secure to use.
• [Modular Design] The device of adopted a modular design, and its use and maintenance is very simple.
• [Easy Installation] This device of against overvoltages adopted the 2P rail guide, the installation is very simple.
• [Precision Components] The device is made of precise electronic components, with a longer service life and more stable performance.
• [Rail Installation] Installation with standard 36mm guide rail and use with automatic switch in distribution box.

Features: The product shell is made of PC flame retardant material, which is safer to use. The product adopts modular design, and its use and maintenance are very simple. The product is made of precise electronic components, with longer service life and more stable performance. Purple copper fittings, electrical conductivity is good. This product adopts 2P guide rail installation, installation is very simple. Installation with standard 36MM guide rail and use with circuit breaker in distribution box Specification: Material: PC flame retardant shell Uc: 1000V Type: #1, 10/20KA; #2, 20/40KA(Optional) Nominal discharge current: 10KA(#1),20KA(#2) Maximum discharge current: 20KA(#1), 40KA(#2) Installation mode: 2P Guide rail mounting Residual voltage after unloading voltage: <3.0KV Rated connectivity and segmentation Ability: 1M Product dimension: 90*49*36mm / 3.5*1.9*1.4in Weight: 260g/9.2oz Package List: 1 * Protective Device Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product.
