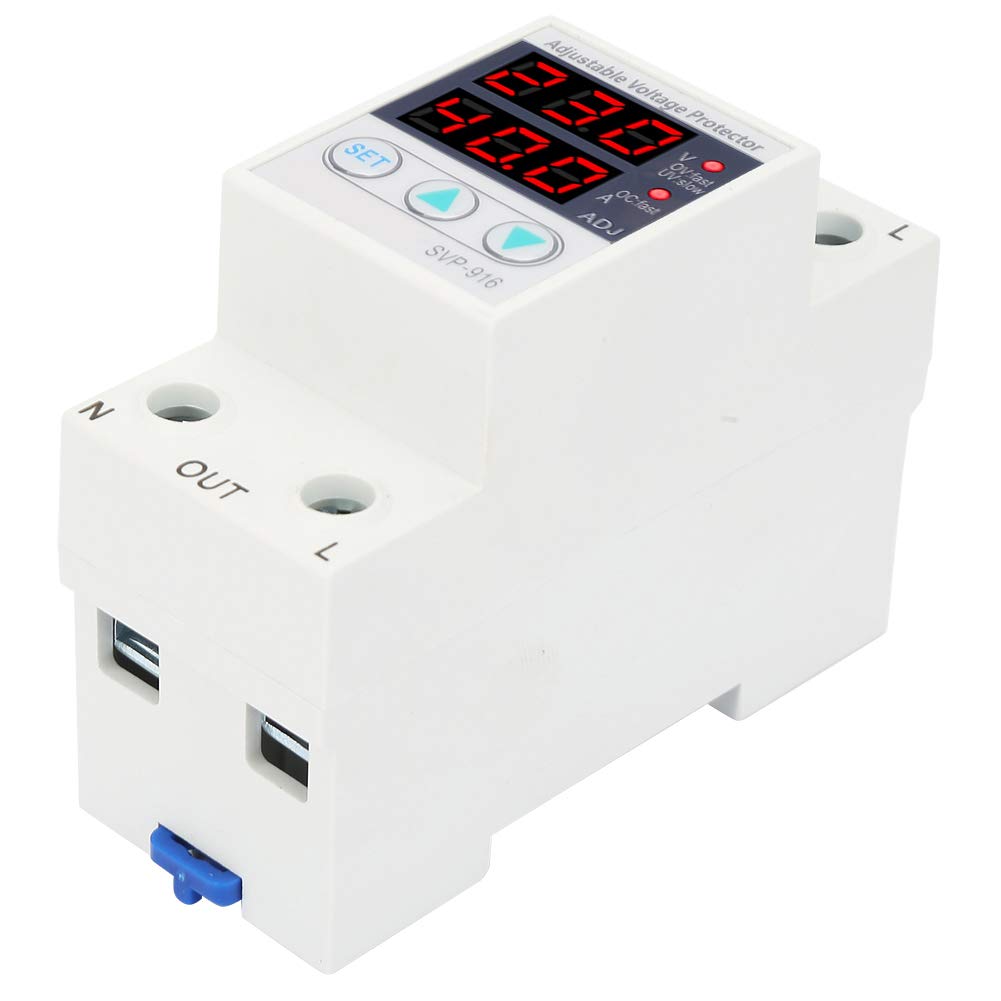

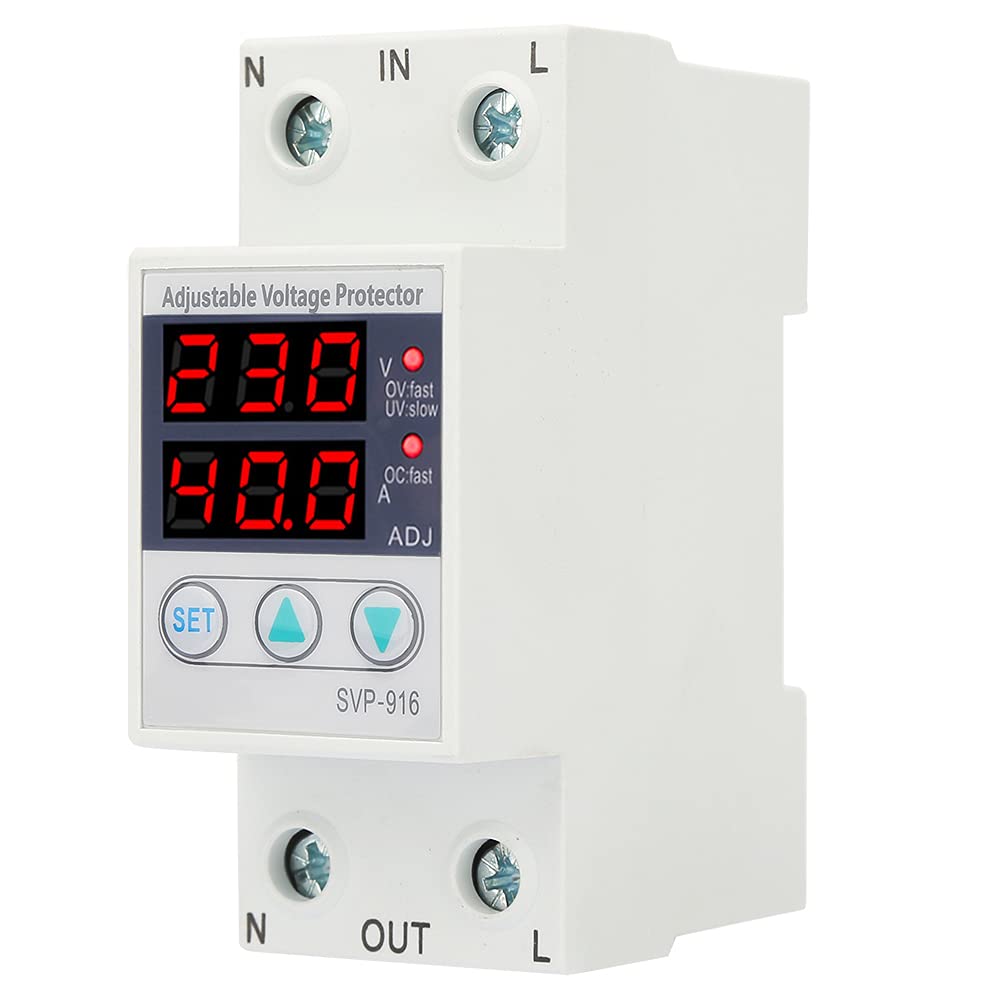

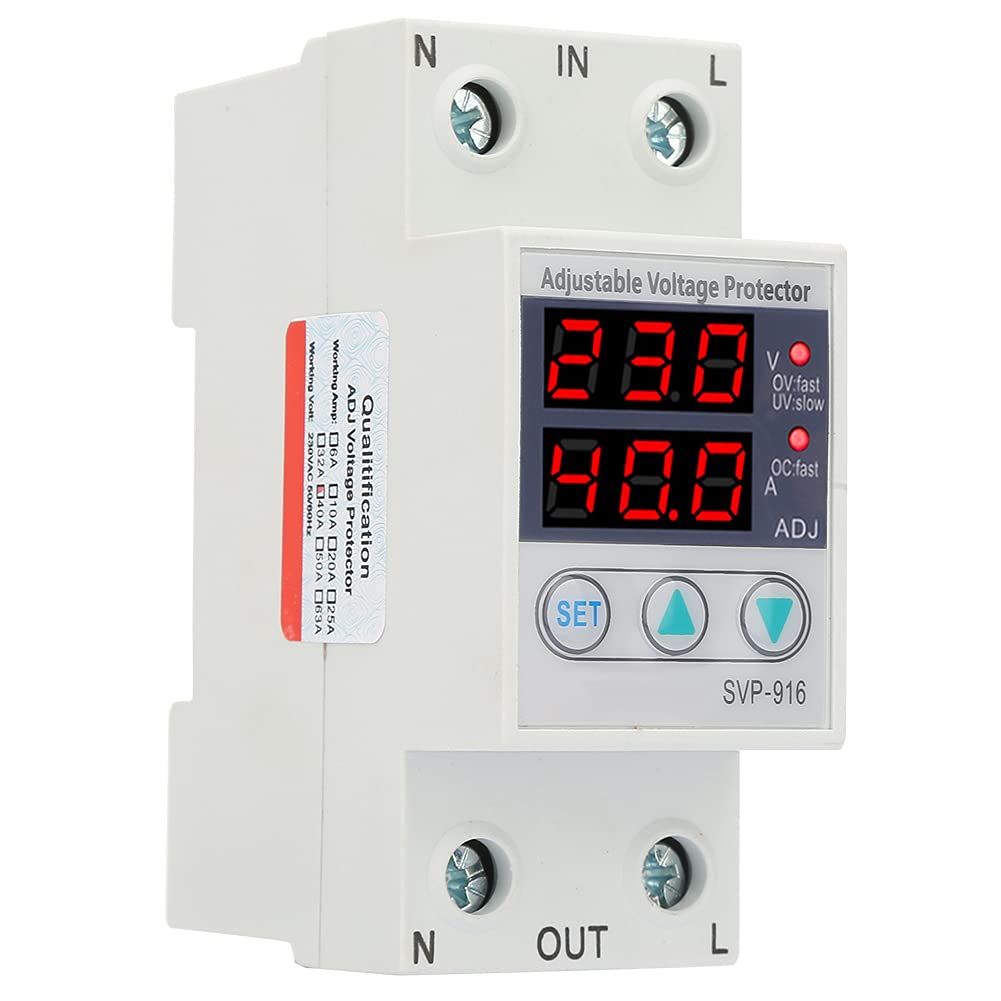

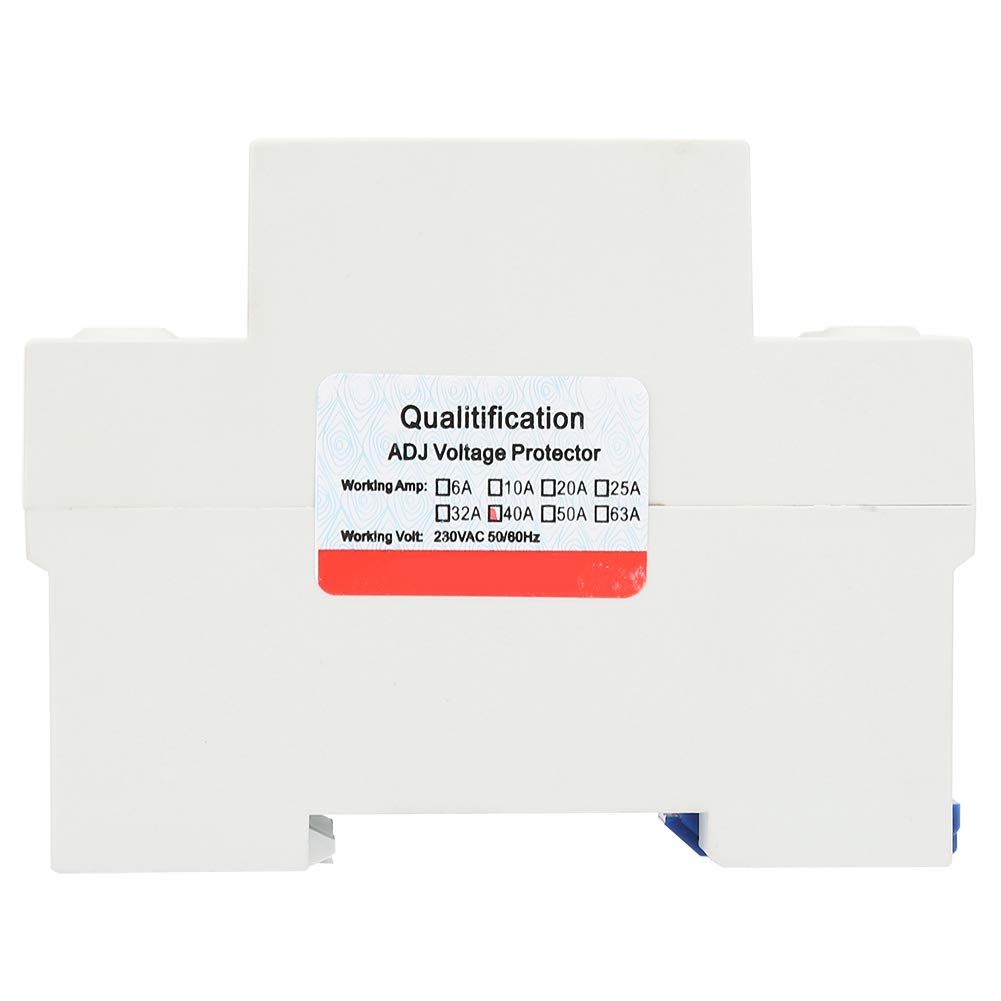

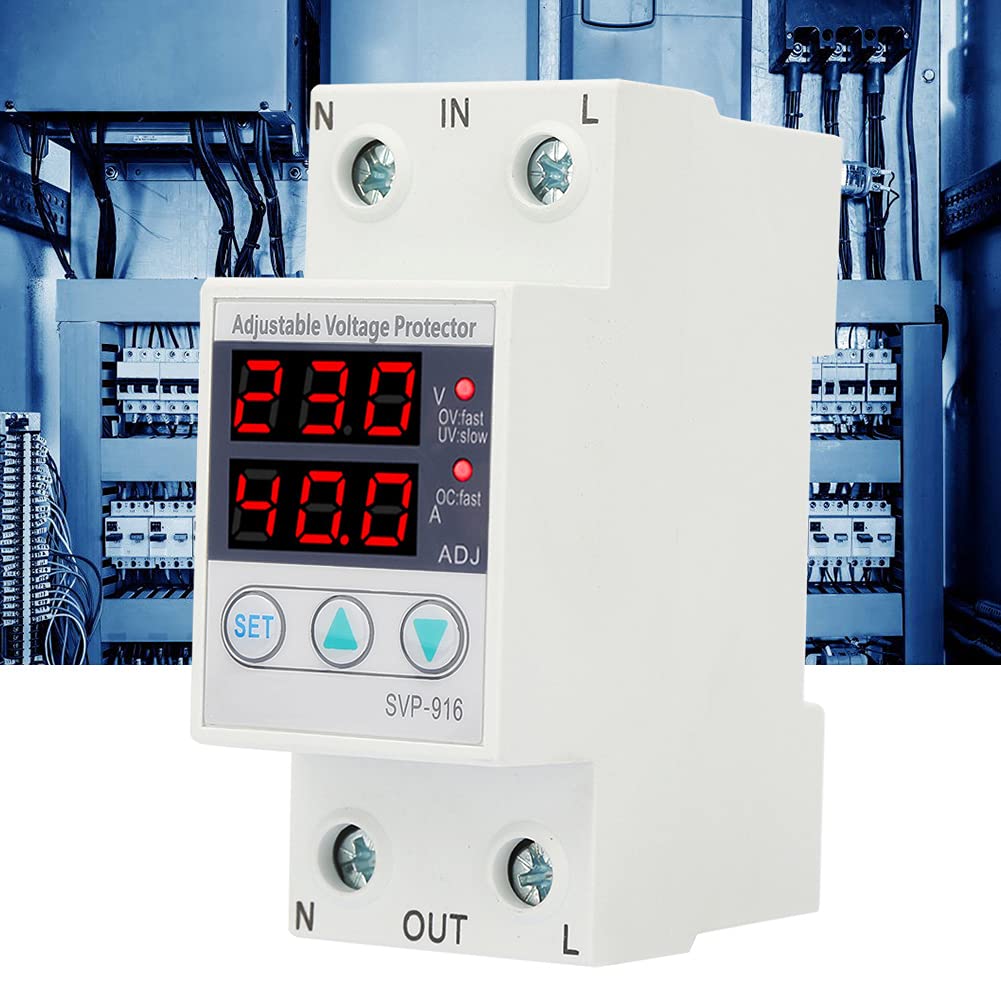

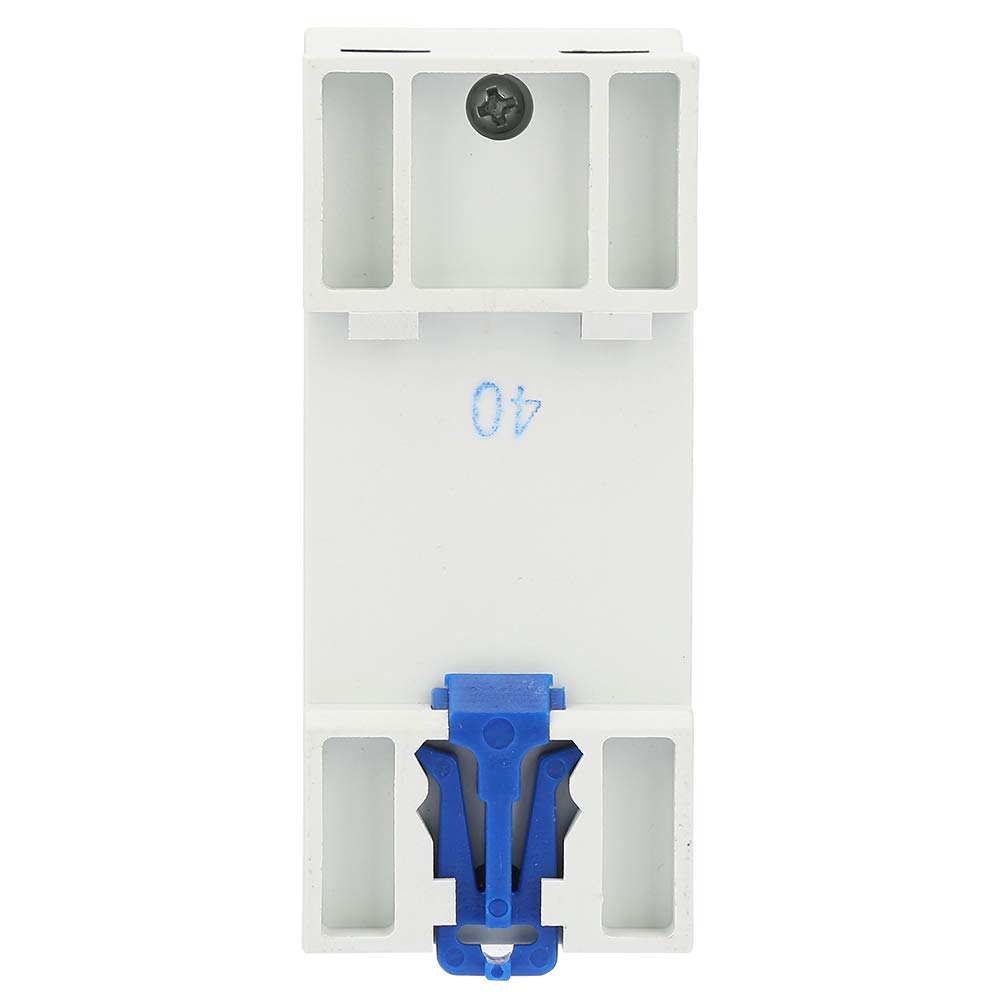

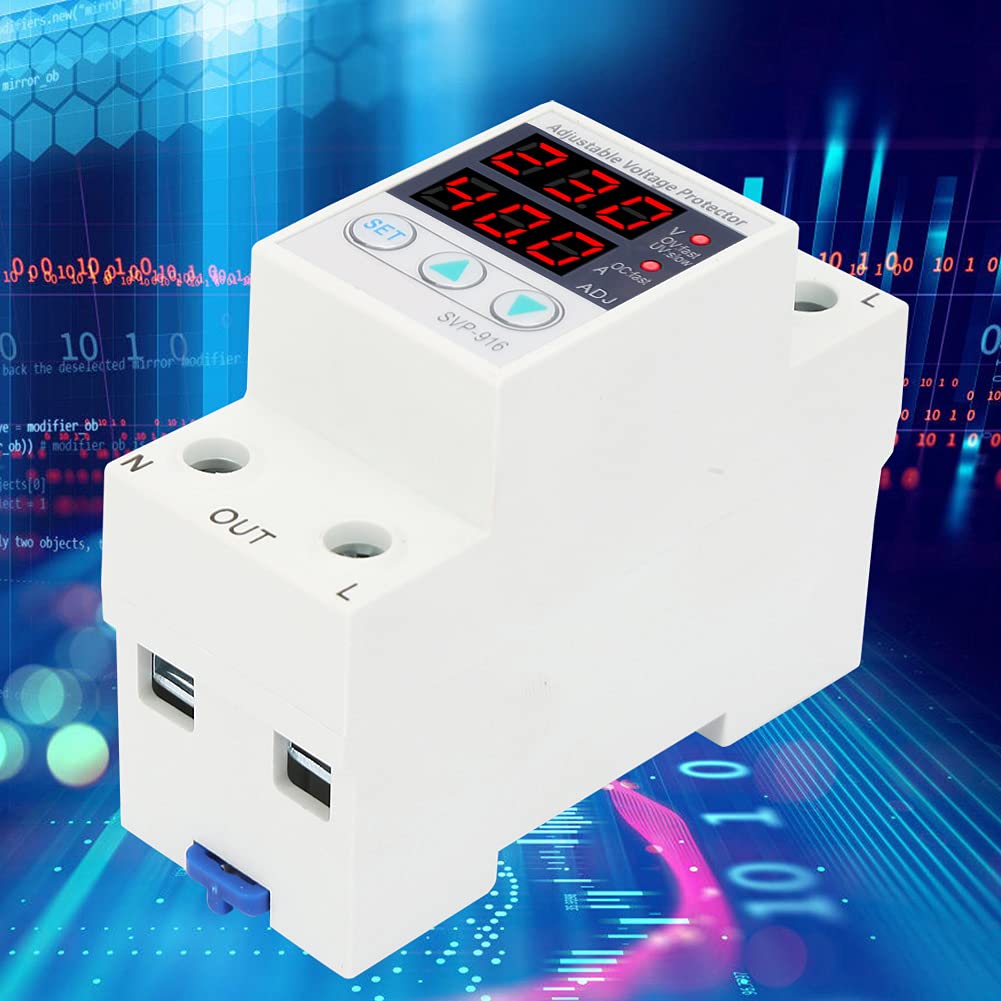

Eujgoov 230VAC Intelligent Single SVP 916, Voltage Phase Adjustable Over Voltage Under Current Protector (40A)

• The protector has over voltage protection, under voltage and other functions
• The main feature is that the line has overvoltage or undervoltage, overcurrent condition, the product can cut off the power supply instantaneously, protect the electrical equipment from damage; when the line voltage returns to normal, the protector can a
• It is mainly used for the of over-voltage, under-voltage or over-current in the distribution line of residential household box or the of single-phase power equipment.
• Suitable for single-phase AC voltage 230V, 50/60Hz, rated working current 63A and below users or loads
• Low power consumption and long mechanical life

Specification: Condition: Brand new Rated voltage 230VAC 50/60Hz Rated voltage 1-63A adjustable(default 63A)/1-40A adjustable(default40A) Overvoltage protection value range 221V-300V-OFF adjustable(default 280V) Overvoltage recovery voltage mediation range 220V-299V(default value 250V) Overvoltage protection action time 0.1s - 10s (default 0.1 seconds) Undervoltage protection value range 219V-150V-OFF adjustable(default 160V) Undervoltage recovery voltage mediation range 151V-220V( default value 180V) Undervoltage protection action time 0.1s - 10s (default 0.1 seconds) Overcurrent regulation range 1-63A (default 63A)/1-40A(default40A) Overcurrent action range 0.1s -512s (default5.0 seconds) Failure recovery delay time 2s - 512s (default 60 seconds) Power-on delay time 2s - 255s (default 2 seconds) Power consumption ≤2W Electrical mechanical life ≥4000 times Installation method DIN rail Working environment Temperature:-25℃ ~+40℃ Humidity: Altitude: no more than 2000m Size: Approx. 81 x 36 x 60mm / 3.2 x 1.4 x 2.4in Optional Style: 40A, 63A Package List: 1 x Protector Note: 1. The line conductor should meet the relevant current standard value and the load current cannot be greater than the maximum protection current value of the protector. 2. The neutral line N cannot be connected incorrectly and needs to be secure. The zeroline N of the protector is directly connected, and there is no disconnect function. 3. After the product is powered on, do not touch the live parts to avoid electric shock.
