220 Vac Wireless Receiver Transmitter Remote Control Switch System 30 to 3000 W 433 MHz Light / LED Light Water Pump Sliding Cover Transmitter Radio Remote Control

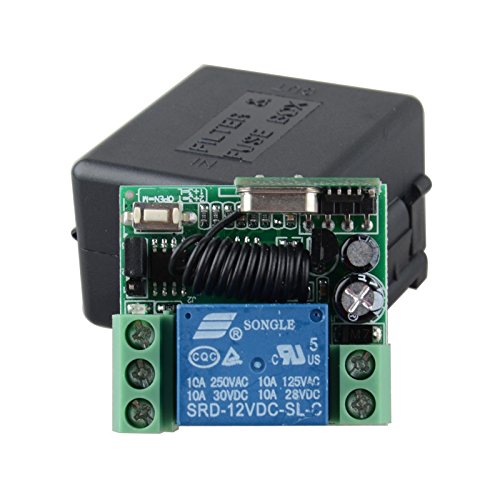

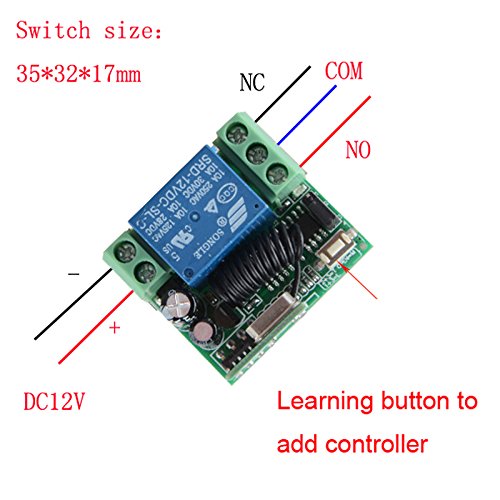

• This product is controlled by an intelligent microprocessor that can be used for garage door control, light control, remote curtains, access control system and various engine control systems. Small, easy to install, safe and reliable. Board size is only 35*32*17mm

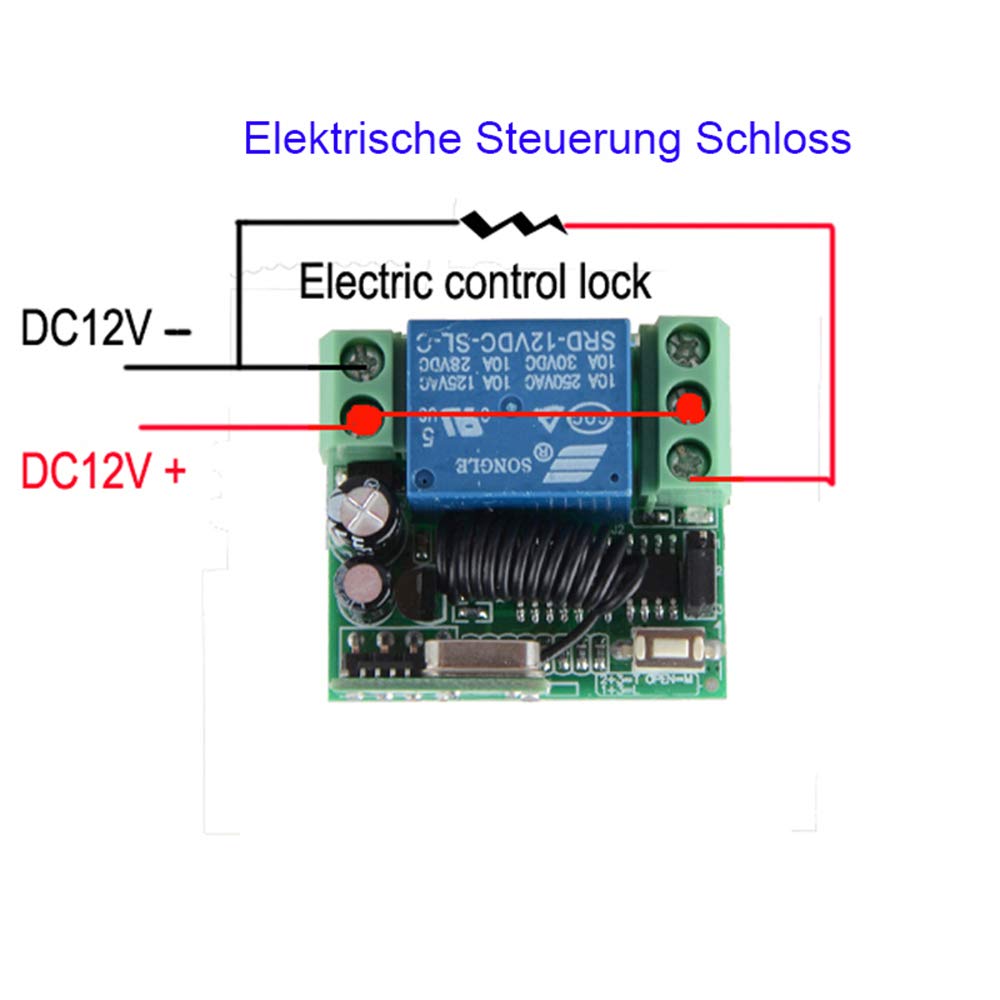

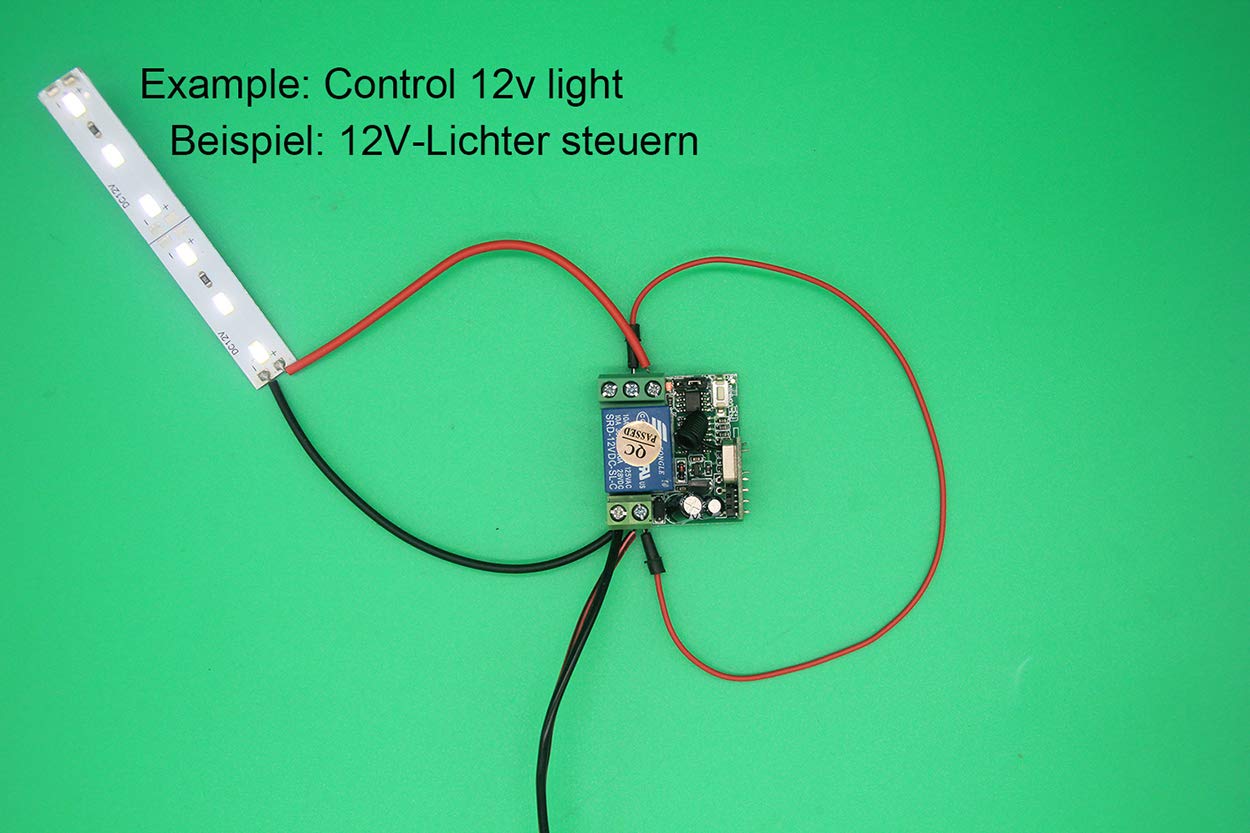

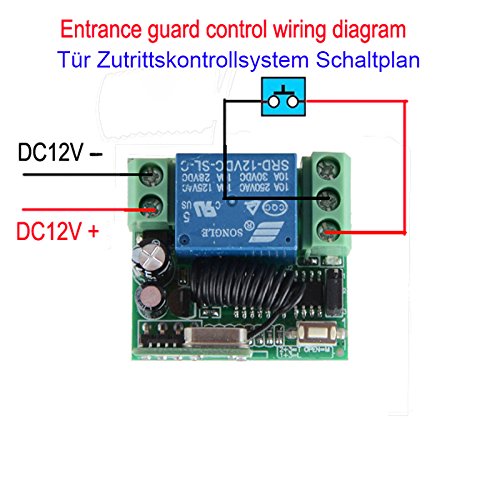

• 12V Single Channel Learning Code Remote Control Switch Suitable for Electric Control Circles such as Theft Alarm, Electric Door and Window for Remote Control Signal Control, Industrial Control, Lifting Equipment, etc. Application: Lights, TVs, Motors, Fans, Cameras, Video Signals, Audio Signals, Electrically Operated Doors / Locks / Windows / Blinds / Cars or Other Devices
• You could switch the receiver with transmitter (remote) from any location within a reliable distance. The wireless radio signals can run through walls, floors and doors. Reliable control: The transmitter (encoding) and the receiver (decoding) use an 8-bit code. One / more transmitters can control one / more receivers at the same time.
• If you use two or more receivers in the same place, you can set them with different codes. The wireless reception control, with high confidentiality, stable performance, low power consumption characteristics, by jumper you can set control mode

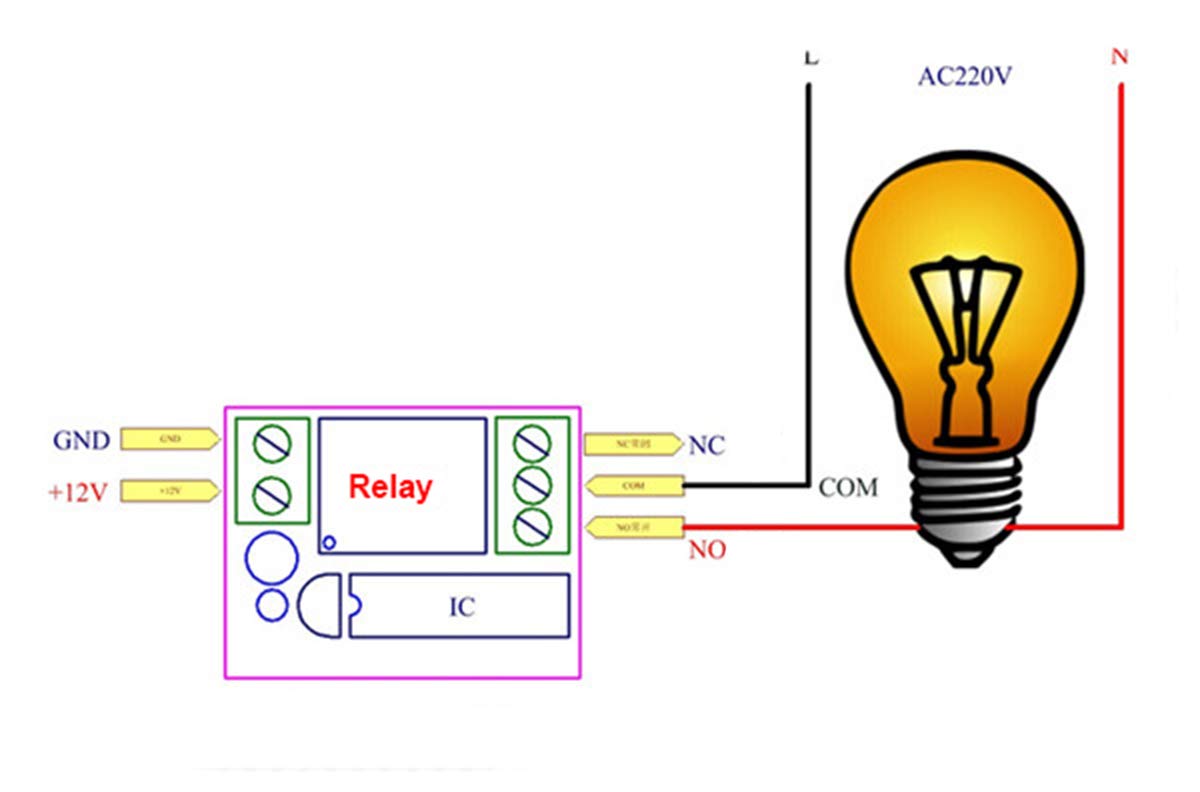

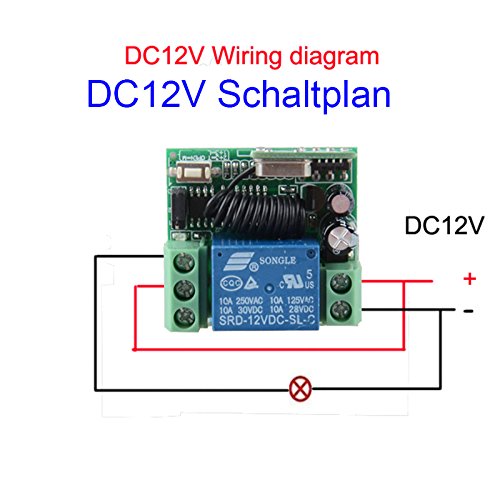

• These products are relay output (also known as potential-free), meaning that you control devices from DC 12V (power less than 50 W) or AC 220V (power less than 500W). But the power supply must be 12V DC.

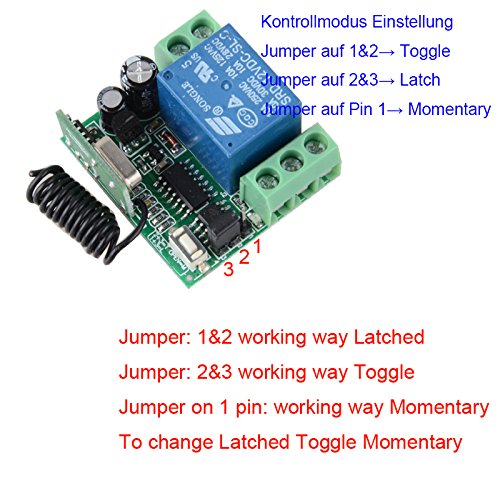

Delivery 1 x remote control with battery (if you need extra remote control, please tell us). 1 x receiver. Receiver Channel: 1 channel Radio frequency: 433 MHz. Operating voltage: DC12 V. Code type: learning code Maximum operating current: 10 A. Working temperature: -10'C + 70'C Antenna: with internal antenna. Control Mode Description Toggle (1 button on / same button off) Momentary (button function, relay pulls on as long as button pressed) Latch (1 button on/one other button off) Control mode setting Jumper on 2 & 3 Toggle (1 button on / same button off) Jumper on pin 1→ Momentary (button function, relay pulls on as long as button pressed) Jumper to 1&2→ Latch (1 button on/one other button off) Learn Code Learning: Press the learning button when the display is off, then press the remote control, light is on, it means that the reading is successful. delete code Press and hold the learning button approx. 8 seconds, and the display will be ON from OFF, then press the remote control, the receiver has not worked, it means that all stored codes have been successfully deleted.
