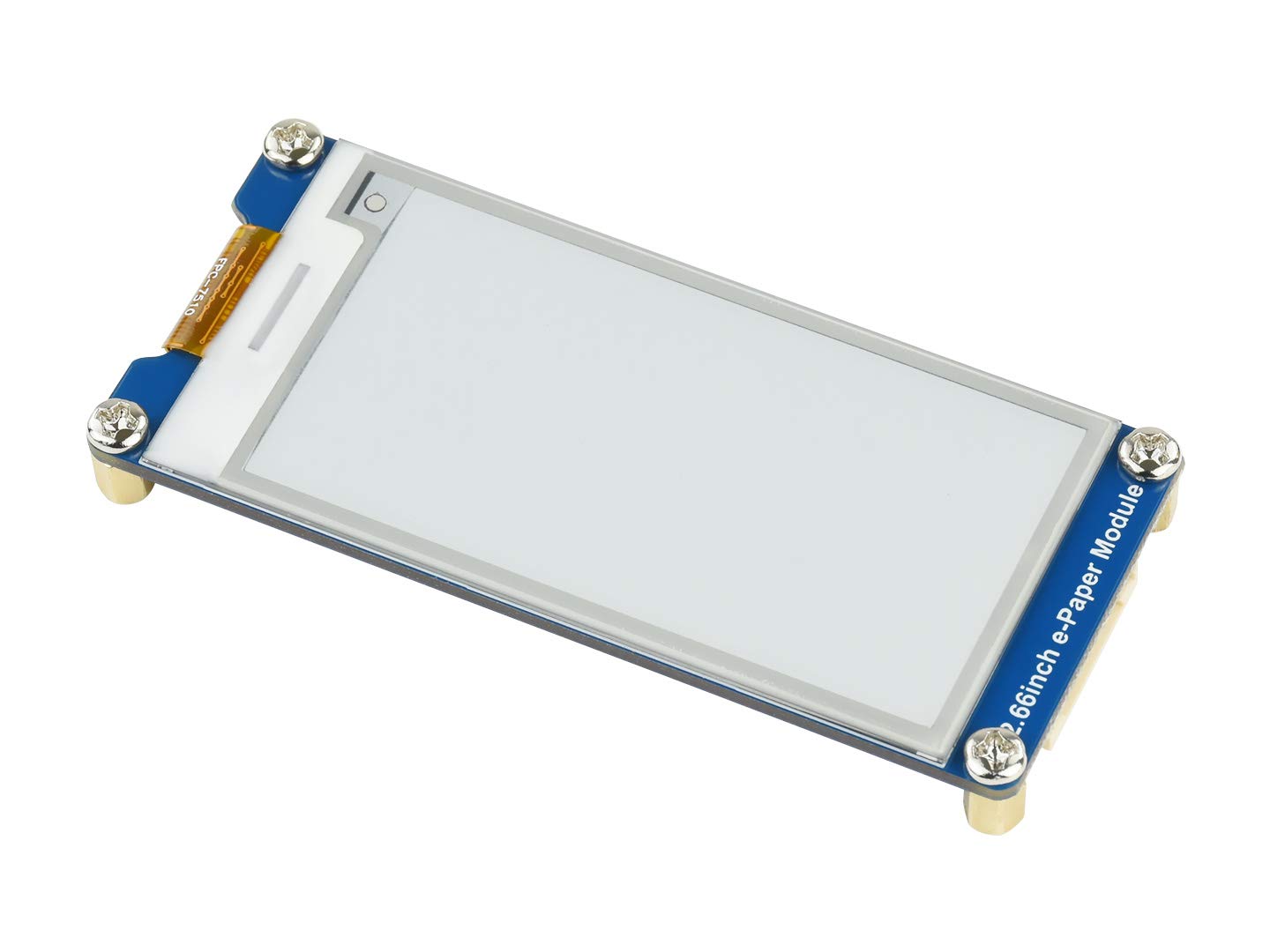

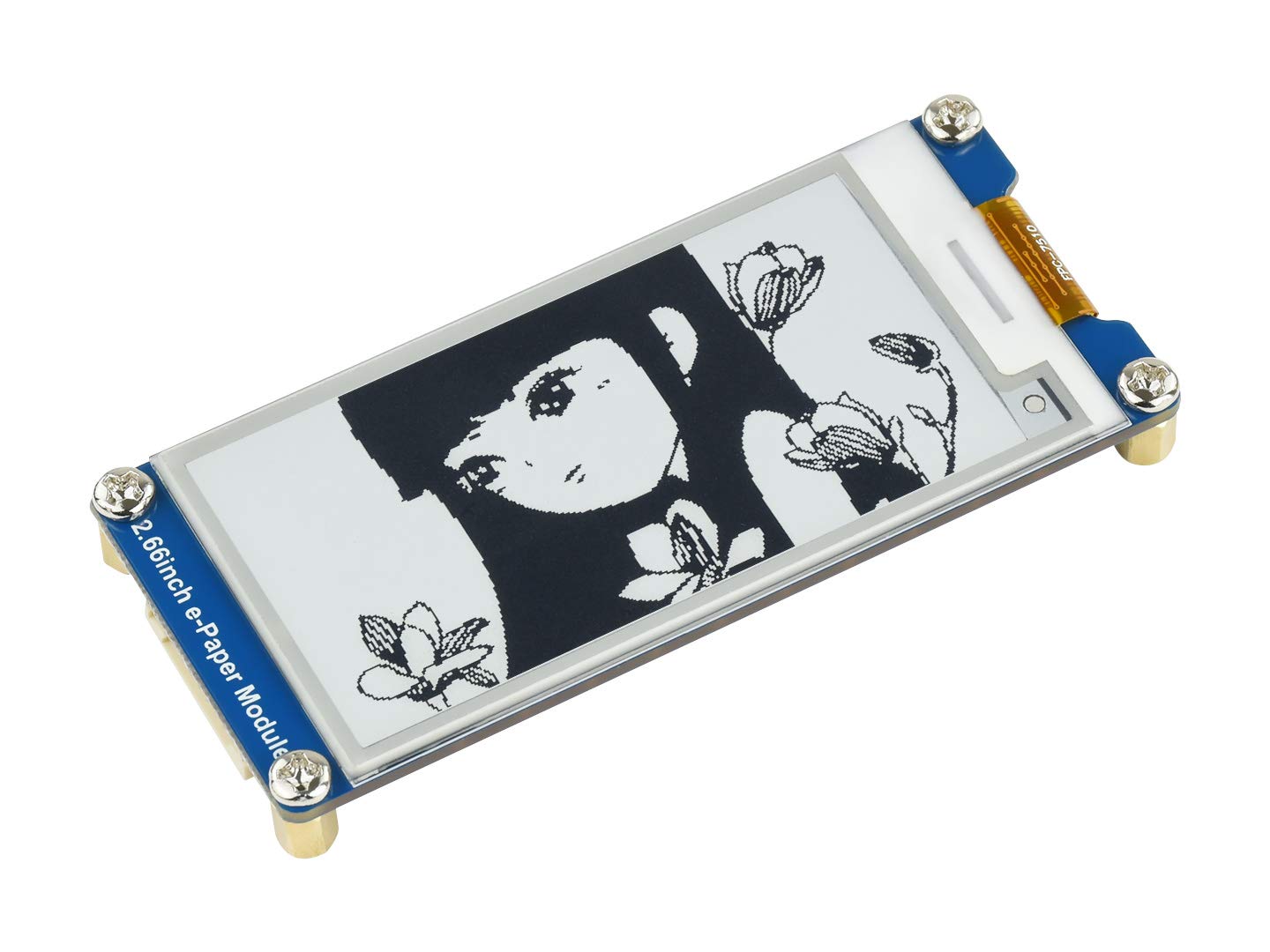

IBest 2.66inch E-paper Display HAT 296×152 Resolution 3.3V/5V Two-Color e-ink Display epaper Screen Module for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH, Support Partial Refresh, SPI Interface

• SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing

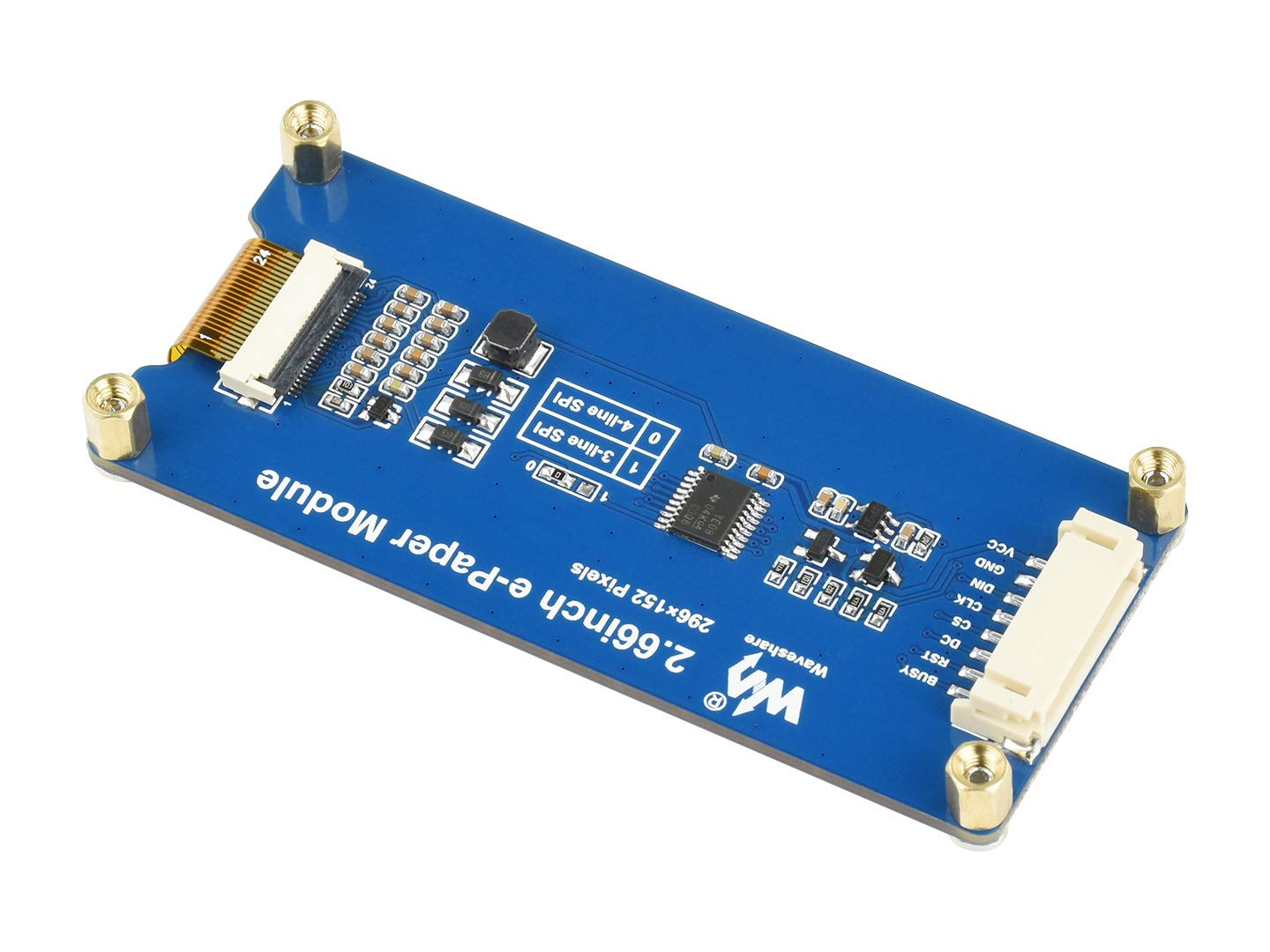

• Onboard voltage translator, compatible with 3.3V / 5V MCUs
• Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

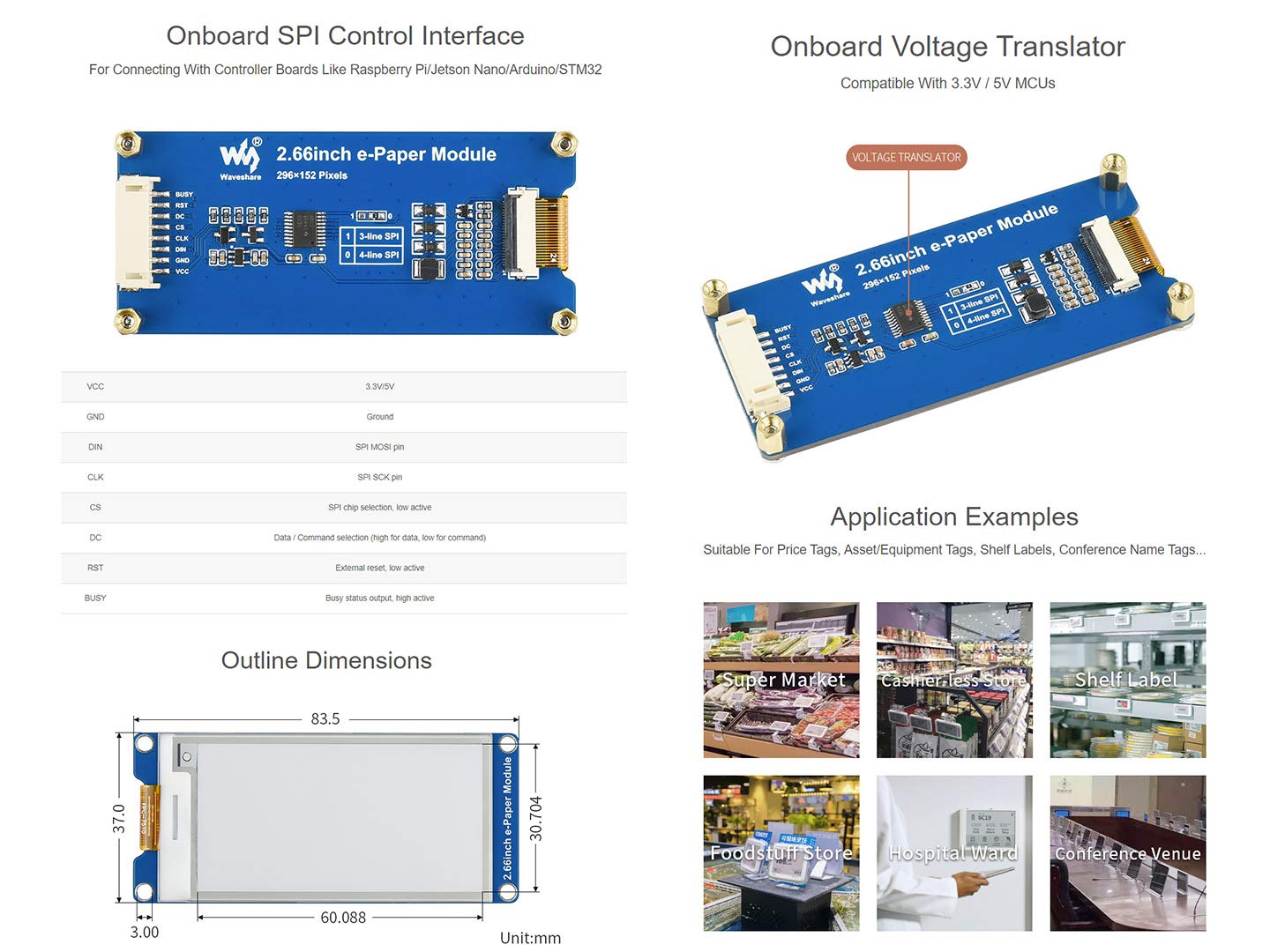

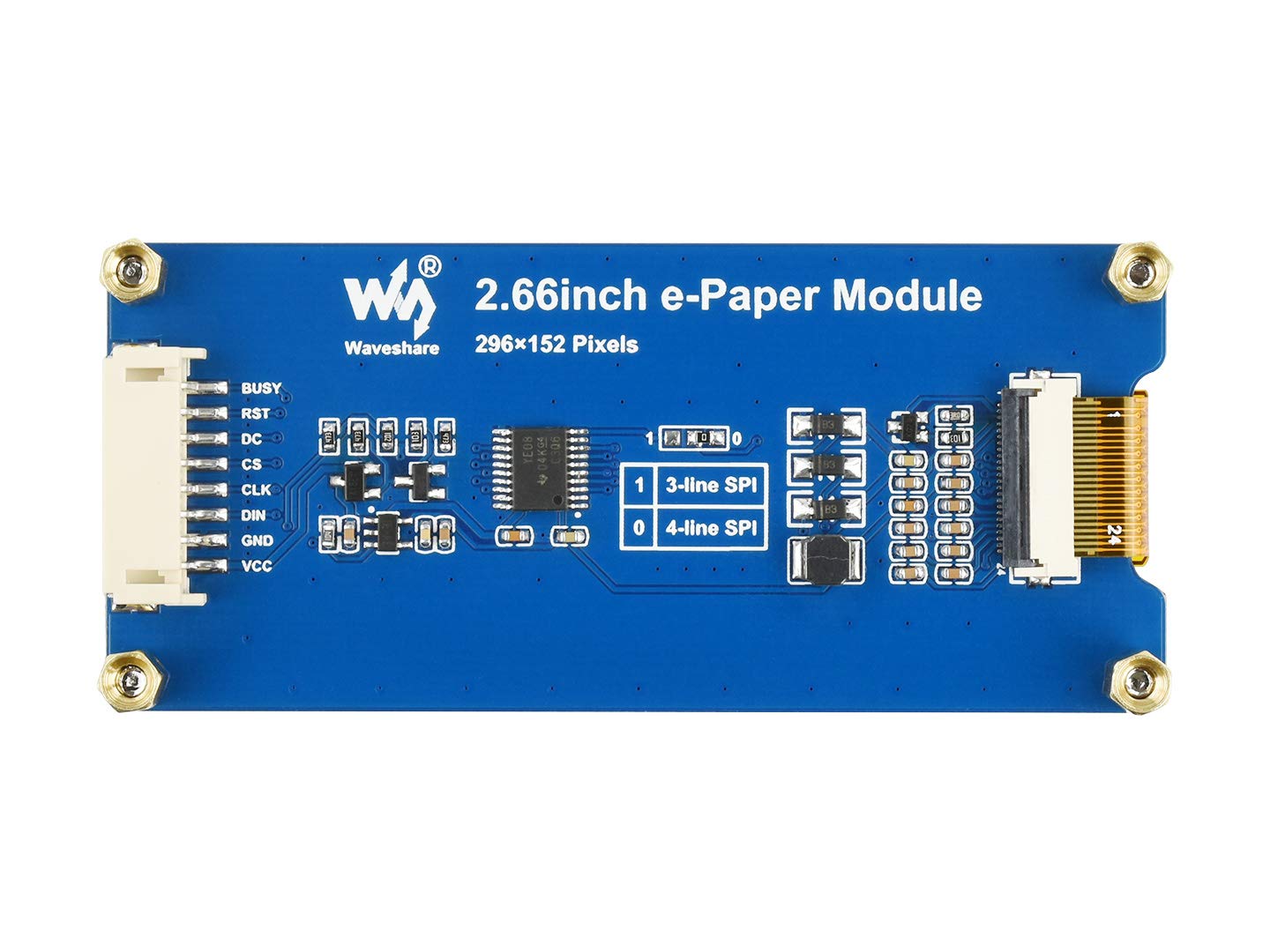

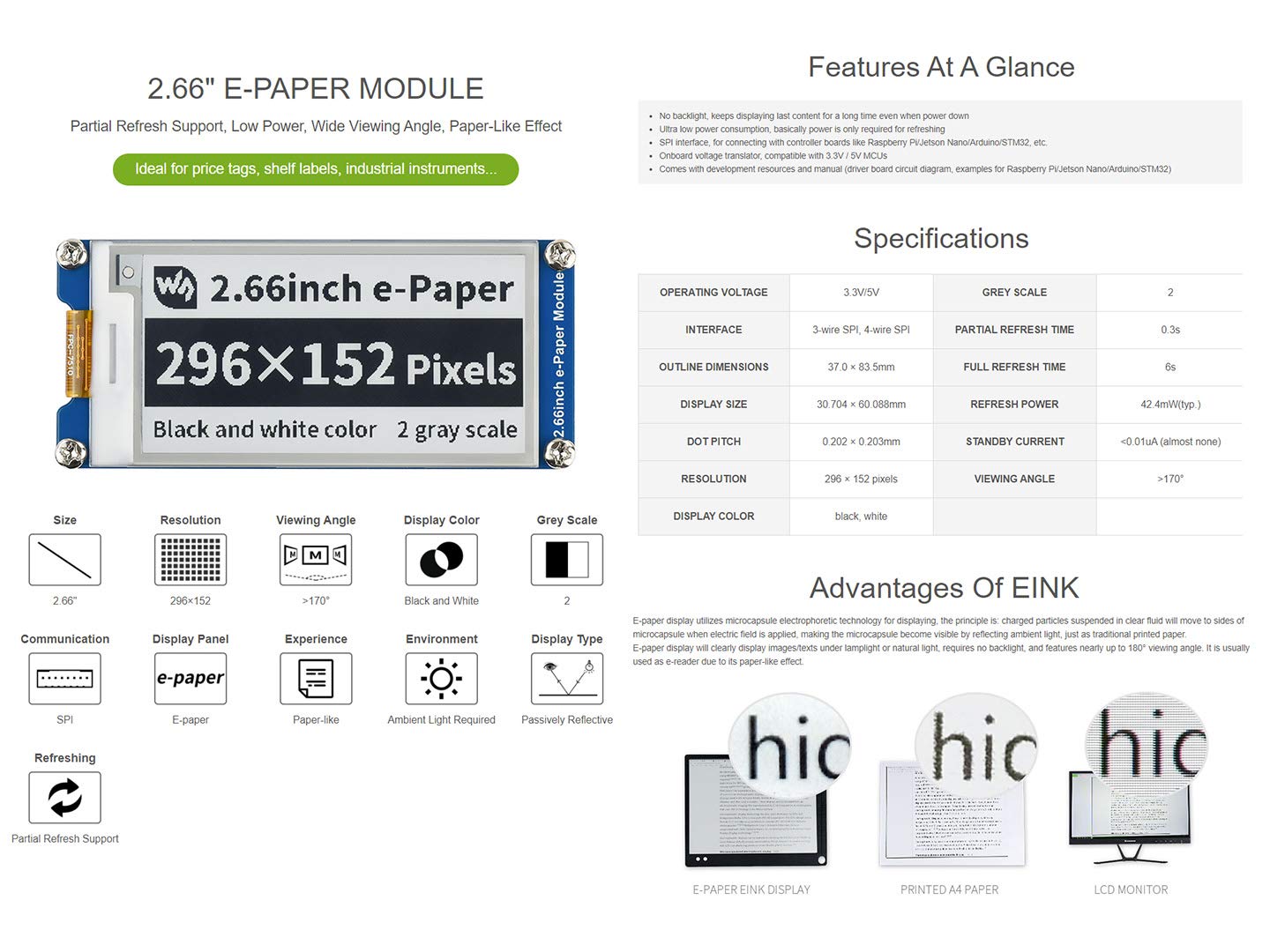

2.66inch E-Paper E-Ink Display Module, 296×152 Pixels, Black / White Dual-Color, SPI Interface Features 1.2.66" E-PAPER MODULE Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect.Ideal for price tags,shelf labels , industrial instruments... 2.Onboard SPI Control Interface For Connecting With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32 3.Onboard Voltage Translator Compatible With 3.3V / 5V MCUs 4.Application Examples Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags.. Advantages Of EINK E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect. Interface VCC--3.3V/5V GND--Ground DIN--SPI MOSI pin CLK--SPI SCK pin CS--SPI chip selection, low active DC--Data / Command selection (high for data, low for command) RST--External reset, low active BUSY--Busy status output, high active Package Content 2.66inch e-Paper Module x1 PH2.0 20cm 8Pin x1 Note More resources if you need , please contact us via Amazon message firstly to get .
