PCIe 3.1 2.5GBase-T Network Adapter with Intel I225-V / I226-V 2500/1000/100Mbps PCI Express Gigabit Ethernet NIC Card RJ45 LAN Controller for Windows 10/11 with Low Profile Bracket

• PCI Express 3.1 :5GT/s Support for x1 width (Lane).The I225-V has been discontinued, and the I226-V will replace it. The two models have identical functionality. Compared to the I225, the I226 has improved error rates, offering better data packet stability over longer cable lengths and providing a more stable network connection. It also enhances the accuracy and stability of data transmission. Additionally, the I226 reduces active power consumption compared to the I225, making it more energy-efficient
• Network Interfaces:Integrated MAC + BASE-T PHY. MDI (Copper) standard IEEE 802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-TE applications (802.3, 802.3u, 802.3bz, and 802.3ab)

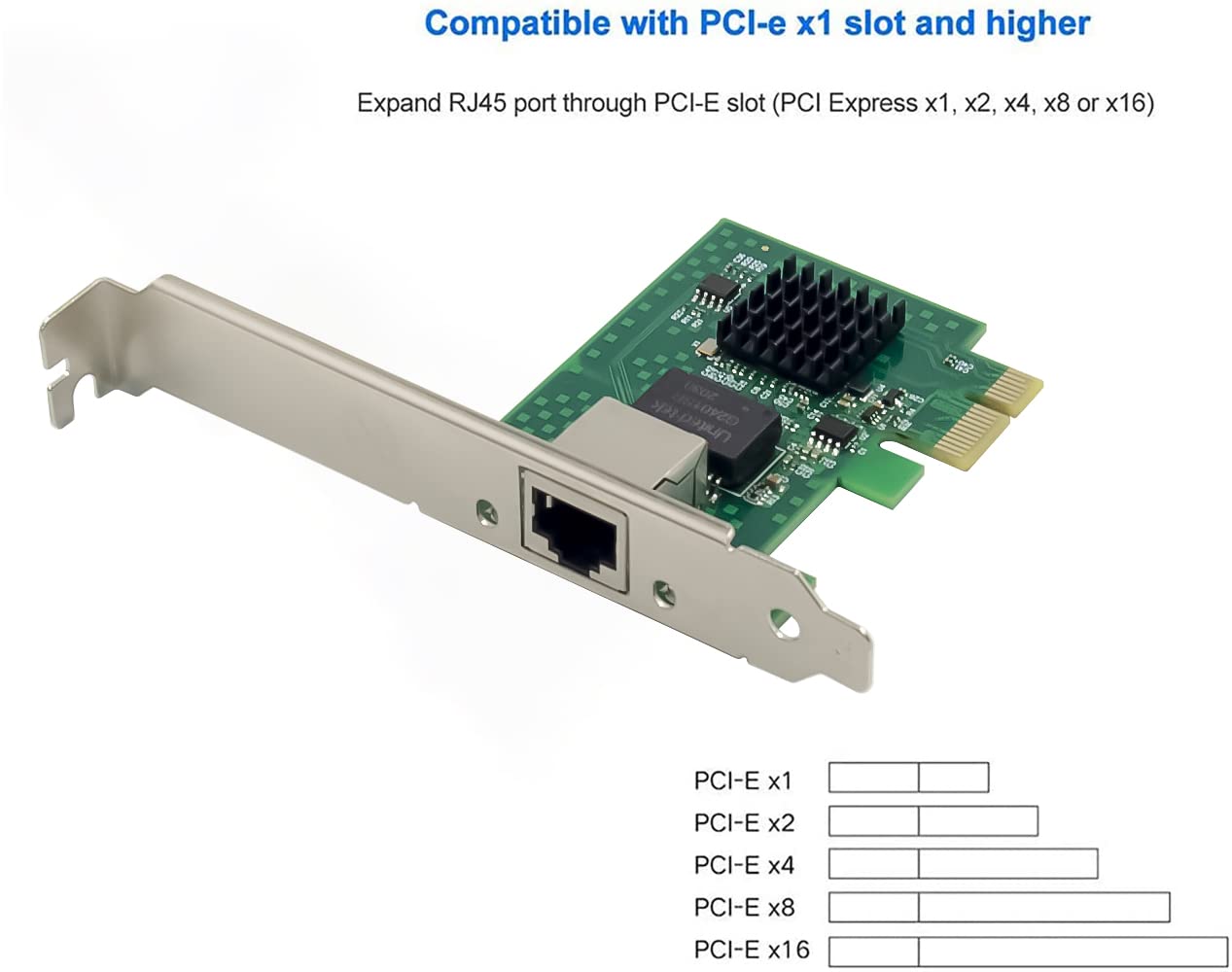

• Compatible for X1,X2,X4,X8,X16，Comes with low profile bracket
• Support ESXI7.0/OPENWRT/UNRAID/PVE/WIN10/11/Linux.Support PXE function , Full Wake on LAN and TSN
• 180 day worry-free warranty and friendly customer service. If you have any questions, we will help you solve the problem when you need it, and if it can’t be solved, we will provide a refund and no return is required.

Description This PCI Express controller with Base-T copper networking interface,provides compact, single-port integrated multi-gigabit (up to 2.5G) -MDI (Copper) standard IEEE 802.3 Ethernet interface for 2500BASE-T,1000BASE-T, 100BASE-TX, 10BASE-TE connections (IEEE 802.3,802.3u, 802.3ab). The Ethernet Controller I225 is designed for use on any mobile,desktop, workstation, value-server, or industrial designs that have critical space constraints. The I225 can also support Intel vPro technology onspecific Intel platforms and chipsets. The Ethernet Controller I225 also supports the latest time sensitive networking (TSN) features, along with best in class power management and Operating System Support Specification Compliant with PCI Express specification Revision 3.1(5GT/s) MDI(Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s Complies with single port 1GbE RJ45 port (copper) Complies with the MDI standard IEEE802.3 Ethernet interface for 2500BASE-T,1000BASE-T,100BASE-TX,10BASE-TE application( IEEE802.3bz, IEEE802.3ab ,IEEE802.3u and IEEE802.3 ) IEEE802.3 Auto-negotiator IEEE802.3x and IEEE802.3z compliant flow control support with software-controllable RX thresholds and TX pause frames Automatic cross-over detection function(MDI/MDI-X) IEEE 1588 Protocol and 802.1AS implementation Supporting Time Sensitive Networking(TSN) Capabilities Support IEEE802.3az-Energy Efficient Ethernet(EEE),EEE is supported for 2500BASE-T, 1000BASE-T and 100BASE-TX. Full Wake-On-Lan Support TCP/UDP,IPv4 checksum offloads(Rx/Tx) Transmit Segmentation offloading(TSO)(IPv4,IPv6) Support for packets up to 9.5KB Jumbo Frames PXE Support:Linux boot via PXE or BOOTP, Windows Deployment Services, or UEFI Drivers for WindowsR10 32 or 64bit Package conten 1 x PCIe I225-V Single-2.5G Network card 1 x User’s Manual 1 x CD 1 x Low profile bracket
