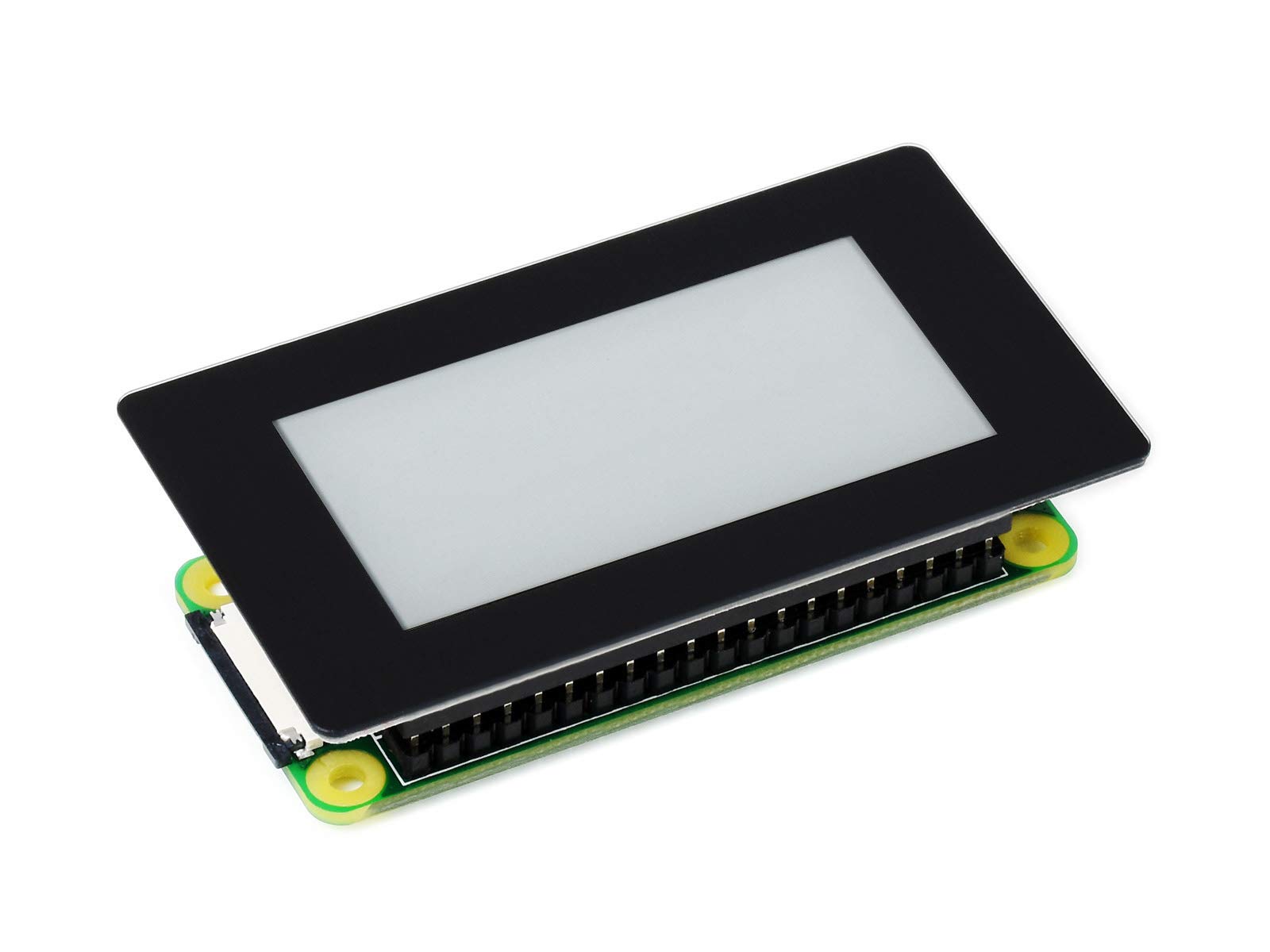

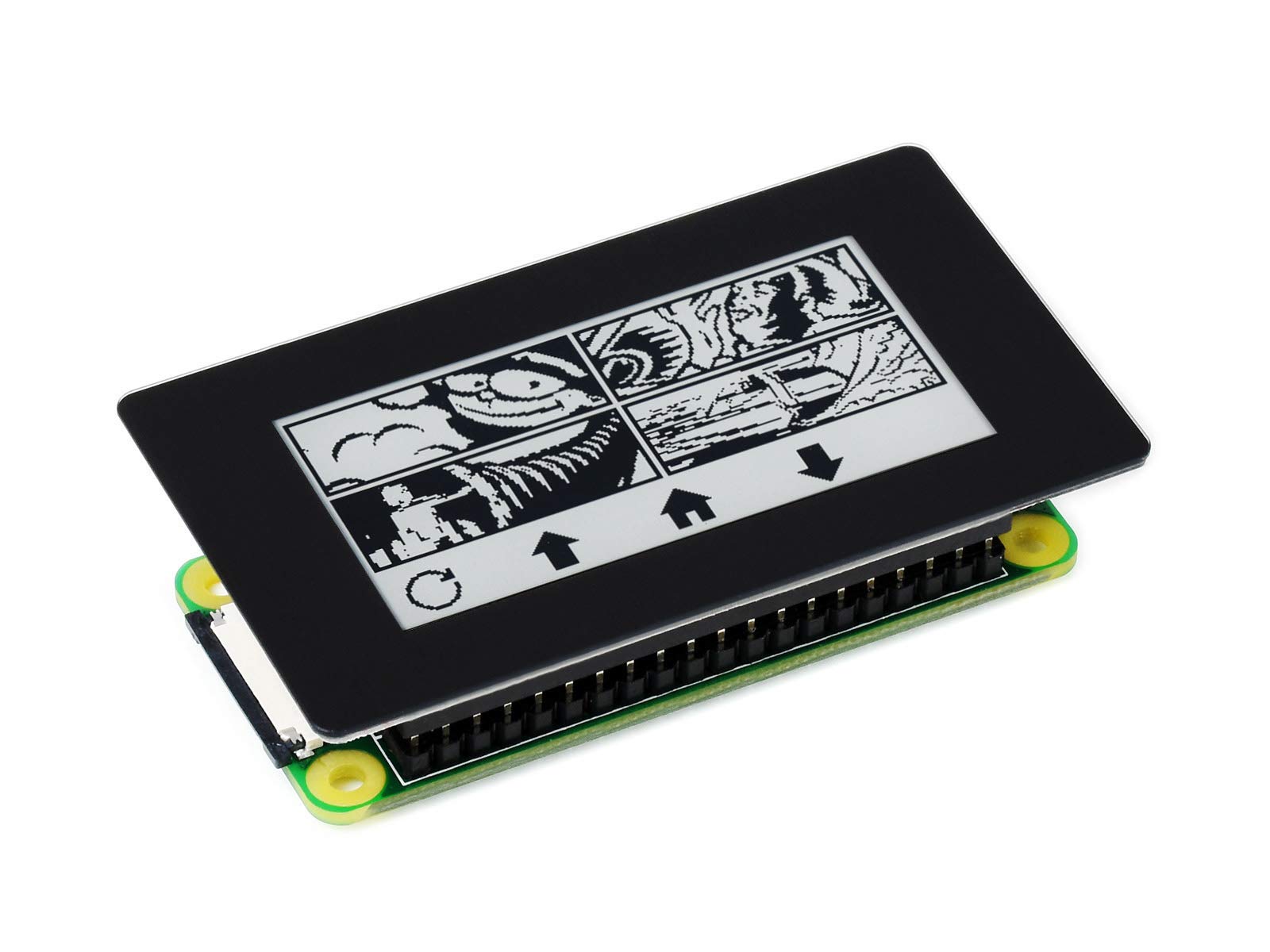

2.13inch Touch e-Paper HAT 250×122 Pixels White Black Two Color E-Ink Display epaper Screen for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH,SPI Interface,Support Partial Refresh

• 2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels.Supports waken up by user-defined gesture

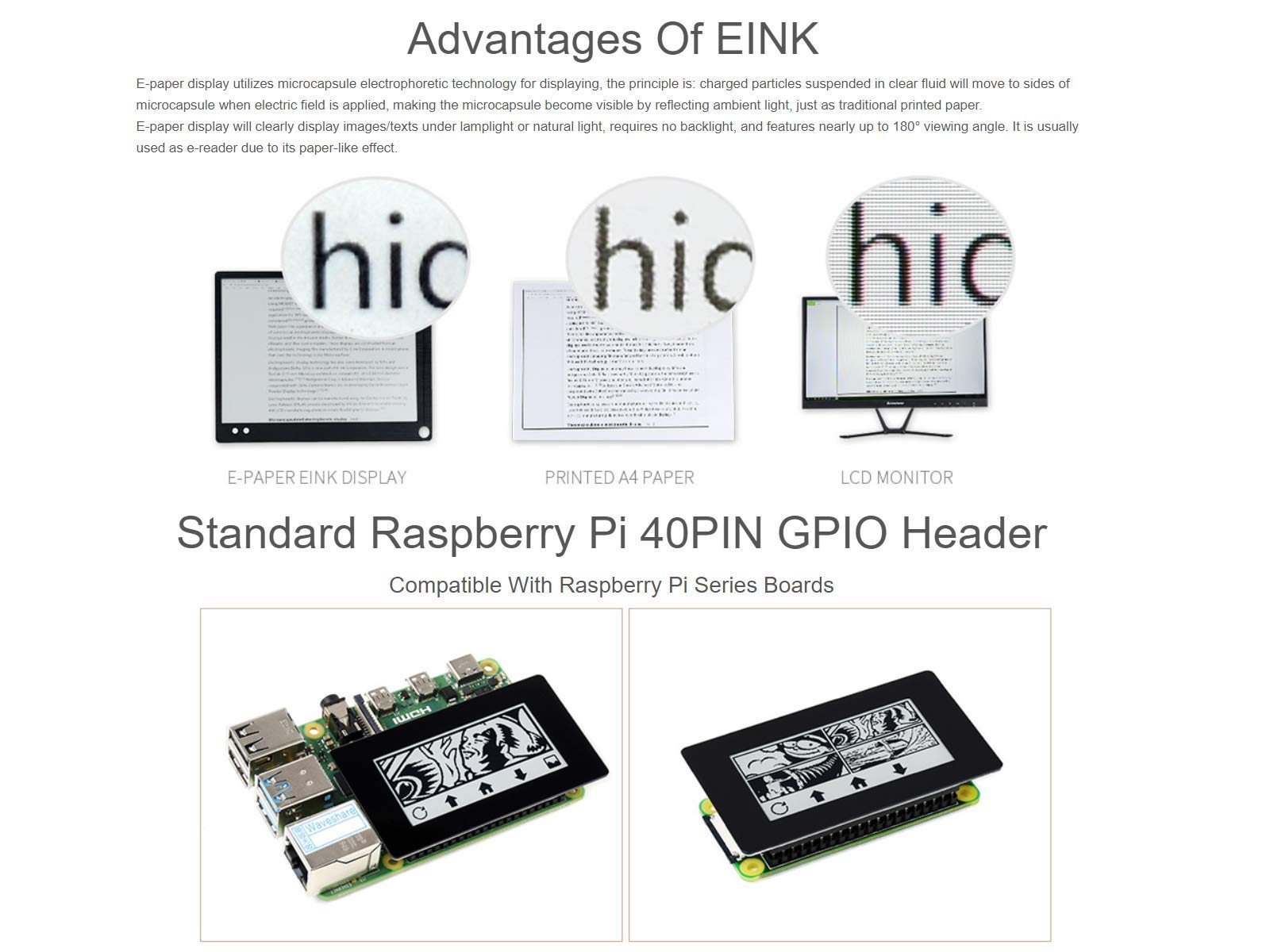

• No backlight, keeps displaying last content for a long time even when power down.Ultra low power consumption, basically power is only required for refreshing

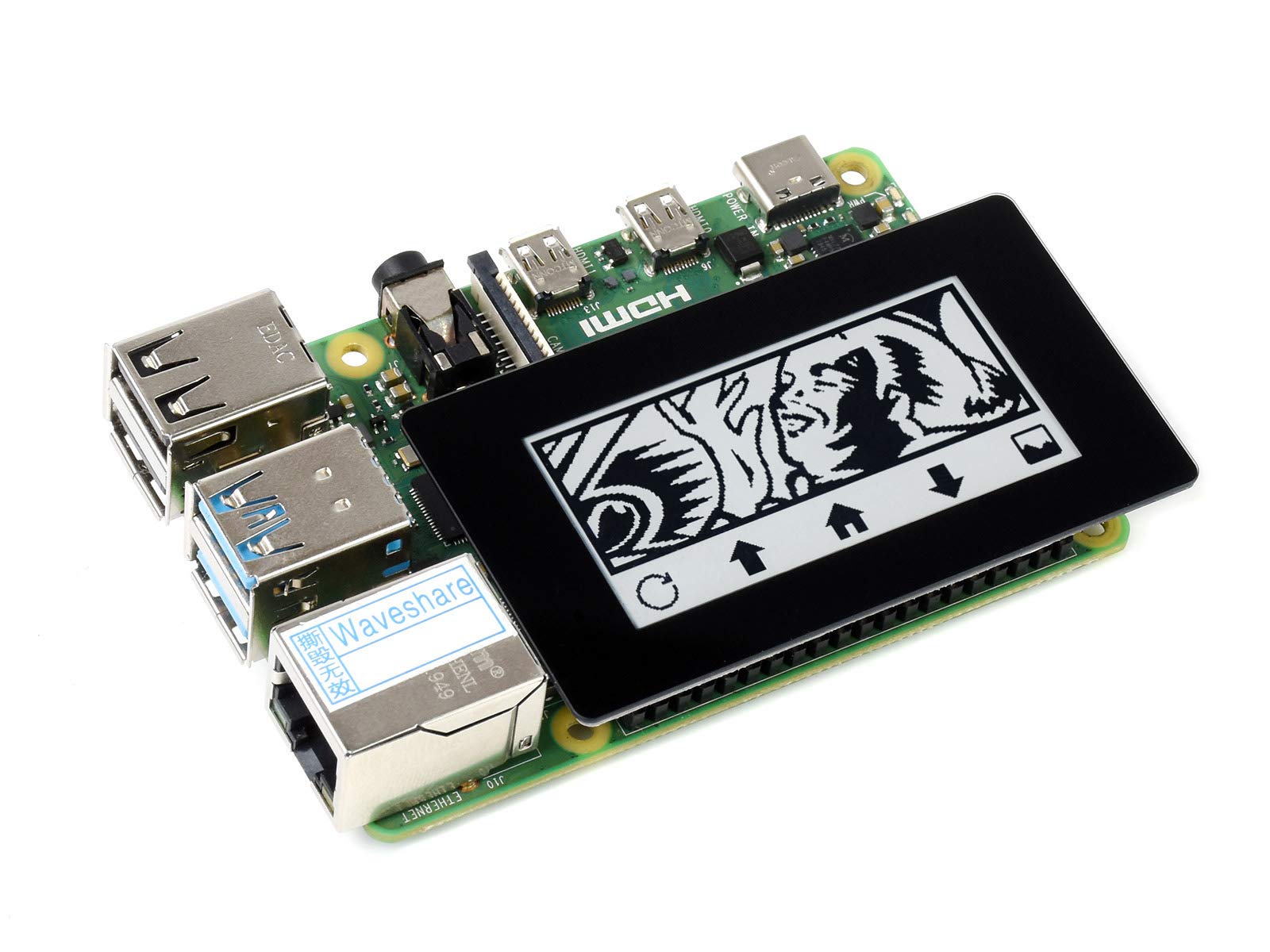

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• SPI interface, for connecting with controller boards like Arduino/STM32, etc.
• Comes with development resources and manual (examples for Raspberry Pi)

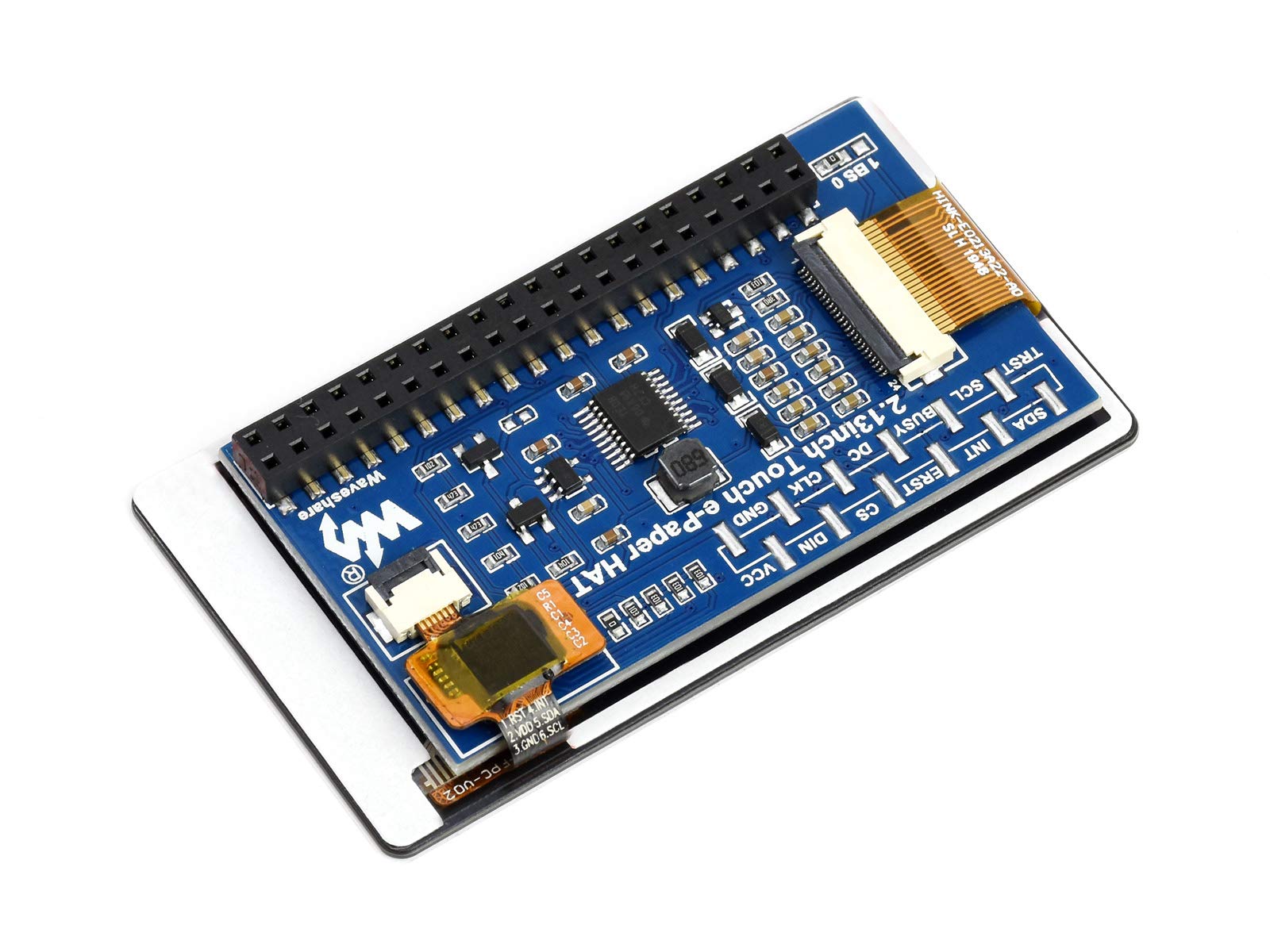

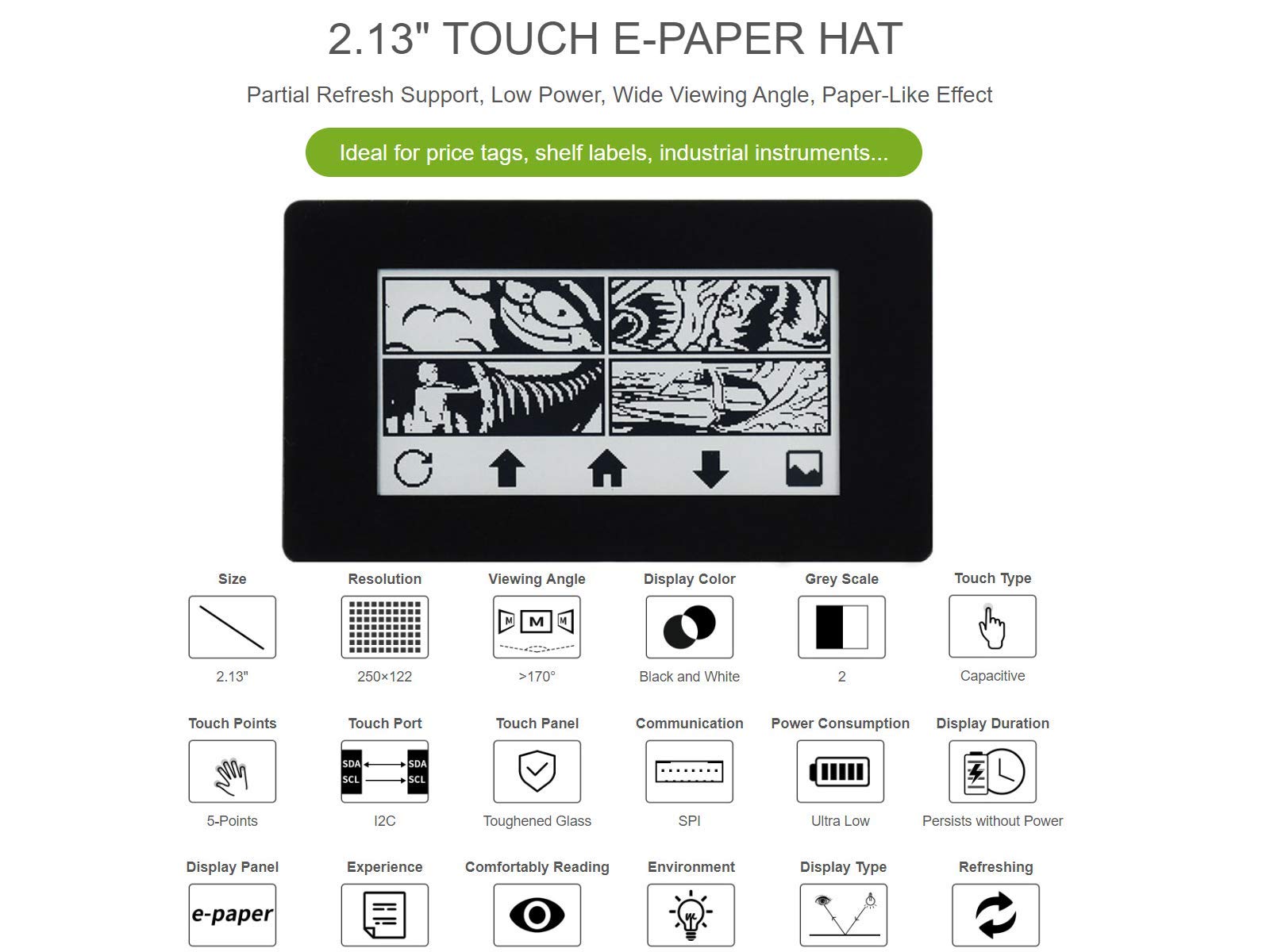

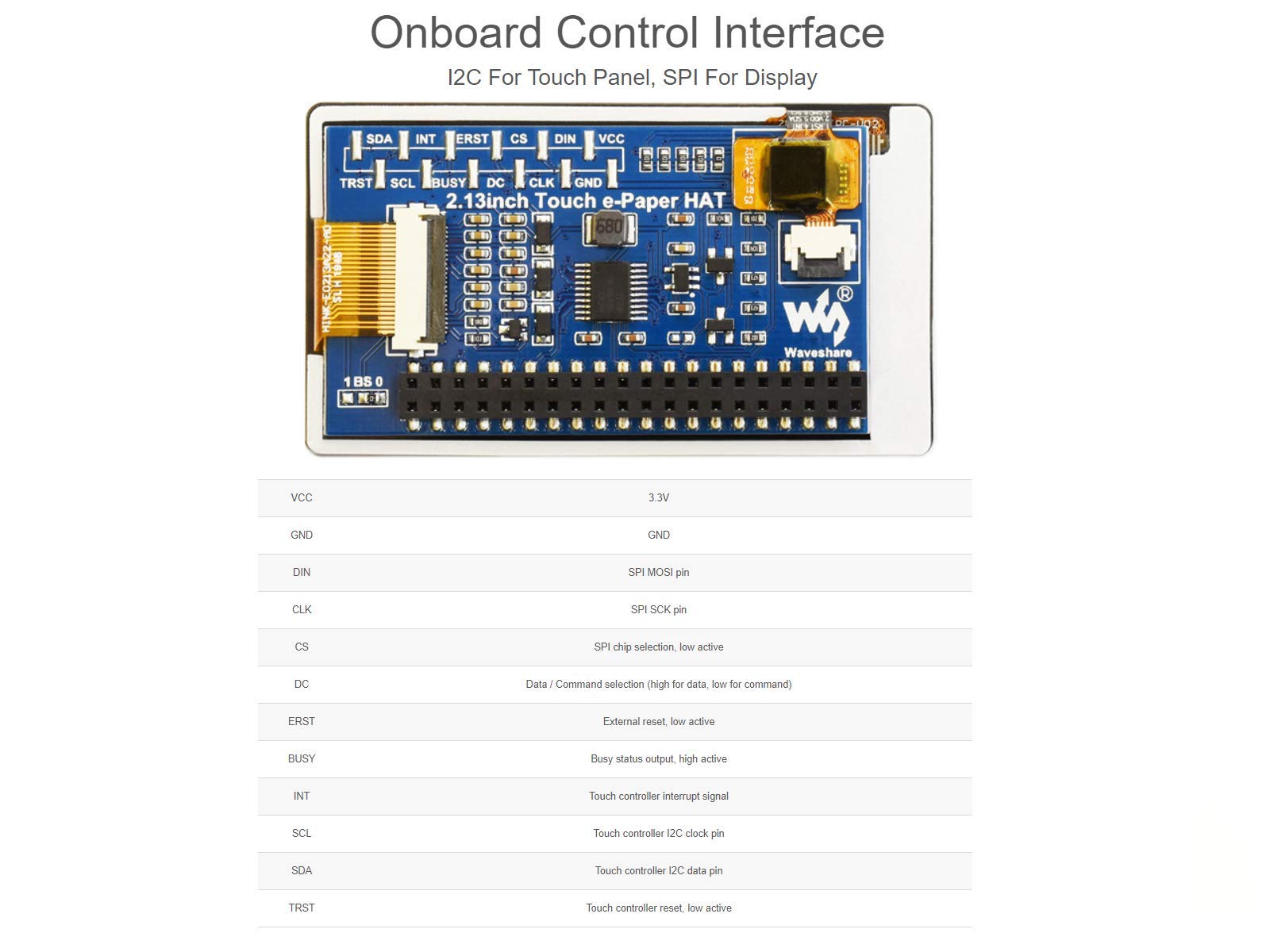

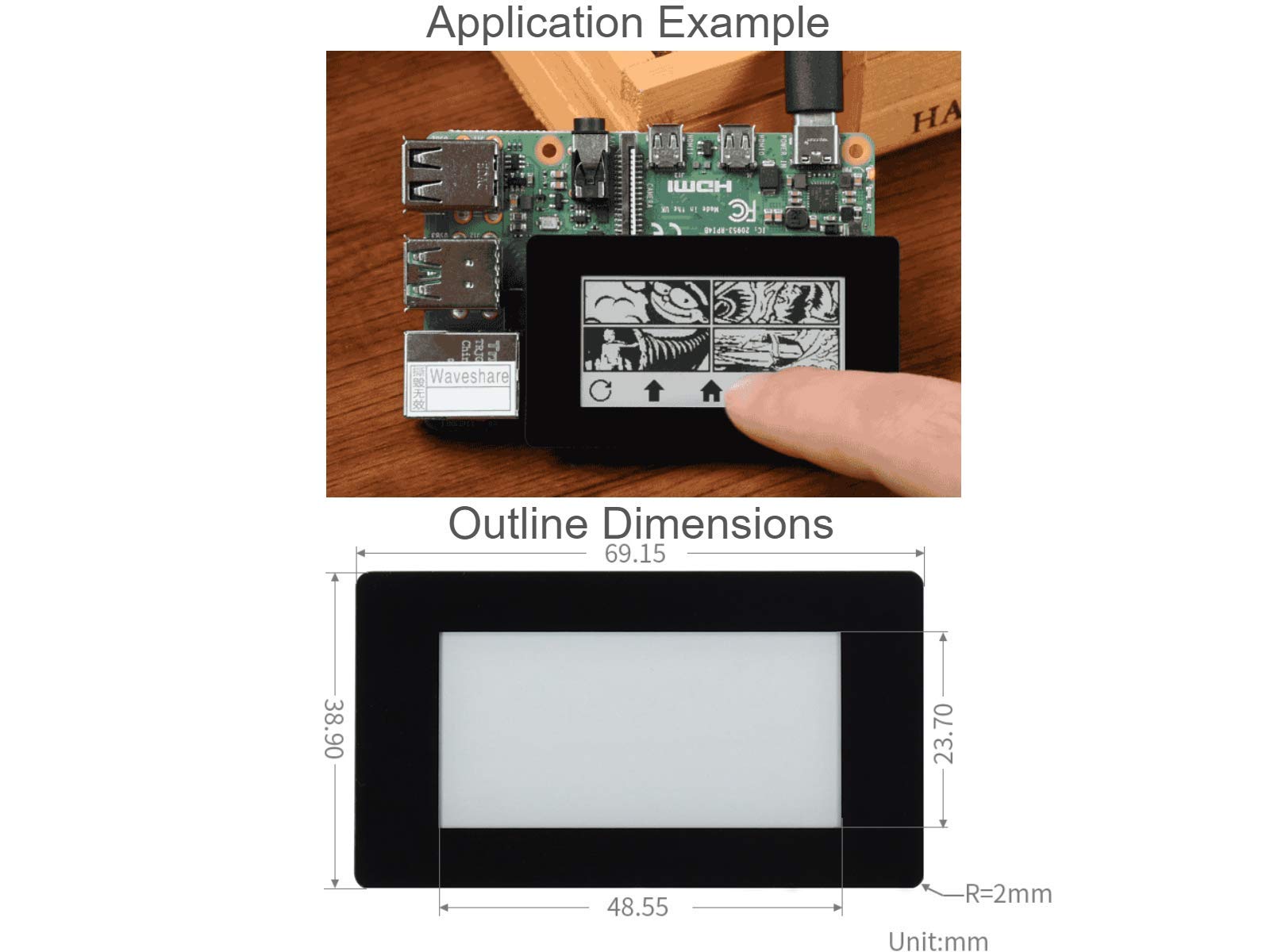

2.13inch Touch E-Paper E-Ink Display HAT For Raspberry Pi, 250×122 Pixels, Black / White, SPI Interface Features 1.2.13" TOUCH E-PAPER HAT Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect Ideal for price tags, shelf labels, industrial instruments... 2.Standard Raspberry Pi 40PIN GPIO Header Compatible With Raspberry Pi Series Boards 3.Onboard Control Interface I2C For Touch Panel, SPI For Display Specifications OPERATING VOLTAGE--3.3V INTERFACE--3-wire SPI, 4-wire SP OUTLINE DIMENSIONS--69.15 × 38.90mm DISPLAY SIZE--48.55 × 23.70mm DOT PITCH--0.194 × 0.194mm RESOLUTION--250×122 pixels DISPLAY COLOR--black, white GREY SCALE--2 PARTIAL REFRESH TIME--0.3s FULL REFRESH TIME--2s REFRESH POWER--26.4mW(typ.) STANDBY CURRENT--<0.01uA (almost none) VIEWING ANGLE-->170° TOUCH POINT--5 (max) Package Content 2.13inch e-Paper HAT x1 Development Resources https://www.waveshare.com/wiki/2.13inch_Touch_e-Paper_HAT?Amazon Note Refresh time: The refresh time is experimental test data, there will have some deviation from the actual refresh time, so please refer to the actual refresh time. The e-paper will flicker during the full refresh process, this is a normal phenomenon. Power consumption: The power consumption data is experimental test data. The actual power consumption will have a certain deviation due to the existence of the driver board and the actual usage. Please refer to the actual refresh power consumption.
